Show your DIY Projects

Discussion in 'Brewing Photos & Videos' started by DanC, Oct 27, 2013.

  1. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,491
    Likes Received:
    8,067
    Trophy Points:
    113
    Well, as long as it is just a line voltage signal to power the coil in a relay, I see no reason to further debate the subject!

    Trialben likes this.
  2. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,512
    Likes Received:
    10,060
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Debate debated:confused:

  3. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    1,026
    Likes Received:
    1,468
    Trophy Points:
    113
    Location:
    South Central Pennsylvania
    Smart Plug....sounds re-volt-ing

  4. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,963
    Likes Received:
    3,235
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Nothing strictly brewing related but I think I may have to build myself a brewery sign. Did a bunch of scroll work training this weekend and thought this looked particularly cool.

  5. BarbarianBrewer

    BarbarianBrewer Well-Known Member

    Joined:
    Mar 12, 2017
    Messages:
    619
    Likes Received:
    1,072
    Trophy Points:
    93
    Location:
    Milwaukee, WI
    DIY and fire!! :) That looks really cool!

    Trialben likes this.
  6. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,963
    Likes Received:
    3,235
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    It's a lot of fun. And helps me burn off the calories from this hobby. :) I will say with absolute certainty that this forum is a much better learning environment than the smithing ones I found. I've decided I'll stick to books for that and the local smith who sells me supplies.

    Frankenbrewer and Trialben like this.
  7. BarbarianBrewer

    BarbarianBrewer Well-Known Member

    Joined:
    Mar 12, 2017
    Messages:
    619
    Likes Received:
    1,072
    Trophy Points:
    93
    Location:
    Milwaukee, WI
    They should put a "No Newbies" warning on the top of their forum. I'm so glad BF is as friendly and welcoming as it is (as long as we stay away from politics that is ;)). Hopefully if I ever get to be that crabby old guy snapping at the newbies, someone will remind me I was once the newbie! If that doesn't work then give me my pills, sit me in my recliner and turn on Wheel of Fortune. :D

  8. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,963
    Likes Received:
    3,235
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    It's why I use this forum and don't really use any of the others.

    It was especially frustrating being told I had to use X and only X when doing something cause everything else is garbage but you can't buy X in Canada. No interest in helping me compensate, just "Buy X or don't bother". Which is not cool.

    Trialben and BarbarianBrewer like this.
  9. Donoroto

    Donoroto Well-Known Member

    Joined:
    Jun 21, 2020
    Messages:
    648
    Likes Received:
    799
    Trophy Points:
    93
    Occupation:
    Retired Engineer
    Location:
    Atlanta
    When you're hot, you're hot...

  10. Frankenbrewer

    Frankenbrewer Well-Known Member

    Joined:
    Jul 19, 2019
    Messages:
    633
    Likes Received:
    957
    Trophy Points:
    93
    Location:
    Connecticut
    "Hey you kids, get away from that keg!"

  11. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,491
    Likes Received:
    8,067
    Trophy Points:
    113

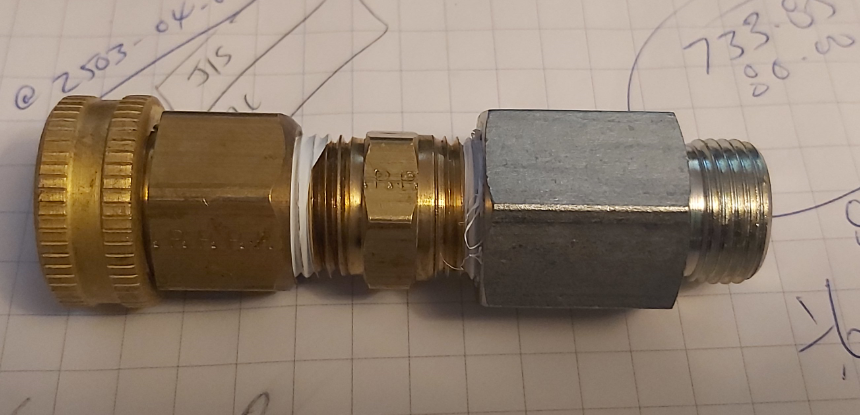

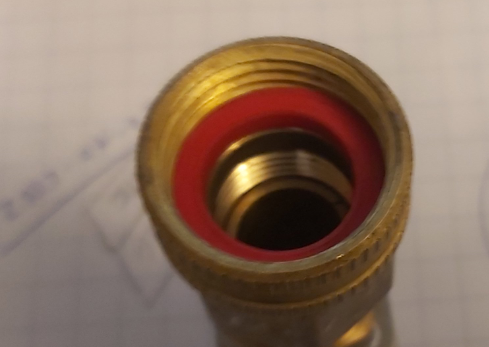

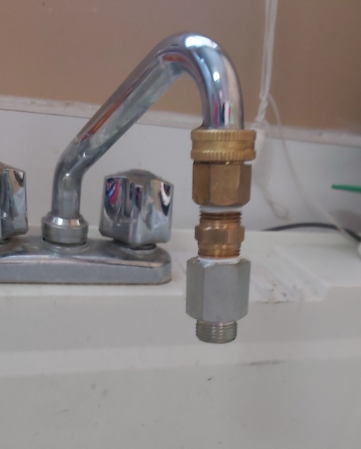

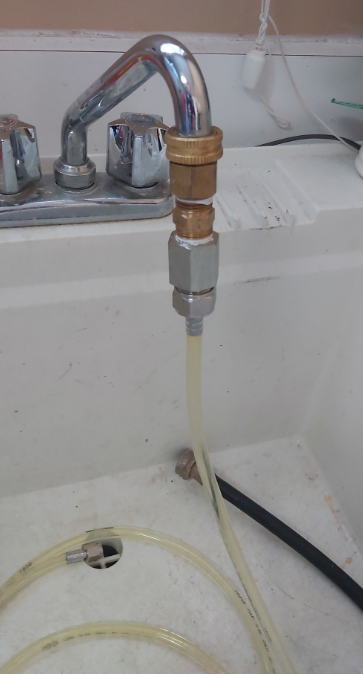

    Another low tech, but slick, and time saving DIY.
    Cleaning beer lines is such a little thing to do, but setting up to do it is a pain (for me at least).
    Not anymore with this little fella!
    I can now remove the beer line when a keg kicks, connect it to my laundry faucet and run super hot water through it right away!
    Lines may need a proper cleaning sometimes, but running 160F (71C) water through these lines each time should keep them clean enough.
    I will immerse in sanitizer before connecting to another keg.
    upload_2021-3-9_14-58-30.png upload_2021-3-9_14-58-0.png

    Tad, Trialben, Herm_brews and 2 others like this.
  12. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,491
    Likes Received:
    8,067
    Trophy Points:
    113
    Fittings are as follows:

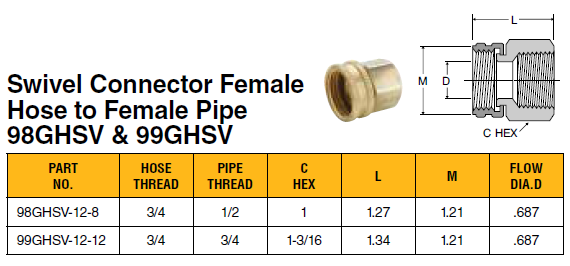

    Parker PN: 98GHSV-12-8

    Parker PN: 216P-8

    Parker Hose Products Div PN: 0502-10-8

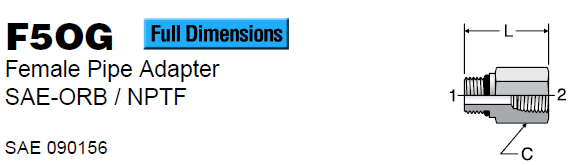

    Parker Tube Fittings Div PN: 10-1/2 F5OG-S
    Generic Manufacturer PN: 6405-10-08

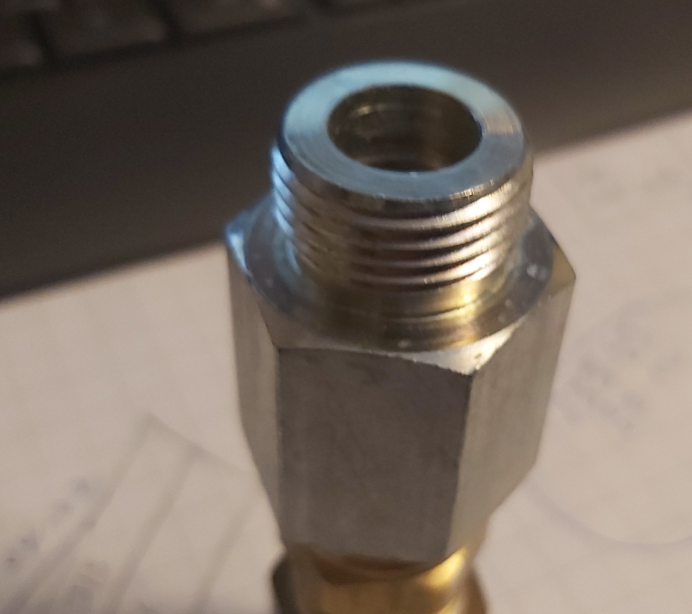

    The #10 SAE/ORB thread is 7/8-14, same as tap shank threads!
    Just remove the oring pictured, and use the seal washer from your tap.


    Tad likes this.
  13. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,454
    Likes Received:
    3,601
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  14. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,491
    Likes Received:
    8,067
    Trophy Points:
    113

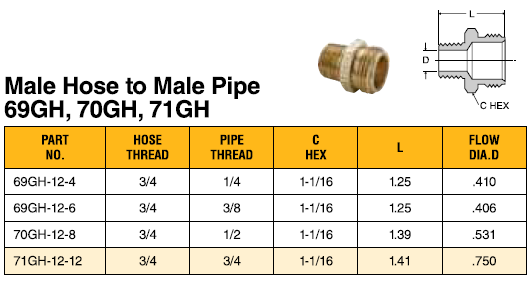

    Parker does not have that size, in the GH Swivel x MNPT they only have 1/4" and 3/8" MNPT for some reason.

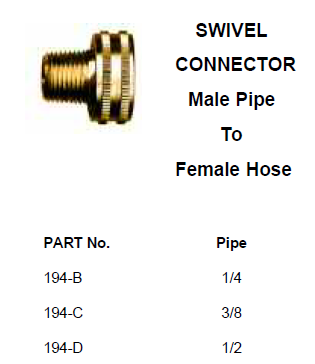

    Fairview has this fitting though, part number 194-D. I never had any quality issues with Fairview Brass.
    I have reached out to Fairview to see where you can buy their products in your area, will let you know when I hear back.
    This is the business I am in, so I have access to anything hose and fitting wise at my place of work.


  15. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,491
    Likes Received:
    8,067
    Trophy Points:
    113
  16. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,790
    Likes Received:
    7,360
    Trophy Points:
    113
    Trialben likes this.
  17. west1m

    west1m Well-Known Member

    Joined:
    May 10, 2019
    Messages:
    244
    Likes Received:
    375
    Trophy Points:
    63
    Location:
    Hastings, Minnesota
    #537 west1m, Mar 19, 2021
    Last edited: Mar 19, 2021

    Spring MUST be just around the corner!
    Last fall I stashed a few hops plant I had started in pots in the garage. I keep it about 48*f as I go out and work in it quite a bit and have things I don't want frozen.
    Anyway, I just noticed the plants are getting enough sunlight that they are coming alive!

  18. FrostyBeach

    FrostyBeach Well-Known Member

    Joined:
    Nov 23, 2013
    Messages:
    204
    Likes Received:
    467
    Trophy Points:
    63
    Location:
    Duluth, MN
    Mine are still quite frozen

  19. AHarper

    AHarper Well-Known Member

    Joined:
    Mar 23, 2018
    Messages:
    614
    Likes Received:
    745
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sussex, UK

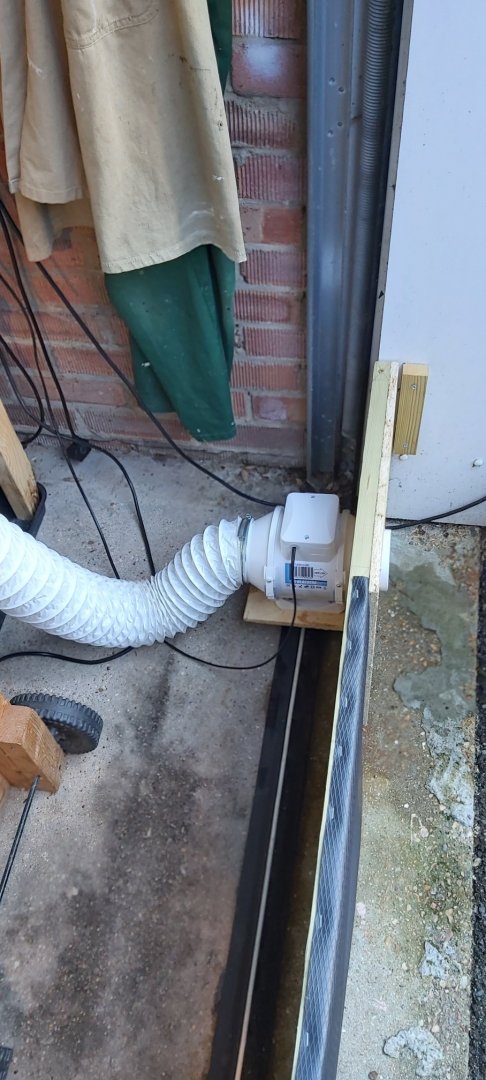

    I can only really brew with the garage door open due to the rain that would fall inside the garage and soak everything because of the steam from the boil. Well that is until now - I hope.

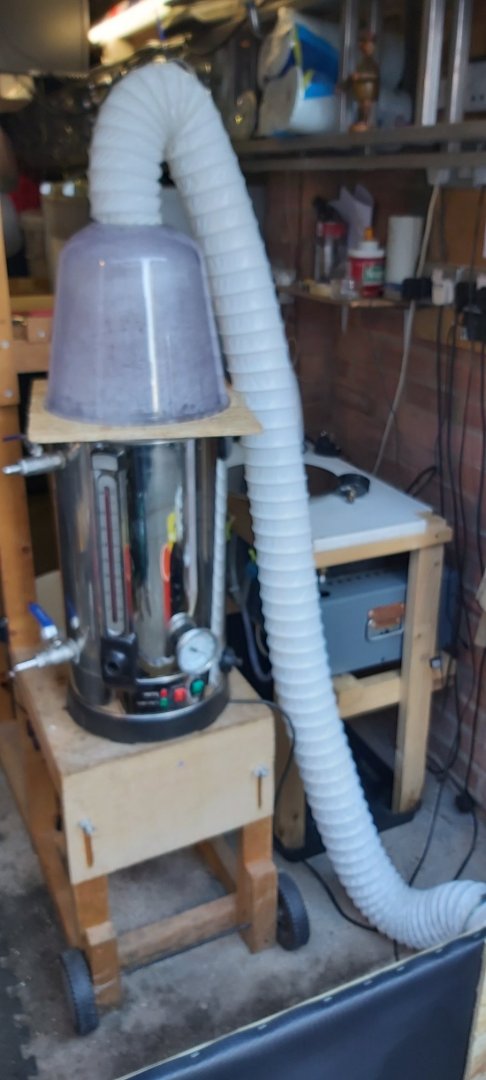

    I fitted a 45cm high frame at ground level between the garage door sides and installed a turbo (manufacturers description) in-line fan at one end. The fan is connected to a plastic bell-end (no not me!) that is suspended over the kettle using the coiled plastic ducting.
    The bell is supported above the kettle top with spacers to allow air to be sucked in and, hopefully, carry the steam away down the ducting by the fan. The frame at the door allows me to shut the garage door down to the same level and stop any howling wind that I usually get battering the garage doorway - especially when I want to brew when the weather is crap.

    Well that is the plan anyway. Test runs suggest it does work but because the bell is so thin there may be more condensation created than the fan can carry away. I could reduce the ducting length and insulate the bell to avoid that... I'll wait and see...

    Extractor_1.jpg Extractor_2.jpg

  20. west1m

    west1m Well-Known Member

    Joined:
    May 10, 2019
    Messages:
    244
    Likes Received:
    375
    Trophy Points:
    63
    Location:
    Hastings, Minnesota
    You might want to at least ad some sort of insulation around your bell and the uphill part of the exhaust ducting. Water will collect and run back in.
