Show me your DIY Immersion Chiller

Discussion in 'Brewing Photos & Videos' started by Craigerrr, Sep 26, 2020.

  1. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113

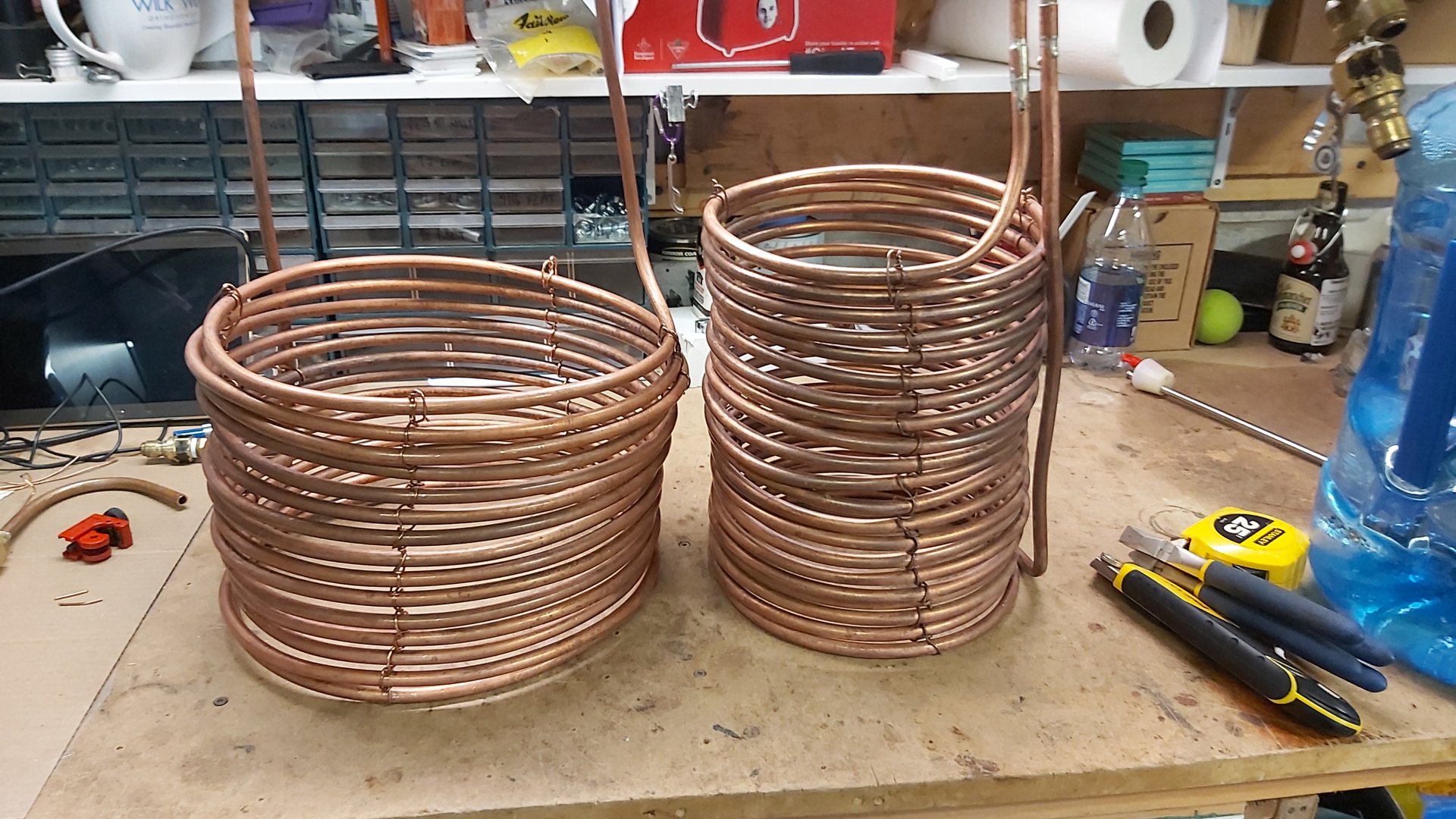

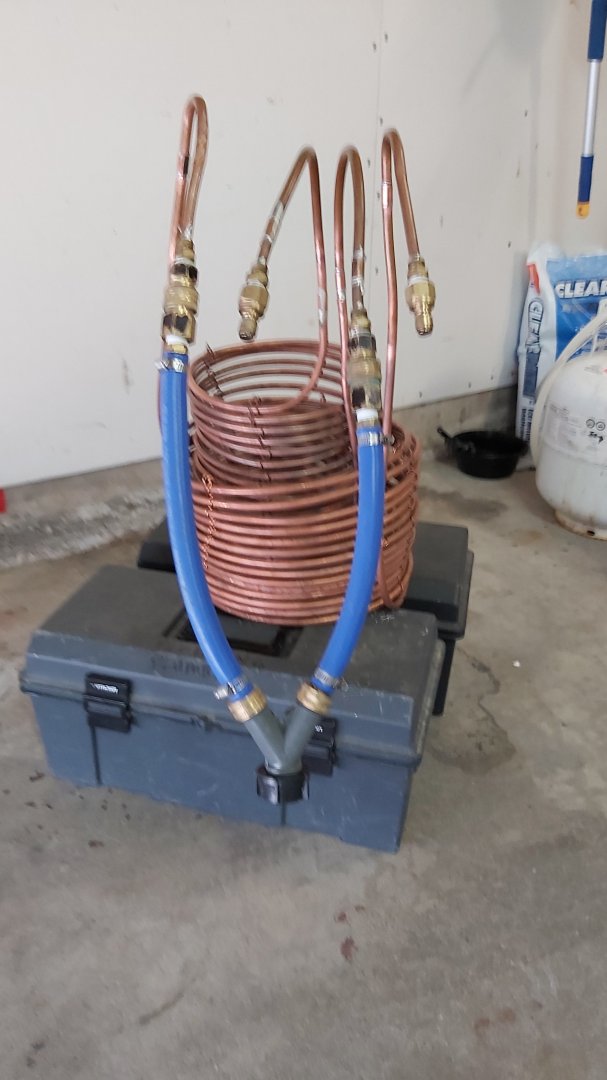

    When I sold my 3 vessel keggle system, I sold the chiller(s) with it. It was basically two chillers that I split flow between, and it worked fine.
    20200426_113254.jpg 20200428_113812.jpg

    Now I have a Brewzilla, which came with an immersion chiller, but I don't find that it is very affective. I think I want to make a custom 3 pass unit out of copper, and use the stainless coil as a pre-chiller in the warmer months. I do have some ideas, but I am curious to see what the resourceful DIY'ers here have come up with.

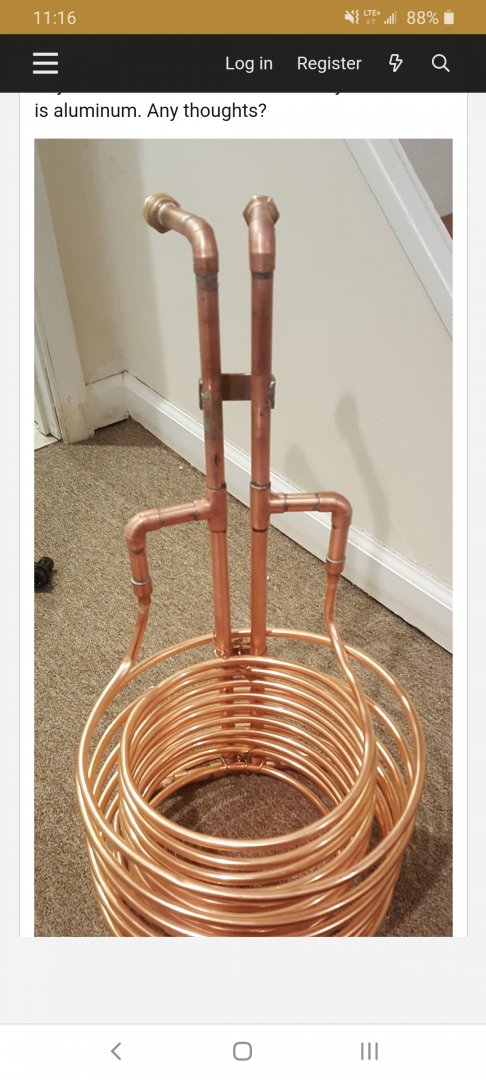

    Thinking about something like this.

  2. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    956
    Likes Received:
    1,412
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    THAT THING LOOKS AWESOME! Whats the configuration at the bottom...I can't quite figure out the flow from that angle...is it injecting cool water at the top AND the bottom?

    Trialben likes this.
  3. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113
    This one is just a picture I copied from google that I am using for inspiration. One pipe is in, the other is out. The in pipe splits off to two separate coils, then both coils link up to the outlet side, so a two pass chiller. I am actually planning to do a three pass unit, 3 x 25' coils of 3/8"OD tubing.

  4. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    956
    Likes Received:
    1,412
    Trophy Points:
    93
    Location:
    South Central Pennsylvania

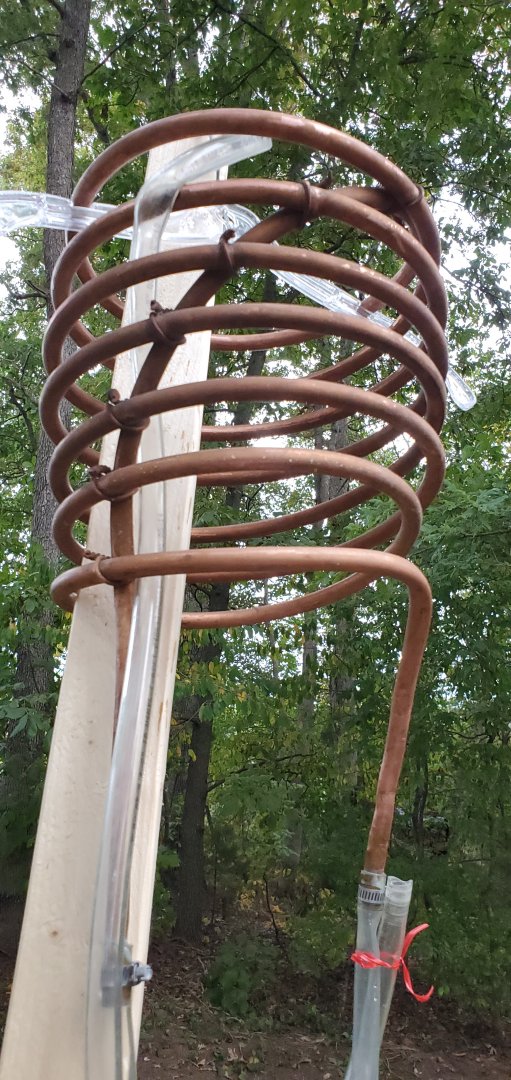

    Mine's very basic. I made it "rigid" when I was trying to brew in an 8 gallon pot and kept it that way. Gets the wort cooled down to pitching temp in about a 1/2 hour.


    Trialben, Craigerrr and Megary like this.
  5. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113

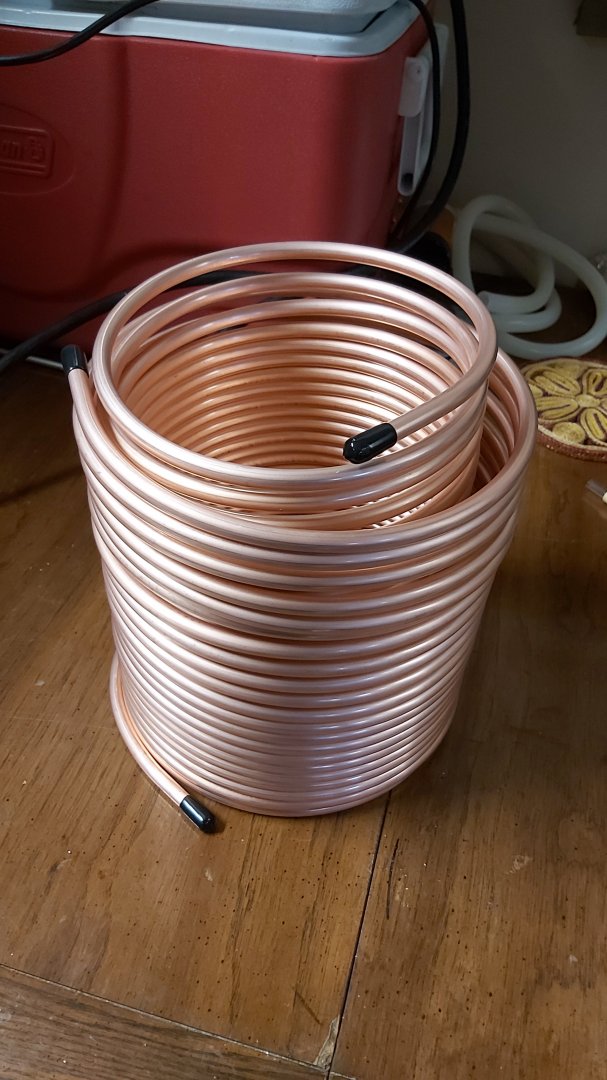

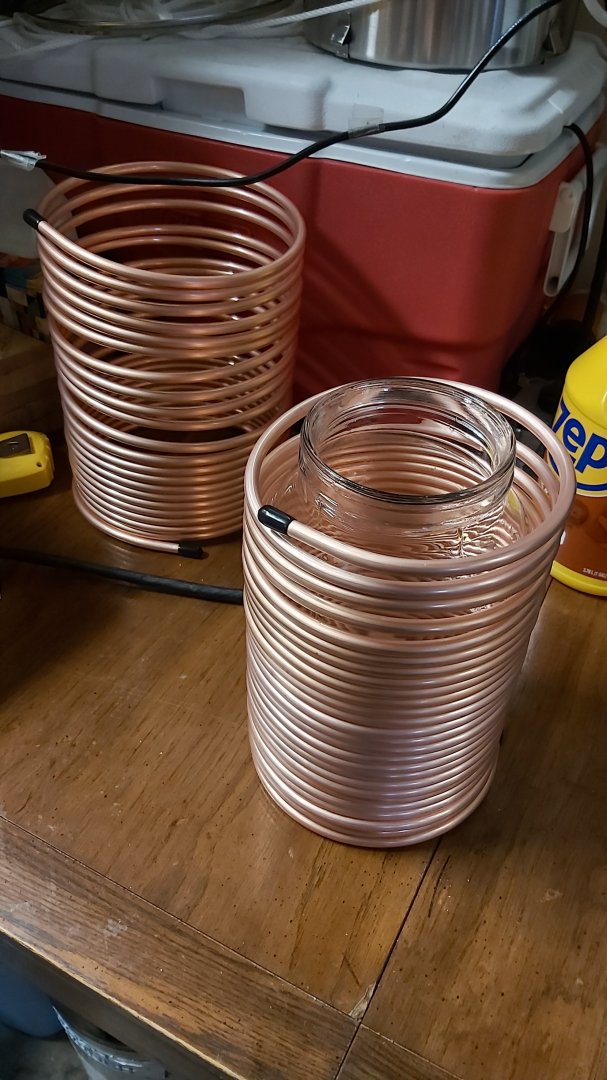

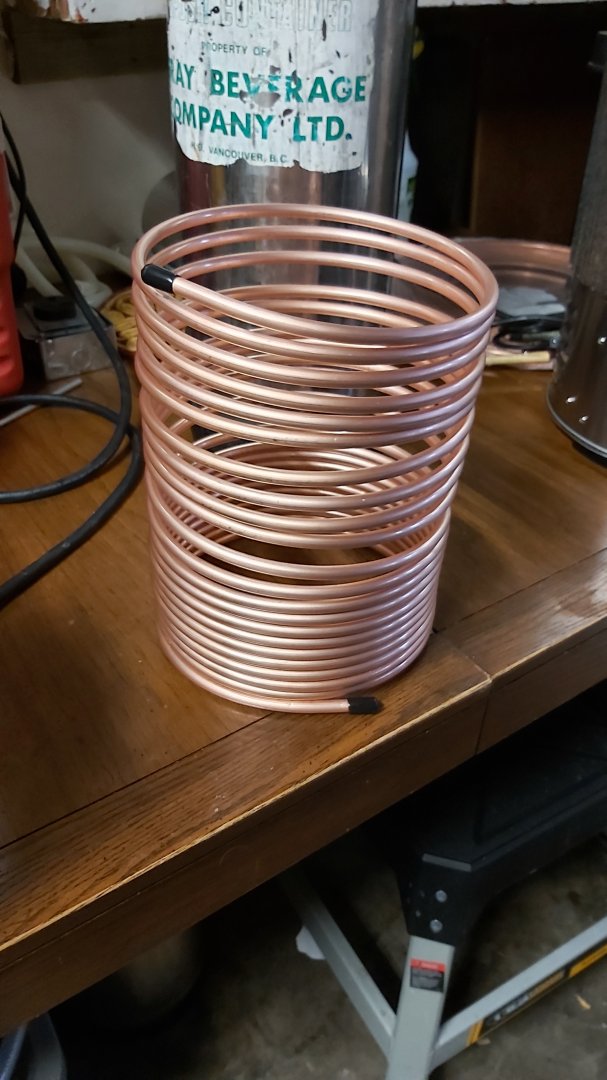

    Getting started on the 100 foot, two pass immersion chiller. Outer coil formed around a corny keg, found this glass jar that was perfect for forming the inner coil
    20201014_172606.jpg 20201014_174246.jpg 20201014_174508.jpg

  6. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113
    I think I will set it up so that the incoming water splits to one coil at the top, and the other at the bottom so that there is reverse stratification of the chilling from one coil to the other. Will have them flowing in the same direction though. which will be the opposite of the kettle whirlpool.

    Trialben likes this.
  7. Semper Sitientem

    Semper Sitientem Well-Known Member

    Joined:
    Apr 14, 2019
    Messages:
    165
    Likes Received:
    415
    Trophy Points:
    63
    Gender:
    Male
    Occupation:
    Home brewer, Golfer, DIYer
    Location:
    Roswell, GA
    I find the reverse stratification concept interesting. Is this solely due to the whirlpool process or another reason? My understanding is that soon after the burner is turned off, heat rises and the top of your kettle becomes the hottest part of the wort. Therefore, I would think concentrating incoming cool water at the top would have the greatest effect. Thanks.

  8. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,398
    Likes Received:
    6,635
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    What I noticed when I was using an immersion chiller is that to get good cooling, the wort had to be moving. To your point, in theory you are likely correct, in practice the thermal gradient between the top and the bottom of the wort is so small that simple convection would overwhelm any effect of running the cool water in at the top.

  9. Semper Sitientem

    Semper Sitientem Well-Known Member

    Joined:
    Apr 14, 2019
    Messages:
    165
    Likes Received:
    415
    Trophy Points:
    63
    Gender:
    Male
    Occupation:
    Home brewer, Golfer, DIYer
    Location:
    Roswell, GA

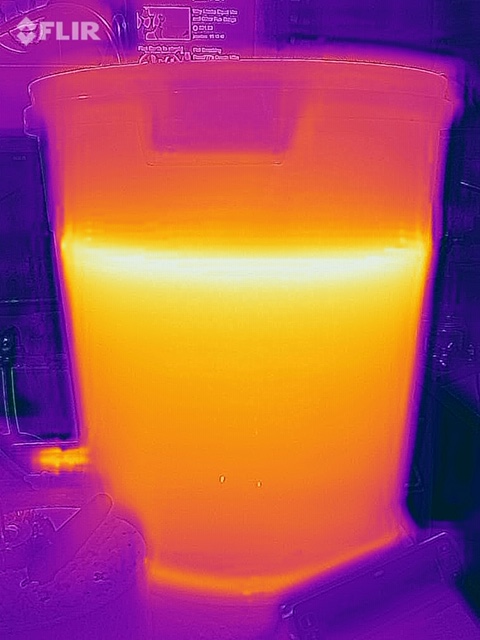

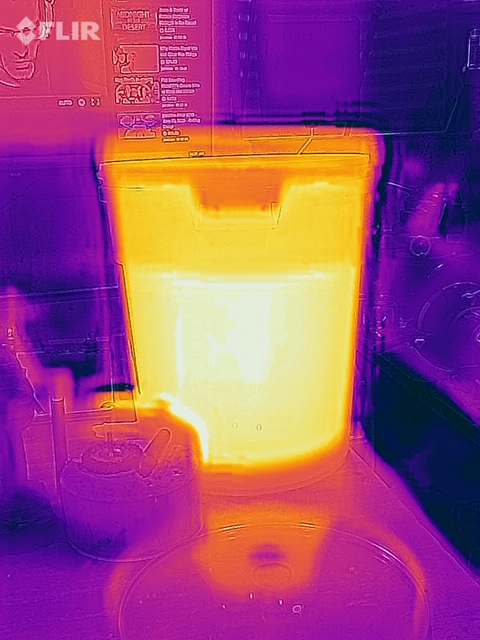

    Thought this would be interesting to post. Immediately at flameout, then a few minutes later. Sent to me by Jaded.

    009B6879-024F-4CA4-97DC-94F48F352F00.jpeg 82CE4967-F884-4B77-BE40-98F101101D91.jpeg

    Trialben, thunderwagn and Megary like this.
  10. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,740
    Likes Received:
    2,975
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Neat. I find moving the wort drastically speeds up the cooling with my Hydra, but I'm not super worried about gradients.

    Trialben likes this.
  11. Semper Sitientem

    Semper Sitientem Well-Known Member

    Joined:
    Apr 14, 2019
    Messages:
    165
    Likes Received:
    415
    Trophy Points:
    63
    Gender:
    Male
    Occupation:
    Home brewer, Golfer, DIYer
    Location:
    Roswell, GA
    True. That’s what Jaded recommends as well. Even if you don’t whirlpool, which I don’t, you can rock or churn the IC to speed the cooling process.

    Hawkbox likes this.
  12. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113

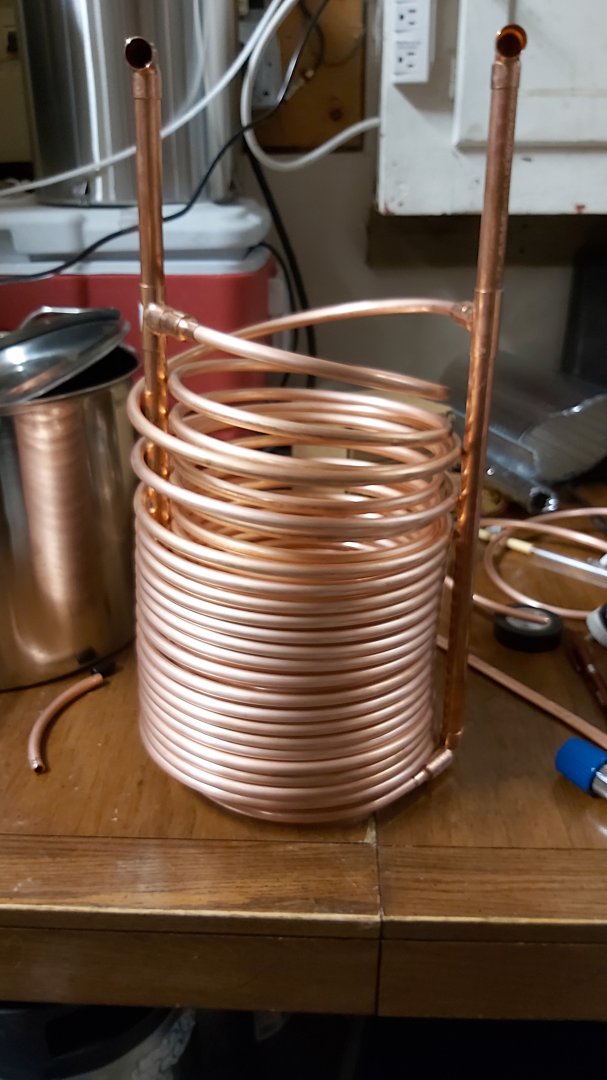

    The general jist of it. As it turns out, the chilling water in one coil will be going in the opposite direction to the other coil, as well as coll water will flow from top to bottom in one coil, and bottom to top in the other. This is not science, just my nutty approach. There is plenty of space for me to spread the coils out once soldered, but going to sleep on what I have done so far.

  13. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113
    I was just second guessing myself a bit, so I just went and blew in one side. Air came out the other side, so all good!

    Trialben and thunderwagn like this.
  14. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    956
    Likes Received:
    1,412
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    But which path did it take?

    We are probably making too much of this but assuming the least path of resistance one leg will cool more than the other but you will be cooling faster given the additional surface area. Looks good Craigerrr...looking forward to the write up on your maiden voyage!

    Trialben and Craigerrr like this.
  15. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113
    Theoretically the flow should be a relatively even split as the two coils are the same diameter and pretty much the same length, but I will actually have no way of determining that except to see how quickly the unit cools.

    thunderwagn likes this.
  16. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,437
    Likes Received:
    9,502
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    When I cool with IC i whirlpool and shake the shoit out of kettle this cools it quickest I find. That looks bloody awesome

  17. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,902
    Trophy Points:
    113

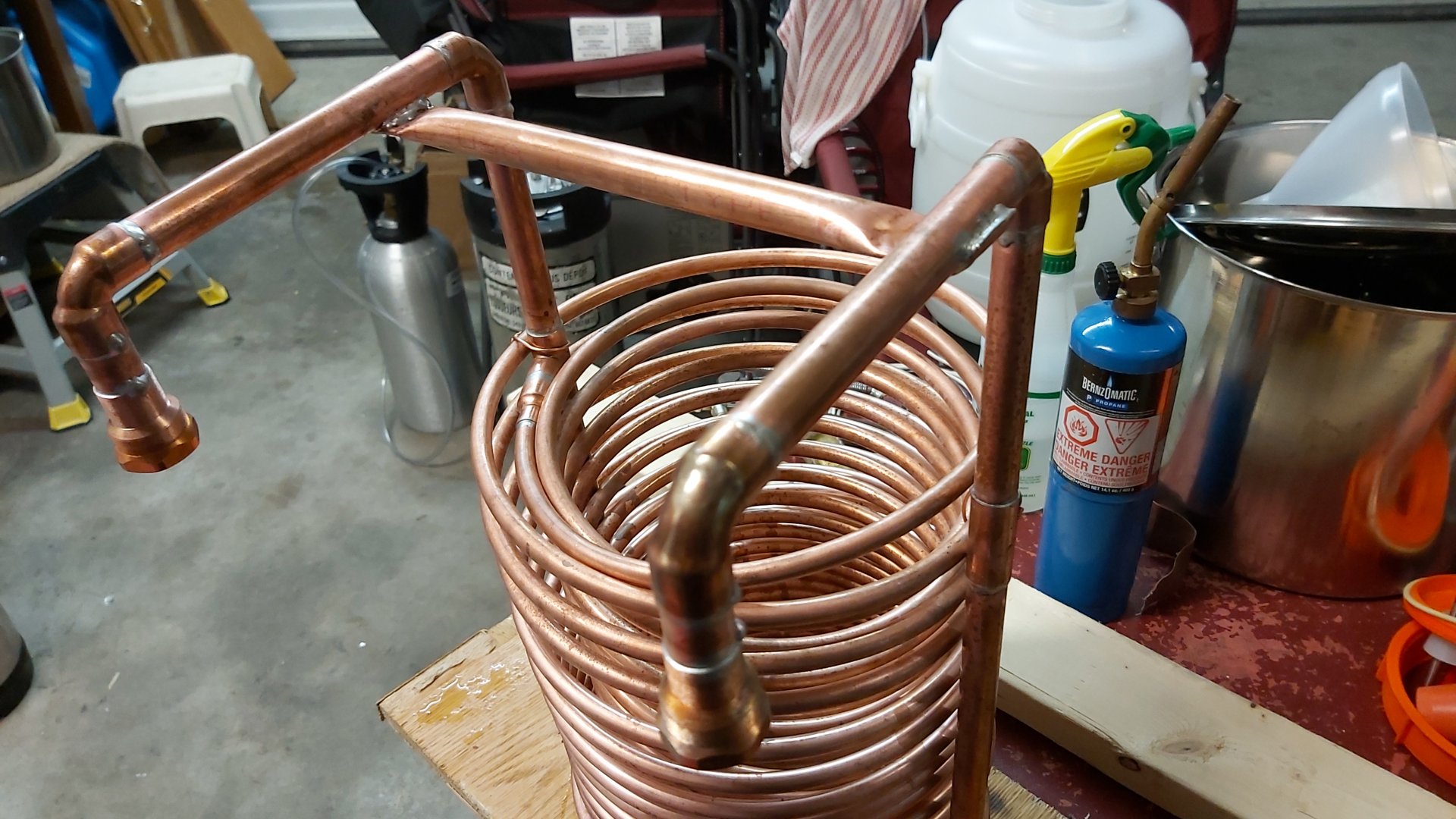

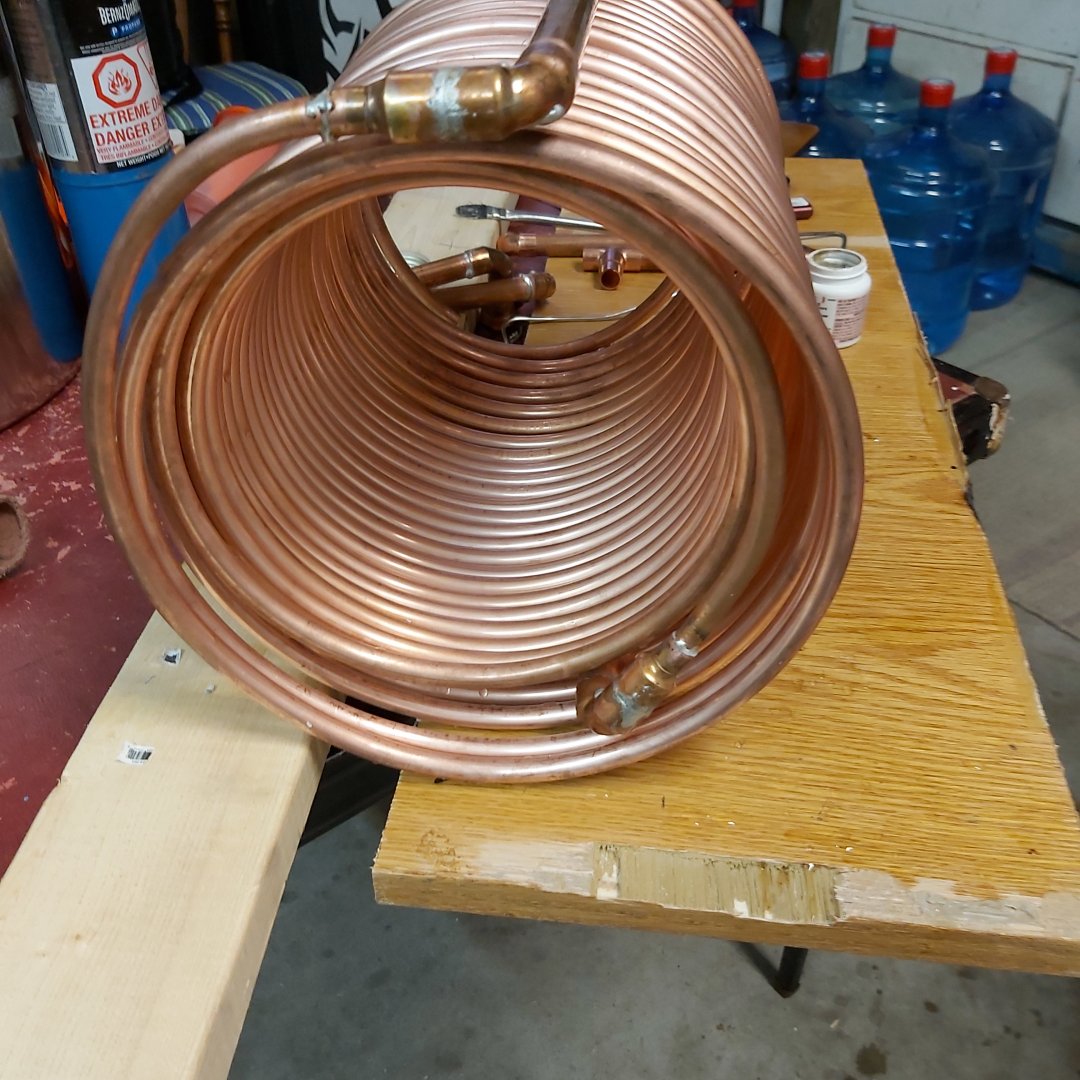

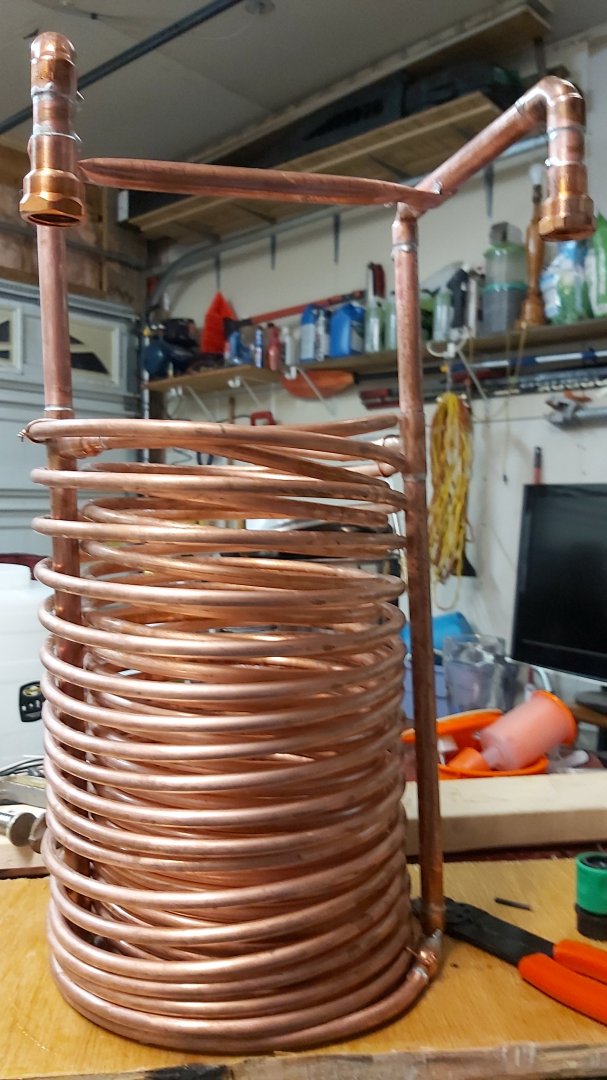

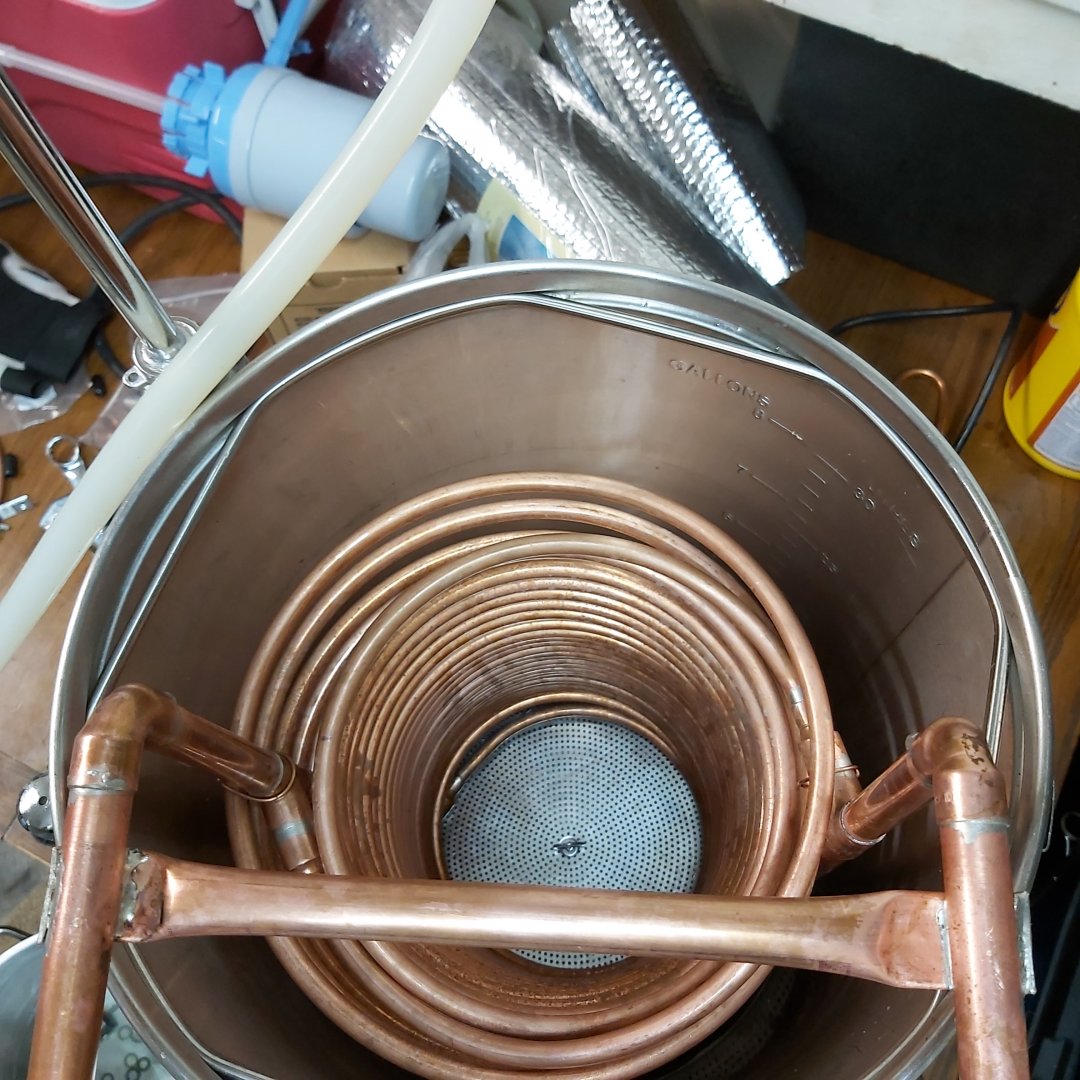

    Only thing left to do is to add some quick disconnect fittings. I think I like it. Mcgyvered a handle while I was at it, not pretty, but functional!
    20201026_203122.jpg 20201026_223225.jpg 20201026_223239.jpg 20201026_223317.jpg

  18. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,437
    Likes Received:
    9,502
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Craigerrr likes this.
  19. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    956
    Likes Received:
    1,412
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    Nice! What's that kettle size again?50 liter?

    Craigerrr likes this.
  20. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,742
    Likes Received:
    7,278
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    Wow, that's a beast! Nice work!

    Craigerrr likes this.
