Cooling To Pitching Temp

Discussion in 'General Brewing Discussions' started by Steve SPF, Aug 9, 2019.

  1. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93
    Hi All,

    Cooling question: Do you worry about how long it takes to cool to pitching temp after the boil?

    I have a heat exchanger and it will do the job in 30 minutes but the waste water from that is ridiculous; probably 50 gallons for a full boil. I also have a cooling loop but when I use that it can take hours, I think last time 6 hours or so. I would much rather do that because there's little waste but is there a downside to it taking that long?

    Thanks for help :)

  2. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,765
    Likes Received:
    2,997
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    There is some risk the longer you take, but it's overblown in my opinion. I have a 55 gallon drum of water I use to chill, it gets it down below 30C and then I generally let it chill on it's own after that. I think in your case I would suggest using water to get it down to say 60C and then use the slower method, would be more economical?

    Mark Farrall and Steve SPF like this.
  3. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    616
    Likes Received:
    913
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    You can transfer the wort to a sanitized fermenter and seal it up and let it cool. If sanitation is good, you’ll be fine letting it cool overnight. Pitch the yeast in the morning.

  4. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,469
    Likes Received:
    9,555
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Good old No chill Cube works good too just gotta take into account extended bittering.

  5. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,763
    Likes Received:
    7,326
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    #5 thunderwagn, Aug 10, 2019
    Last edited: Aug 10, 2019
    How much liquid are you cooling? If you're using 50 gallons of water to cool a 5-6 gallon batch in 30 minutes, you're not using the exchanger correctly. I can cool over 6 gallons in lots less than 15 minutes with about 10 gallons of water with an immersion chiller and our cooler tap water temps in Colorado (not necessarily the case in summer). Are you using any type of a coil (in ice bath) to help cool the water running through your exchanger? Pump? Recirc? Valves to slow flow? You could be pushing to fast through your plate. There's ways to get colder liquid through your exchanger or immersion chiller.

    Steve SPF likes this.
  6. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93
    I'm doing fairly big batches so 80 litres, 18 gallons or so. I'm not cooling the tap water in any way no, I'm constantly looking at the kit and my process to see where it can be improved and waste water seems like an area where I can improve for sure but it's a balance because I need to get the beer right as well.

  7. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93
    That's exactly what I did last weekend but was a bit concerned at the amount of time it took, it's probably the way forward for me just now.

  8. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93

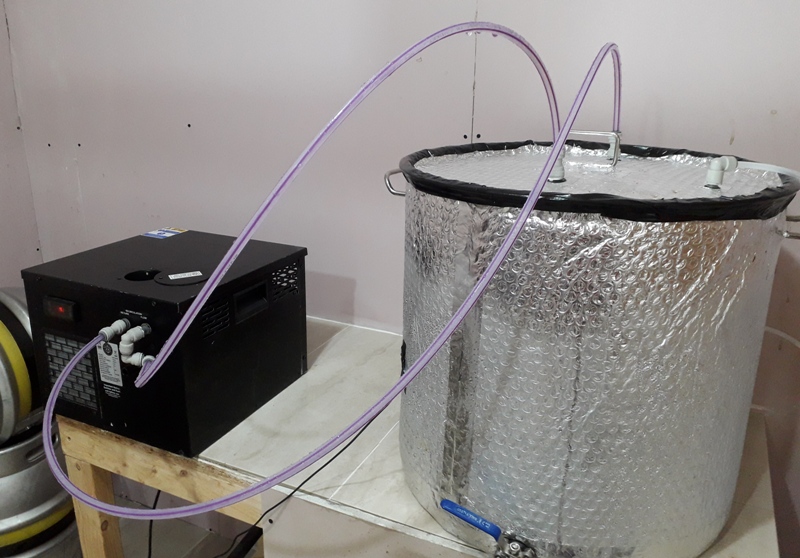

    I think the sanitation is good so I will worry less about it taking a few hours now. My cooling loop is a little 'Heath Robinson' but it works. I insulated the fermenter this time as well which will be a real help in the winter but not so when I'm trying to get temps down in the summer


    Attached Files:

  9. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,763
    Likes Received:
    7,326
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    #9 thunderwagn, Aug 10, 2019
    Last edited: Aug 10, 2019
    You could chill much quicker with significantly less water. A coil set in an ice bath pre-plate would definitely help reduce time and water usage. So would valves and slowing the flow a bit. Passing through any heat exchanger to quickly is very inefficient and an energy waste, which basically goes against what a heat exchanger is designed for. Add in a little recirc pump and you would cut your chill water even more.

    Steve SPF likes this.
  10. Brewer #222202

    Brewer #222202 New Member

    Joined:
    Jul 16, 2019
    Messages:
    26
    Likes Received:
    19
    Trophy Points:
    3
    Gender:
    Male
    Occupation:
    Semi retired

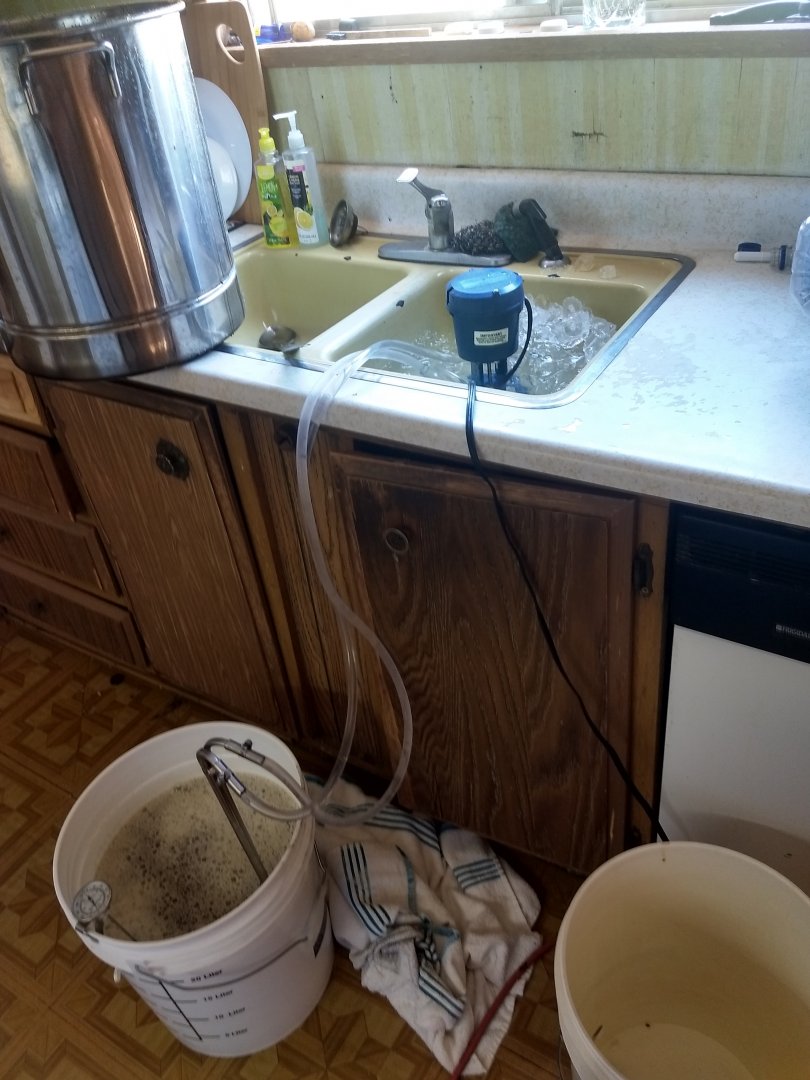

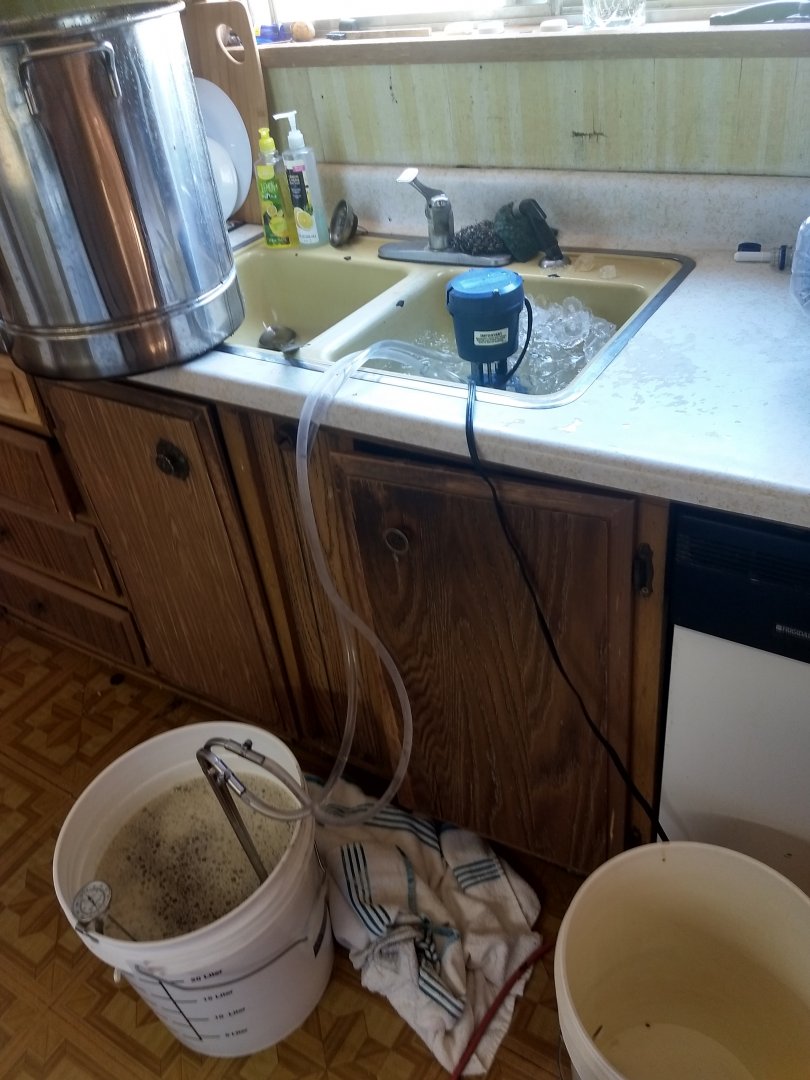

    I use an immersion chiller, paired with a swamp cooler pump in a sink full of ice water. Kind of low tech, but will cool a 5 gallon batch to pitching temp in about 15 minutes.
    To save on ice, I run with straight tap water at approx 95° until the wort gets to that temp, then add 1 bag of ice to get the last 30°. IMG_20190714_110018377_HDR.jpg

    Mark Farrall and Steve SPF like this.
  11. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,763
    Likes Received:
    7,326
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    #11 thunderwagn, Aug 10, 2019
    Last edited: Aug 10, 2019
    Ah, so you're actually using an immersion type chiller. My bad on misunderstanding your original post. I automatically assumed a flat plate when you mentioned heat exchanger.
    Are you stirring your hot wort with the immersion chiller as you cool? Is is a single coil or multiple coil like the Jaded? https://jadedbrewing.com/collections/frontpage/products/the-king-cobra
    The multiple coils and stirring your wort with the chiller make a huge difference.

  12. Brewer #222202

    Brewer #222202 New Member

    Joined:
    Jul 16, 2019
    Messages:
    26
    Likes Received:
    19
    Trophy Points:
    3
    Gender:
    Male
    Occupation:
    Semi retired
    Nope, I'm not the OP. But yes, I stir and agitate.

  13. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,763
    Likes Received:
    7,326
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    haha. oops!

    Hawkbox and Steve SPF like this.
  14. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    961
    Likes Received:
    1,427
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    Ice Ice baby! I'm with 222202! I dump my insulated Tun and put about 30 pounds of ice cubes that I have been robbing from the kitchen freezer between brewing. That along with a gallon of water to get the process started gets hooked up to a small submersible pond pump that pumps the ice cold water into the cooling coil and back into the tun. I keep another 10 pounds ready if that doesn't have my 5 to 6 gallons of wort ready at pitching temp inside a 1/2 hour. I would imagine a similar thing would work for your exchanger set up but if it is truly "little" then it may be just completely undersized for what you are doing.

    Steve SPF likes this.
  15. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93
    Like that, right up my street

  16. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93
    I don't know what that is...

  17. Steve SPF

    Steve SPF Well-Known Member

    Joined:
    Jun 28, 2019
    Messages:
    422
    Likes Received:
    516
    Trophy Points:
    93
    I am using a similar setup, plate chiller initially and then an immersion chiller

  18. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,469
    Likes Received:
    9,555
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    It's an Aussie brew idea where you transfer the hot boiling wort into an HDPE cube push all air out and put lid on to chill down over night. You can use the wort the next day or in a week or two when you need to.

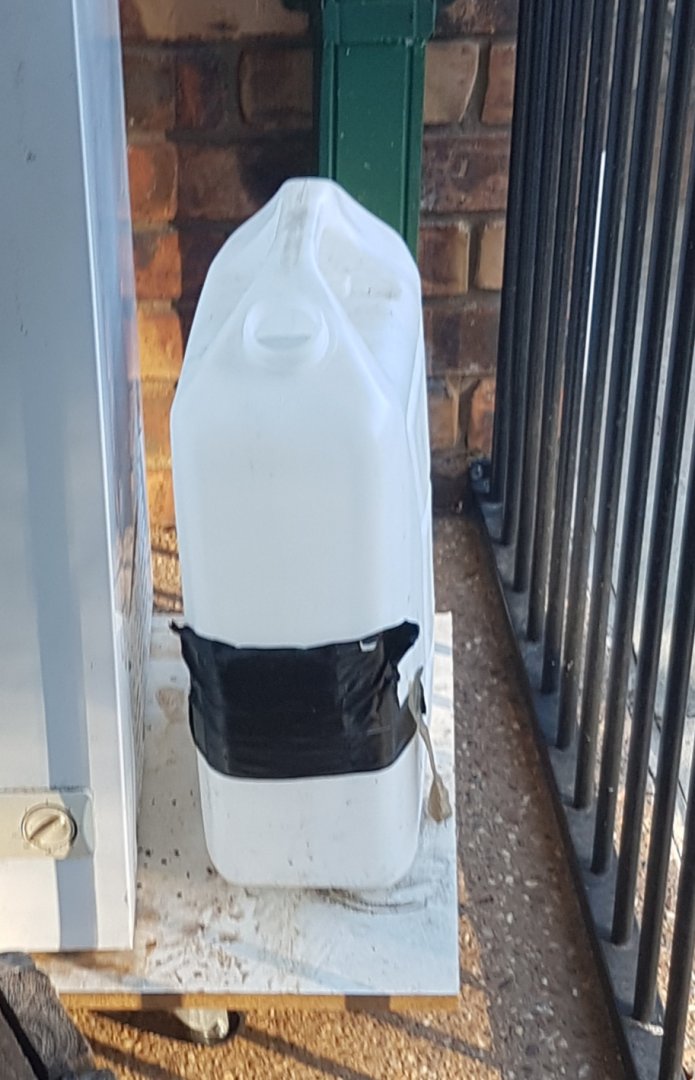

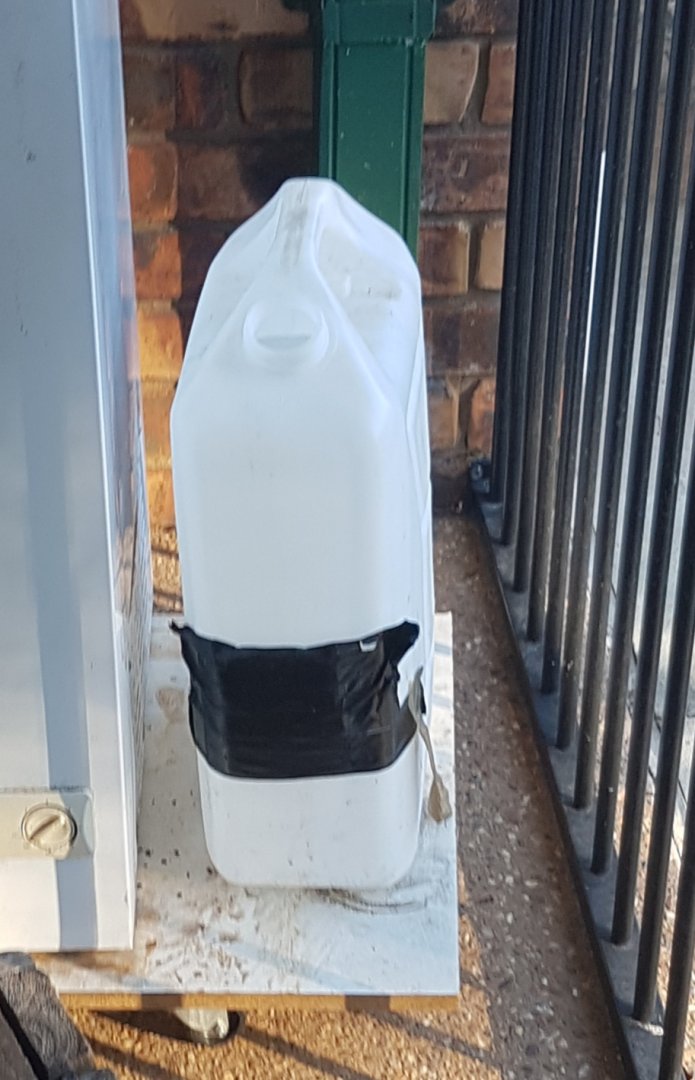

    Here's my cube it's 23lt most are 20-21 it and square cube shaped hence the name. 20190811_073649.jpg

    Steve SPF likes this.
  19. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,906
    Trophy Points:
    113
    That's interesting Ben, when you transfer to your fermenter do you decant and leave trub behind? Or dump the works in?

  20. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,469
    Likes Received:
    9,555
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Either / or but it does make for trub free transfer pretty easy just like pouring an overly large bottle conditioned beer. I havnt no chilled brew in awhile but the option is there if need be.

    Craigerrr likes this.
