Tilt and other electronic hydrometers are supported!

Discussion in 'General Brewing Discussions' started by Yooper, Nov 7, 2018.

  1. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    1,020
    Likes Received:
    569
    Trophy Points:
    113
    Location:
    Upper Michigan
    The electronic hydrometer testing is complete and we are out of beta and ready for users!

  2. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    1,020
    Likes Received:
    569
    Trophy Points:
    113
    Location:
    Upper Michigan
    We now have DIY support for both iSpindel
    and any custom app / device you want to use.
    [​IMG] [​IMG]

    Integrations
    Cloud URL to copy and supported device info
    https://brewersfriend.com/homebrew/profile/account

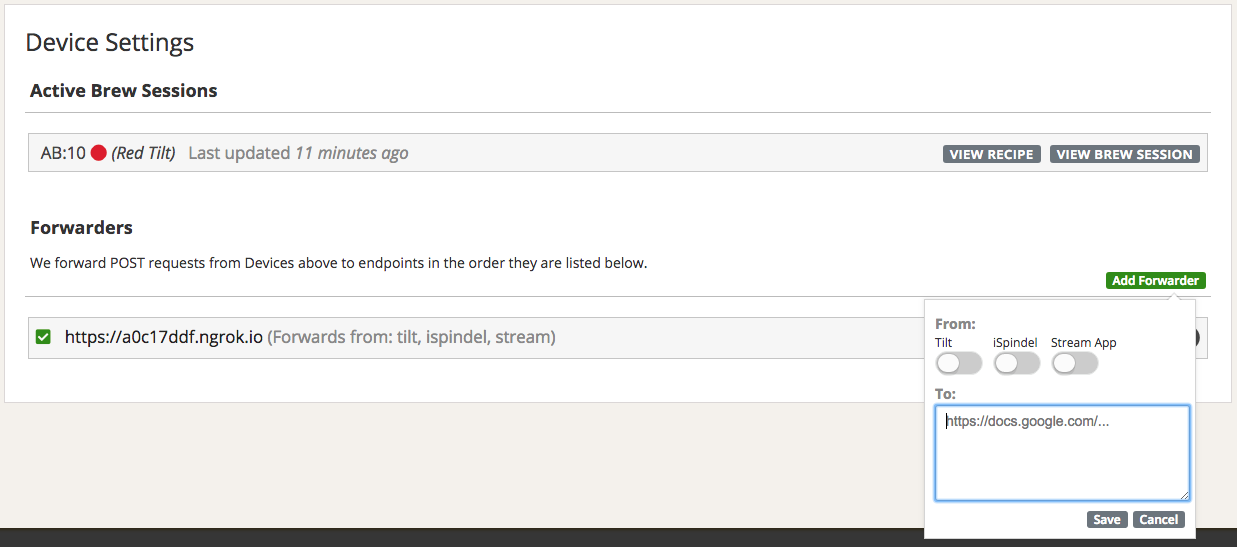

    Device Settings
    Active devices and device forward URLs
    https://brewersfriend.com/homebrew/profile/devicesettings

    [​IMG]

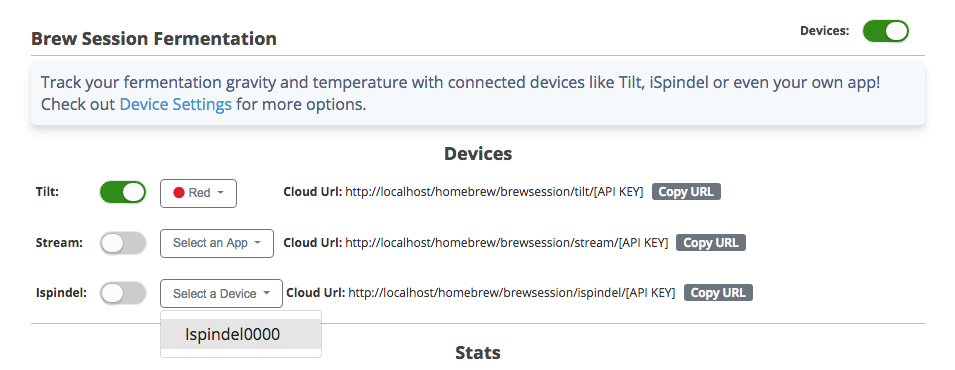

    Brew Session Fermentation Tab
    For iSpindel and any custom apps you need to post to the cloud URL to see it available in the dropdown.

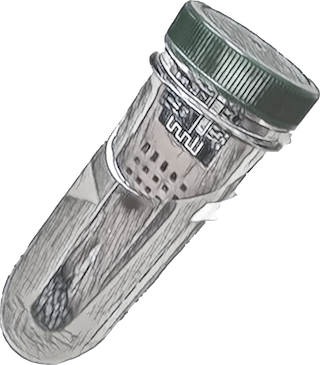

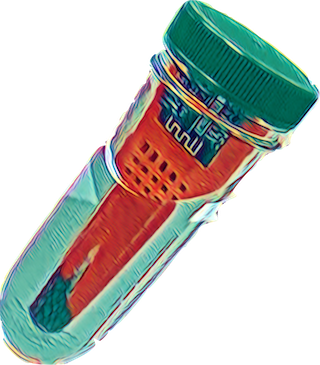

    iSpindel http://www.ispindel.de/

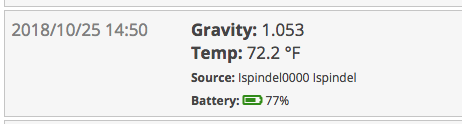

    Will also report battery %
    [​IMG]

    [​IMG]

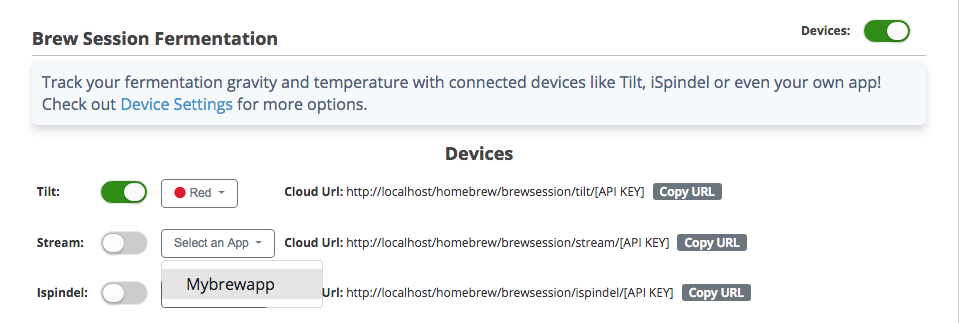

    Custom Stream App
    [​IMG]

    For custom stream apps you will post JSON data to the stream cloud URL
    Code:
    {
    "name": "MyBrewApp",
    "temp": "",
    "temp_unit": "C", // C, F or K
    "gravity": "",
    "gravity_unit": "P", // G or P
    "ph": "",
    "comment": "",
    "beer": ""
    }

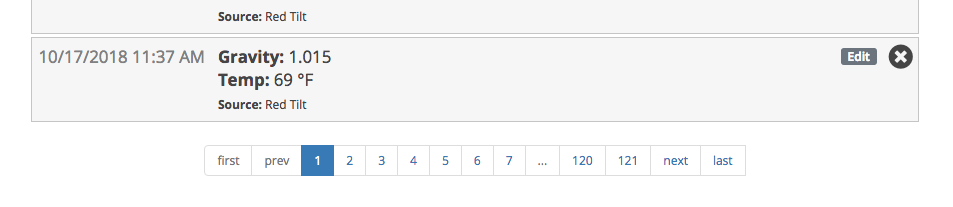

    We also added paging in edit readings.

    [​IMG]

    rolandblais likes this.
  3. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    1,020
    Likes Received:
    569
    Trophy Points:
    113
    Location:
    Upper Michigan
    Using Raspberry Pi:

    The phone app only sends when you are within Bluetooth range of the Tilt in your fermenter. The Tilt communicates over bluetooth to save battery so you can use a Raspberry Pi to communicate with the Tilt and send the data over WiFi to BrewersFriend. Once you have a raspberry pi, here are some steps to set this up.

    Download the Tilt Pi image

    Download Etcher to burn the image to a micro sd card

    Insert the micro sd card and plug in your raspberry pi with a keyboard and monitor to setup WiFi.

    After it's connected to your WiFi, plug it in near your fermenter and open http://tiltpi.local:1880/ui

    Under Logging > Cloud Settings, paste the Cloud URL from your brew session and hit enter to save it.

    The Tilt Pi defaults to sending data every 5 minutes and will now send the gravity and temperature of your fermentation to BrewersFriend.

    To test it right away, you can enter a comment and hit enter to send.
    [​IMG]

    rolandblais likes this.
  4. rolandblais

    rolandblais Member

    Joined:
    Aug 10, 2012
    Messages:
    58
    Likes Received:
    32
    Trophy Points:
    18
    Location:
    Fernley, NV
    If you're already using a bluetooth Pi you can use Python and a bluetooth library to monitor Tilt; you can run it headless as well. Details @ Instructables.

    Yooper likes this.
  5. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    1,850
    Likes Received:
    1,023
    Trophy Points:
    113
    Location:
    Edmonton
  6. rolandblais

    rolandblais Member

    Joined:
    Aug 10, 2012
    Messages:
    58
    Likes Received:
    32
    Trophy Points:
    18
    Location:
    Fernley, NV
    You bet your ass! ;)

    Hawkbox likes this.
  7. Misiak

    Misiak New Member

    Joined:
    Sep 11, 2018
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    1
    Can anyone tell me how to configure iSpindel ? I have treid but without sucess. Thx.

  8. Brewer #60208

    Brewer #60208 New Member

    Joined:
    Mar 11, 2016
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Hi! I was able to create an iSpindel device after the first HTTP POST, but I get error "We're sorry, the system is having difficulty right now. Administrators have been notified. RDWHAHB!" on the next POST requests. Can you please share an example JSON message for iSpindel?

  9. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    5,775
    Likes Received:
    2,599
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    Those dohickeys seem a technologically advanced solution to a rather simple problem.... As a professional metrics geek, they produce what seems to me to be too much information. But hey, some guys like them!

  10. Misiak

    Misiak New Member

    Joined:
    Sep 11, 2018
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    1
    I'm also able to register the iSpindle with a JSON request and then every subsequent request with sample data ends in error you mentioned.

    But I would like to know how to configure it in iSpined configuration interface. I can select only HTTP request but then how to fill the URL, PORT and other data fields ? I'm not sure this is supported because iSpindel sends HTTP POST requests like this:

    {
    "name":"Green",
    "ID":XXXXX,
    "token":"XXXXXXXXXXXXXXXXX",
    "angle":75.23137,
    "temperature":27.1875,
    "temp_units":"C",
    "battery":4.588112,
    "gravity":75.23137,
    "interval":900,
    "RSSI":-57
    }

    I wrote this to admin guys in other thread but they did not approve my post yet so I don't know.

  11. RockyMtnGT

    RockyMtnGT New Member

    Joined:
    May 17, 2016
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Castle Rock, CO
    STOKED!!! Can't wait to run this on my next brew.

  12. avantassel

    avantassel Moderator
    Staff Member

    Joined:
    Jan 5, 2018
    Messages:
    58
    Likes Received:
    32
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Brewer and Software Engineer
    Location:
    Lafayette, CO
    Home Page:
    Hi Misiak, Thanks for letting us know. That post data looks correct, we did find an issue posting, this is fixed, if you can try again.

  13. azdavid

    azdavid New Member

    Joined:
    Jan 1, 2016
    Messages:
    1
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Buckeye, Arizona
  14. Brewer #123382

    Brewer #123382 New Member

    Joined:
    Dec 30, 2017
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Just a quick question, but how do I actually set up the iSpindel to post to the URL? Do I use the HTTP option, or am I missing something?

    Also, where is the API key, and other settings?

    Halp!

  15. Misiak

    Misiak New Member

    Joined:
    Sep 11, 2018
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    1
    #15 Misiak, Nov 11, 2018
    Last edited: Nov 11, 2018

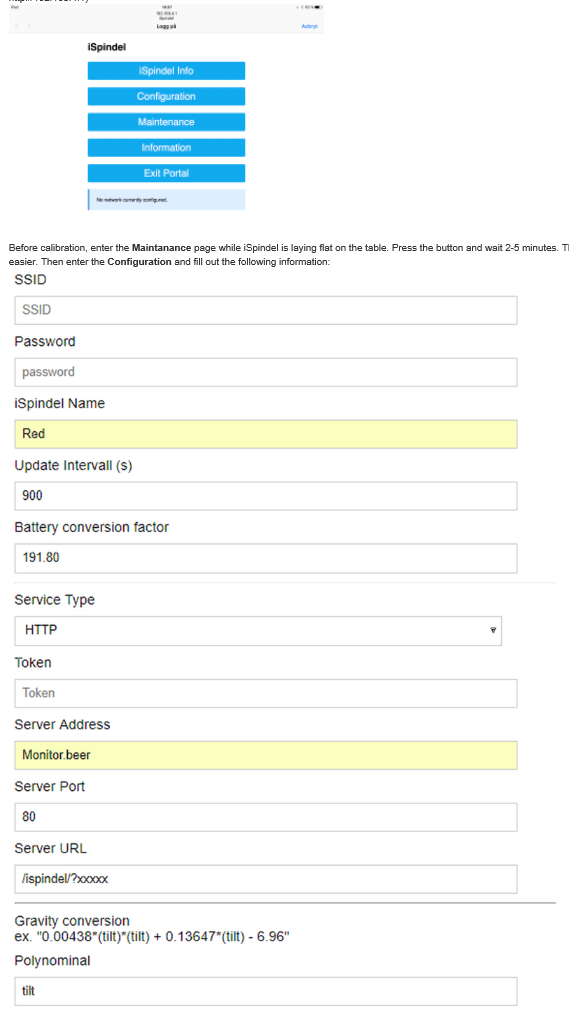

    Thanks for reply. I will try that with REST API, but please can you tell me how to configure iSpindel properly ? Look at this example configuration for Monitor.beer, what do we need to set for iSpindel to work with brewersfriend ? I've tried to set my API key in the URL but this is too long for iSpindel. Also HTTPS protocol is questionable, but not sure if iSpindel can handle this protocol. Thanks a lot!

    Yes, exactly this I would like to know as well. Hopefully avantassel can bring some light on this.


    Attached Files:

  16. Misiak

    Misiak New Member

    Joined:
    Sep 11, 2018
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    1
    #16 Misiak, Nov 11, 2018
    Last edited: Nov 11, 2018

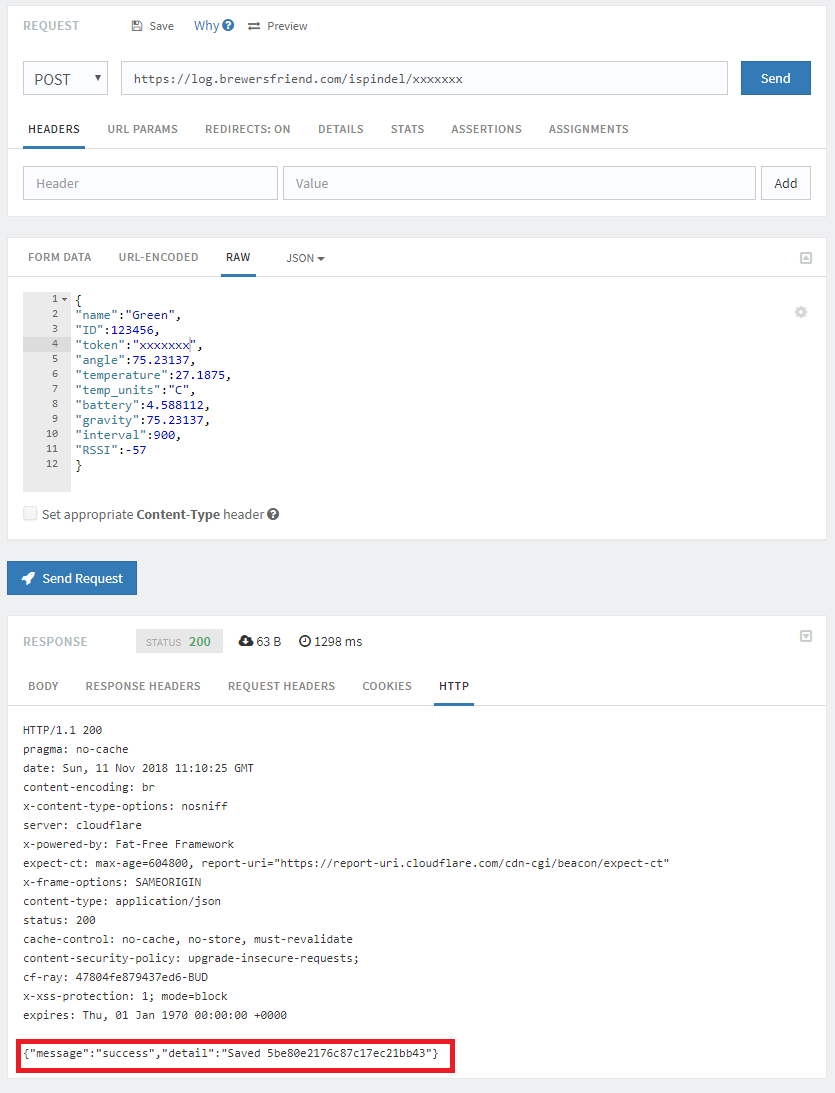

    I can confirm with following POST request it's working (device has to be enabled in brew session). Now only just to know how to setup this in iSpindel configuration properly. Thank you!

    Edit: Please note that iSpindel sends battery status in Voltage and not percentage so it's not displayed correctly in brewersfriend.

    Avantassel, if you would be interested PM me, I could implement a brewersfriend preset in iSpindel firmware so this would make things easier for iSpindel users.


    Attached Files:

  17. avantassel

    avantassel Moderator
    Staff Member

    Joined:
    Jan 5, 2018
    Messages:
    58
    Likes Received:
    32
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Brewer and Software Engineer
    Location:
    Lafayette, CO
    Home Page:
    Thanks Misiak, I will PM you.

  18. avantassel

    avantassel Moderator
    Staff Member

    Joined:
    Jan 5, 2018
    Messages:
    58
    Likes Received:
    32
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Brewer and Software Engineer
    Location:
    Lafayette, CO
    Home Page:
    The
    Thanks for the feedback, I fixed the battery display and also ability to use HTTP instead of HTTPS

    You can find the URL + API key either in your account, https://www.brewersfriend.com/homebrew/profile/account or on the brew session / fermentation tab under devices. I will look into the URL length issue, in the mean time, maybe shorten it with bit.ly or another shortener.

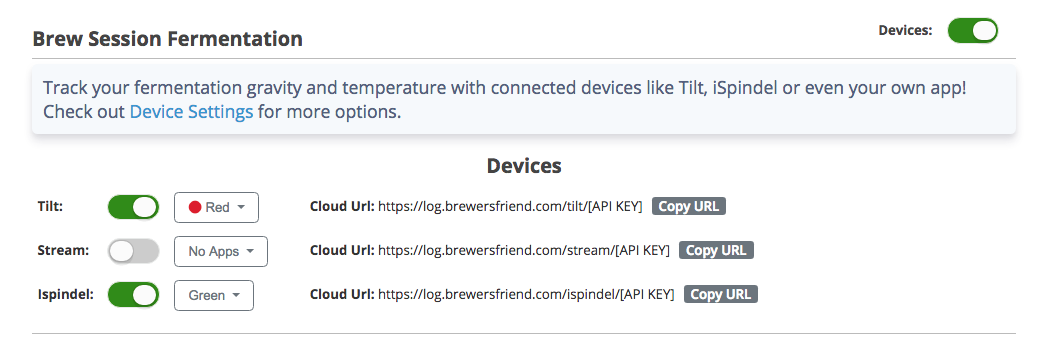

    Screenshot 2018-11-12 09.49.13.png

  19. ponyfizz

    ponyfizz New Member

    Joined:
    Sep 25, 2018
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Love this. Small error in the mouseover on the chart though. The temperate is correct in celcius but it has F instead of C.
    Looking forward to my next brew to test it out fully.

  20. mash head

    mash head New Member

    Joined:
    Nov 6, 2014
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    1
    +1
    Tried to setup the ispindel without success. What do I have to enter in the ispindel config? I have the latest firmware running.
    Thanks!
