Show your DIY Projects

Discussion in 'Brewing Photos & Videos' started by DanC, Oct 27, 2013.

  1. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,058
    Likes Received:
    7,242
    Trophy Points:
    113

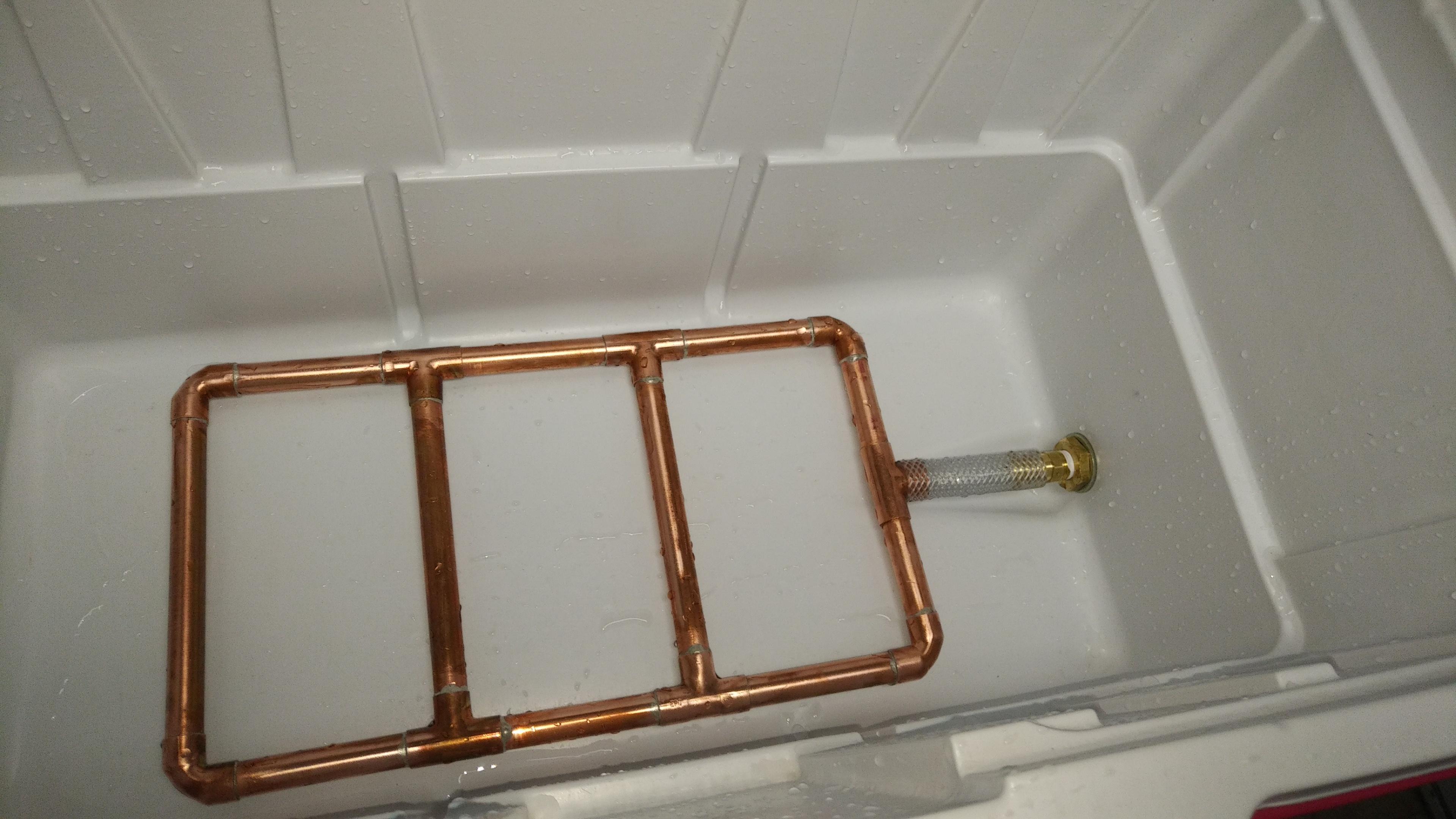

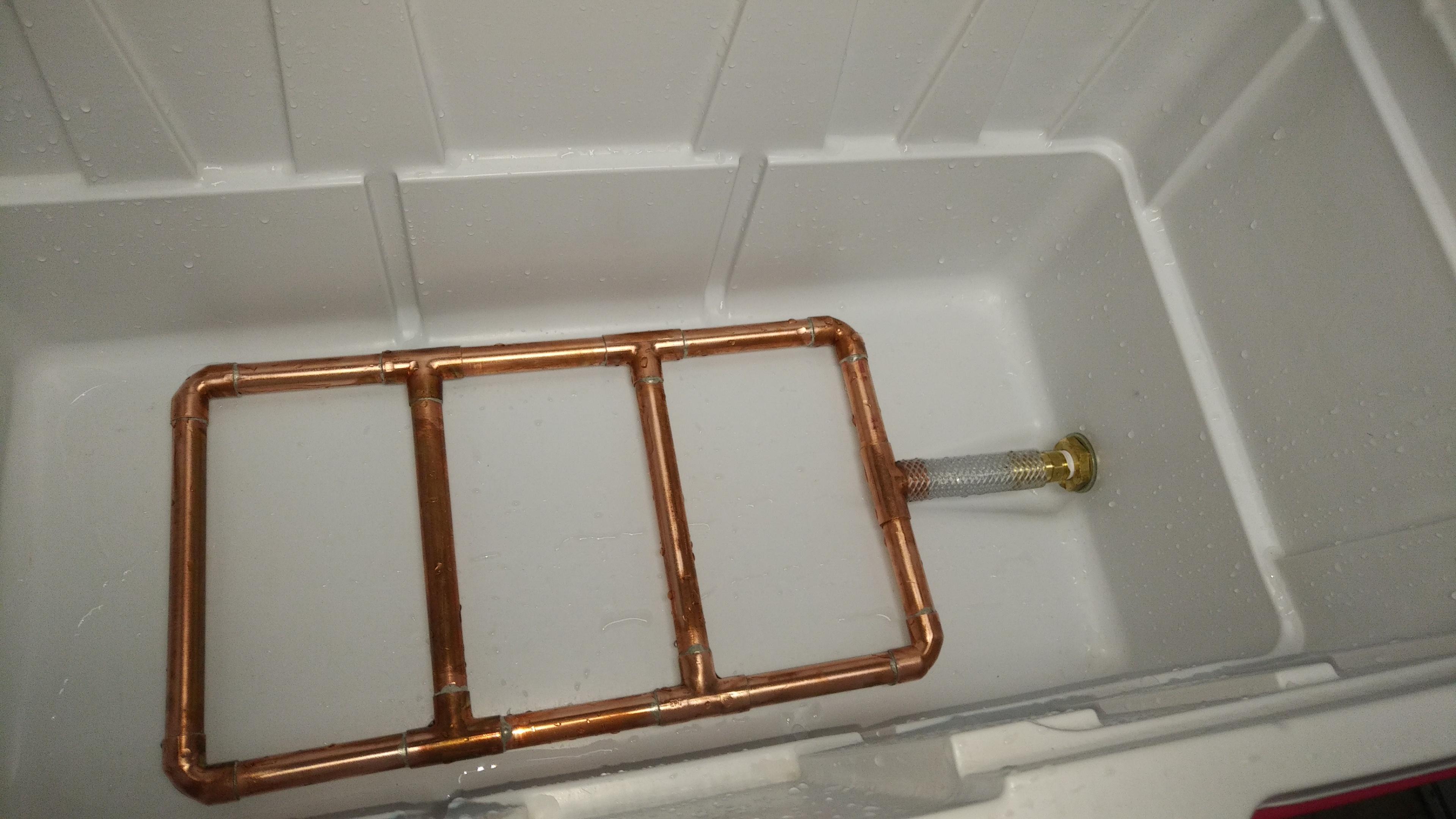

    Mash Tun - I realize now that I aligned the cross pieces in the wrong direction, but it works great.
    First run through it took a looooooong time to drain, so I drilled out the holes to a larger diameter.
    Second run through was great!
    Picked up the cooler used for $10, hinges were broken, who cares!


    Trialben, Hawkbox, Head First and 2 others like this.
  2. Group W

    Group W Well-Known Member

    Joined:
    Sep 9, 2017
    Messages:
    1,300
    Likes Received:
    2,163
    Trophy Points:
    113
    Gender:
    Male
    As long as the surface is dry, blue painters tape works great. East to remove too.

  3. Vallka

    Vallka Well-Known Member

    Joined:
    Jun 13, 2017
    Messages:
    609
    Likes Received:
    775
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Squamish Canada
    I have a similar setup, but I drilled a hole in the bottom the drain. I lose very little wort. I soldered a washer to a 1/2"x3" nipple with a homemade silicone washer to make it water tight. Added a valve.

  4. Vallka

    Vallka Well-Known Member

    Joined:
    Jun 13, 2017
    Messages:
    609
    Likes Received:
    775
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Squamish Canada
    Has anyone cut a 55L/15g keg (you know the full sized ones) cut one to about 40L/10g kettle? I did cut the top off one to use for a HLT but don't think i need a full sized one for boiling 30L/8g of wort.

  5. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    2,267
    Likes Received:
    2,563
    Trophy Points:
    113
    Location:
    Back in the mountains
    I boil 7.5gal in mine all the time. Left the handles on and cut inside them. Can only actually fit 14gal so not really to bad of overkill.

  6. PutnamBrew

    PutnamBrew Member

    Joined:
    Apr 20, 2018
    Messages:
    28
    Likes Received:
    42
    Trophy Points:
    13
    Location:
    Putnam/Dayville, CT
    Repurposed the first kettle I ever bought. Took me some time to figure out what size and brand it was however I finally found it. When I first started all grain, I thought I would do more 10 gallon batches however 7 years later, I've done maybe a handful of them. So, I initially purchased a 50 quart Concord kettle - 12.5 Gallon capacity. Since upgrading my system and moving to keggles, that kettle was used here and there depending on what was clean, etc on brew day. Since last spring I've been using a 10 gallon HD Cooler and a 9" false bottom. I had an epiphany and said, "why can't I use that as my mash tun!?". I was having some slight recirculation issues with the HD Cooler and I was contributing it to the height of it. The kettle is a bit wider and it won't be as deep so I'm hoping that'll help. I've been doing fine with a false bottom that doesn't cover the entire bottom so I'm eager to test it out on my next brew day.

    [​IMG]

    I'm going to add a port for recirculating and going to try out a 3-4' section of tubing, similiar to the Electric Brewery's mashtun.

    Trialben likes this.
  7. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,425
    Likes Received:
    3,561
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

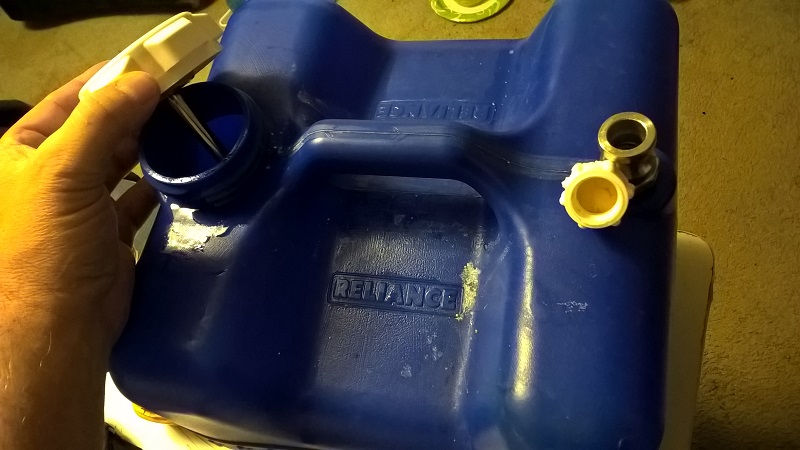

    found a better way to use these cheap jugs as a fermentation vessel , thermalwell in the cap and blow off on the vent

    WP_20190111_13_06_58_Pro.jpg WP_20190111_13_07_02_Pro.jpg WP_20190111_13_07_28_Pro.jpg

    sn00ky, Head First and Trialben like this.
  8. PutnamBrew

    PutnamBrew Member

    Joined:
    Apr 20, 2018
    Messages:
    28
    Likes Received:
    42
    Trophy Points:
    13
    Location:
    Putnam/Dayville, CT
    Wanted to show progress of the Recirc port install. I also tore down the mash tun to clean the valve and fittings, etc. I also replaced the old red gasket with a clear silicone one for a cleaner look.

    Here's the temperature probe T. I made it so that I can move it around in the system for mash temps and also to watch cooling temps so I know when I can start the transfer to the fermenter.

    [​IMG]

    Interior of Mash tun with line and false bottom

    [​IMG]

    Valve and fittings cleaned with new gasket

    [​IMG]

  9. sn00ky

    sn00ky Active Member

    Joined:
    Feb 17, 2017
    Messages:
    273
    Likes Received:
    182
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Stony Plain, Alberta, Canada

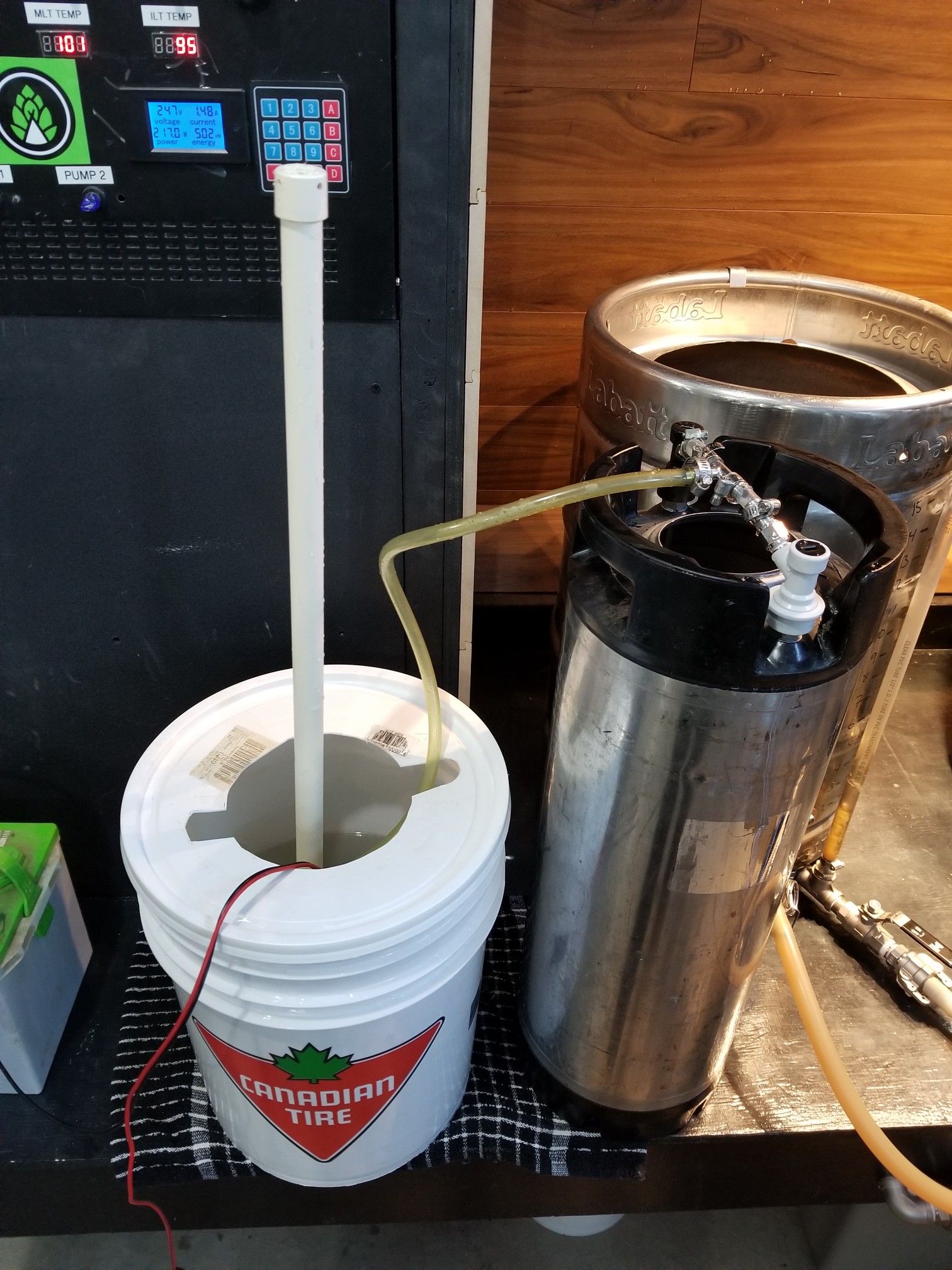

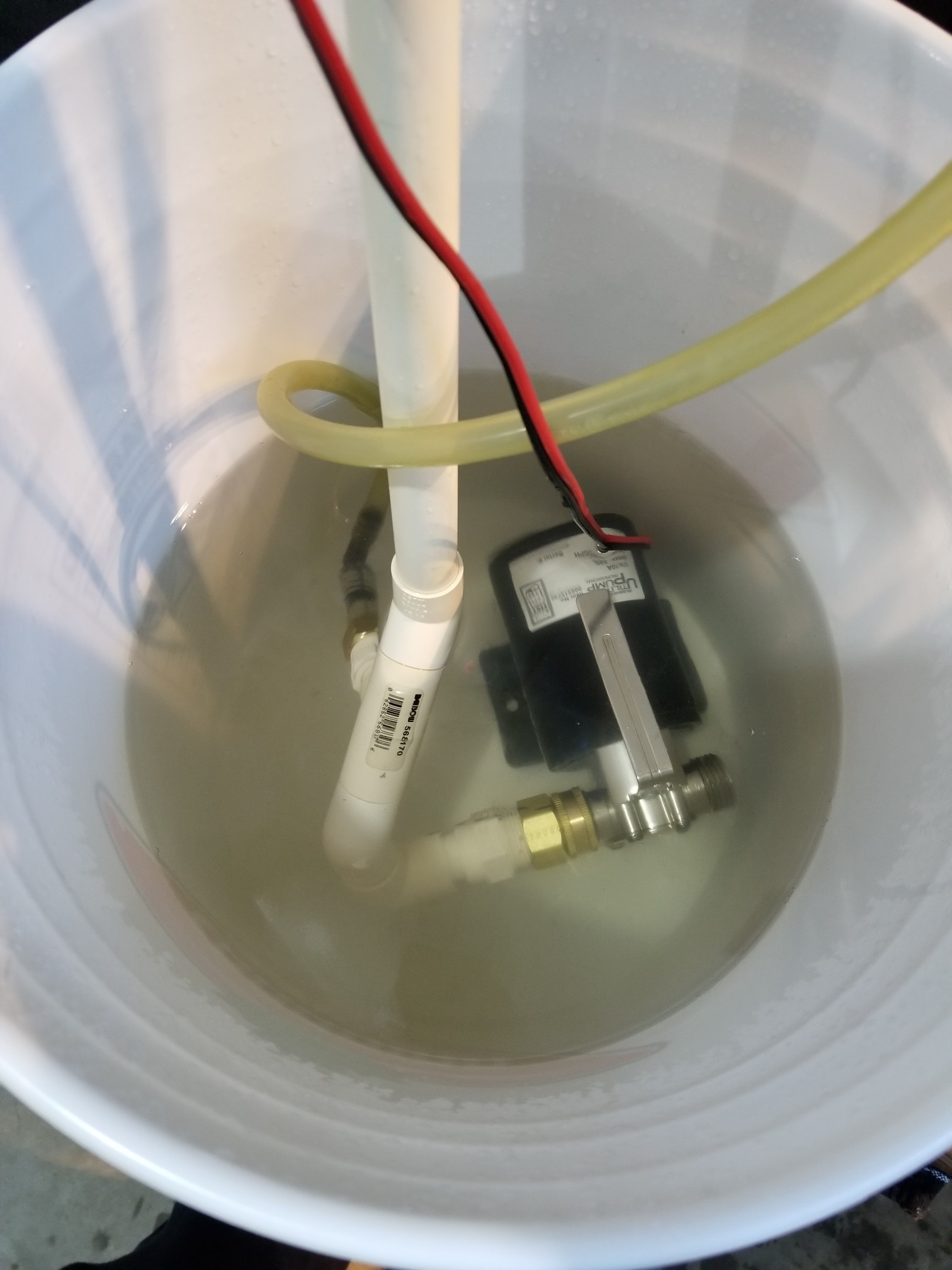

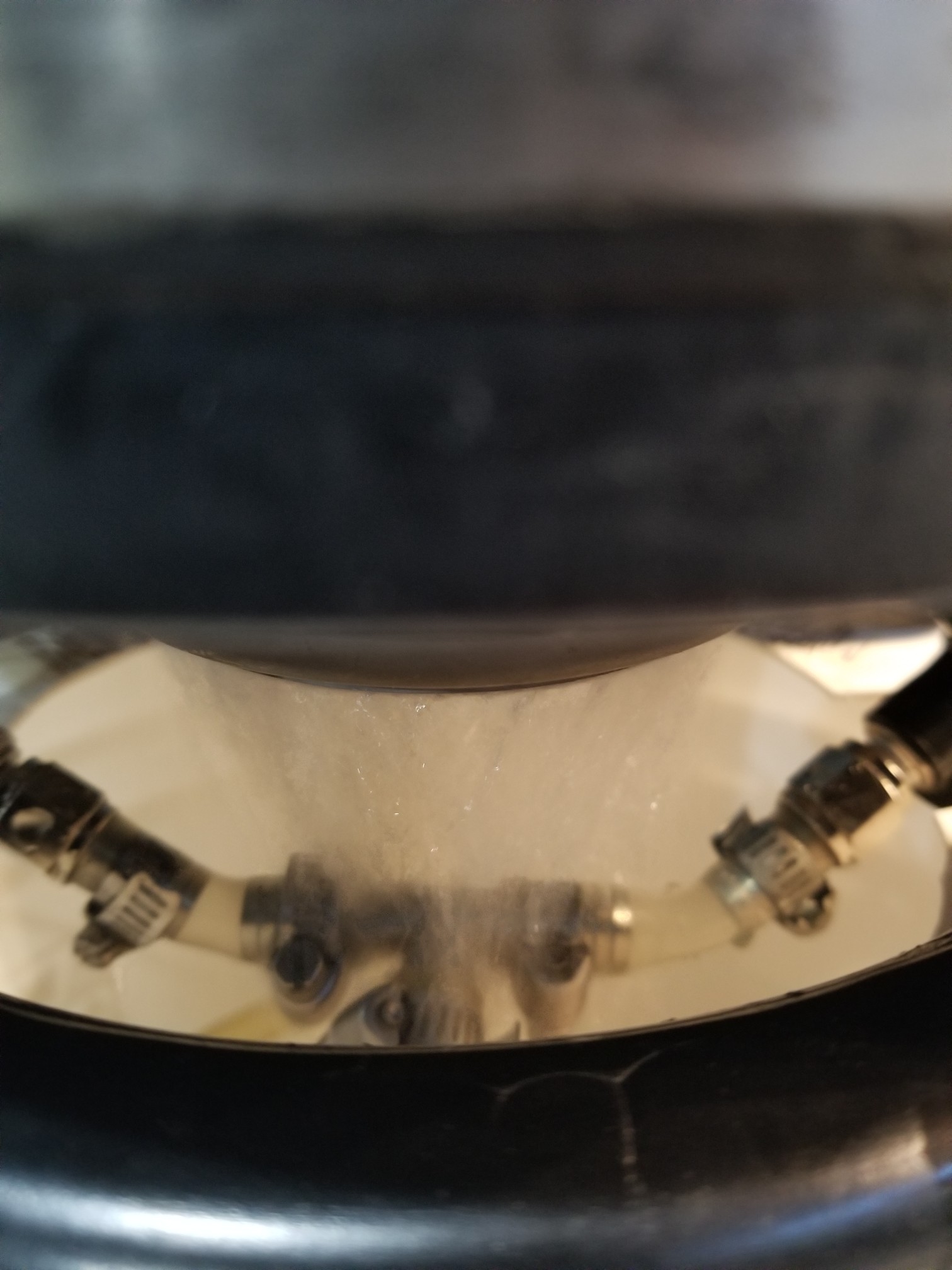

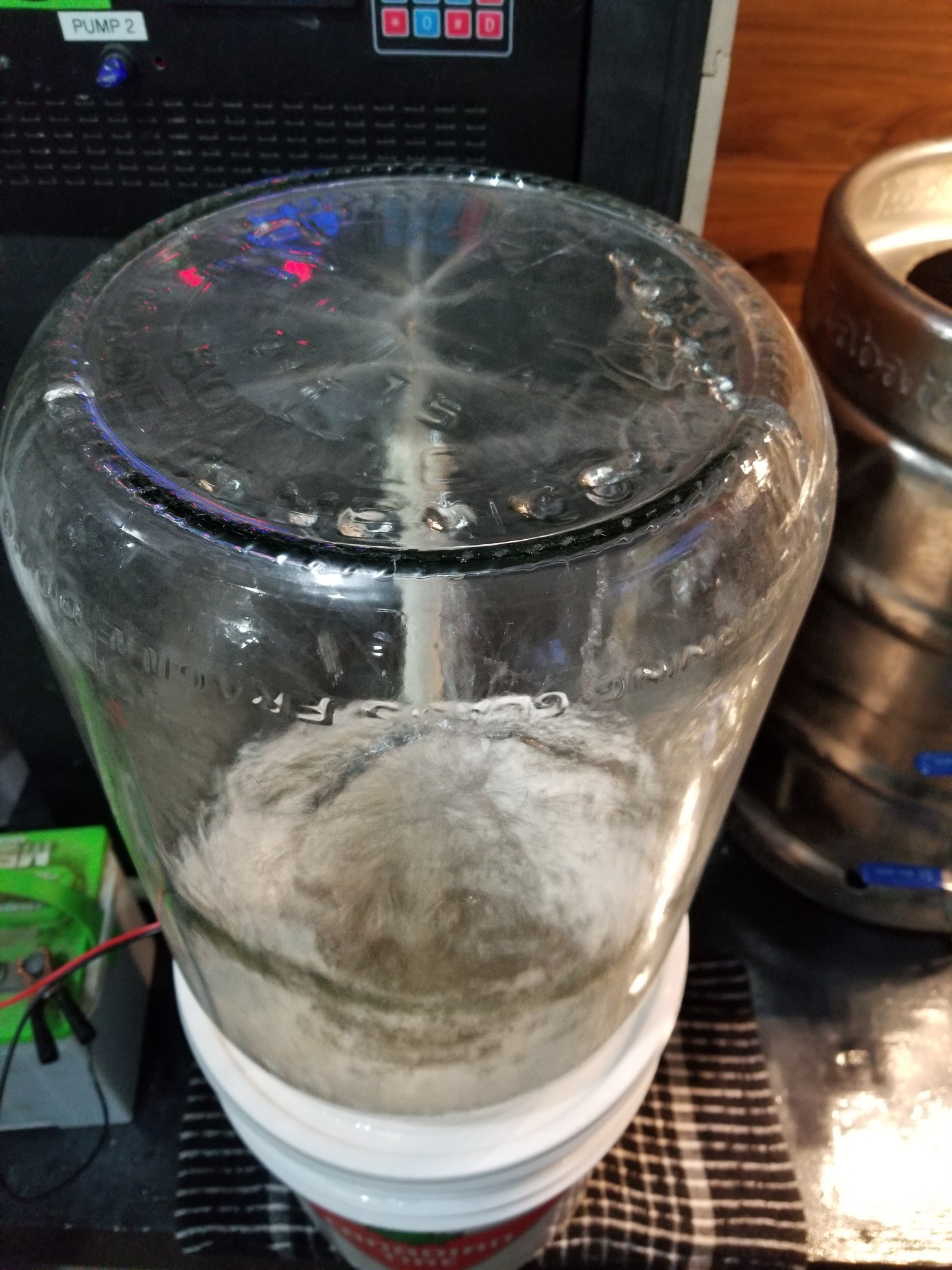

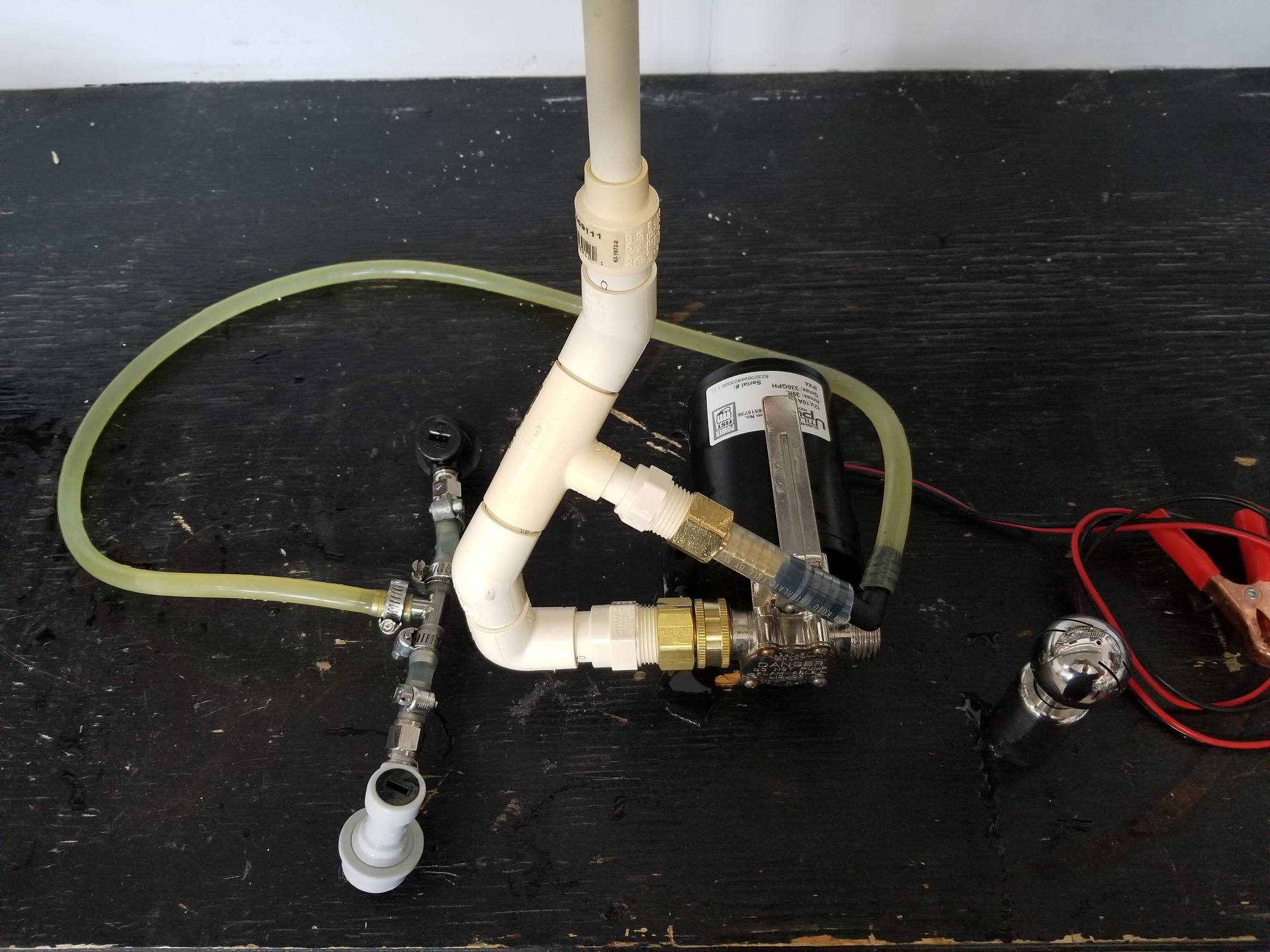

    Got around to building my washer finally.

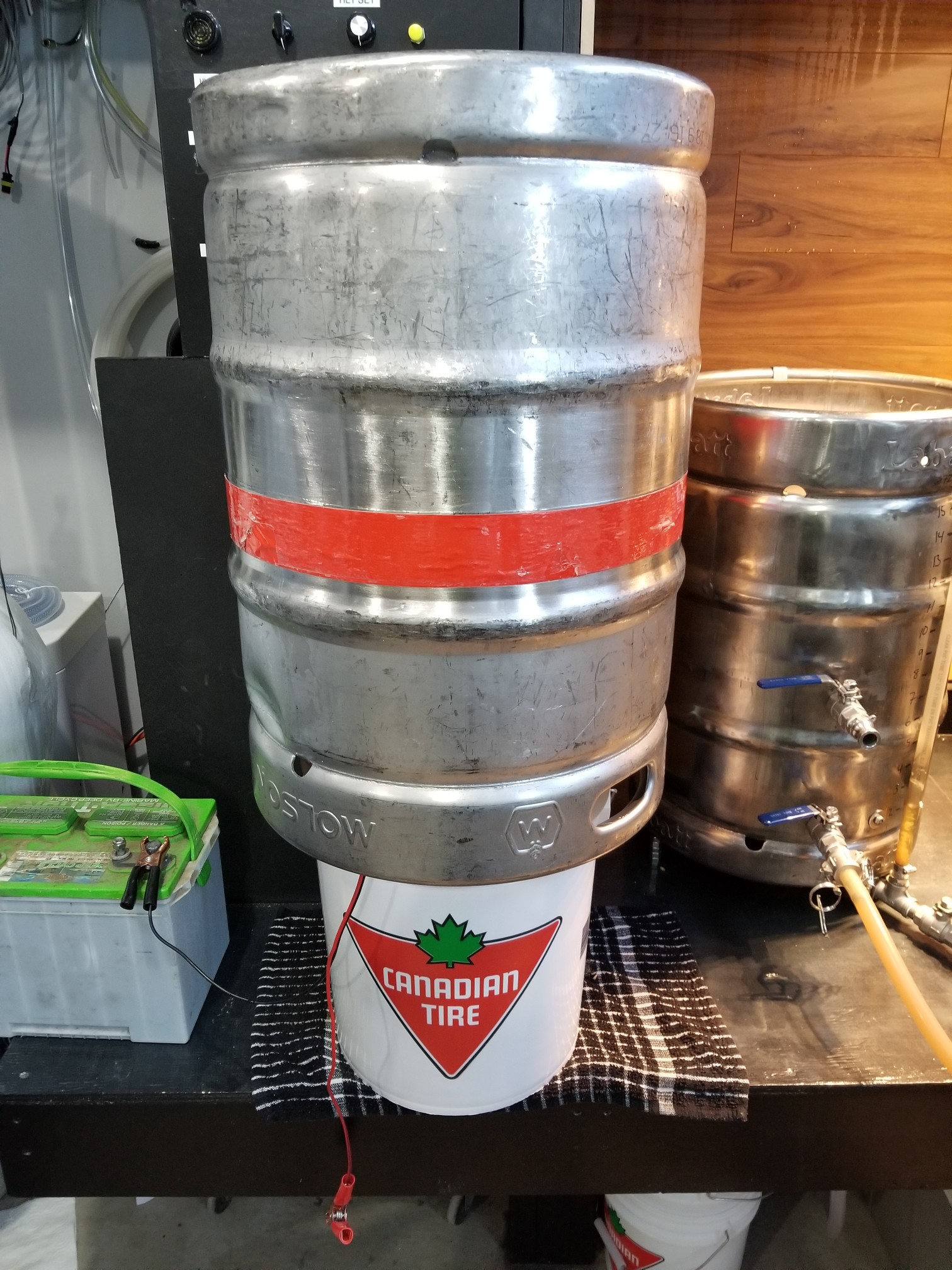

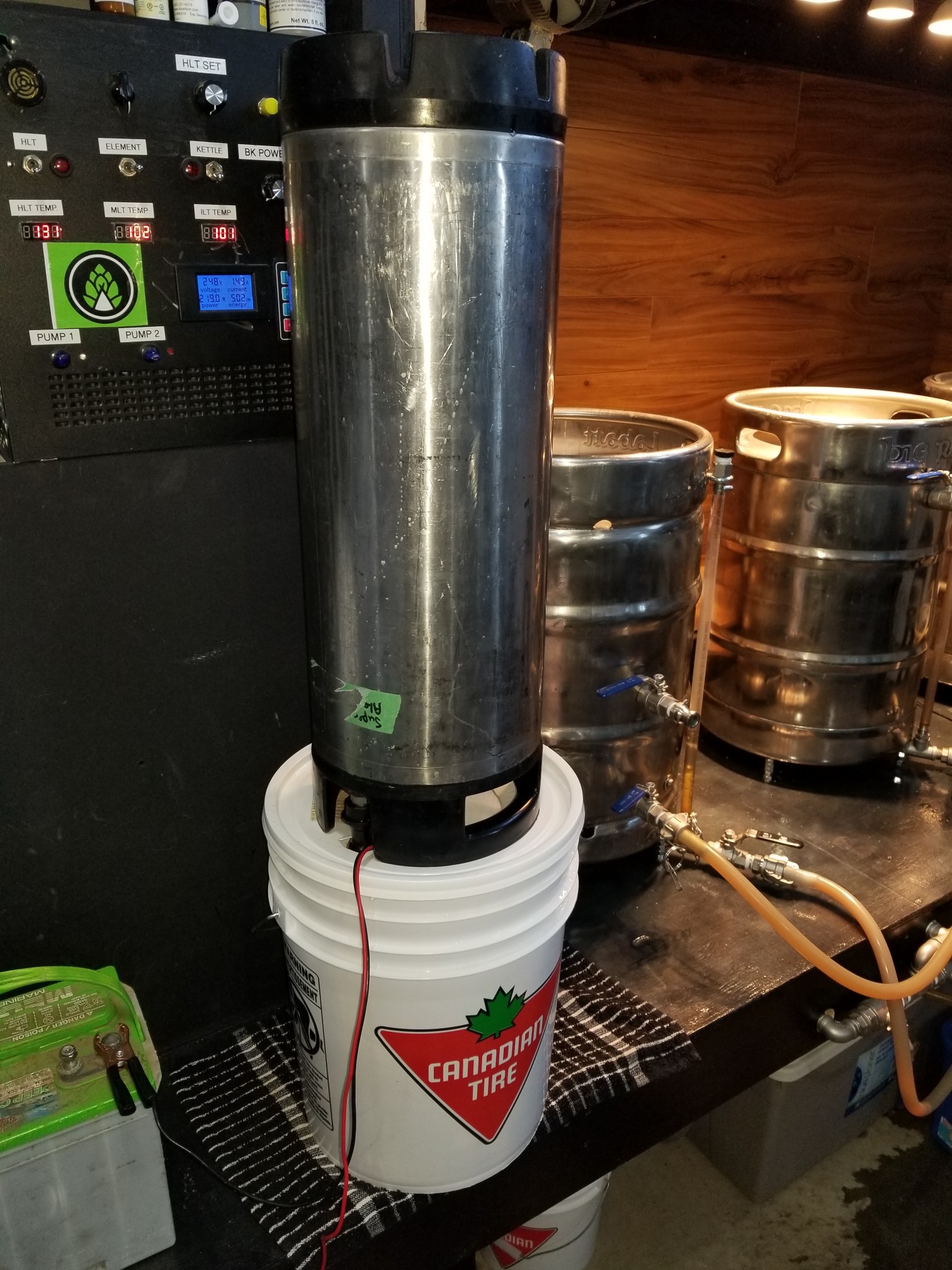

    Good for cornys, Sankes and carboys!


    Attached Files:

    Craigerrr, Hawkbox, Group W and 3 others like this.
  10. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,249
    Likes Received:
    9,491
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    You never cease to Amaze me Snook! I think I know what I'm building next! Now you've go that hooked up to both your gas and liquid side of the keg right?

    sn00ky likes this.
  11. sn00ky

    sn00ky Active Member

    Joined:
    Feb 17, 2017
    Messages:
    273
    Likes Received:
    182
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Stony Plain, Alberta, Canada
    Yup, both sides same time. As long as you have some restriction on the main line, it seems to push plenty of volume through both simultaneously.

    Thanks Trialben

    Trialben likes this.
  12. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,713
    Likes Received:
    2,928
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Looks good, how did you do the posts off the pump? I need to add those into mine and am at a bit of a loss on the best way to do it.

    sn00ky likes this.
  13. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,058
    Likes Received:
    7,242
    Trophy Points:
    113
    Nice, especially like the crappy tire bucket!

    sn00ky likes this.
  14. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,713
    Likes Received:
    2,928
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I have so many of those buckets serving various purposes.

    sn00ky likes this.
  15. sn00ky

    sn00ky Active Member

    Joined:
    Feb 17, 2017
    Messages:
    273
    Likes Received:
    182
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Stony Plain, Alberta, Canada
    Yeah those buckets are handy!

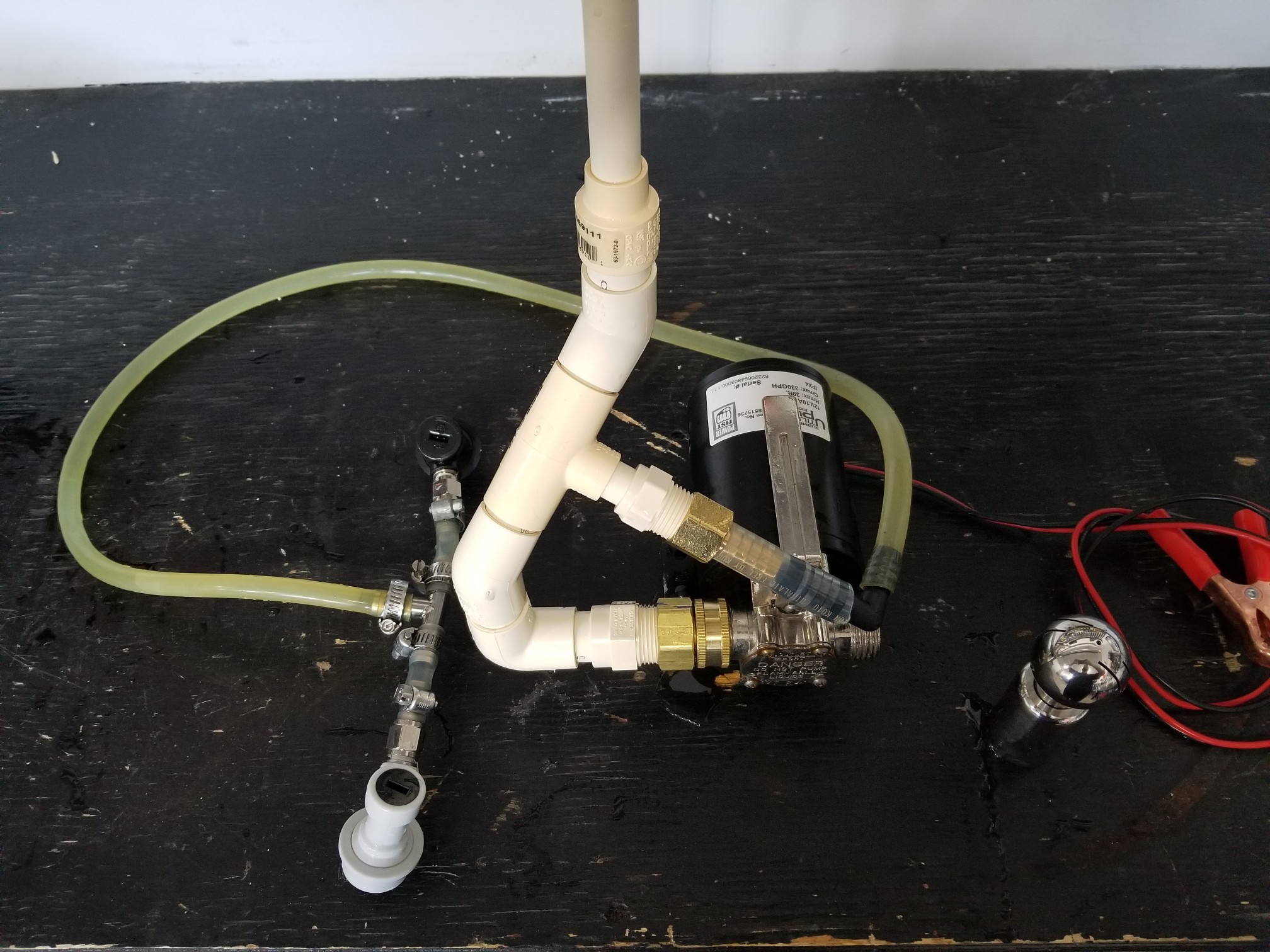

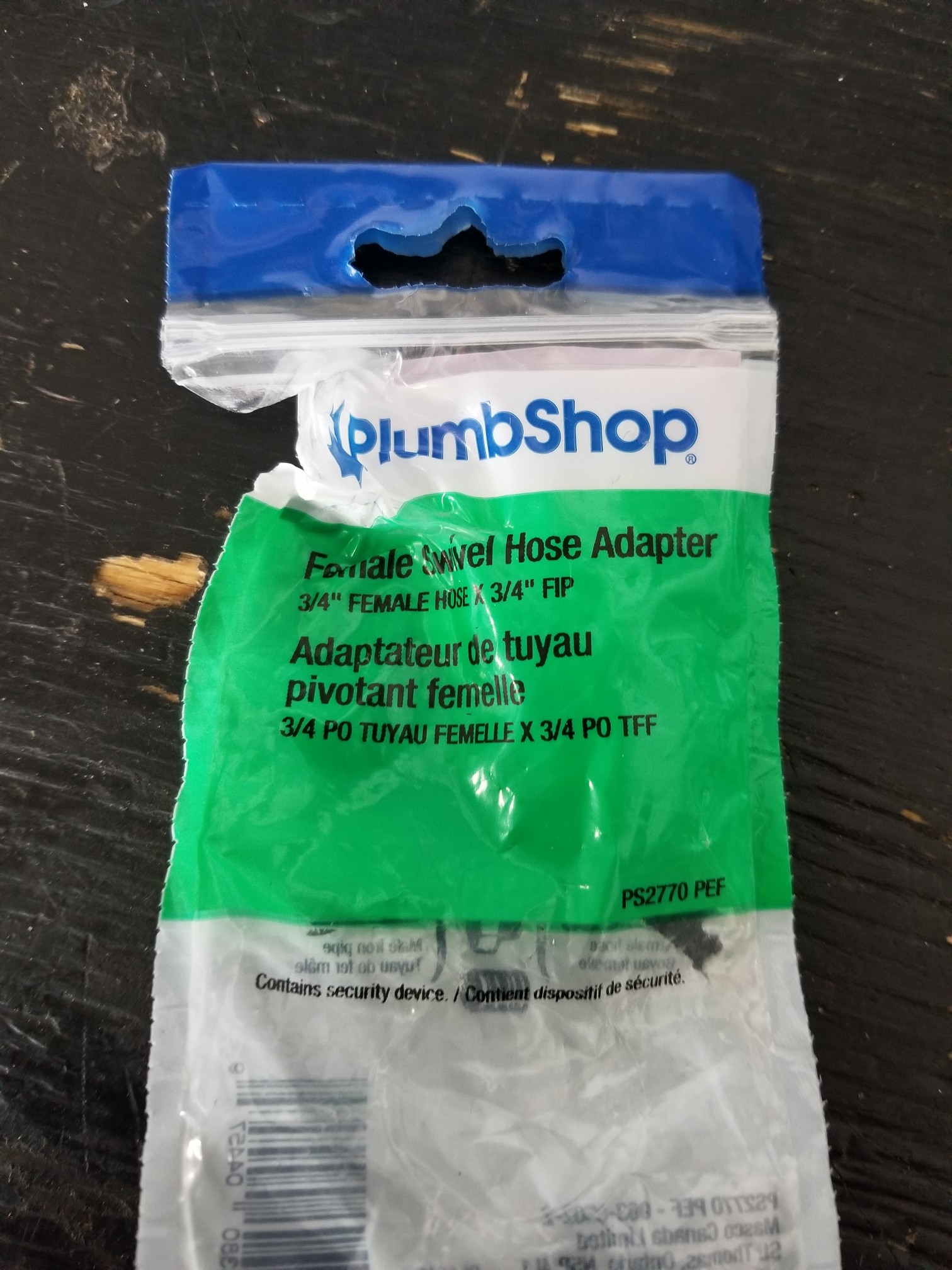

    3/4 female garden hose adapter. 20190207_133359-2016x1512.jpg 20190207_132803-1512x2016.jpg 20190207_132852-1512x2016.jpg

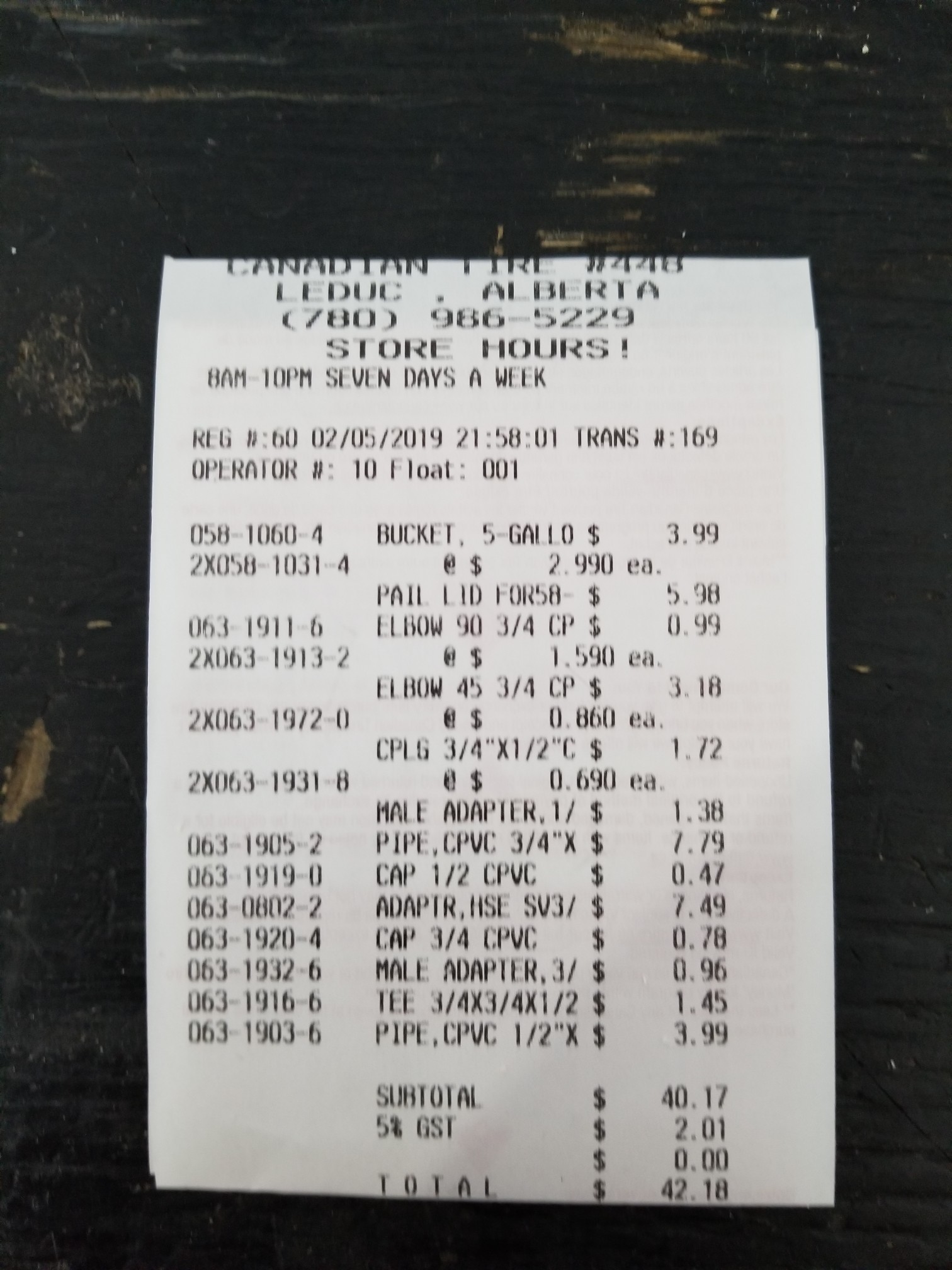

    Here's the list of parts.

    Found out today with a run with PBW that though the pump is submersible, it's rubber is breaking down. Need to find a way to keep it out of solution for sanitary reasons.

    Trialben likes this.
  16. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,249
    Likes Received:
    9,491
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Maybe silicon?

  17. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,713
    Likes Received:
    2,928
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Hmm you used a different design than me, I have a sump pump going straight up so I need to do some brazing most likely. I also need to actually go to Home Depot or somewhere and remember to get parts for a change.

  18. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    5,058
    Likes Received:
    7,242
    Trophy Points:
    113
    I could imagine that the PBW might "affect" the rubber. Is the pump itself rubber clad? Or is it the rubber hoses that are breaking down?

  19. sn00ky

    sn00ky Active Member

    Joined:
    Feb 17, 2017
    Messages:
    273
    Likes Received:
    182
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Stony Plain, Alberta, Canada
    Might help but not sure how I would do it

  20. sn00ky

    sn00ky Active Member

    Joined:
    Feb 17, 2017
    Messages:
    273
    Likes Received:
    182
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Stony Plain, Alberta, Canada
    I think a sump pump would be the best way. What type of fitting comes out of the top of it?
