Revamped Corona

Discussion in 'General Brewing Discussions' started by Nugnut, Sep 26, 2017.

  1. Nugnut

    Nugnut Member

    Joined:
    Aug 27, 2017
    Messages:
    50
    Likes Received:
    30
    Trophy Points:
    18
    Gender:
    Male
    Location:
    Utungun, NSW, AUSTRALIA
    Well I had my grain and nothing to mill with until I came across this Corona Mill, so after much research on this and other sites I set about to pimp it and this is the end result. I had my next door neighbour cut a thread into the shat on hisd lathe which took the wobble out of the plate, added washers in the shild clam and inserted a bolt where the handle was and voila.
    Powered by an old 18v high torqueMakita I will see how it goes this afternoon for my first all grain/BIAB.

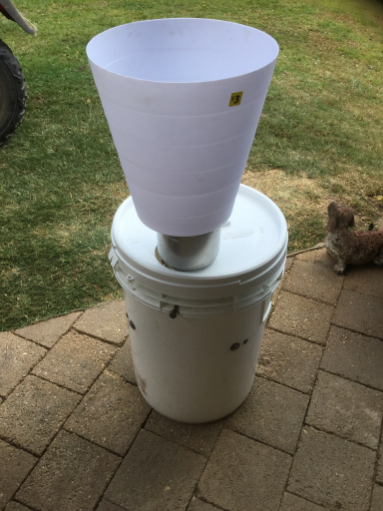

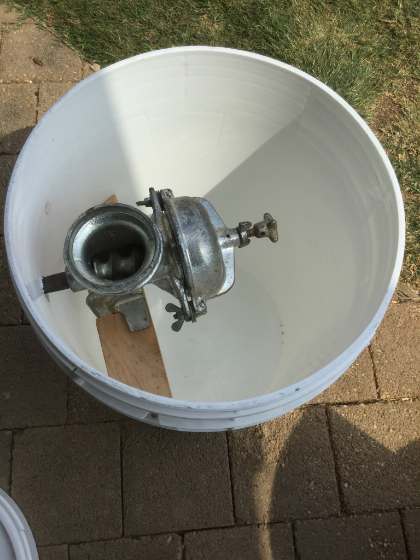

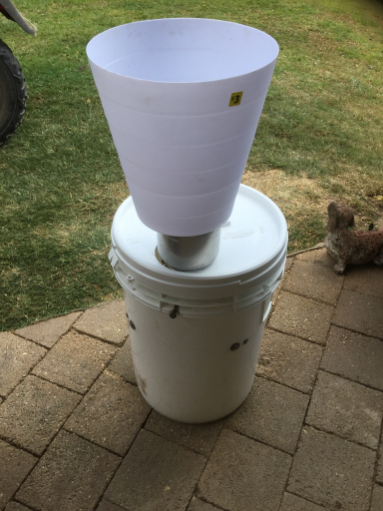

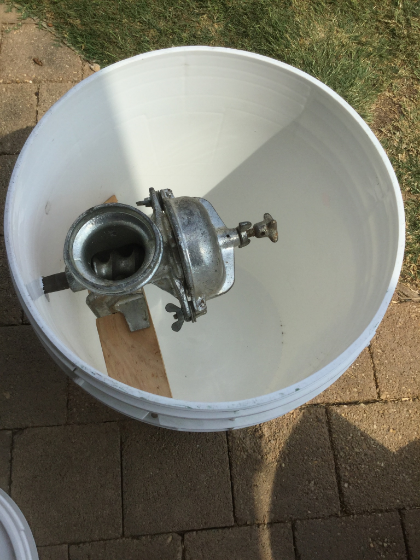

    Grain mill 1.png Grain mill.png

  2. Vallka

    Vallka Well-Known Member

    Joined:
    Jun 13, 2017
    Messages:
    662
    Likes Received:
    864
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Squamish Canada
    That looks great!

  3. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,422
    Likes Received:
    9,478
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Bloody beautiful mate:p! Necessesity is the mother of all inventions. I use a similar bucket like that one on the top for my Sparge bucket. Wacked a heap of holes in the bottom and just plop it ontop of the keggle bag and all and trickle sparge water down through. The cone shape helps I think with extracting all the sugars off the grains by forcing down through the grain bed.

  4. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Nice, I did something similar to mine but I'm still trying to figure out how to increase the size of the hopper. And need to find an electric drill, I'm using an 18v Dewalt but doing grain is damned hard on the batteries.

    [​IMG]

    Also, I took the bottom half of the bucket and made a cover for the mill. So the grain doesn't fly everywhere.

  5. Nugnut

    Nugnut Member

    Joined:
    Aug 27, 2017
    Messages:
    50
    Likes Received:
    30
    Trophy Points:
    18
    Gender:
    Male
    Location:
    Utungun, NSW, AUSTRALIA
    Hawkbox

    I just bought a cheap plastic waist bin from the local reject shop. Holesawed a hole the size of the current hopper and pushed it on and fixed it with silicon. Worked a treat.

  6. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    You don't have issues with the grain not funneling in correctly?

  7. Nugnut

    Nugnut Member

    Joined:
    Aug 27, 2017
    Messages:
    50
    Likes Received:
    30
    Trophy Points:
    18
    Gender:
    Male
    Location:
    Utungun, NSW, AUSTRALIA
    What is left is about 2 or 3 tablespoons which I flicked in in the last minute. Other that that it was great.

  8. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Nice, I need to look into that a little more seriously.

  9. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    nothing wrong with simple, I laugh when I look at mine every time, I don't have any picks, ill post one later

  10. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    2,253
    Likes Received:
    2,451
    Trophy Points:
    113
    Location:
    Back in the mountains
    Check yard sales. I found an old one for a buck. They don't die easily

  11. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I've been working on it, but it's not the time of year for garage sales around here. If I had been forward thinking I would have went after one in the the spring.

  12. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    #12 Ozarks Mountain Brew, Sep 29, 2017
    Last edited: Sep 29, 2017

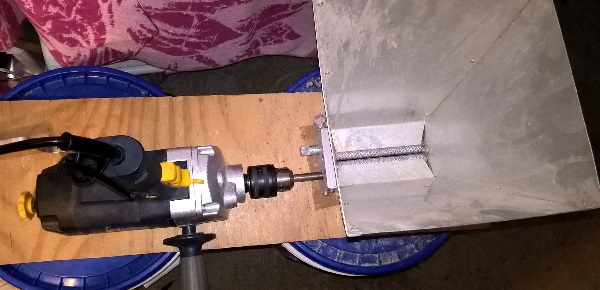

    ok I took one, here's an quick and easy way to stay lazy, a high torque low rpm drill that floats and works great, the key to the drill is the alignment to the shaft, I replaced the bearings in my mill once because I had the drill screwed down so trying this, the lids are screwed to the plywood, use any buckets, flip them around if your first one is full , next is making a bigger hopper but Ive found that too much pressure on the rollers stops the grain from going through so I'm still thinking



    Trialben likes this.
  13. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Nice. I'd like to find a good roller mill but I'm trying to stay on the cheap doing my brewing at least for the first year of my doing it.

  14. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,365
    Likes Received:
    6,596
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    I'm still staying on the cheap five years in....

  15. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    If it weren't for a couple others saying to the contrary, what I have read is that the Corona won't properly crush the grains nearly as well as a two roller will yield. Just my two cents as I don't have a grain crusher yet. I still buy my grains crushed from the LHBS when I need a grain bill filled.

  16. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I've brewed 15-20 batches with my Corona mill & drill setup without issue, they've all come out quite nicely if not always exactly within my expected efficiency. It doesn't so much crush the grain as shred the grain, my understanding though is the issue there is a stuck sparge more than a problem with the mashing. I use a brew bag in my mash tun and have no issues.

  17. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    829
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
    I have had the same problem with that type of mill. I have a Barley Crusher and if I mill North American malt I'm fine on the factory setting. But If I mill Wyermann malt or Maris Otter from England with factorysettings the mill will stop, as if no grain is touching the rollers. The kernels from these malts are slightly larger and occasionally they will hit the rollers just right and stop going through.

    The way I have fixed it is to open the gap up between the rollers a little bit and it works just fine. After I run it through once, I will put it back to the factory settings and do it again to keep the crush the same as the grain from North America. I have done it with out a second milling, but my efficiency went down slightly on that batch.
