Inline carb system

Discussion in 'General Brewing Discussions' started by jdwebb, Jul 28, 2017.

  1. jdwebb

    jdwebb Member

    Joined:
    Jan 10, 2015
    Messages:
    30
    Likes Received:
    26
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sherman Oaks, CA.
    Home Page:
    I built an inline carbonation system similar to the Blichman machine, however, after just a few minutes, the return line running back into the keg runs clear after just a few minutes showing no signs of C02 in the liquid. There are no leaks that I can see at all.

  2. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    I have the blichmann quick carb which is what you're talking about I have to start it at the recommended level of CO2 per the temperature of the beer every 15 minutes I have to turn it up another two to three pounds and repeat that for an hour so you should be up around 20 psi or little over at the end of an hour and your beer will be carbed quite nicely

  3. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    I don't use my quick carb for beer anymore I spund all my beers so they naturally carbonate on their own, but I do use it for carbonating my wife's wine coolers

  4. jdwebb

    jdwebb Member

    Joined:
    Jan 10, 2015
    Messages:
    30
    Likes Received:
    26
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sherman Oaks, CA.
    Home Page:
    Yeah, I did that. But even according to the Blichman instructions and video, you're supposed to set it at the desired PSI and walk away for an hour, and your beer should be carbed. I'm finding its not quite the case, and I may revert back to doing it the quick way, just hook up the Co2 to the beer side and rock it back and forth for 7 minutes!

  5. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    Yeah i was dissatisfied with that part also, i though i could set it and forget it for an hour.

    That's why I spund now, I can set it and forget it, till drinking time.

  6. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,422
    Likes Received:
    9,480
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    I guess once the keg your trying to carb reaches the regulator presure set on the device it obviously equals out thats why you need to keep cranking it up every so often.

  7. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,474
    Likes Received:
    2,688
    Trophy Points:
    113
    Location:
    Austin, Texas
    Are you keg conditioning after the beer is finished and clearing in a fermenter or fermenting in keg? I assume the first option because there'd be too much trub in the keg.

  8. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    4 gravity points before terminal I transfer to the keg, carrying over a little yeast, I let it finish fermenting at 48°f using a spunding valve with a pressure gauge set to 15 lbs.so as it finishes it also carbonated itself, the pressure gauge indicates the pressure, then I cold crash it to 32°f to lager, I serve right from the keg, the first glass or 2 are slightly cloudy with yeast, then all clear after that. The key is to be gentle when transferring to the keg.

    I have my process down so I don't need gelatin any more.

    J A likes this.
  9. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    This was spund


    Attached Files:

    J A likes this.
  10. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male

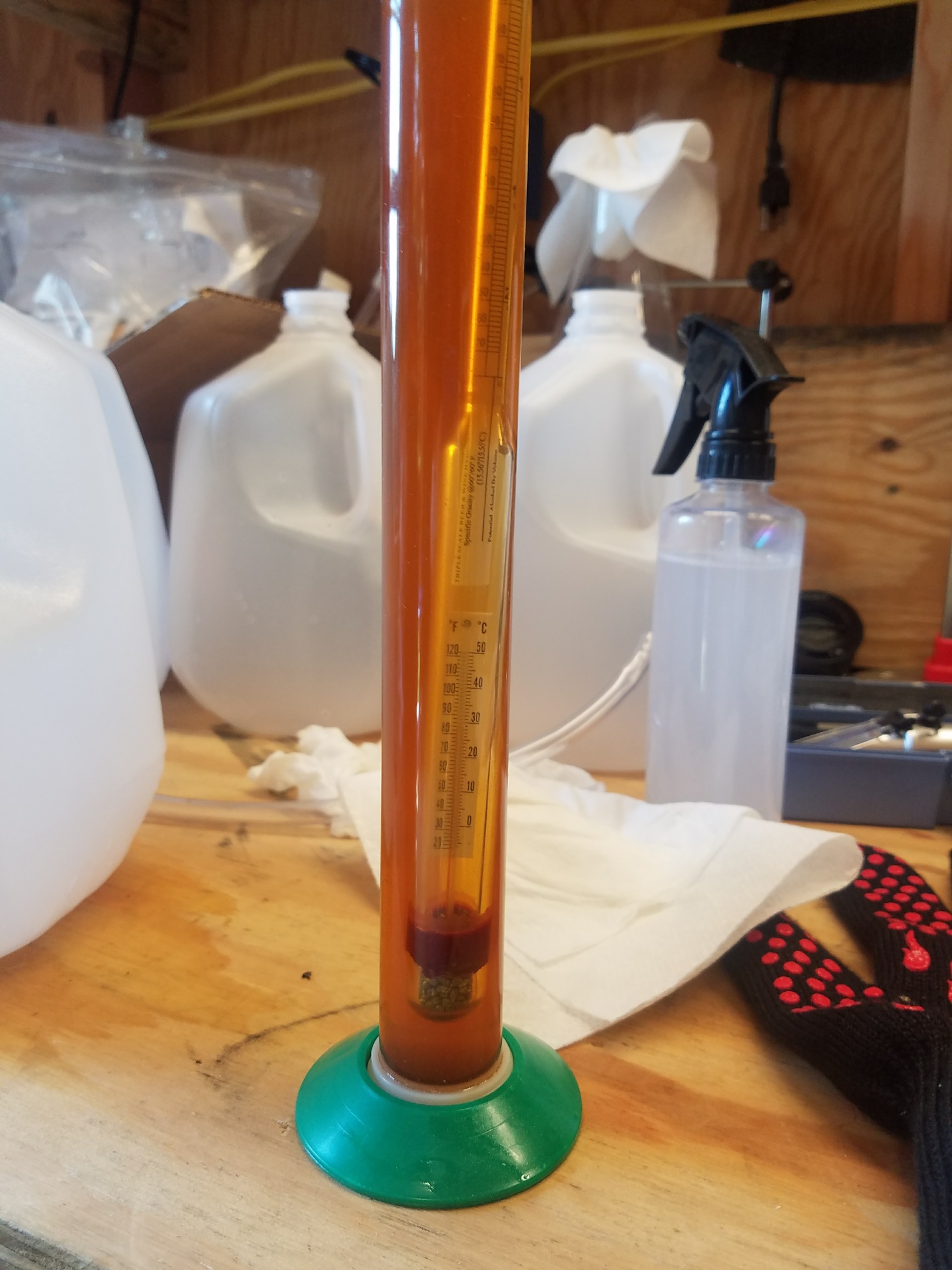

    The finished beer also, and the sample of Marzen shows how clear my wort is after chilling before it went to the fermentor.


    Attached Files:

    Trialben likes this.
  11. jdwebb

    jdwebb Member

    Joined:
    Jan 10, 2015
    Messages:
    30
    Likes Received:
    26
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sherman Oaks, CA.
    Home Page:
    I've seen where people have had some good results from using a carbonation keg lid that has a Co2 post welded on with a dangling hose and a 2 micron stone attached. I may try that and see if I get better results. The only difference between my setup and Blichman's is they use a 10 micron stone. I don't think that makes a difference though.

  12. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    Take your beer 4 point from terminal gravity, put it in a keg, and it will finish fermenting and carbonate itself at the same time.
