    Hi there,

    Very very new to this and have a million questions. Will be reading everything and learning as I go. This has probably been asked a few times but I cant seem to find anything. When using an inkbird ITC-308 device for temp control in a fridge. How does one run the cable in/out of fridge? Obviously the power for the heat pad and the temp probe need to be in the fridge. Is it generally just run over the fridge door seals? I have a spare fridge I want to use but Im not in a position to go drilling holes in it for cables.

    Many thanks and look forward to getting things going

    cheers

  2. ChicoBrewer

    ChicoBrewer Well-Known Member

    Joined:
    May 12, 2018
    Messages:
    908
    Likes Received:
    912
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Healthcare IT Manager
    Location:
    Chico, CA
    My inkbird is outside the freezer. The cables for the heat pads just go through the door (as in the door closes on them)

  3. Group W

    Group W Well-Known Member

    Joined:
    Sep 9, 2017
    Messages:
    1,388
    Likes Received:
    2,290
    Trophy Points:
    113
    Gender:
    Male
    Good question. I just run them over the seals, but would like to hear from others.

    ChicoBrewer likes this.
  4. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,472
    Likes Received:
    9,562
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    #4 Trialben, Apr 2, 2019
    Last edited: Apr 2, 2019
    Just got one of those delivered this arvo I'll be running cables under the lid seal.
    If you mounted it inside the freezer you'd still need to power the temp controller from external power lead.

    But I recon that's not such a bad ideah gee the power cord you get with it isn't real long. Only risk would be spilling water on the power plug but if you mount it on the lid should negate this.

  5. ChicoBrewer

    ChicoBrewer Well-Known Member

    Joined:
    May 12, 2018
    Messages:
    908
    Likes Received:
    912
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Healthcare IT Manager
    Location:
    Chico, CA
    I stuck mine to the side with velcro.

  6. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,441
    Likes Received:
    6,701
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    Likewise. Works fine for me.

  7. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    I have mine outside and running through the rubber seal as many others, it works fine and you can get some Velcro and attach it to the freezer or fridge, that's what I do

  8. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,472
    Likes Received:
    9,562
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    I've slept on this one and been thinking if you put the controller on the inside you may get some condensation inside the electrics in the control box that may cause a short. Let's say when the lid is open in summer causing a quick shift in ambient temp In side the freezer -well that thing is going to get condensation it's ok on the outside of the beer glass but in around electric exposed wires it could be fried chicken time!

    So probably best on the outside
    Think all the fridge freezer electrics are outside the cool chamber too.

  9. Rad2101

    Rad2101 New Member

    Joined:
    Apr 2, 2019
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    3
    Thank for the replies. Yeah I was thinking to keep the electronics on the outside. Inside the fridge or freezer would be a bad idea due to condensation etc. It also doesn't solve the cable over the seal problem as the main power to the inkbird and fridge still need to run over the seals if the inkbird was on the inside. Was just curious about the wires over the fridge/freezer seals. I guess others do it this way and it works fine.

    Cheers

    Trialben likes this.
  10. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,906
    Trophy Points:
    113
    I have mine outside the fridge, wires just go in over the fridge seals. I use electrical tape to keep them reasonably in place. Works like a champ!

  11. Rad2101

    Rad2101 New Member

    Joined:
    Apr 2, 2019
    Messages:
    5
    Likes Received:
    3
    Trophy Points:
    3
    Thanks guys. I feel confident now. Going to test the temp control with the FV full of water. Once I have it right...get into only my second brew. Some kind of Pale Ale I'm thinking. I've learnt so much already. So much more to go.

    cheers

    Mase likes this.
  12. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    962
    Likes Received:
    1,429
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    2nd that AND....as much as it can be against some folks DNA, go read the directions and look for the "environmental" or maybe the "Operational" conditions. This should describe the tempature and humidity that the unit is designed to operate in.

  13. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,472
    Likes Received:
    9,562
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD

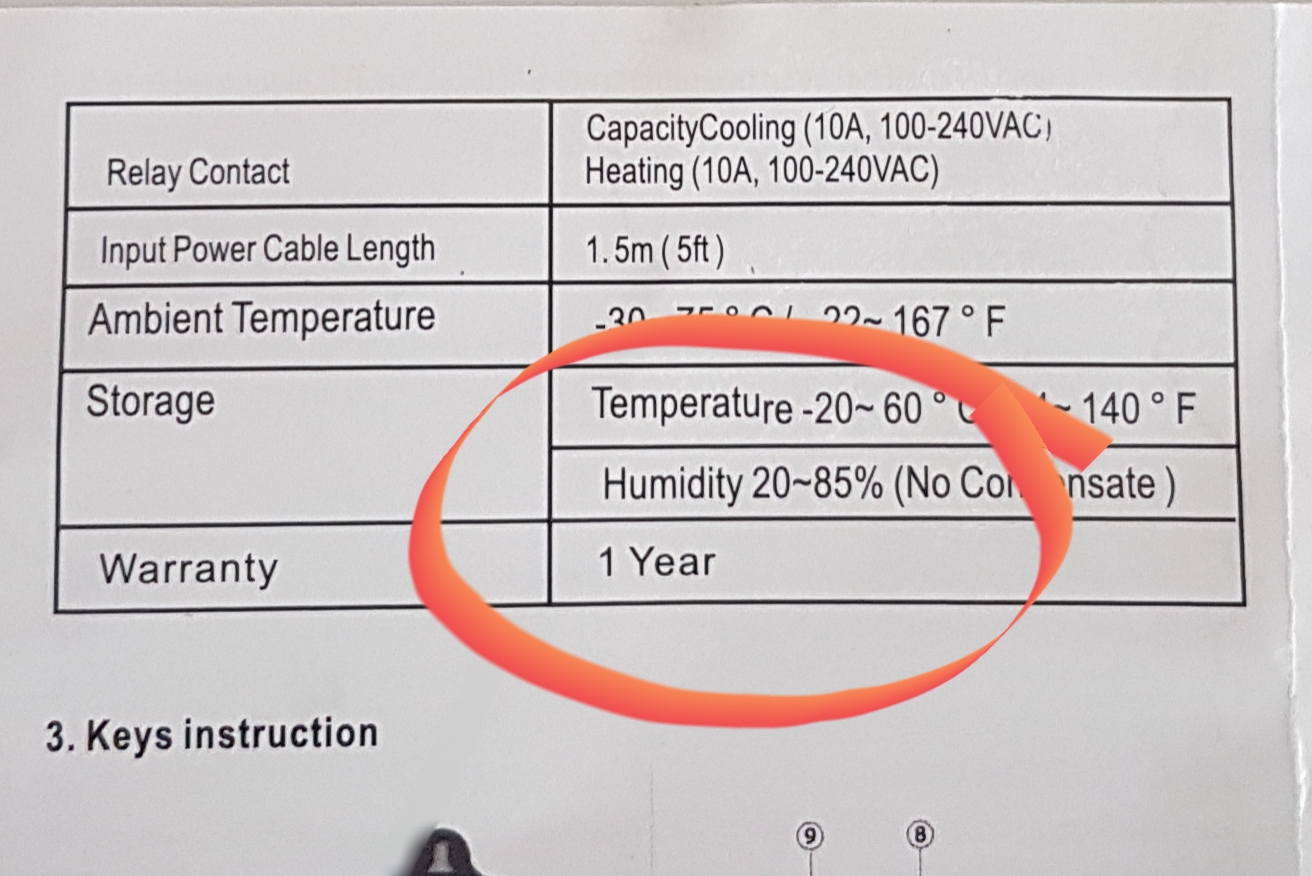

    You mean this bit...?

  14. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    962
    Likes Received:
    1,429
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    That would be it! Looks like you are all clear for some serious cold crashing!
