IBU Calculations - Is there a problem?

Discussion in 'Recipe Editor' started by AHarper, Aug 24, 2019.

  1. AHarper

    AHarper Well-Known Member

    Joined:
    Mar 23, 2018
    Messages:
    400
    Likes Received:
    357
    Trophy Points:
    63
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sussex, UK
    After working with the new Pre / Post Boil volumes I thought I'd check out my latest brew figures - just to be sure.

    There are differences between the IBU Calculator Tool and the results displayed in the Recipe Builder - given the same values in each.

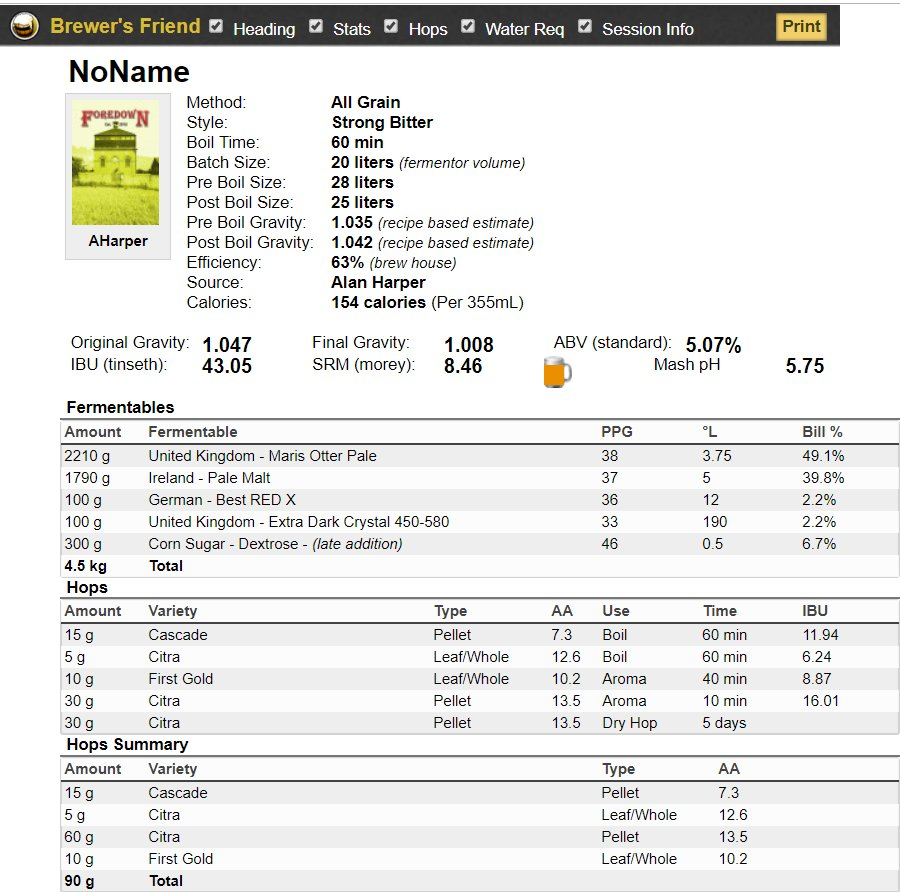

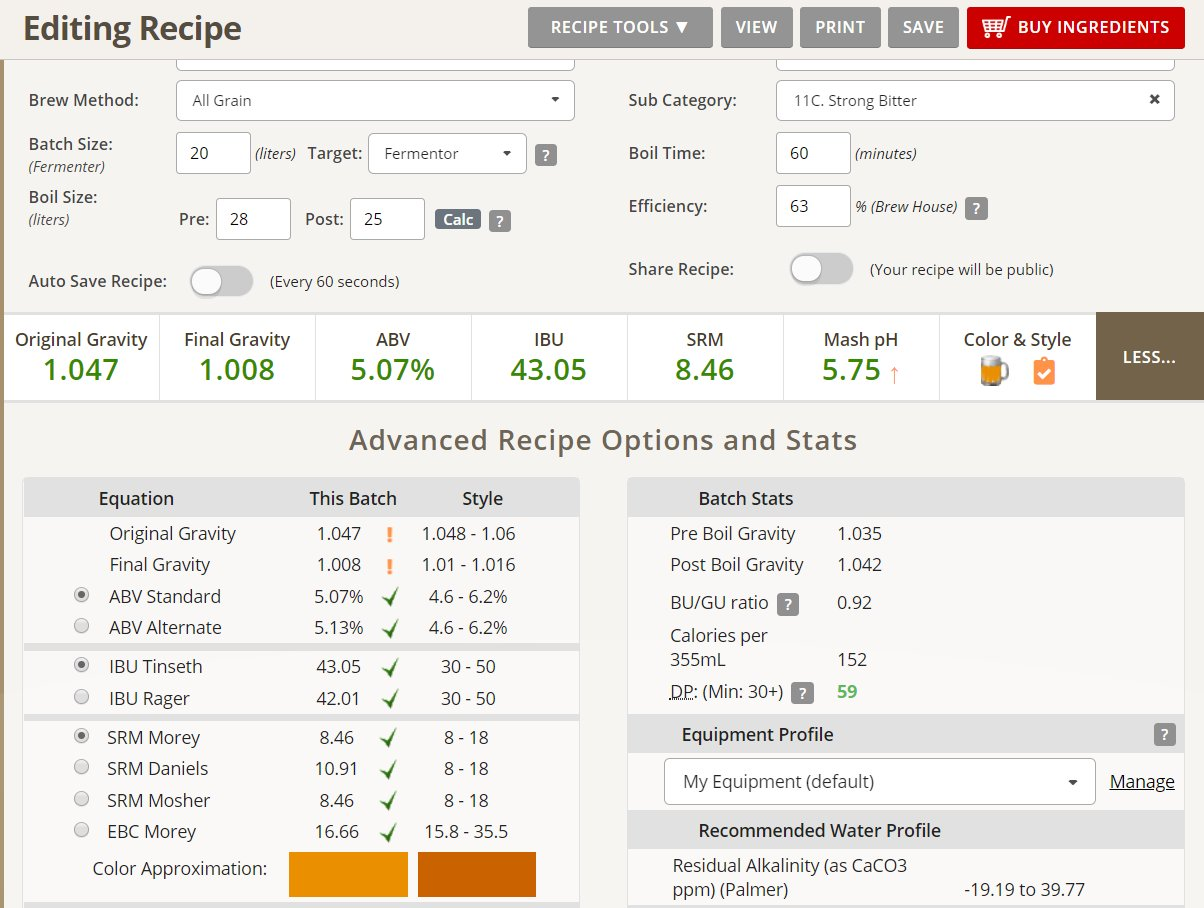

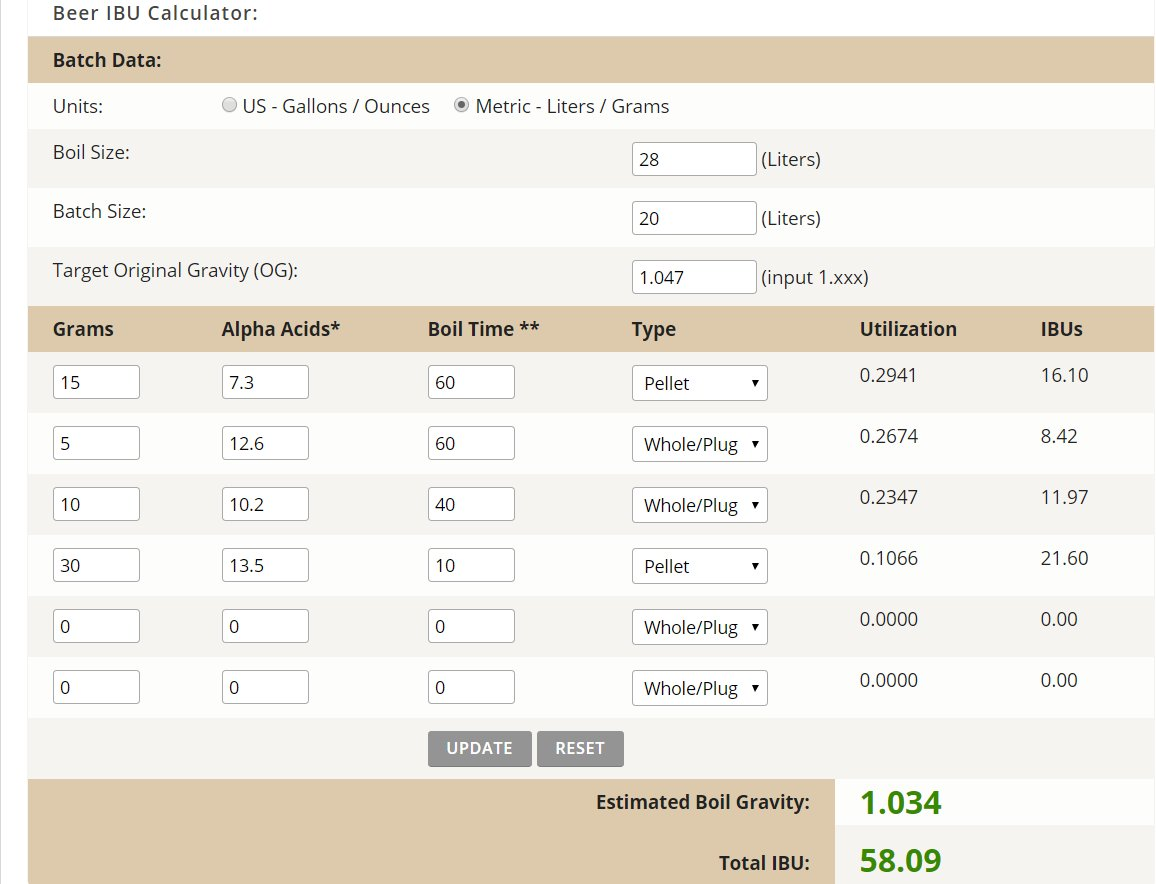

    I have the screen shots of 1) Recipe Editor View, 2) Recipe View (just another way of looking at the figures) and 3) The IBU Calculator Tool.

    WHy are the two calculations different given the same values in each?

    1)


    2)

    3)

  2. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    2,486
    Likes Received:
    1,566
    Trophy Points:
    113
    Gender:
    Female
    Occupation:
    Happily retired
    Location:
    Upper Michigan/Florida
    I know it's different, but here's why-
    Yes, the boil volume and batch size are the same, so at first glance you'd think they should match.
    However, the stand alone calculator doesn't take your losses into account. That is- where did the missing wort GO? In your first example:
    Pre: 28L
    Post: 25L
    Batch: 20L

    So, the software "knows" you had 3L of boiloff/shrinkage. We have to assume that you had 5L of loss in the chiller/trub/tubing/etc.

    In the second,
    Pre: 28L
    Batch: 20L

    The calculator assumes you had 8L of boiloff/shrinkage since the post-boil volume is not specified. That means a greater IBU because you concentrated the wort that much.

    I hope that makes sense.

    I put in a ticket for this, for the stand-alone calculator to better account for losses somehow to get a more accurate accounting.

  3. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,474
    Likes Received:
    2,689
    Trophy Points:
    113
    Location:
    Austin, Texas
    I just tried for 20 minutes to follow the logic of why the same pre-boil volume with the same gravity, using the same equipment profile with the same boil-off rate would give different IBU values for the same hop additions? Why would post-kettle losses make a difference in the IBUs? Why would less of the exact same beer be less or more bitter?
    I had hoped that I could just work around this new mess with the beta version but I'm intensely disappointed to see that that version has been converted, too.

    AHarper likes this.
  4. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,387
    Likes Received:
    6,617
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    I think someone misapplied a formula. If I brew to x IBUs (mg/l iso alpha acid), then don't use half the wort, the wort still has x IBUs. Post-boil losses do not affect bitterness, only efficiency.

  5. Pricelessbrewing

    Pricelessbrewing QA Software Tester
    Staff Member

    Joined:
    Jun 8, 2016
    Messages:
    764
    Likes Received:
    502
    Trophy Points:
    93
    Gender:
    Male
    @AHarper I should be able to take a look Monday the 2nd in the evening just to double check it by hand.
