Help with hydrometer

Discussion in 'Beginners Brewing Forum' started by Brewer #329768, Aug 6, 2020.

  1. Rudibrew

    Rudibrew Active Member

    Joined:
    Jul 13, 2020
    Messages:
    258
    Likes Received:
    241
    Trophy Points:
    43
    Location:
    Cape Town
    Hi everyone,I managed to get a hydrometer.
    Problem is the chart readings are not for alcohol,I think.
    Is there a way I can apply a proper chart to it once I have ascertained what the water line is.

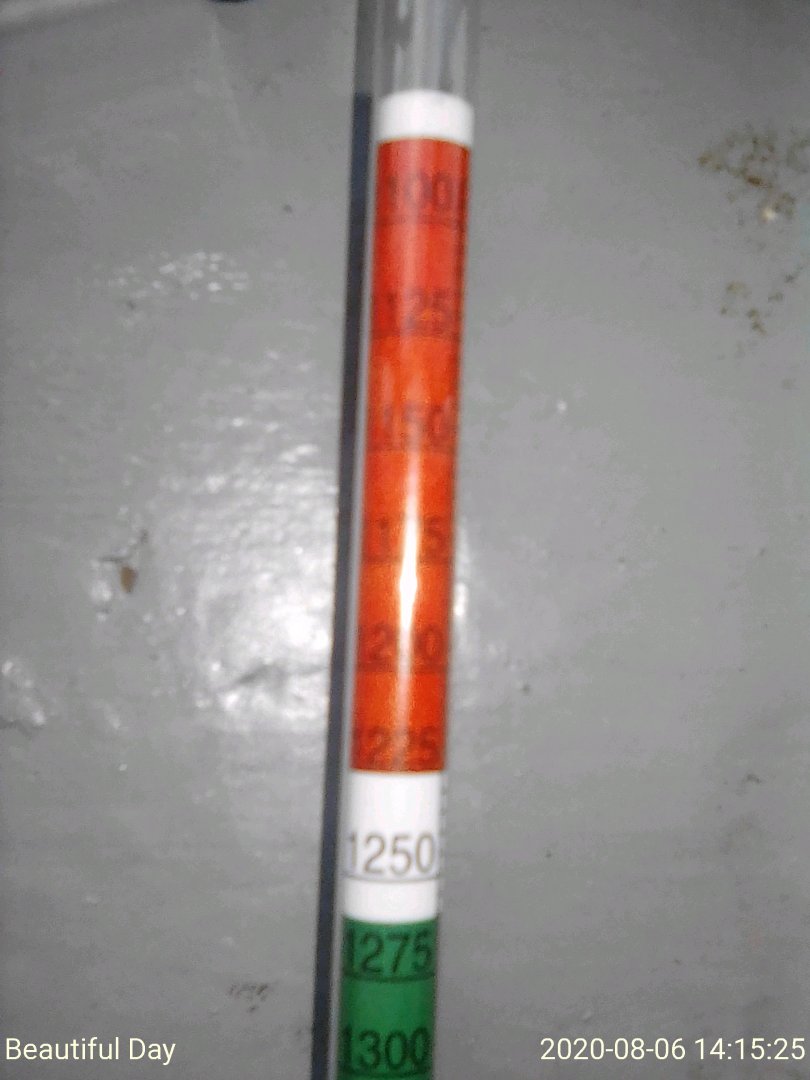

    Thanks for your help IMG_20200806_141523.jpg

  2. SabreSteve

    SabreSteve Well-Known Member

    Joined:
    Jul 5, 2020
    Messages:
    367
    Likes Received:
    411
    Trophy Points:
    63
    Gender:
    Male
    Water will always be at 1.000. Could be reading it wrong but it looks from the photo that the scale is way too large and that might make it hard to make the readings you need for beer. It would seem the first line down from the top is 1.100?
    If I'm reading that right that's crazy. My last batch for example had an OG of 1.050 and FG of 1.012. Unless I'm misinterpreting the scale that could be a problem.

    Trialben and CausticWolf like this.
  3. Rudibrew

    Rudibrew Active Member

    Joined:
    Jul 13, 2020
    Messages:
    258
    Likes Received:
    241
    Trophy Points:
    43
    Location:
    Cape Town
    I think the scale must have been calibrate to a different item.
    But it should show me where the water line is.
    Could I then print out a scale from a site and affix it over the existing one

    CausticWolf likes this.
  4. SabreSteve

    SabreSteve Well-Known Member

    Joined:
    Jul 5, 2020
    Messages:
    367
    Likes Received:
    411
    Trophy Points:
    63
    Gender:
    Male
    If that scale isn't for SG I don't know what it is. Maybe someone else has some ideas. Water will always have an SG of 1.000 though.

  5. SabreSteve

    SabreSteve Well-Known Member

    Joined:
    Jul 5, 2020
    Messages:
    367
    Likes Received:
    411
    Trophy Points:
    63
    Gender:
    Male
    What you could do is take readings of liquids in the range you need for beer that are known constants and use that to mark a new scale. Like I said though I just think those will be too small and close together to use accurately. But you know water is 1.000 so start there. Then do some web searching and find something you have at home that's known to have a SG of 1.010, then one that's 1.020 and so on

    Brewer #329768 likes this.
  6. Rudibrew

    Rudibrew Active Member

    Joined:
    Jul 13, 2020
    Messages:
    258
    Likes Received:
    241
    Trophy Points:
    43
    Location:
    Cape Town
    That's a good idea

  7. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,381
    Likes Received:
    6,611
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    Numbers are off for it to be Brix/Plato... Can't be alcohol percentage either. Put some water in there and see what it reads: 1.000 in SG, 1.0 in Brix/Plato. Then mix a pound of sugar with a gallon of water - convert to metric if needed - that should measure 1.046. You now have your conversion: 1.000/x=1.046/y. Gravity may not be completely linear but over the range we use, close enough.

  8. Megary

    Megary Well-Known Member

    Joined:
    Jun 27, 2019
    Messages:
    688
    Likes Received:
    1,740
    Trophy Points:
    93
    Where did you get that hydrometer from? Isn't that what they use to check battery cells?

    For as cheap as hydrometers are, why not just buy the right one?

    thunderwagn and SabreSteve like this.
  9. Frankenbrewer

    Frankenbrewer Well-Known Member

    Joined:
    Jul 19, 2019
    Messages:
    458
    Likes Received:
    690
    Trophy Points:
    93
    Location:
    Connecticut
    I agree with Megary! Return that one get your money back and buy a new one.

    Trialben likes this.
  10. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,978
    Likes Received:
    7,277
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    Definitely for wet cell batteries. Where'd you find that at, your local auto parts store? What you need will be described as a Beer/Wine or triple scale hydrometer.

    Donoroto likes this.
  11. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    Unless that's a finishing hydrometer.You can buy some that have 0.090 to 1.025 on them with the markings in the 0.001 ratio. They are no good for SG but kick butt for FG. Or it could be for batteries....I've brewed a few that could be classified as battery acid....:p:oops:

  12. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,978
    Likes Received:
    7,277
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    Trust me. It's a battery hydrometer. The green range is a dead giveaway.

    Donoroto and thunderwagn like this.
  13. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    Sooooooo.....only good for Russian Imperials and barley wine? ;):D

  14. SabreSteve

    SabreSteve Well-Known Member

    Joined:
    Jul 5, 2020
    Messages:
    367
    Likes Received:
    411
    Trophy Points:
    63
    Gender:
    Male
    fixed it

    Zambezi Special and BOB357 like this.
  15. SabreSteve

    SabreSteve Well-Known Member

    Joined:
    Jul 5, 2020
    Messages:
    367
    Likes Received:
    411
    Trophy Points:
    63
    Gender:
    Male
    I know that you've talked about difficulties getting stuff shipped. If you're really desperate to get one and can't find a proper one maybe you can make your own. If you search homemade hydrometer there's a ton of sites and YouTube videos with tutorials. This is just the first one that came up:
    https://www.wikihow.com/Make-a-Hydrometer

  16. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,730
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Also for calibrating Sunrype apple juice if you can get it is 1.050 out of the box.

    Trialben likes this.
  17. RalphK

    RalphK Member

    Joined:
    Jul 30, 2020
    Messages:
    57
    Likes Received:
    99
    Trophy Points:
    18
    Location:
    Hout Bay, South Africa
  18. CausticWolf

    CausticWolf Member

    Joined:
    Sep 2, 2020
    Messages:
    76
    Likes Received:
    52
    Trophy Points:
    18
    Gender:
    Male
    Occupation:
    Veteran
    Location:
    Sydney, Australia
    Yeah, could be for wine, not beer

  19. AHarper

    AHarper Well-Known Member

    Joined:
    Mar 23, 2018
    Messages:
    400
    Likes Received:
    357
    Trophy Points:
    63
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sussex, UK
    Some of my beers are quite acid... maybe I should have used that hydrometer instead?


  20. Rudibrew

    Rudibrew Active Member

    Joined:
    Jul 13, 2020
    Messages:
    258
    Likes Received:
    241
    Trophy Points:
    43
    Location:
    Cape Town
    update:
    Finally got a beer hydrometer,lol
    Gtting some good pilsen ,chocolate and cara malts delivered tomorrow also,
    Feel like a kid on xmas eve,lol
