Dammit, I meant "Robobrew", "Digimash" and "Digiboil" as the three varieties. Thanks for the heads-up @Craigerrr
Grainfather sparge boiler for BIAB?
...and I respect that
@Blackmuse No, I have not tried setting the display 'calibration', but ya' know, that'd probably work. I'll try it, even though it'll indicate a little wonky at boil it should not matter.
So if I get (for example, in F) 154 in the mash and 163 at the sensor when I set the temperature goal to 163, I should set the display to be 9 degrees F lower, meaning at '154' (163) it'll read 154; I of course need to set the goal as 154 as well. Seem right to you?
I'll need to check my notes to find the best middle point for that 'calibration' number.
If this works, I'll kick myself a couple of times for not seeing the obvious.
Pity it doesn't have a probe sensor calibration so you can match probe temp more accurately to the controller?
- Joined
- Mar 14, 2018
- Messages
- 9,036
- Reaction score
- 16,410
- Points
- 113
Reading all of this, I think that I will do a test by heating about 10-15 liters of water to a variety set temperatures so I can see what the actual temperature is at the probe with another thermometer, compared with the display.
I would, but without the mash pipe and grain, the temps are pretty accurate. All those stainless bits get in the way of heat distribution.
@Trialben I wish they would offer a 'remote' sensor. Plug it in and put it in the middle of the mash. Next time you visit them* tell 'em what I said.
*Yes, I know they're 2 days away...
It's true recirculating the mash gets a pretty uni form mash temp.
For instance i mashed for first time with new pid i had it's probe in the thermowell near bottom outlet on kettle and I had STC probe in the middle of the mash bed up top of kettle.
They were within a degree C on temp close enough for me
.So recirculating mash will eventually even out the temp from the controller. If the controller don't line up with what your thermometer is saying in the mash bed adjust controller temp to suit...
- Joined
- Oct 19, 2017
- Messages
- 1,817
- Reaction score
- 2,379
- Points
- 113
It does, though I haven't used it.
I know that for my usage it's off by around 1C, so I just set the controller a degree lower. Though I probably should use the calibration. I'm sure the wife doesn't know this when she brews, but 1C hardly seems worth the effort.
Temp between between bottom and top of mash is up to 2C. I use a bag, so recirculation keeps the temperatures pretty close throughout the system.
Last edited:
1C sounds right. That should be about 2F which is what I've been using. The top of the grain bed for me can be about 4 degrees (F) off which would roughly match your 2C I suppose.
@Donoroto - not sure I followed exactly what you said but the idea would be that if your controller reads 163 when your grain bed is actually 154 then - you would enter an offset of 9 degrees so that when you set it to 154 it'll match what your grain bed truly is.
Not sure where you got that number from - maybe it was just a coincidental example.... However, I recently thought I had a 10 degree difference and decided to go ahead and forgo my typical 2 degree offset and jump all temps up by 10 degrees. I DON'T RECOMMEND IT! LOL - A recipe that would have typically finished at 1.012-1.014 finished at 1.018! (I brewed 2 versions of an Oktoberfest and the only things changed in the recipes were this temperature offset and the hops (GR Opal instead of Magnum/Tettnanger). BIG DIFFERENCE in the final beer. The one with the offset is a bit cloying and there is no real hop presence (GR Opal) to balance the beer.
I'm disappointed but at least I now know that my offset is not as great as I had started to suspect. Prior to this one recipe the biggest offset I had used was 4 degrees F. I think I'll stick to my 2-4 F method - 2 being my typical offset and honestly, my beers have been great. Since using the robobrew and having a new water source (built a new house a couple towns over from the old one) my beers have really improved - as has my consistency... - I took the advise often given on here about brewing the same beer many times over to hone in my equipment and methods.
Anyway - sorry for the novel! LOL
Plucked from thin air. I'd brewed Saturday and remembered the setting and reading so I put it down, at least what I think it was. But just a number less than 11 (the system can only compensate up to 10 degrees, but I believe that's degrees C, so about 19 degrees F...) was what I picked.
Right on. Coincidence it is
Let me know what you find on your next brew session - if you plan to adjust anything temp-wise.
@Blackmuse A huge thank you for your suggestions and advice. Setting the calibration to -5 had the effect of all temperatures being within a degree of setpoint.
Now I can start to automate the mash!
Amazing that such a simple change can make all that difference. Perhaps a smidge disconcerting too...
Now I can start to automate the mash!
Amazing that such a simple change can make all that difference. Perhaps a smidge disconcerting too...
No problem! Glad I could help! Let me know how automation goes. I'm not sure if I'll ever really try it... We'll see I suppose@Blackmuse A huge thank you for your suggestions and advice. Setting the calibration to -5 had the effect of all temperatures being within a degree of setpoint.
Now I can start to automate the mash!
Amazing that such a simple change can make all that difference. Perhaps a smidge disconcerting too...
Yeah, i could see that maybe at the end of mash-out. Just hold 168F and beep like crazy...
- Joined
- Jul 28, 2019
- Messages
- 8
- Reaction score
- 13
- Points
- 3
Sorry about the slow response, I didn't seem to get the notifications come through....

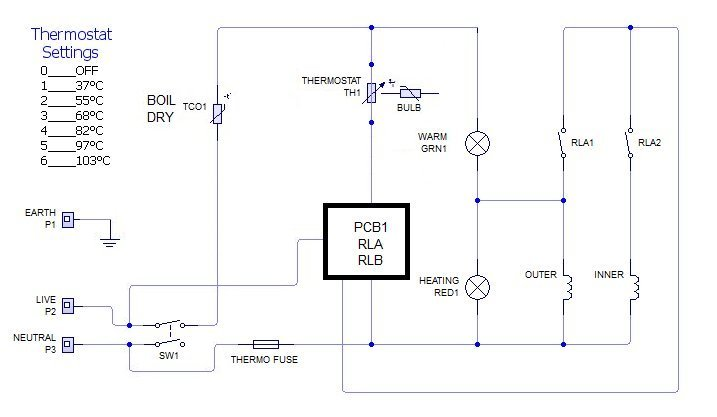

I did do this previously on my first boiler, but I wanted to move away from having to wire it myself (I don't have the tools or experience). I will keep this though as it's a super helpful diagram!
Edit: realised I was being dumb
