Grainfather Base Stand

Discussion in 'General Brewing Discussions' started by Brewer #215577, Sep 6, 2019.

  1. airborne spoon

    airborne spoon New Member

    Joined:
    Jan 23, 2019
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    3

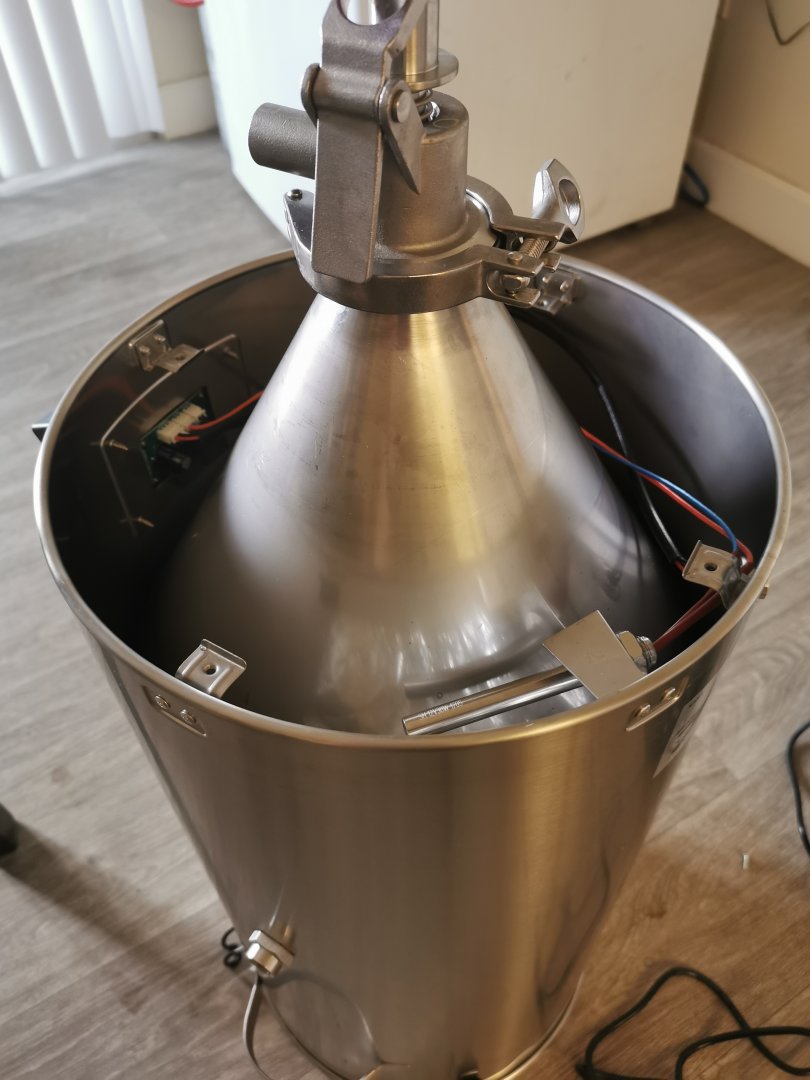

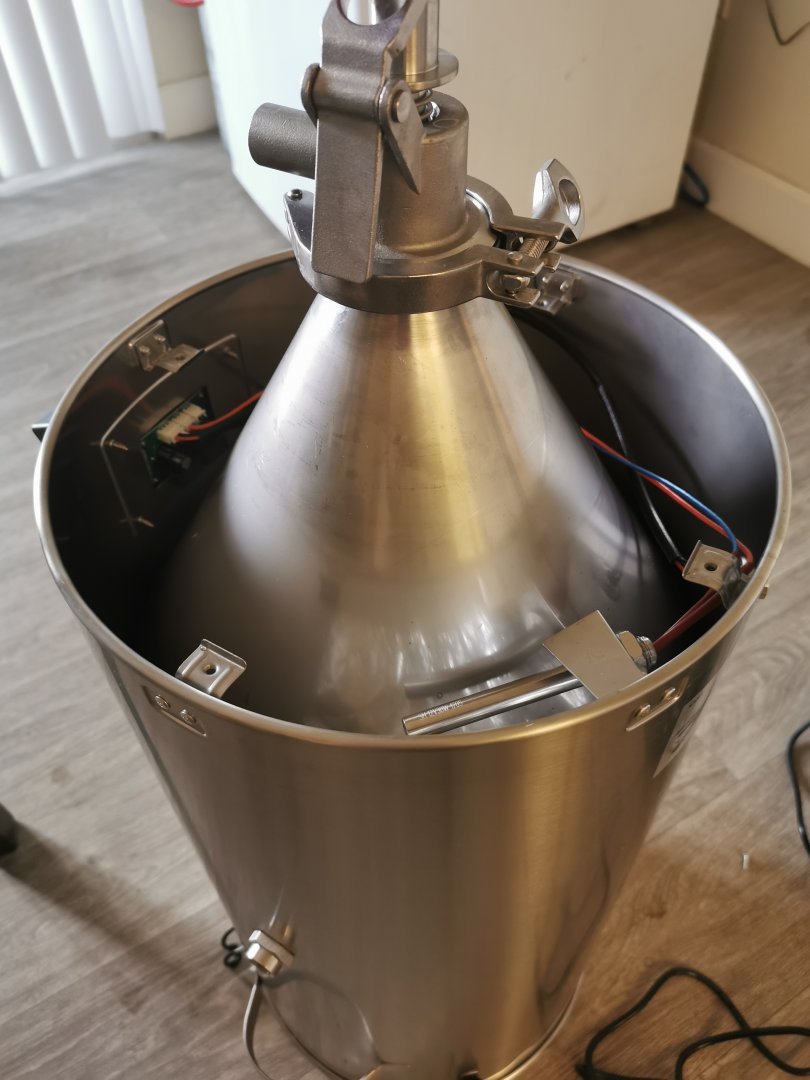

    Has anyone ever thought about upgrading the stand for the grainfather conical fermenter? I mean this thing is awesome and all but I hate how low to the ground it is. I've attached a pic of the factory legs removed if that will spark any ideas. But I want the bottom spigot to be like 2ft or so off the ground. I can weld and fabricate stuff pretty easily but I need ideas to get me started. Also since it is double walled maybe it would be as simple as welding 4 legs to the sides and making a sealed cover to go over the open base area.
    Any ideas would be helpful, thanks.



    Trialben likes this.
  2. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,450
    Likes Received:
    9,525
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    You could divy up some legs like your saying to desired hight and bolt them into the exisiting external holes you have for them tabs on the sides. I can see atleast 4 there. I'd brace the legs with some cross section pieces to stop any sway. I wouldn't go too high though because centre of gravity will be out and more likely cause it to be unstable.

    Think most structures have a really heavy base to tie into but here your raising that weight up like you see water towers. Maybe Google some water tower pics for some structural ideas.

  3. airborne spoon

    airborne spoon New Member

    Joined:
    Jan 23, 2019
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    3
    Yeah I was thinking if I did simple legs I could have them come out at either an angle like /\ or maybe down then out like straight down then out at like a 25° angle, of that makes sense.

  4. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,750
    Likes Received:
    7,305
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    Put it on a shitty table or wood stand and cut a hole to access underneath maybe? You'd keep your stability and add height, and be pretty simple.

    Head First and Trialben like this.
  5. airborne spoon

    airborne spoon New Member

    Joined:
    Jan 23, 2019
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    3
    That's not a bad idea, although I'd just build a little table since it's cheap and easy, like 2'x2' would probably work.

  6. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,450
    Likes Received:
    9,525
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Don't know if you've got them in the good all US but a humble Milk crate may suffice?

    thunderwagn likes this.
  7. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,750
    Likes Received:
    7,305
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    Cinder block and milk crates were my furniture of choice for many years!

    Trialben, Mase and BOB357 like this.
