    Finally I am getting around to upgrading my fermentation practices with a temp controller. The first shipment of parts arrived today :p [itc-1000 and water pump]. Still waiting on the 304 SS 3/8" tubing.
    My plan is to fabricate an in the wort heat exchange coil using the SS tubing to recirculate chilled water throughout the fermenter allowing for pretty precise temps.
    I'll get some workbench pics uploaded as I progress !!!
    Super excited

  2. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    I don't believe I've ever heard of anyone doing it that way. Interesting!

  3. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa
    It certainly isn't an original idea, it is modeled after SS brew tech's beautiful and $$ FtSS system for their brew buckets ... Just now poached a mini fridge soooo my be adding a glycol unit to this build

  4. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

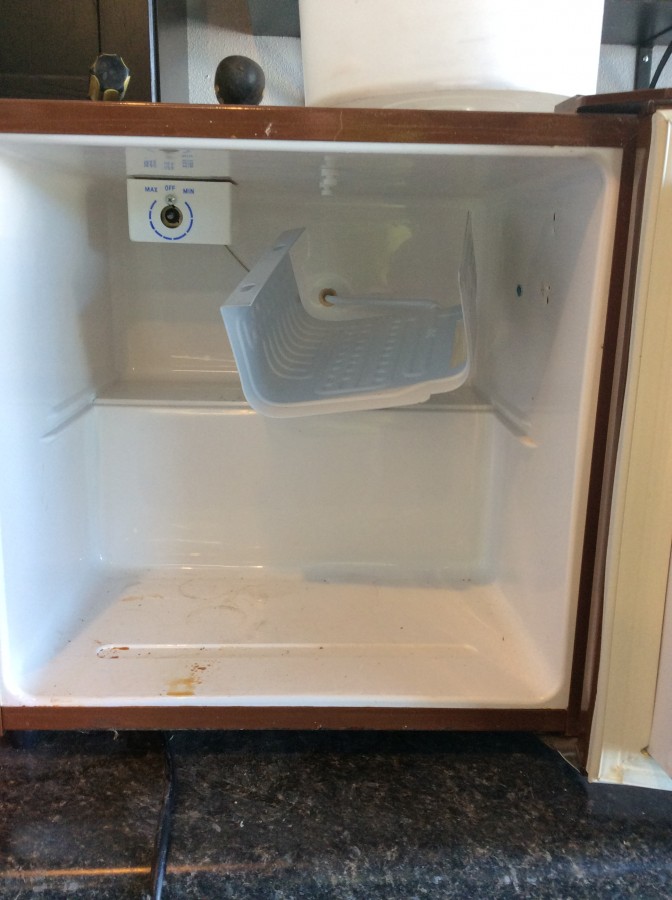

    So my project is finally showing some progress. Applying some diy-jitsu to the fridge


    Attached Files:

  5. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

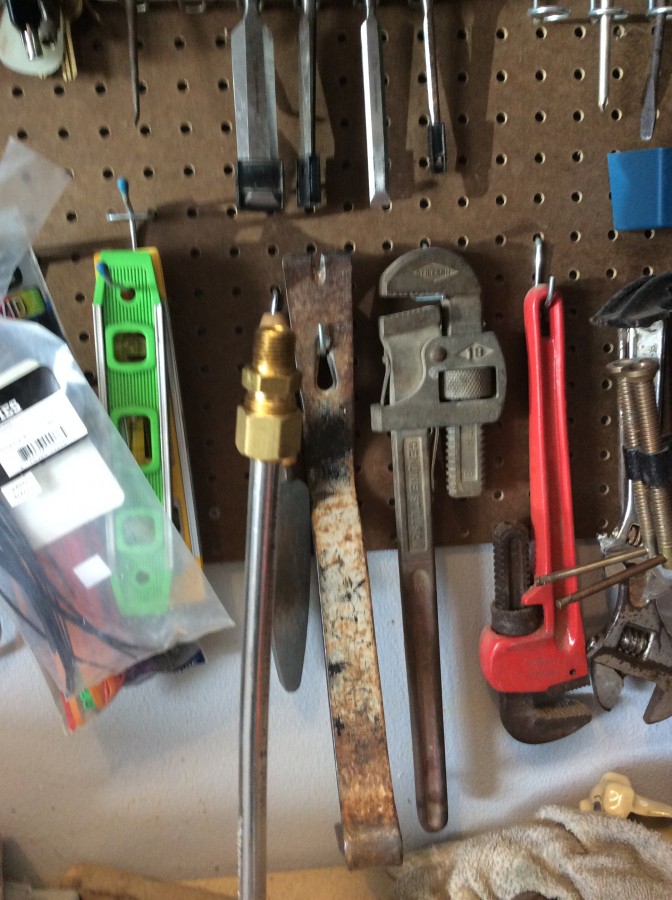

    Slowly slowly don't kink it :shock:

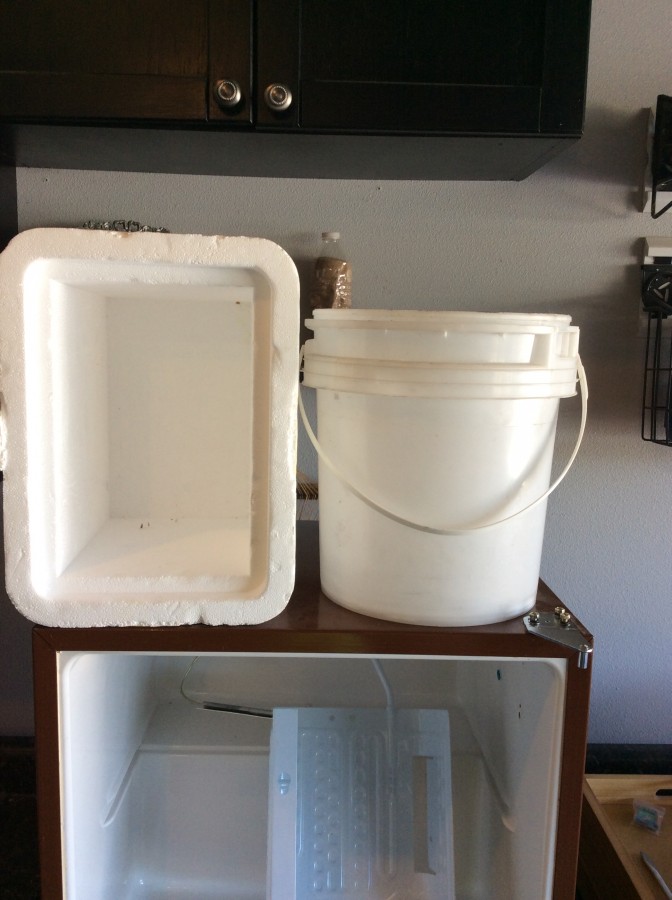

    Which container to place in fridge ? Bucket or cooler


    Attached Files:

  6. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

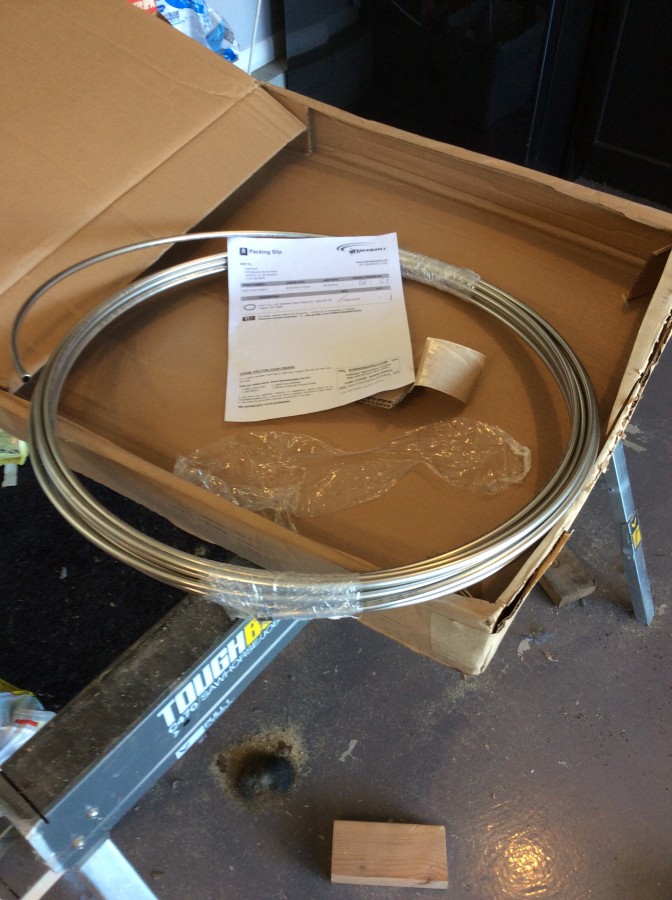

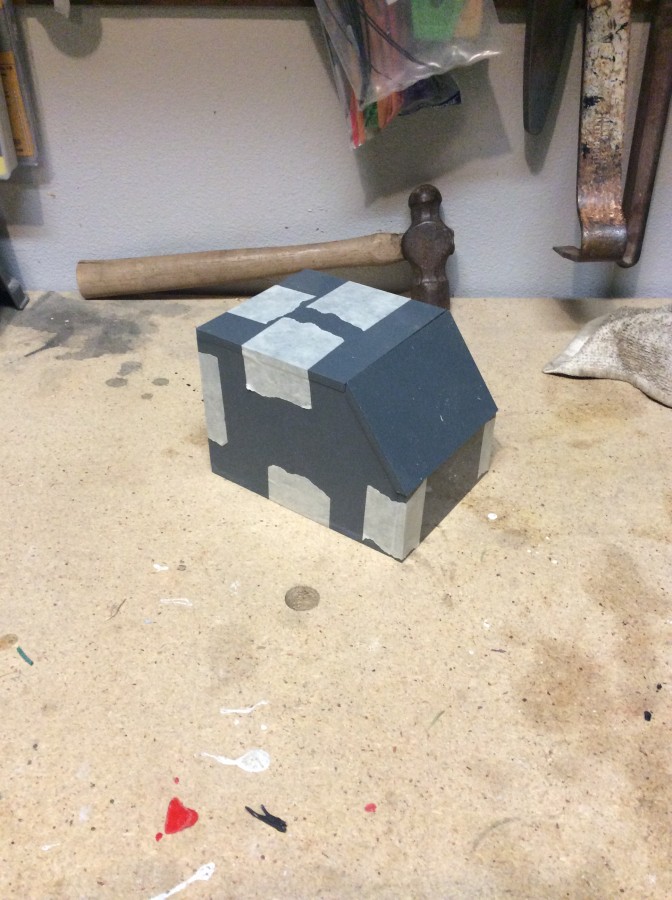

    Stainless came !!

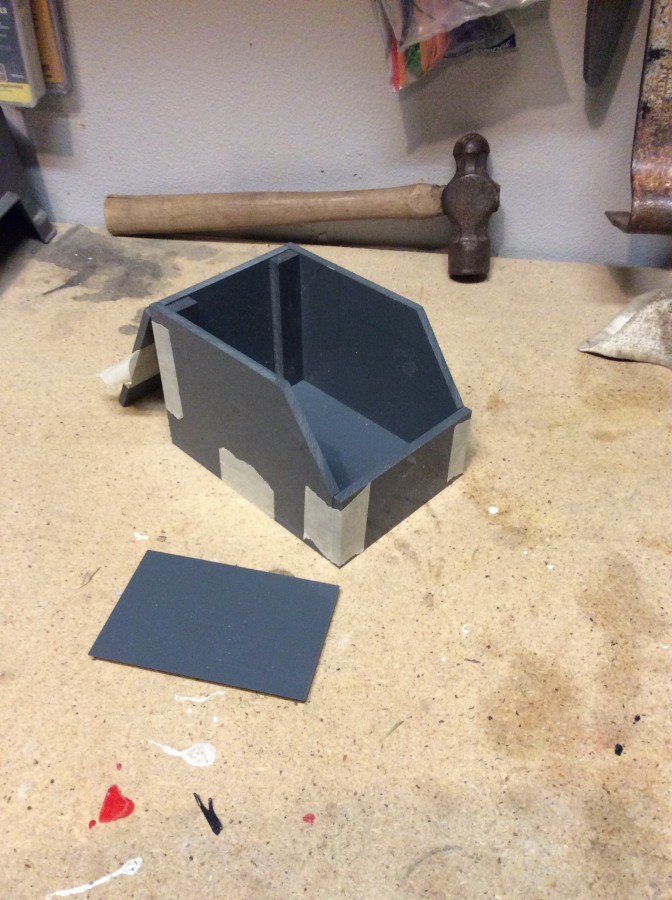

    Controller box started


    Attached Files:

  7. jmcnamara

    jmcnamara Well-Known Member

    Joined:
    Aug 29, 2012
    Messages:
    2,457
    Likes Received:
    1,947
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Rosedale, MD
    A bit jealous of your engineering know how. Good luck and keep us posted!

  8. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa
    Found some time to dink around in the shop this afternoon before being forced back to stupid work tonight! #getting closer


    Attached Files:

  9. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

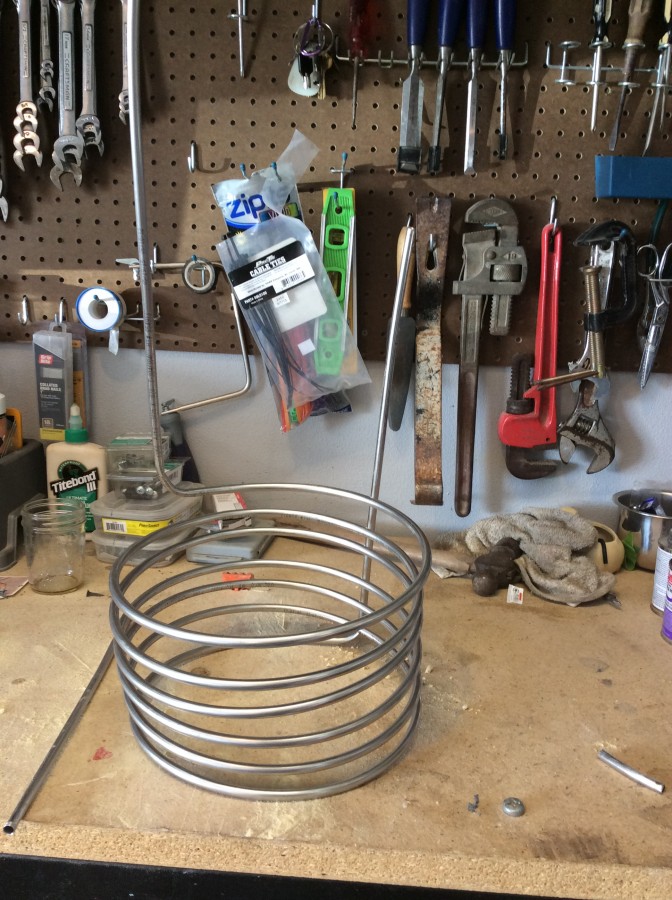

    The heat exchanger portion didn't turnout as drafted :( the 304 stainless proves to be some very stout tubing and refused to be bent to 180 degree w/o flattening at the apex of the radius , that would have been needed to accomplish the vertical coils I imagined ; resorted to the duct tape and corny method

  10. valsamik

    valsamik New Member

    Joined:
    Jun 26, 2016
    Messages:
    9
    Likes Received:
    1
    Trophy Points:
    3
    Pretty technically advanced. Very interesting. I have a mini fridge converted to a fermentation chamber with the use of an Inkbird ITC308 2 stage temp control and a Lasko personal ceramic heater. Maintains optimal temps with a +/- 3 degree window. My next mod is to add a frame to increase the fridge depth to fit a 6.5g bucket.

    Happy brewing!

  11. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

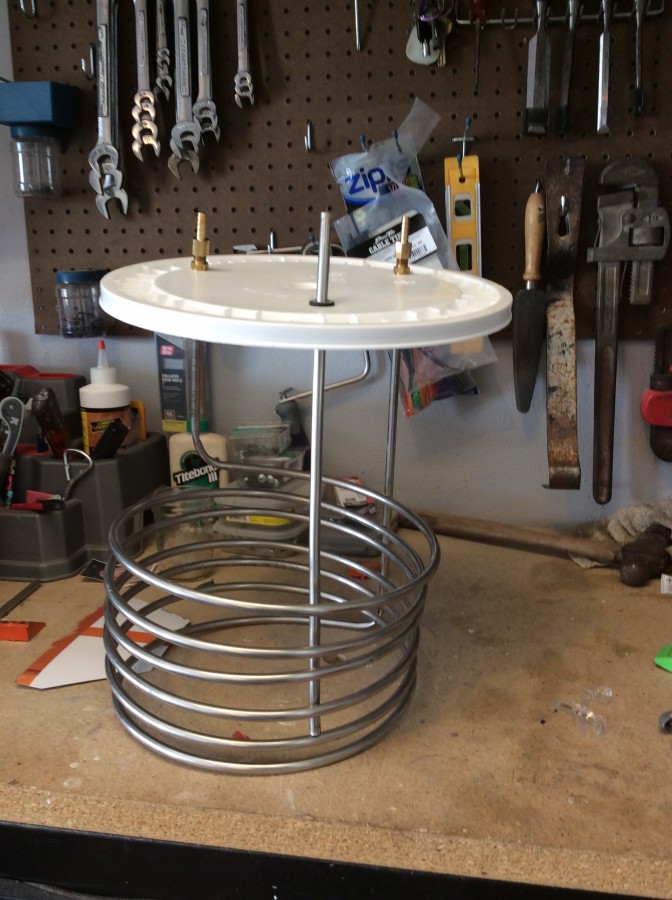

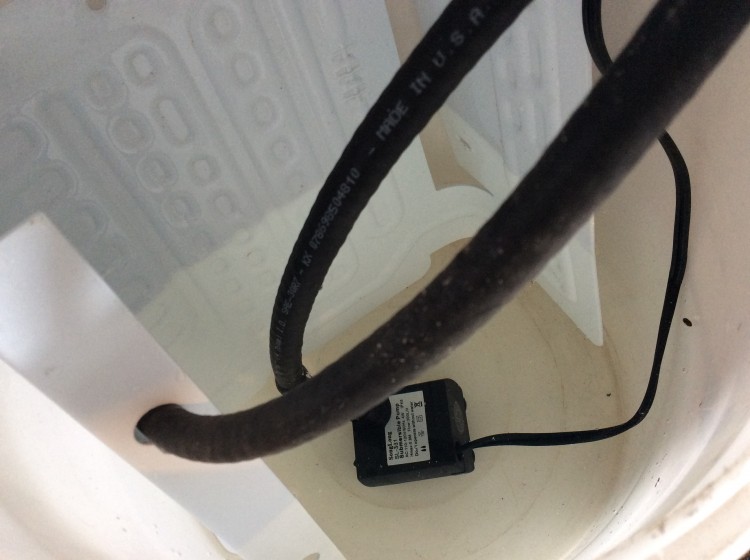

    It's alive ! :twisted:

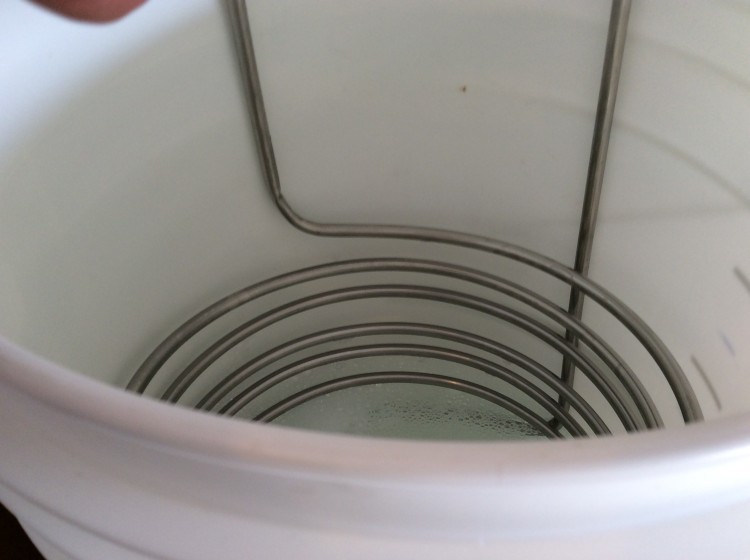

    Doing an acid passavation on the coil now. Hope to play around with it a bit more tomorrow in a mock setup to see how it performs [i.e. check for leaks]Then on to my LHBS to get stuff for O-fest, get it in the fermentor and finally lagering.
    #imsoexcited


    Attached Files:

    Trialben likes this.
  12. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,440
    Likes Received:
    9,510
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    How'd this turn out Llewellyn? You end up fermenting some brews in this out of this world fermentation temperature control setup .

    You sure do think outside of the box or should I say fridge:p. Man I'm thinking how to chill the fridge/freezer space to cool my fermentor whilst you've flipped it on it's head and are chilling your beer internally. Probably more efficient temperature stability too?

  13. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

  14. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

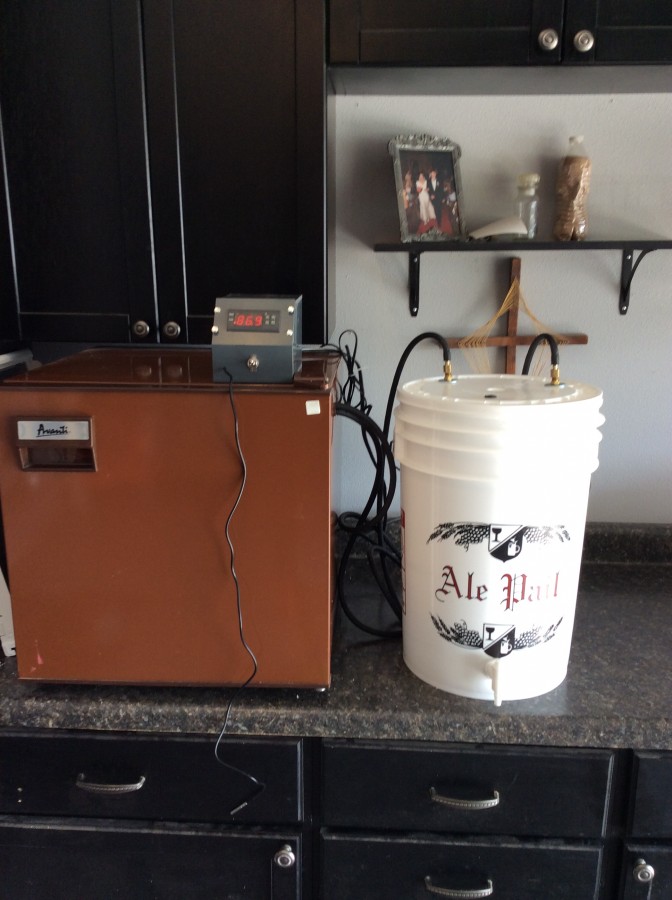

    :DIt works like a charm benny , use it all the time. Did a helles and a marzen last summer garage temp was 82-88 F and held temp in fermentor right at 50 I problem Added a fermwrap to the outside of the bucket for the chillier months ..she's pretty darn efficient too. Wort transferred in at 65 F can be dropped to lager temp 48 F in under 30 mins. Been a good addition to the brewing gear

    Trialben likes this.
  15. Mark D Pirate

    Mark D Pirate Well-Known Member

    Joined:
    Aug 21, 2016
    Messages:
    1,887
    Likes Received:
    1,280
    Trophy Points:
    113
    Occupation:
    Master carpenter , all round good guy
    Location:
    Radelaide SA , Australia
    Did you add glycol ?
    With the temp range of not much above freezing and garages reaching over 120 of your silly F degrees i wonder how it would cope .
    i'm moving and only have room for my full size fridge , all up cost me same as 4 hours wages so may need to add a similar chiller/ heat exchanger if i want to run multiple ferments or bring an IC into my brewing

  16. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,440
    Likes Received:
    9,510
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    How do you go about raising the ferm temp or warming it up in cold weather. Pitching temp in 30mins that's pretty darn good mate I recon if I brew in morning I'll be pitching 4-6 hours after at lager temperatures. Sounds like it was worth the trouble.;)
