DIY jockey box

Discussion in 'General Brewing Discussions' started by LONG CALL BREW, Aug 22, 2019.

  1. LONG CALL BREW

    LONG CALL BREW New Member

    Joined:
    Jan 4, 2019
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    1
    can anyone out there think of a reason not to use 50’ of FDA approved vinyl water line, at 19 cents a foot, instead of a 50’ stainless coil when making a jockey box? I’ve been racking my brain trying to think of a reason not to do this. Haven’t come up with a reason so far.

  2. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    Just a guess, but ‘plastic’ is not as conductive as metals.

    J A likes this.
  3. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,381
    Likes Received:
    6,613
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    Biggest argument is that plastic doesn't conduct heat well. Copper is the best bet.

  4. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    830
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
    Heat transfer is the biggest reason. I would avoid copper even though it has the best thermal transfer. Stainless is a lot less reactive and cleans up nice with PBW. Copper can get nice, bright and shiny, that's when it reacts to beer. It needs an oxidized layer and then it turns a dull brown. When I use to have a copper heater in my RIMS, the water would turn green when I did a CIP (clean in place) with PBW.

    Plastic may not transfer heat as well and it may work, but not as good as stainless.

    Mase and J A like this.
  5. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,428
    Likes Received:
    9,487
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Tripple the length but halve the cost may just work sounds like something Id do :).

  6. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,474
    Likes Received:
    2,689
    Trophy Points:
    113
    Location:
    Austin, Texas
    Triple the length means triple the pressure... It takes a lot to move beer through a narrow channel. At some point the fittings appropriate for plastic won't handle it.
    If you're hankering for a jockey box, find some way to adjust your budget and swing the proper equipment. There are used set-ups and there's surplus stuff occasionally. Don't cheap it out...your beer will thank you. I've never regretted spending a little extra for something that works as it's supposed to rather than being a works-pretty-well solution that requires constant baby-sitting...and I'm a cheap SOB.
    And, yes...the biggest draw-back is heat conductivity. You have to chill beer instantly going through the tubing. Plastic is an insulator, not a conductor.

  7. LONG CALL BREW

    LONG CALL BREW New Member

    Joined:
    Jan 4, 2019
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    1

  8. LONG CALL BREW

    LONG CALL BREW New Member

    Joined:
    Jan 4, 2019
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    1
    This response is spot on. Thanks for bringing me to my senses. I may just ice the keg.

  9. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,301
    Likes Received:
    1,422
    Trophy Points:
    113
    Location:
    Melbourne Australia

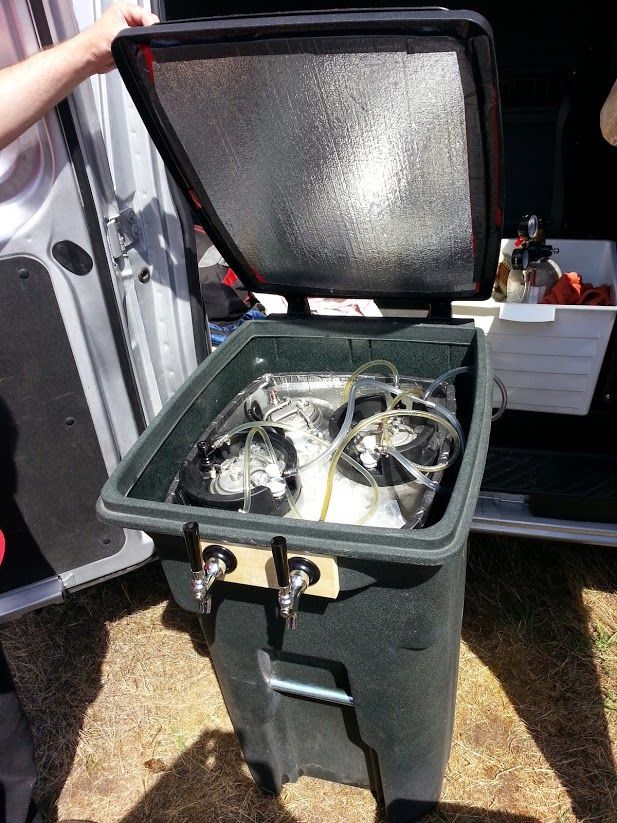

    I do that for my 6 and 10 litre kegs. I've seen a bunch of examples of wheelie bin based solutions for multiple 19 litre kegs.
