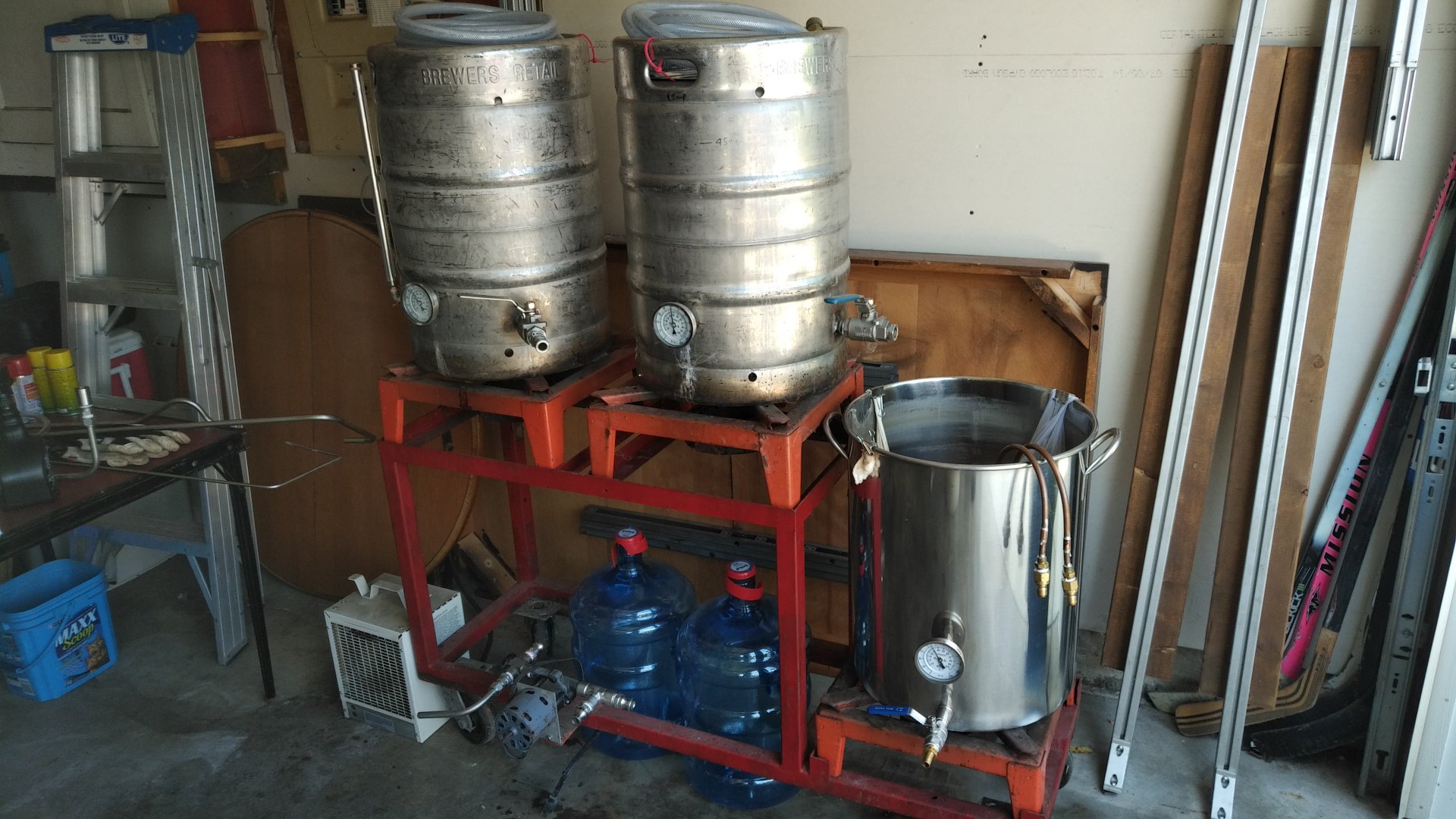

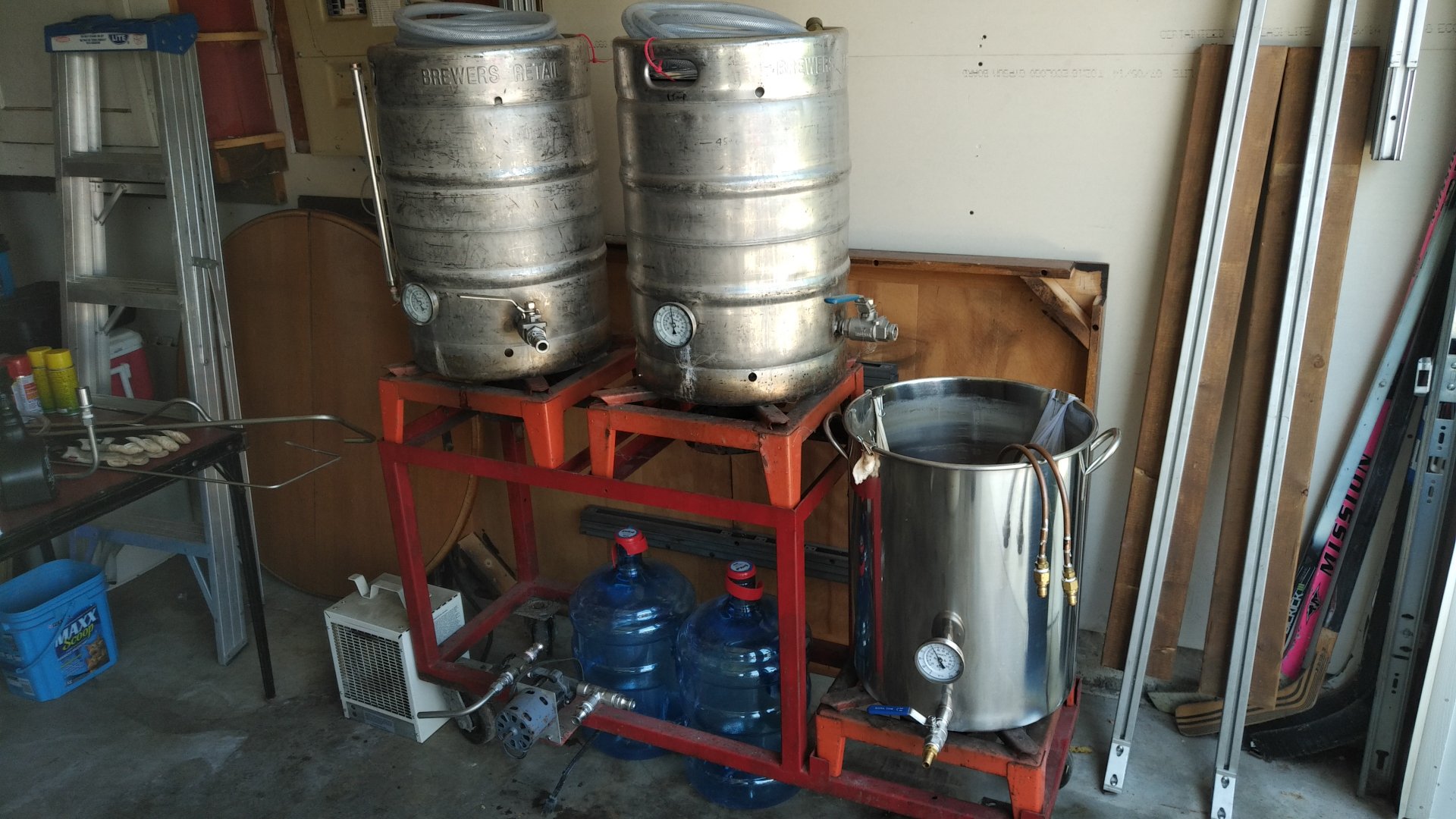

    Thought that I would start a new thread to show what I am getting myself into and solicit advise on setting it up. I don't know if the pump that came with it works or not yet, but I do also have a little Anvil pump. Anyway three vessel, three burner system, going to utilize the new 15g kettle the kids got for Fazhas day for the boil, as well as to transfer strike water up to the HLT. Will also need to pump the wort into the fermenters. Going to move my ferment fridge that is in the basement out to the garage, and get second ferm fridge so I can ferment another batch while cold crashing. IMG_20190720_1335309.jpg

  2. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    1,671
    Likes Received:
    2,229
    Trophy Points:
    113
    Gender:
    Male
    Location:
    colorado
    Nice new to you brew rig!

    Craigerrr likes this.
  3. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,346
    Likes Received:
    1,342
    Trophy Points:
    113
    Gender:
    Male
    #3 Mase, Jul 21, 2019
    Last edited: Jul 21, 2019
    Oh you need polish to shine those keggles!

    Head First likes this.
  4. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    1,852
    Likes Received:
    1,519
    Trophy Points:
    113
    Location:
    Back in the mountains
    Looks like you have some quick couplers already there so with 1 pump and some plumbing you should be good to go. Be careful with the burner under the mash tun, you can overheat mash easily. Did it come with a fly sparg arm? Would work well with a gravity drain port from tun. Kettle size will work good for 10 gal batches. You can split water between hlt and tun for heating would simplify as bigger beers take more water than 1 keggle. Similar to what i have worked with for several years so can answer lots of questions along with probably many other brewers. Lots of fun ahead for you!

    Craigerrr likes this.
  5. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    388
    Likes Received:
    415
    Trophy Points:
    63
    Location:
    South Central Pennsylvania
    I think I have Rig Envy!:rolleyes:

    Craigerrr likes this.
  6. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113
    Thanks for the post.
    Funny, didn't occur to me right away to heat the strike water in the tun. With that, I plan to syphon full water volume into the boil kettle than use the pump, or at least a pump to transfer strike water to the MT, and sparge water to the HLT. After draining first runnings, thinking of pumping sparge water to MT. Would also like to figure out a recirc on the boil kettle for whirlpooling, and to speed up cooling.

  7. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113
    I think I have a lot of work to do!

    Ward Chillington likes this.
  8. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113
    Thanks

  9. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113
    Gotta get em clean inside first!
    If you happen to be in Southwestern Ontario, feel free to pop by and help out!

    Trialben likes this.
  10. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    1,852
    Likes Received:
    1,519
    Trophy Points:
    113
    Location:
    Back in the mountains

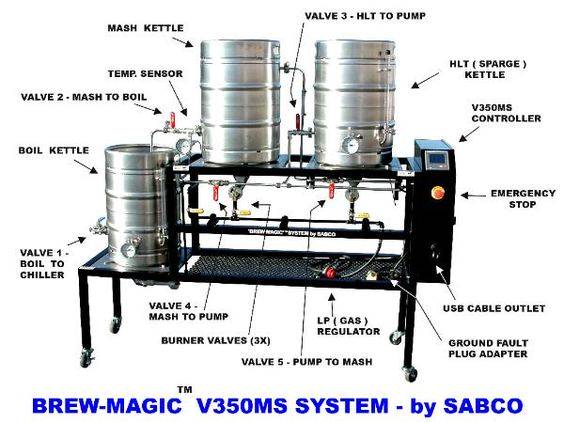

    This is basicly what you have without the electrical controls. And bling. You can heat strike water in mash tun or hlt, the reason for the second tier of this design is to gravity feed wort from tun into boil kettle, while using pump to run sparge water to fly sparge. If you want to whirlpool then that pump could move wort into fermenter from bk. Lots of options so just make it work for you. Do plumbing somewhat temporary so you can try different ways until you come up with your way.

    Craigerrr and Trialben like this.
  11. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113
    I ran 10 gallons through the system today to start figuring out my losses, and to start figuring out how I want to plumb this thing up.

    Trialben and Head First like this.
  12. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    1,852
    Likes Received:
    1,519
    Trophy Points:
    113
    Location:
    Back in the mountains
    a quick goog search for 3 vessel brew system images can give you plenty of ideas.

  13. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113

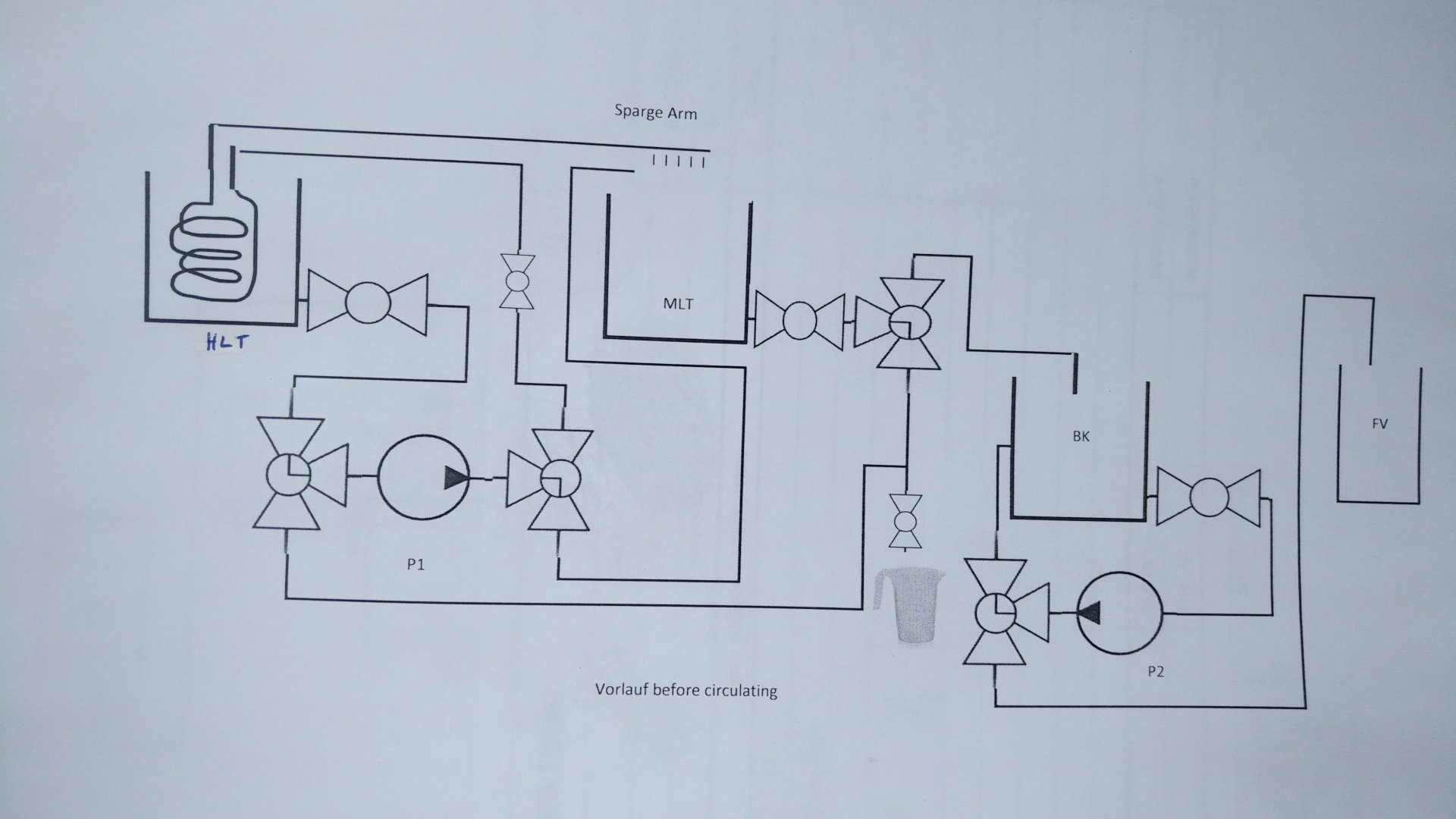

    As long as I am doing this, I am going to try and plumb it up so that all I have to do is turn some 2 way and 3 way ball valves, and turn pumps on and off when needed. This is what I have come up with so far. Don't plan on using the burner under the MLT, thinking of HERMS'ing it through the HLT to maintain mash temp.

    Trialben and Head First like this.
  14. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    1,852
    Likes Received:
    1,519
    Trophy Points:
    113
    Location:
    Back in the mountains
    So pump 2 will whirlpool also? Perfect! Would work well as running chilled wort through lines needs to be sanitary to transfer to ferm vessel. Boiling wort would do that. You will be kicking out fine brews in no time;)

  15. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113
    Yes, and pump 1 will xfer HLT to MLT as well as recirculate the mash. The extra valve off the MLT out is so I can vorlauf and catch the big bits before turning in the pump. At least that is my thought process. Have been watching some videos picking up some other ideas as well.

    Head First likes this.
  16. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    1,499
    Likes Received:
    1,323
    Trophy Points:
    113

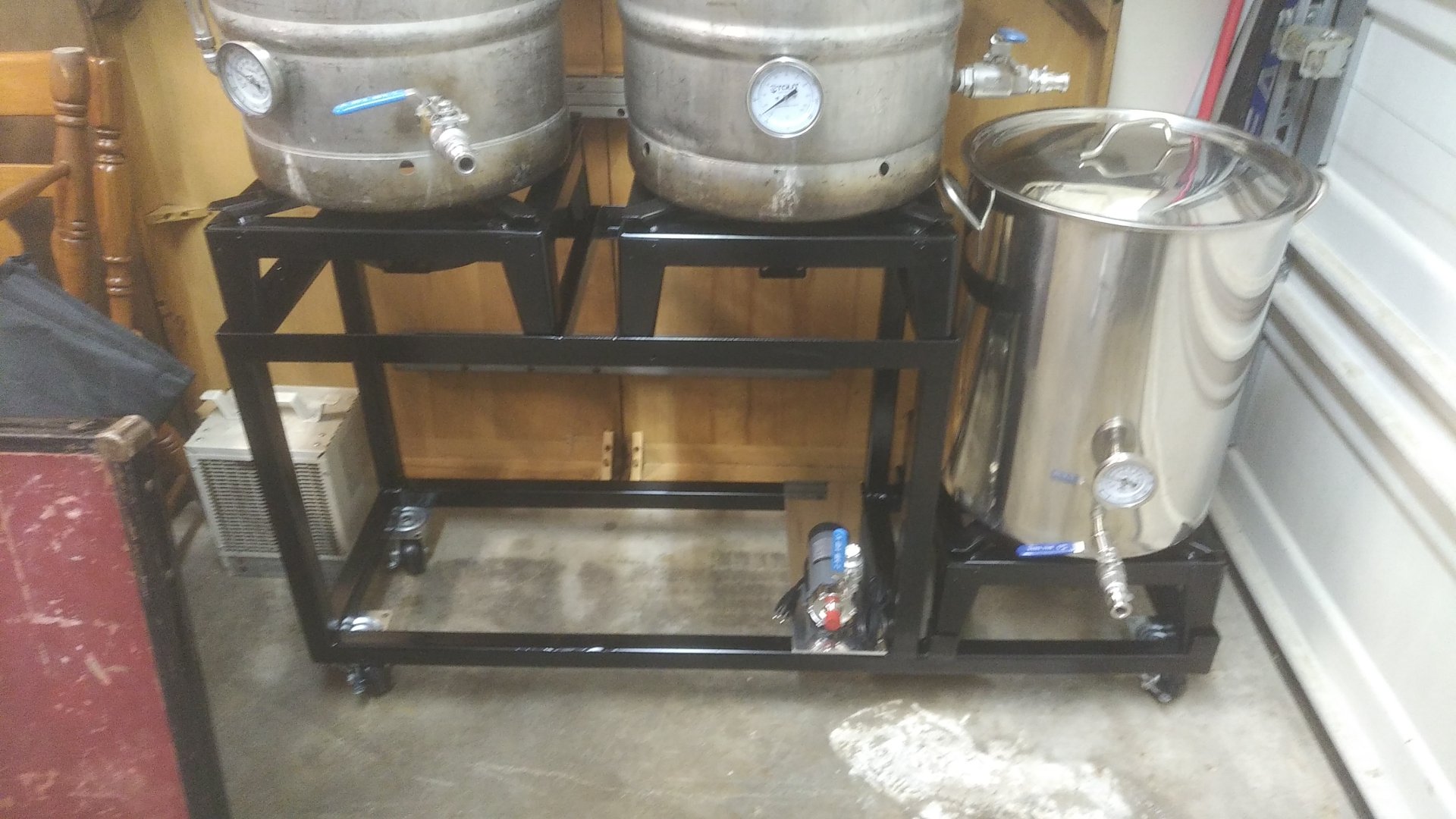

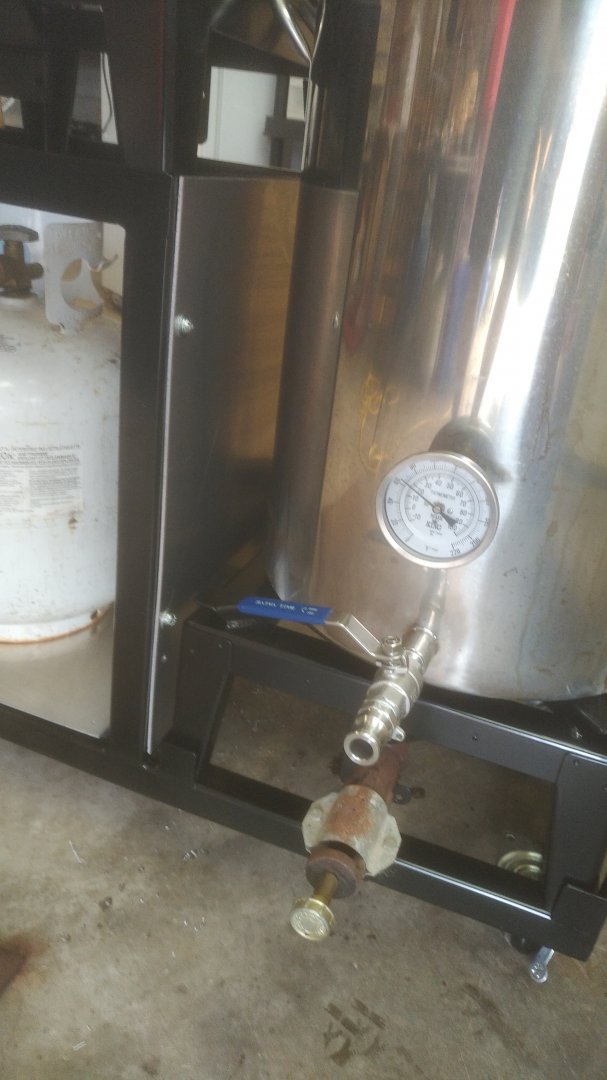

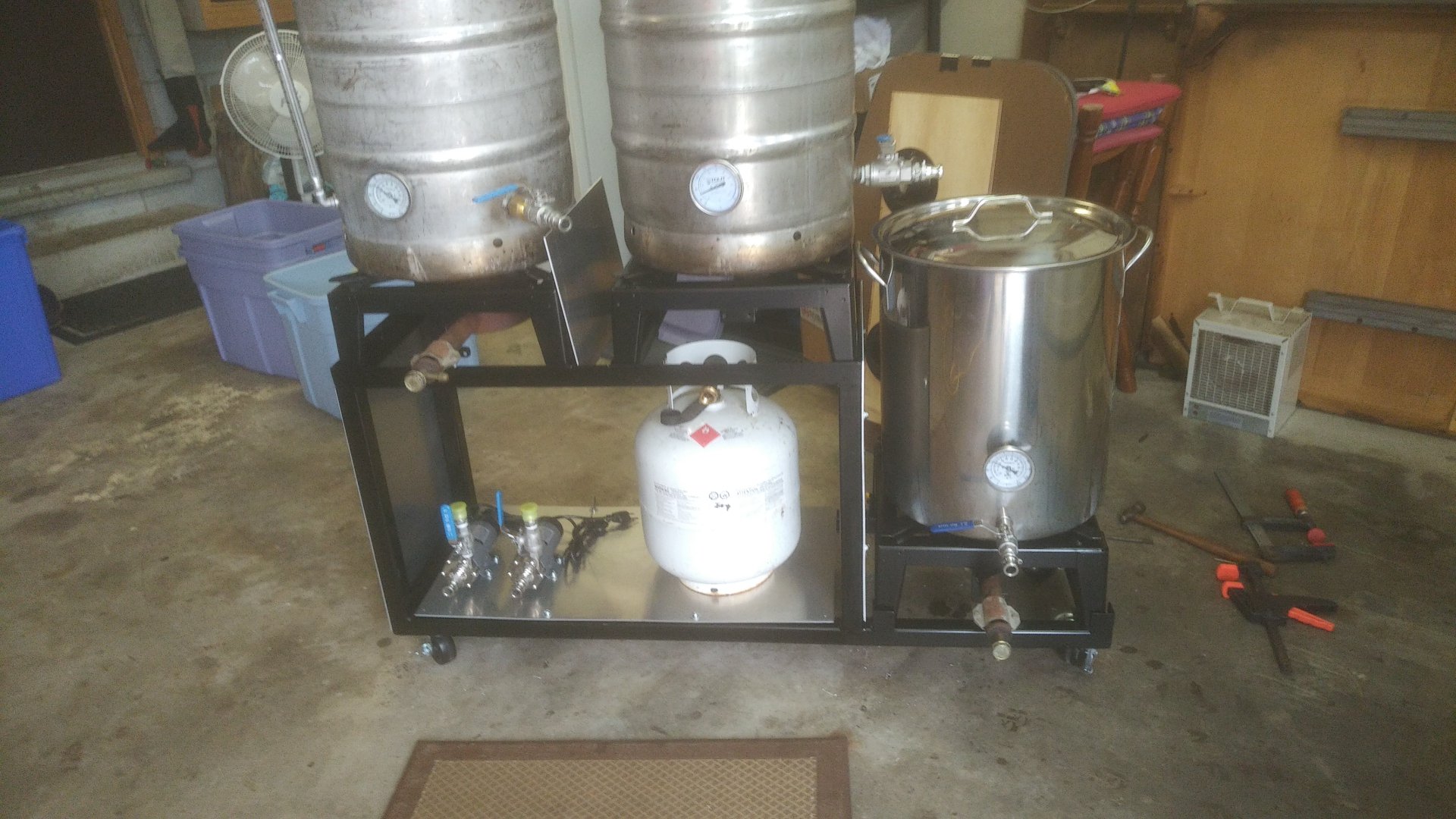

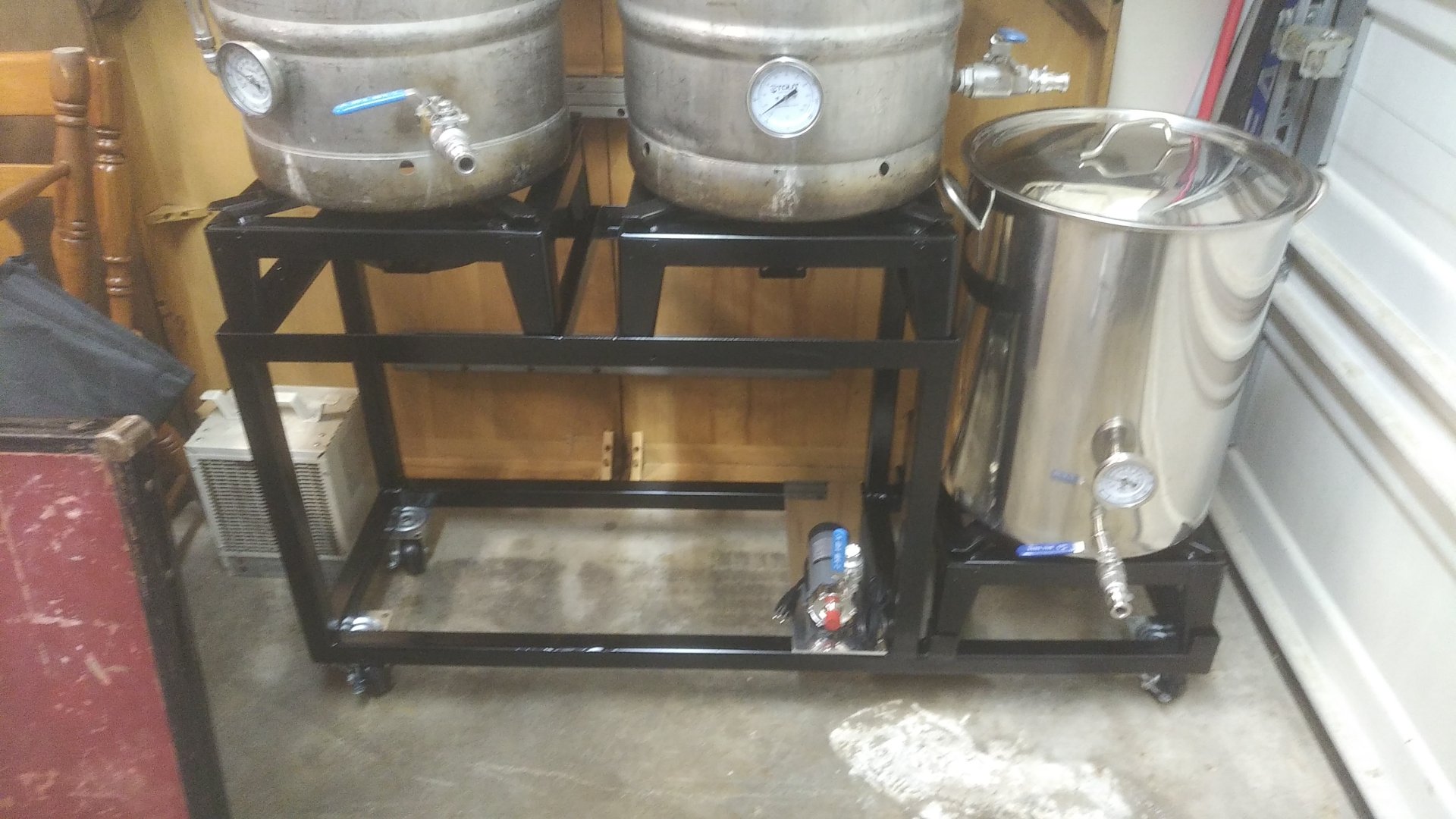

    Making some progress on the system, got the frame, and burners blasted and powder coated, and installed new casters. Whoever built this rig welded the casters right to the frame, had to cut them off with an angle grinder. I drilled and tapped holes to attach the new casters, all casters swivel and have locks. Still a lot to do, so tomorrow's brew night I will just use one pump, it will be totally manual.

  17. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    388
    Likes Received:
    415
    Trophy Points:
    63
    Location:
    South Central Pennsylvania

    Looking good bud! Let us know how it comes out!

  18. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    6,484
    Likes Received:
    4,119
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Lookin great craigerr. When ya gotta brew you just gotta brew with what you've got!

  19. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    1,671
    Likes Received:
    2,229
    Trophy Points:
    113
    Gender:
    Male
    Location:
    colorado
    That looks real nice.
