Condensation during the boil phase

Discussion in 'Beginners Brewing Forum' started by The Green Man, Sep 17, 2018.

  1. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    Sorry to pick your brains again brewers, so soon after last time too...but, I did my first bigger batch brew yesterday an 18 litre boil. It was an electric powered mash/ boil kettle by Klarstein. Very nice piece of kit and perfiect for my needs, mashed fine and produced a good vigorous boil, after a bit of tinkering. BUT, I ran into a problem I guess we all face...condensation/ humidity during the boil phase.

    I used to do my 8 litre batches on a stove top in the kitchen and thought I might get away with it with this new kettle...well, you know what I'm going to say...it got seriously steamy. I had the windows open the extraction fan on but, it was not effective enough. I had to open more doors and windows and in the end the whole house was smelling like a brewery! Not popular/ ideal/ sustainable...

    From what I've read, it seems that a lot of people do theirs in their garage, but surely the condensation would eventually rot the timbers in there and make everything really damp too. There must be a solution, other than brewing outdoors? Or, do you find brewing near the garage door with the door open enough?

    Initial thoughts are towards building some kind of extraction hood...but, this will be a pain in the proverbials…

    As usual all thoughts/ ideas/ opinions greatly appreciated.

  2. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,717
    Likes Received:
    7,230
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    #2 thunderwagn, Sep 17, 2018
    Last edited: Sep 17, 2018
    I boil inside but don't have near as bad condensation as you describe. My fan does a great job extracting to the outside, and my exhaust hood is hard piped through the roof. I don't know what common practice is in the UK for venting. If you aren't getting enough pull, and have room in the attic, or somewhere in the piping, there are little draft inducer fans that are pretty simple to install. I guess I'm pretty lucky also as my household loves the smell on brew day.
    Do you have the ability to modulate the heat and intensity of your boil? Reducing a bit may help also.

    Vesparados and The Green Man like this.
  3. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    Yeah, the draw from the exrractor over the cooker/hob doesn't do it. Even with the window open it still was too steamy with condensation building up on everything. I had the boiler ticking over between 100c-103c, the only way I can guarantee a rolling boil. So it was a very vigorous boil, which didn't help probably..
    I am now thinking about a set-up with an upside mixing bowl over the top (with the base cut out) and extractor piping (like used for a tumble dryer, or kitchen) attached. May put an in-line extractor fan inside it to help the draw. I think this would work. It would make for a sealed system though.

  4. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,717
    Likes Received:
    7,230
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    There are some pretty good threads on condensation at homebrewtalk site. I searched there in the past when I considered brewing in my basement.

    The Green Man likes this.
  5. KC

    KC Active Member

    Joined:
    Feb 25, 2015
    Messages:
    323
    Likes Received:
    179
    Trophy Points:
    43
    Location:
    NY Capital
    There might be a condenser lid available that fits that unit

  6. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    Thanks thunderwagon. Just checked it out. As suspected, it's a perennial brewers nightmare!
    Think my solution above should fix it, if I still work in the kitchen. If I'm in the garage the temperature difference between the ducting and the steam will probably lead to condensation in the ducting and dripping back into the kettle...
    Brewing challenges never cease.

    thunderwagn likes this.
  7. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

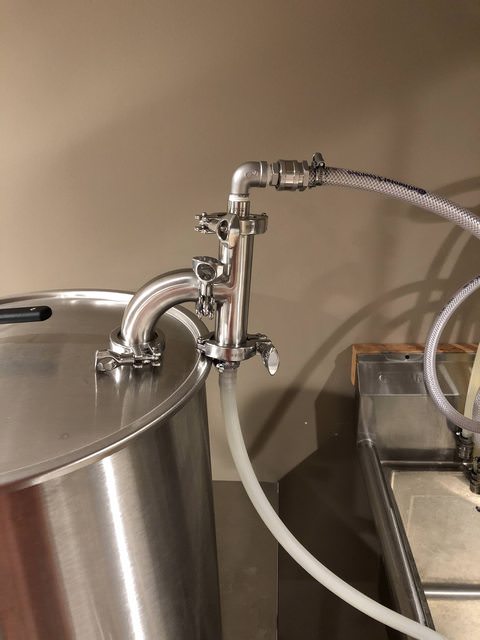

    a couple of guys have been on a big new home brew invention, if you want I'll lead you down that rabbit hole forum post but I'll show the product first, it uses water that spray's and creates a vacuum, pulls the steam out and turns it back into water


    thunderwagn likes this.
  8. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    Spray that creates a vacuum. That is some lateral thinking going on there. Sounds amazing. Go ahead and forward the forum link Ozarks, I may have to dive down the rabbit hole... 'Once more unto the rabbit hole, dear friends, once more!'...

  9. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    thunderwagn and The Green Man like this.
  10. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    thunderwagn and The Green Man like this.
  11. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    The rabbit hole has been partly explored. Not all 18 pages, I have to confess, but this is one incredible idea! Anyone on here given this a go? The off the shelf one doesn't look like a bad deal either, considering what you'll save in energy. OK, you will use more water...but, still amazing.

  12. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    yes it will roughly cost about $140 when all said and done and use around 6 to 10 gallons of water per hour but for people that need a massive vent hood to brew this is better

  13. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    oh and you're going to need more hardware and the correct drill bit to attach it to your pot wall or lid

  14. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  15. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    Had a look at the advert and the info. Certainly food for thought. For 5 gallon batches I am wondering if it might be overkill...will have to weight it all up. Water wastage against power wastage etc... I can see me going down this road eventually, for sure.
    I love the elegance of the solution.

  16. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I brew in my garage with the car door cracked a couple inches, so I don't have any particularly useful advice.

  17. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,367
    Likes Received:
    6,596
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    I open the basement door and use a box fan blowing outward.

  18. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    I brewed in the garage for years with the door open or partially and a fan blowing out, but one year I had to replace my entire ceiling with sheetrock from mildew that came from my brewing

  19. The Green Man

    The Green Man Active Member

    Joined:
    Jul 8, 2017
    Messages:
    300
    Likes Received:
    226
    Trophy Points:
    43
    Gender:
    Male
    Location:
    South Coast, UK
    That is exactly what I'm worried about. If I can deal with it without the room steaming up I want to.
    I can't spend out on the genius condensing system yet though.
    I'm thinking large, upside down mixing bowl with base cut out. Then attach aluminium duct with in-line fan pulling steam out the window. The upside down bowl will be a few centimetres above the kettle.
    Do you think that will do the trick?

    thunderwagn likes this.
  20. okoncentrerad

    okoncentrerad Active Member

    Joined:
    Nov 2, 2017
    Messages:
    310
    Likes Received:
    137
    Trophy Points:
    43
    Location:
    Vinnerstad
    Maybe you can find something similar to this for your brew kettle. Attach an exhaust pipe to it and evacuate through a window.

    The Green Man and Trialben like this.
