Upgraded Stock Pot with a few upgrades

Discussion in 'Brewing Photos & Videos' started by Mase, Mar 30, 2017.

  1. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    Upgrading our equipment for our first all grain next weekend, I added a Blichmann Thru-Mometer and a 3 piece valve assembly to our 5.5 gallon stock pot. Definitely use your safety glasses when drilling (step bit) Stainless Steel.
    [​IMG]

  2. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    Don't forget to test it for leaks and test it for lost in the bottom of the pot when you're done draining

    Mase likes this.
  3. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    #3 Mase, Mar 30, 2017
    Last edited: Mar 30, 2017

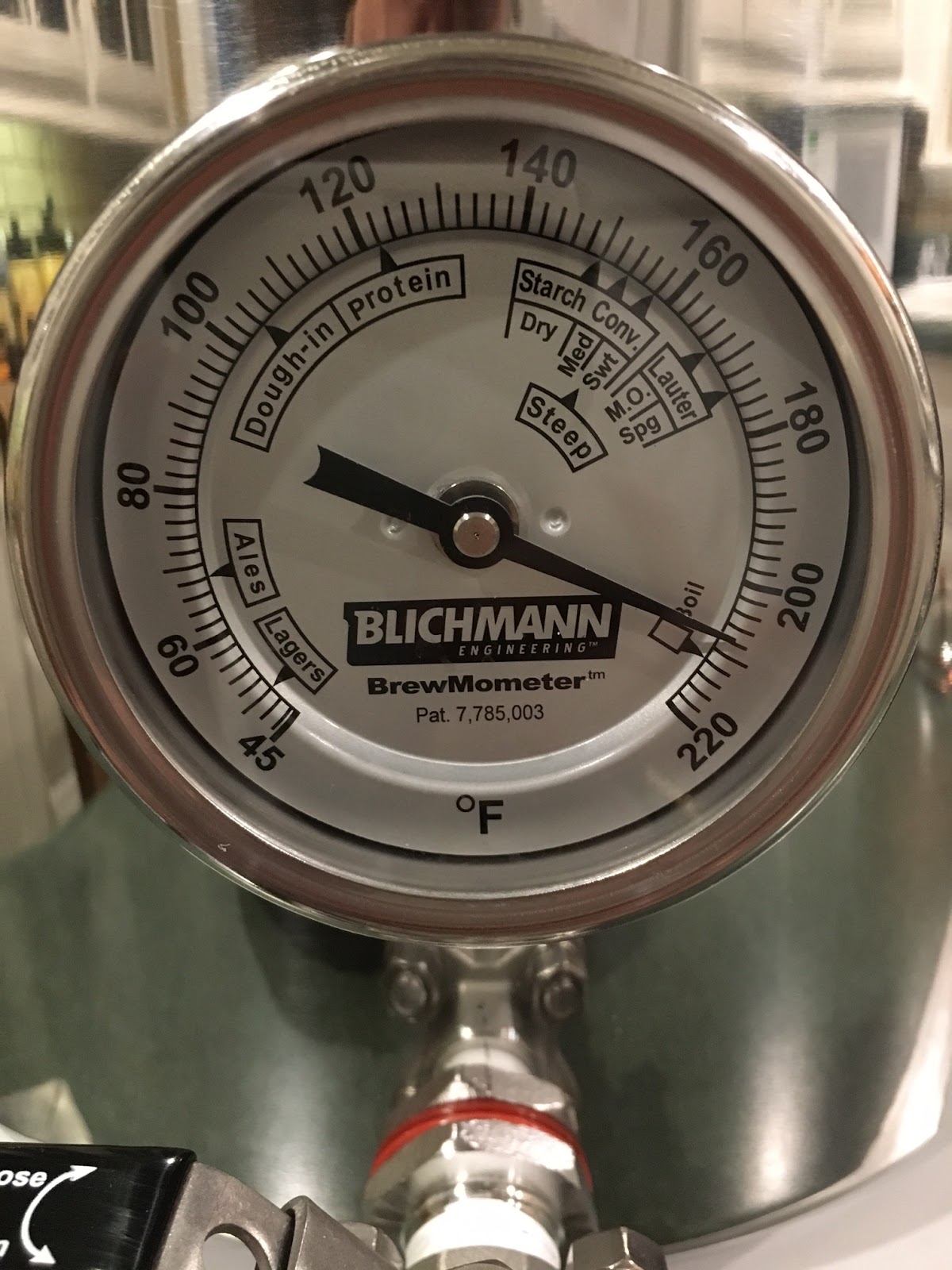

    I did have a few leaks, but that's because the bulkhead is just at the part of the pot that starts bending in towards the bottom and the o-ring kept creeping down. Readjusted and reset and no leaks! Ran it through a boil test to calibrate the Thru-Mometer. Since we are at elevation 1,850' MSL and water boils at roughly 108.5 degrees (f).We got to a boil and reached just under 108 degrees (f). So I think it is spot on. I compared the Thru-Mometer readings against my glass thermometer at different temperatures, and the glass thermometer was always a degree or two higher, so that's pretty close. But the glass thermometer went up to 120 degrees (f)o_O once at boil. For anyone who is interested, I put a step by step on my blog site. As far as loss at the bottom of the pot, I've been thinking about that, but more in the context of a installing a sight glass, so I can account for the loss in the site glass. Brewhardware.com has a "Weld-less Flex Sight glass" that uses high temp silicone tubing rather than glass for less than 30 bucks. Due to the fact that my HLT is only 5.5 gallons and only about 12" in height, the flex sight glass looks like it'll work out as I can cut it to length.

    Note: The BrewMometer crept up in temperature smoothly except when we got to around 180 degrees (f). From that point on, a little tap on the glass was required every once in a while to bump the needle. But that's at a temperature above where I will be for an HLT, so it's okay... for now.

    [​IMG]

  4. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    Your ready to try the Saran Wrap test now for low oxygen

  5. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    You may be a wee bit ahead of me in the "low oxygen" department, what is the saran wrap test?. Now I am focused on a HERMS coil in the HLT, but due to the short height of my HLT, tough to find. Then I need a pump...

  6. CRUNK

    CRUNK Well-Known Member

    Joined:
    Jan 15, 2017
    Messages:
    899
    Likes Received:
    550
    Trophy Points:
    93
    Gender:
    Male
    It's not really a test it's just a way to eliminate oxygen Ingress into your system finish building your system first

  7. Bikis901

    Bikis901 New Member

    Joined:
    May 9, 2017
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    #7 Bikis901, May 9, 2017
    Last edited: Sep 8, 2017
  8. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,437
    Likes Received:
    9,501
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Mate ive been toying with the idea of.getting one of those instead of just stiring the mash and waiting like 10 seconds and getting a reading looks the goods i know defiantly dont go cheap and get from china i dont want to be doing an alpha amelase rest and be in the beta rest lol:p yea thats mu attempt at a brewing joke lol.

  9. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    Haven't purchased it yet
