Simple Lauter Tun Set Up

Discussion in 'Beginners Brewing Forum' started by BrainYYC, Apr 30, 2020.

  1. BrainYYC

    BrainYYC Member

    Joined:
    Apr 27, 2020
    Messages:
    72
    Likes Received:
    55
    Trophy Points:
    18
    Gender:
    Male
    Hi folks, slowly trying to get my process sorted and I am going to next move from 1 gallon to 3.0 gallon batch using Fermonster carboy. Looking for any advice on lautering, to be honest in my first few batches this seems to be where my process kind of turned into a circus show, as I had a small strainer, was trying to incorporate a brew sock, bit of a mess each time, but the beer has tasted fine so far!

    Moving up from 1.0 to 3.0 gallon I am trying to wrap my head around how I can do the lauter tun without soaking my socks in wort. I have two good size pots that hold 4-5 gallons, worried about how I do the grain strain and do the lautering.

    Thanks so much in advance for any guidance for a rookie.

  2. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,731
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Not sure what you have available but I mash in a bag with a Coleman chest cooler. I batch sparge or no sparge so I just drain from it into the kettle to boil.

    [​IMG]

  3. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,737
    Likes Received:
    7,260
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    #3 thunderwagn, May 1, 2020
    Last edited: May 1, 2020
    Like @Hawkbox hit on above, you could check out BIAB/MIAB options. You can get a bag tailored to fit your pot or mashing vessel. Wilserbrew makes a great bag that will last forever. You could do a full volume mash and a good bag squeeze if you wanted and pass on the lauter altogether. There are lots of options out there and we can make lots of suggestions for you. You'll just have to pick what you think will work best for you.

    Ward Chillington, Megary and BOB357 like this.
  4. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,980
    Likes Received:
    7,282
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    A 5 gallon round water cooler with a hose braid, bazooka screen or a mesh bag as a filter works well for batch sparging. The 5 gallon cooler will allow you to mash & sparge 5 gallon batches of moderate OGs. The advantage of a cooler over a pot is the coolers hold mash temperatures really well.

  5. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,381
    Likes Received:
    6,613
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    I'd go the BIAB route for the 3gallon intermediate step. You may eventually want to scale up to larger batches, BIAB means less undersized equipment around to sell or trip over.

    Ward Chillington and Blackmuse like this.
  6. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,980
    Likes Received:
    7,282
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    I should have mentioned that the 5 gallon round cooler works well for 3 gallon batches too.

  7. BrainYYC

    BrainYYC Member

    Joined:
    Apr 27, 2020
    Messages:
    72
    Likes Received:
    55
    Trophy Points:
    18
    Gender:
    Male
    Thank you gents for the guidance. Intrigued with the cooler for sure.

    So for BIAB I just watched a couple youtubes and it looks like full volume of water, mash in, get it to temp - and hold then simply lift out the bag in let drain.........gotta be more to it than that??

    Hawkbox likes this.
  8. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,980
    Likes Received:
    7,282
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    That's pretty much the mash/sparge routine for BIAB, except that you'll want to get the strike water several degrees above mash temperature before adding your bag and grains. After that, the boil, chilling and transfer to the fermenter, just like any other brew.
    The down side is you'll need to find a way to get your kettle to hold mash temperature.
    Also, you'll need to have your grain run through the mill twice or, ideally, get your own mill and crush a lot finer then the suppliers do.

    Trialben likes this.
  9. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    604
    Likes Received:
    884
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:

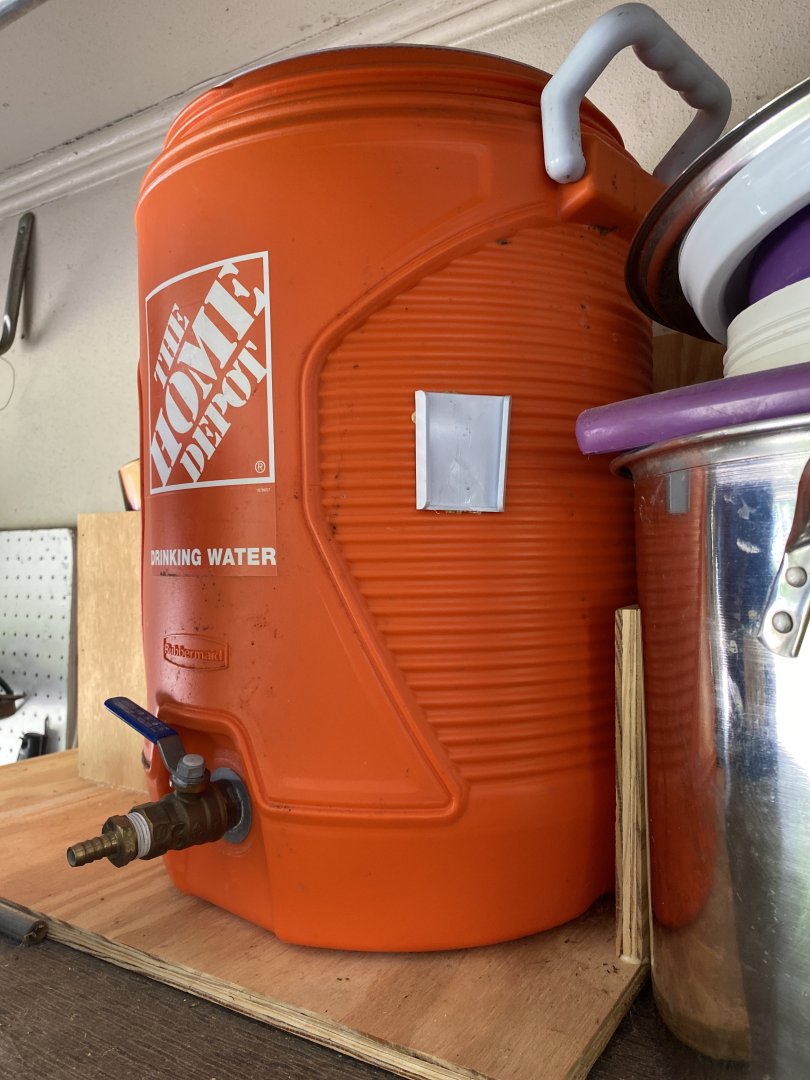

    I make 2.5 gallon batches. The $20 beverage cooler at Home Depot works well. I replaced the spigot with a ball valve and hose barb for easier draining. image.jpg

    Trialben and BarbarianBrewer like this.
  10. BrainYYC

    BrainYYC Member

    Joined:
    Apr 27, 2020
    Messages:
    72
    Likes Received:
    55
    Trophy Points:
    18
    Gender:
    Male
    Can you run me through the process using the cooler, do you add a false bottom?

    Get water to temp,mash in and mix, dump in the cooler, drain off for the boil?

  11. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,731
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I use a brew bag. brewinabag.com and has lasted me 2 years or so now with probably 100 batches. A false bottom also works. I leave a bazooka tube on the drain because the bag can get sucked in and then it plugs.
    Makes cleanup really easy.

  12. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    604
    Likes Received:
    884
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    I use the grain bag, like @Hawkbox . I usually heat the water to 160-162. After I put the water in the cooler and add the grain bag, the temperature drops to about 152 or so. I put the lid on and leave it for an hour. The temperature drops 2-3 degrees during this time. At the end, I lift the bag with a pulley system and tie it off and let it drain for 5-10 minutes. After it drains, I squeeze the heck out of the bag to get the rest of the wort out. Now the wort is ready to boil.

    thunderwagn likes this.
  13. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,301
    Likes Received:
    1,422
    Trophy Points:
    113
    Location:
    Melbourne Australia
    Done a bunch of brews that way. Wonderfully simple. Just chilling and holding temp during the mash left to complicate things.

    thunderwagn likes this.
  14. Herm_brews

    Herm_brews Well-Known Member

    Joined:
    Feb 25, 2019
    Messages:
    664
    Likes Received:
    1,974
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Window glass and screen tech
    I BIAB mash in my 3 gallon boil kettle. During the 60 minute mash, I place the kettle on the bottom rack of my oven (it just barely fits), and use the “warm” feature as needed to maintain my mash temperature. I stir the mash, check the temperature and collect a refractometer sample every 15 minutes. This process works for me.

  15. Blackmuse

    Blackmuse Well-Known Member

    Joined:
    Jul 8, 2012
    Messages:
    918
    Likes Received:
    933
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Electrician (Previously a 6th grade Teacher)
    Location:
    Maine
    Home Page:
    BIAB is a great way to brew without too many complications! I would certainly use this method for your 3 gallon batches. It is as simple as it sounds. If your pot is big enough to do full volume mashes and boils then you can simply use it to mash and boil in. Just put a sleeping bag around it while it mashes and you shouldn't drop more than 3-4 degrees. You can add a weldless spigot to your pot too and that would make transfering after cooling easier.

  16. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    954
    Likes Received:
    1,406
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    #16 Ward Chillington, May 3, 2020
    Last edited: May 3, 2020
    Plus one on all the above, Herm takes cake for best out of the box thinking for temp control!.

    If you go with the cooler route, there's tons of You Tube idea seeds out there.

    Rather than a SST bazooka I made a manifold out of CPVC pipe that works great, never had a stuck sparge yet! Easy to clean and no need to use the cement and that stinky purple cleaner stuff! Take a look in the DIY thread posts here for more idea seeds.


    edit....here ya go.....

    https://www.brewersfriend.com/forum/threads/cooler-tun.11662/#post-84676

    Hawkbox and Herm_brews like this.
  17. BrainYYC

    BrainYYC Member

    Joined:
    Apr 27, 2020
    Messages:
    72
    Likes Received:
    55
    Trophy Points:
    18
    Gender:
    Male
    #17 BrainYYC, May 3, 2020
    Last edited: May 3, 2020
    Thanks boys. I’m going to try BIAB for my next batch. Super pumped, rest assured Ill ask some more silly questions before brew day.

    Into super juicy NEPA’s right now (I know, how trendy) and I see a few BIAB recipes for this style in recipe list. :)

    Craigerrr likes this.
  18. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,900
    Trophy Points:
    113
    Ask away, and make some beer!

    Herm_brews likes this.
  19. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,731
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Get to it. There are many different ways to brew a beer.

    Herm_brews and Craigerrr like this.
  20. BarbarianBrewer

    BarbarianBrewer Well-Known Member

    Joined:
    Mar 12, 2017
    Messages:
    416
    Likes Received:
    731
    Trophy Points:
    93
    Location:
    Milwaukee, WI

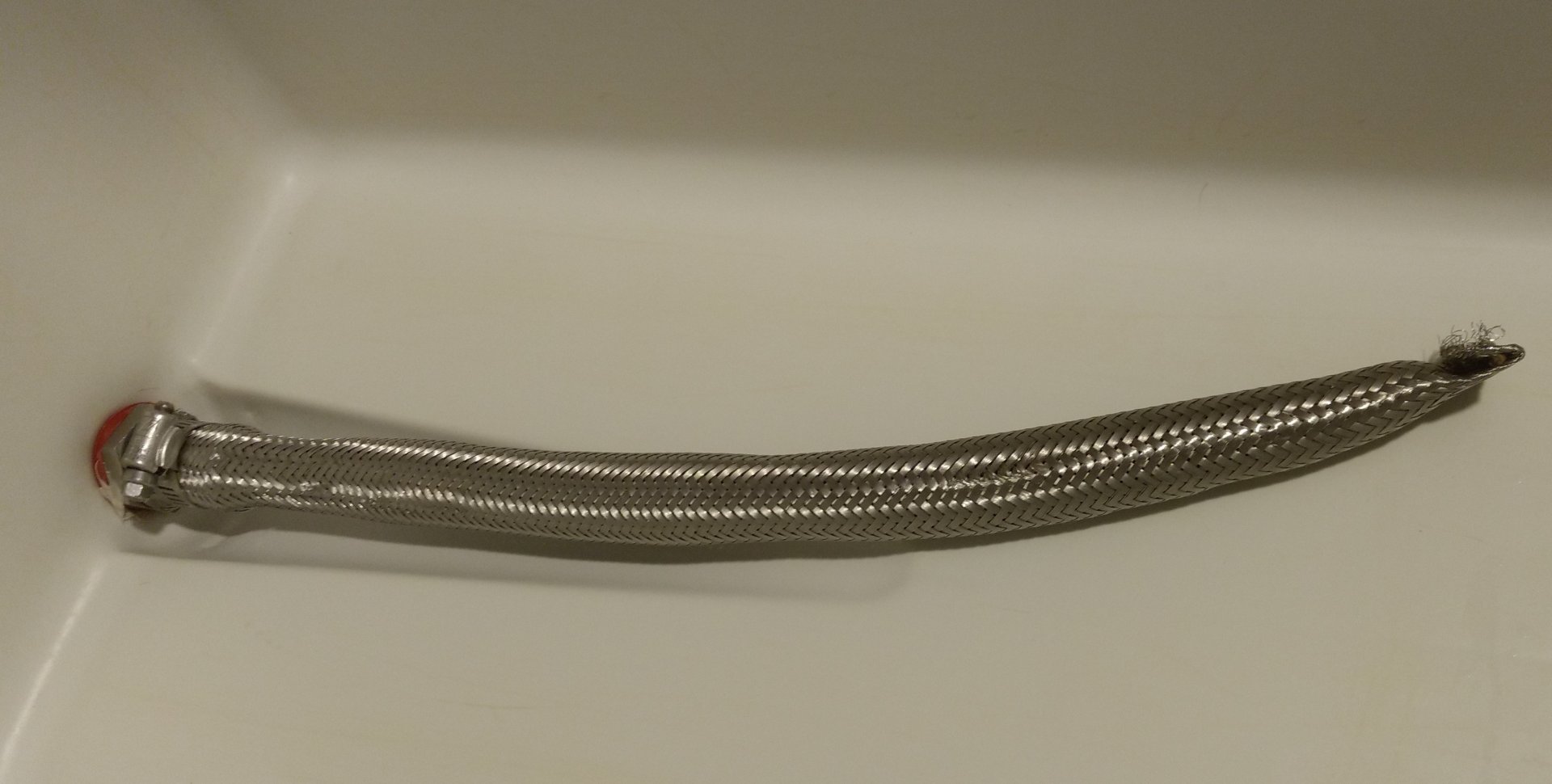

    The mesh braid from water supply hose (toilet tank, washing machine, etc.) makes an excellent bazooka screen. Just cut off the ends, pull out the inner tube; fold over one of the ends and crimp it. The other end clamps onto the ball valve on the outside of the cooler. Denny Conn describes a cheap-n-easy mash tun build here http://www.dennybrew.com/
    Water Supply Bazooka Screen.jpg

    Megary likes this.
