    I've seen a few other manifolds in the homebrew wilds so I'm hoping this thread picks up some steam.

    My goal, for awhile now, has been to eliminate hosing changes which eliminates mess. This manifold gives me the ability to underlet my MT, recirculate during mashing, chill, and whirlpool while bypassing the CFC. All without disconnecting a single hose.

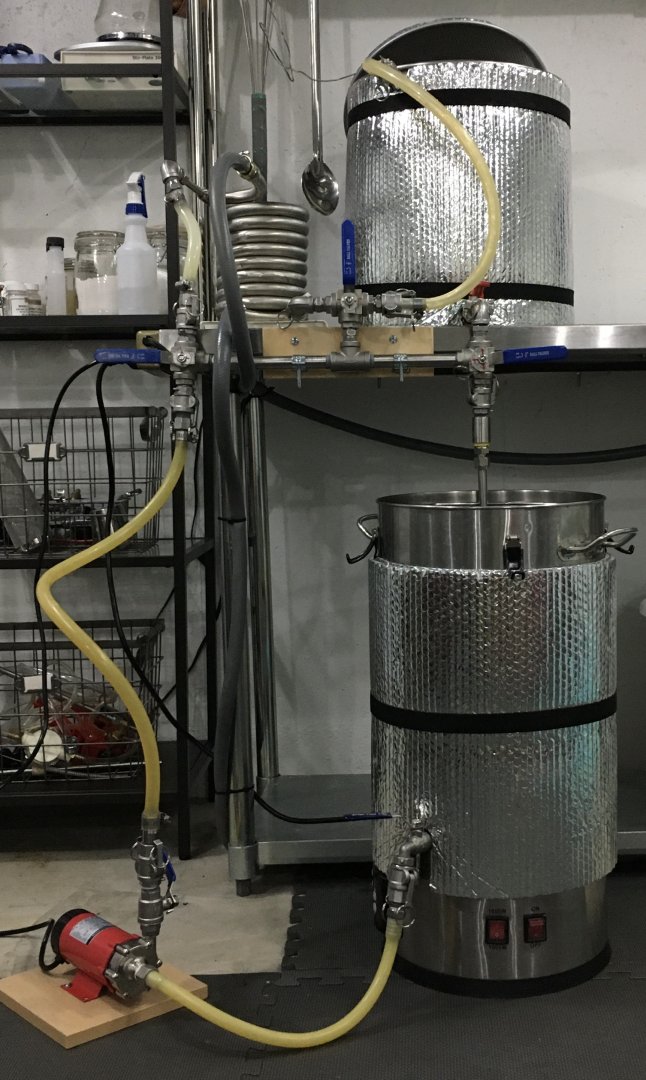

    In the attached photo we have three 3-way valves, connected together with a tee fitting mounted to my stainless brew table. There's various elbows and camlock fittings as well.


    Attached Files:

  2. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    2,253
    Likes Received:
    2,451
    Trophy Points:
    113
    Location:
    Back in the mountains

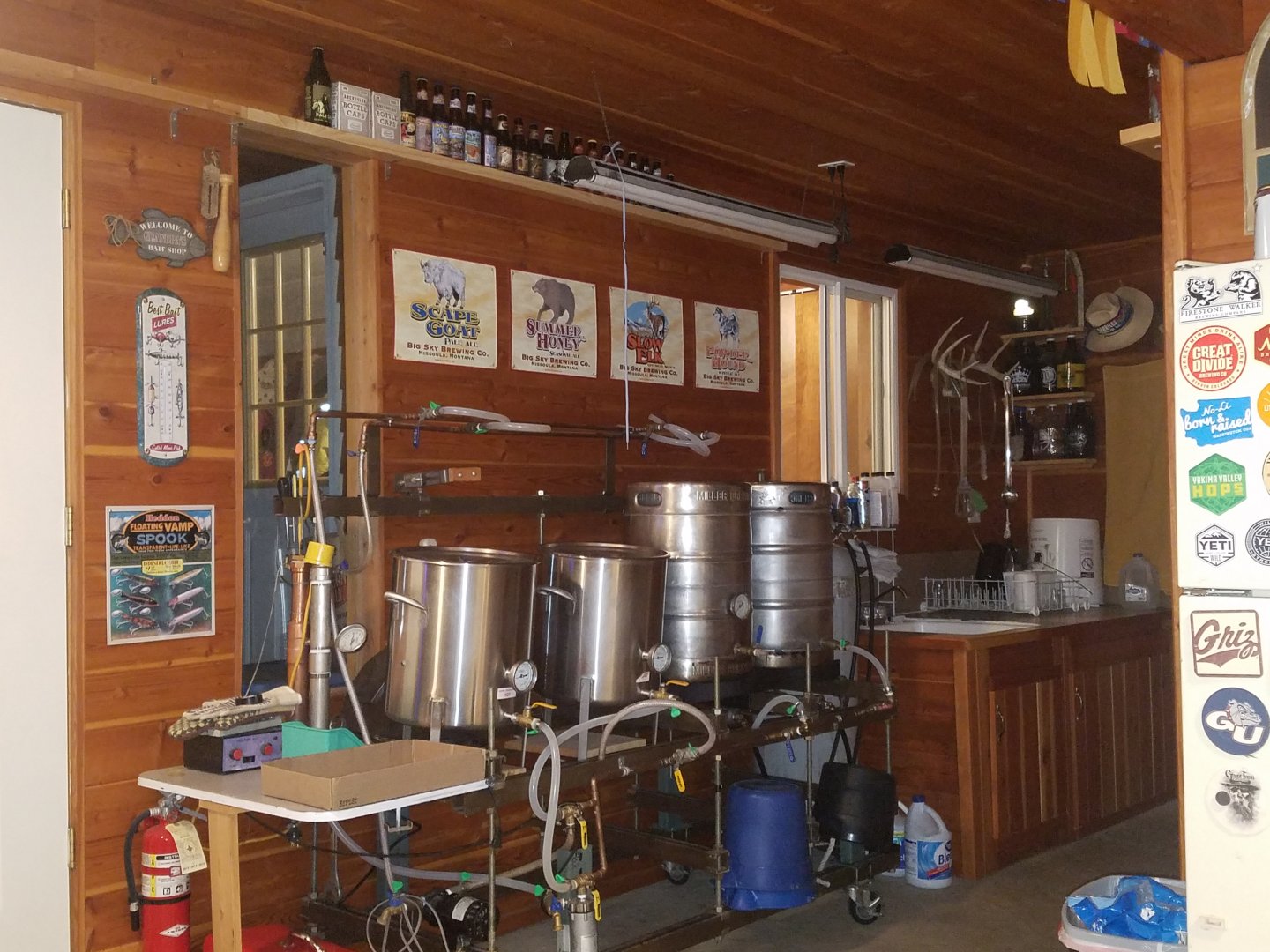

    Kinda have to zoom in but actually 2 manifolds. 1 above from rims tubes to mt's and lower from hlt and bk to pumps. Just use short silicone line from bk to fermentor on cart to roll into ferm chamber.

    Megary likes this.
