Optimal Salt Addition Calculator

Discussion in 'Feature Requests' started by pruby, Apr 14, 2016.

  1. pruby

    pruby New Member

    Joined:
    Apr 13, 2016
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Wellington, New Zealand
    A useful feature would, rather than fiddling with the salts, be to have the optimum addition to match a profile pre-calculated. I've done some linear optimisation before, and this is a classic case.

    UI: User checks boxes for which salts are available for use. Could either start with all checked, or look at the user's inventory to determine which salts are available by default. User hits an "Optimize" button to kick off the process.

    Implementation: You'd be best off using a linear constraint solver library or a minimal implementation of the Simplex algorithm.

    Problem format: We have a series of salts (those checked as available), and a series of ions, and construct a linear constraint system as:

    • Qx: quantity of salt x to add in units (>= 0)
    • Ey: excess of ion y (>= 0)
    • Uy: under-amount of ion y (>= 0)

    And have the following other pre-calculated values (from water volume, etc):

    • Rx,y: rate at which adding one unit of salt x increases concentration of ion y
    • Iy: initial concentration of ion y
    • Ty: target concentration of ion y

    Our constraints are that:

    For each ion y:
    Ey >= Sum(For all salts x -> Rx,y * Qy) + Iy - Ty
    Uy >= Ty - Iy - Sum(For all salts x -> Rx,y * Qy)

    This gives us variables in the problem indicating the excess and/or under amount of each ion. A simple goal to optimise would be to:

    Minimise Sum(For all ions y -> Ey + Uy)

    You could add default weights to those as how bad 1 unit over of any given ion is, vs. how bad it is under, vs. each of those for another ion. UI to configure those would be complicated, so probably best to just fix sensible values.

    I would be happy to write the optimisation routine in some free time if you're interested. I gather you use PHP?

    Cheers,

    Tim

  2. drgonzo2k2

    drgonzo2k2 New Member

    Joined:
    Jan 9, 2015
    Messages:
    17
    Likes Received:
    2
    Trophy Points:
    3
    This would be a great feature! +1 for sure!

  3. pruby

    pruby New Member

    Joined:
    Apr 13, 2016
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Wellington, New Zealand
    Right, I've implemented a first cut version of an optimisation routine in PHP. It handles optimising salt additions for the stable, linearly calculated ions (Ca, Cl, Mg, etc). There are a couple of limitations:

    • Doesn't handle alkalinity - this doesn't seem to be a linear approximation. I'd need to see the original water calculator code to incorporate this.
    • Default salt additions are all metric, someone with a sense for imperial units should add those.

    The code is up at https://github.com/pruby/brew-salt-optimiser . The files are:

    • simplex_optimiser.php - a pretty bad implementation of two-phase Simplex in PHP. While a proper library would be better, this doesn't require installing anything. Works for this case, probably won't for bigger problems.
    • brew_salt_optimiser.php - given a source water profile and target water profile returns the salt concentrations to add (by default mg/L of each ion as inputs, g/L of each salt to add as outputs, could easily support imperial units by changing constants though).
    • test_brew_salt_optimiser.php - a test script converting my water supply to Balanced Profile I. Note that it can't hit the perfect balance - something has to be a bit off but it minimises the total error.

    Cheers,

    Tim

  4. pruby

    pruby New Member

    Joined:
    Apr 13, 2016
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    Wellington, New Zealand
    Update - now does bicarbonate alkalinity. Doesn't do slaked lime or lye yet, as these are based on precipitating other salts and interact with the other additions in non-linear ways.

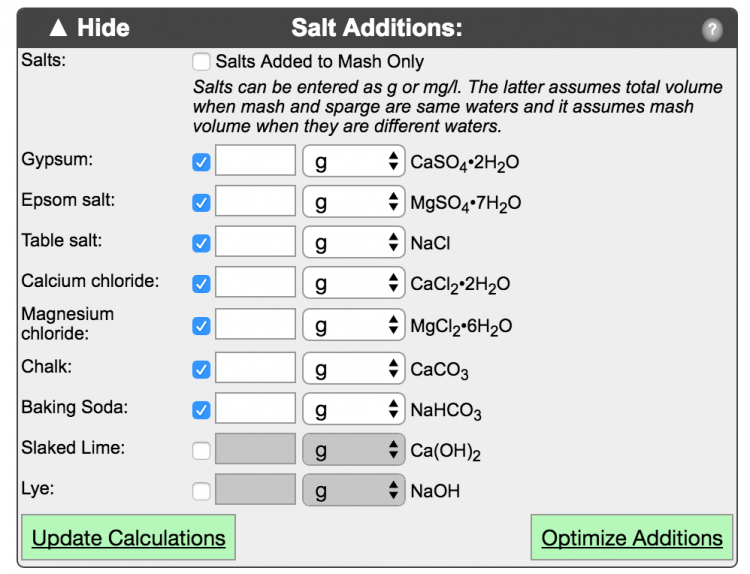

    UI concept image attached - would just be a checkbox for each salt, enable/disable the fields on click, and use those to determine which salts to let the optimiser use.

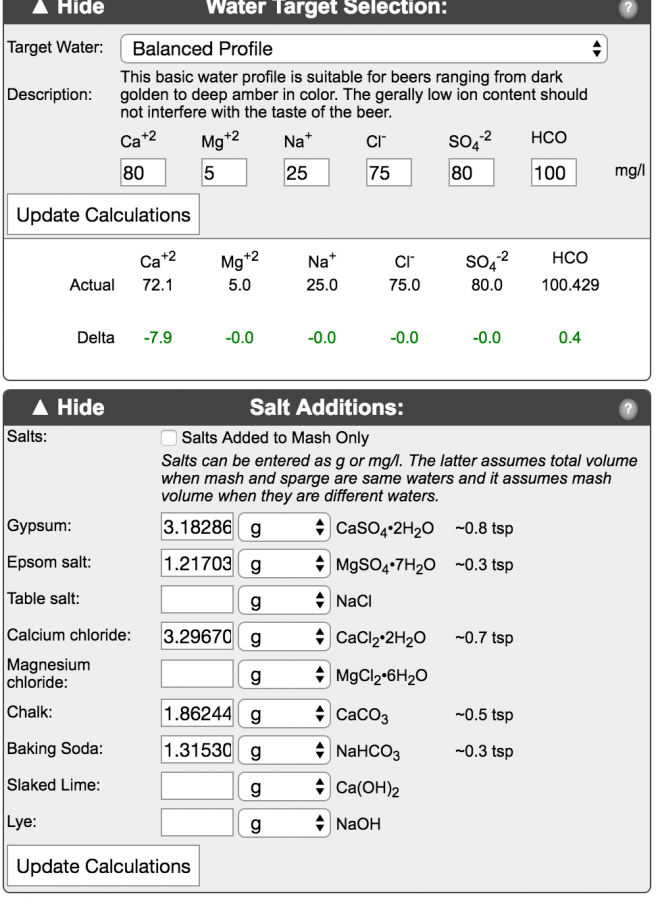

    Plugging this in to my optimiser by hand, it gets very close to the target profile automatically. Worth testing for a range of sources and targets.


    Attached Files:

  5. raiderrob

    raiderrob Member

    Joined:
    Jul 18, 2015
    Messages:
    30
    Likes Received:
    6
    Trophy Points:
    8
    Location:
    Redding CA
    So if I am reading this right? this program ,if integrated into BF would automatically calculate the salt addition's once you selected your target profile and your starting water profile? I would LOVE to see them do this. I want to use salt's to change build my water but there current calculator is beyond me. PLEASE people at Brewer's Friend make this happen.

    BCB_Brisbane likes this.
  6. brewmer

    brewmer Member

    Joined:
    Oct 2, 2013
    Messages:
    35
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    Devon UK
    will this optimal salt calculator take ph into consideration? it sounds just like the one on beer smith that calculates the salts to the required water profile and doesnt take ph into consideration, to be honest i like it how it is, besides people need to learn what salts do not just press a button, if its anything like the one on beer smith its as much as useless getting the salts for a chosen profile when your mash ph is ignored and totally wrong after the salts have been calculated

    Trialben likes this.
  7. mpmccann

    mpmccann New Member

    Joined:
    Jun 6, 2016
    Messages:
    10
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Corinth, Texas
    +1

    Honestly, I used Beer Smith in conjunction with Bru'n Water for years. I came over to BF because I was really getting into building water more and more. I found myself needing something more in depth for water, plus the need for it to all be in one program. BF has been awesome for this, and was the sole reason it attracted me to it. I am all for simple but not too simple. I have learned so much about water, ions, and salt additions because of BF, not to mention PH and using lactic acid etc.
    Matt...

    Trialben likes this.
  8. BenMyton

    BenMyton New Member

    Joined:
    Apr 23, 2015
    Messages:
    22
    Likes Received:
    6
    Trophy Points:
    3
    Location:
    Tacoma WA
    Wow!

    First, I vote "premium for life" for building an awesome tool to help the community.

    Second, this would be an AWESOME way to differentiate Brewer's Friend from the competition. I already think the web based interface is a huge advantage, and the range of recipe steps/instructions are significantly easier to use than the desktop competitors. Adding in "easy water calculations" would be awesome!

    Jarrod likes this.
  9. BenMyton

    BenMyton New Member

    Joined:
    Apr 23, 2015
    Messages:
    22
    Likes Received:
    6
    Trophy Points:
    3
    Location:
    Tacoma WA
  10. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,436
    Likes Received:
    9,499
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Water calculator is simple to use as is but to each their own I suppose.
