New product: Replacement keg valve

Discussion in 'Brewing Photos & Videos' started by GernBlanston, Nov 11, 2014.

  1. GernBlanston

    GernBlanston New Member

    Joined:
    Mar 22, 2014
    Messages:
    317
    Likes Received:
    2
    Trophy Points:
    0

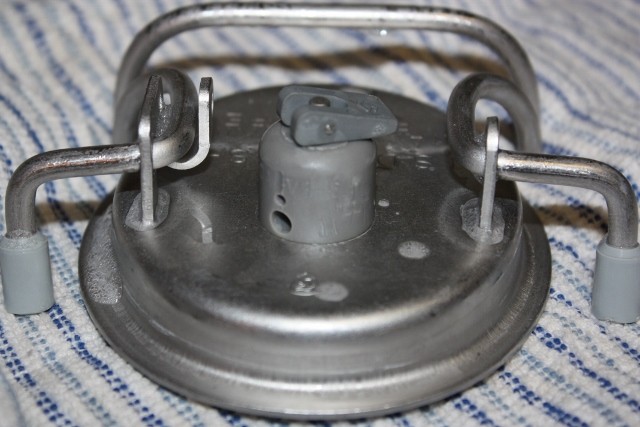

    If you keg beer, you may have seen these old type of relief valves commonly called "dome valves". What do you do if they start to leak? They are made of plastic and have an internal mechanism that is sealed and cannot be replaced. You got to replace the entire dome.
    Fine. However, they are no longer made, and any replacement you can find are as old as the one you have. So what do you do? You can buy a replacement lid for twenty bucks (used) to about $40 new. Sorry, I'll just add another $10 bucks to that and buy a keg off Craig's list. You can have a fitting welded on to accept the newer valve. Also costly. Got to be another way.

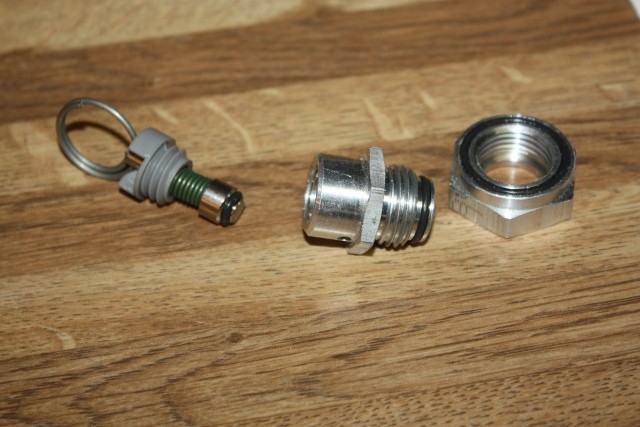

    So I Looked around and found these weldless valve replacements, that allow a standard relief valve to be used in this type of lid. I paid $11 dollars plus shipping from Keg Connection, but now I find them in Northern Brewer for under $5.

    http://www.northernbrewer.com/shop/keg- ... style.html

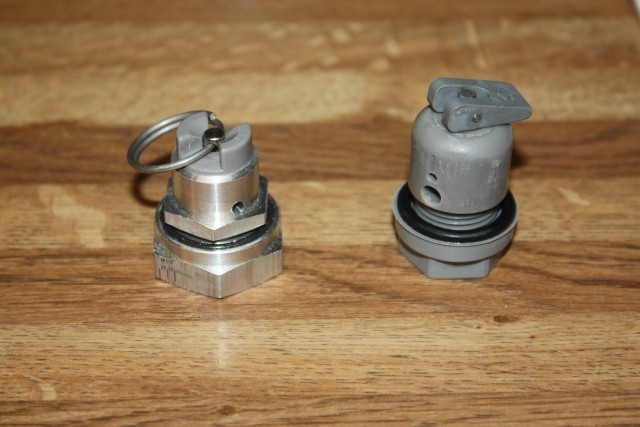

    The only down fall I can see is that they are made of aluminum, not stainless, so it might not work well for wine or cider (the acidic nature could damage them, I suppose), but for beer It should work fine. Two rubber O rings (one for the lid seal, the other to seal the threads) will eventually need replacing, but O rings are cheap. I have replaced the domes on two of my kegs and they seal up tight.


    Attached Files:

  2. The Brew Mentor

    The Brew Mentor Well-Known Member

    Joined:
    Aug 19, 2012
    Messages:
    961
    Likes Received:
    578
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Mentor, Ohio
    nice find
    Brian

  3. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    those are the best lids, I have one, wish I had more

  4. kingpanel

    kingpanel New Member

    Joined:
    May 5, 2017
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    1
    They are generally stamped on aluminum with a plastic inner lining for a modern hat. Even though it was made of jiyu aluminum magnetism, it had no effect.
