Measuring OG with Refractometer

Discussion in 'Beginners Brewing Forum' started by Mark Watson, Mar 10, 2019.

  1. Mark Watson

    Mark Watson New Member

    Joined:
    Mar 10, 2019
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    Hi Everyone. I'm reasonably new to home brewing and am gradually increasing my knowledge and trying to upgrade my techniques. I would like to have a far quicker way of measuring pre-boil SG and I bought a refractometer and have now calculated the 'Wort Corrective Factor' as 1.0229 from measuring 5 different worts 5 times with it and my hydrometer (as per instructions on various sites). However, I'm not quite sure what I do with the 'Correction Factor'! I assume that I read the BRIX on the refractometer then divide (or multiply?) it by the 'Correction Factor' to give me a corrected Brix reading then convert Brix to SG? Can anyone help? Many thanks. Mark

  2. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,399
    Likes Received:
    6,638
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    Sounds like you have it figured out. Read the Brix, multiply by the wort correction factor, then convert to SG.

    Mark Watson likes this.
  3. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,302
    Likes Received:
    1,423
    Trophy Points:
    113
    Location:
    Melbourne Australia
    You can also add it into the equipment profile here so that if you're using the brew sessions feature it will apply the correction factor for you (haven't tried that myself).

    Mark Watson likes this.
  4. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,903
    Trophy Points:
    113
    To the best of my knowledge, my refractometer gives me a straight up gravity reading... I haven't been doing any corrections to the readings.

  5. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,399
    Likes Received:
    6,638
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    I use it throughout fermentation - far lower samples, I can keep track of how things are going and with the correction, it's as accurate as my hydrometer. Far easier to read, too.

    wallyLOZ and Mark Watson like this.
  6. Mark Watson

    Mark Watson New Member

    Joined:
    Mar 10, 2019
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    Thanks for this. So I multiply rather than divide the BRIX reading by the correction factor yes? Much appreciated

  7. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    2,489
    Likes Received:
    1,576
    Trophy Points:
    113
    Gender:
    Female
    Occupation:
    Happily retired
    Location:
    Upper Michigan/Florida

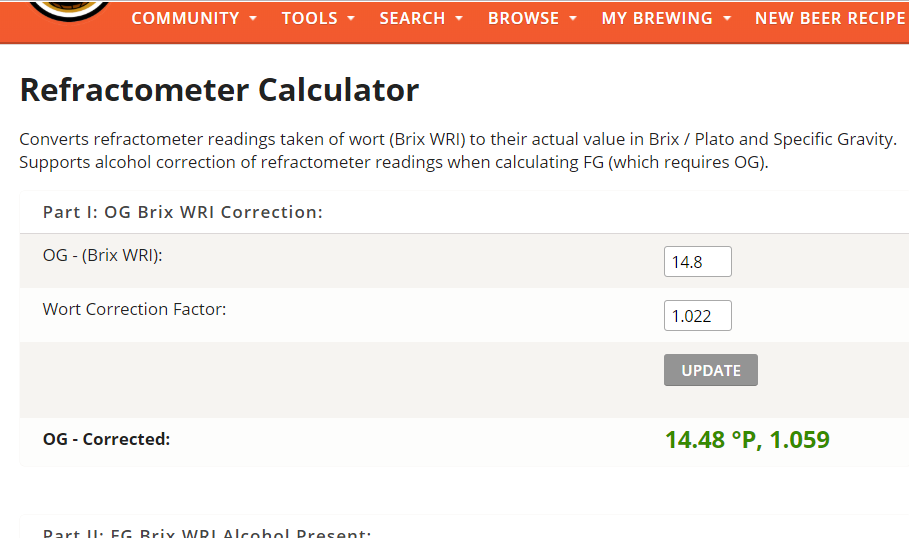

    Yes, for a super quick estimate on the fly, just multiply by four. If the refractometer has 14.8, the estimated brix is 59 (1.0592). Then, when you have a moment, use the calculator with the correction factor in it:
    https://www.brewersfriend.com/refractometer-calculator/

    For info:
    https://www.brewersfriend.com/2013/...rrectly-for-maximum-accuracy-in-home-brewing/

  8. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,903
    Trophy Points:
    113
    my refractometer has an SG scale on it, do I need to make any corrections?
    Maybe next brew Iwill do both and confirm the readings

  9. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,399
    Likes Received:
    6,638
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    You won't need to correct if your refractometer already has an SG scale. If it is in Brix, it's a wine refractometer and you need the corrections. If it's in SG, it's made for beer and the scale is already corrected. I use the correction factor in the equations to convert from SG to Plato when I'm correcting the beer for alcohol as well.

  10. 716Brewer

    716Brewer New Member

    Joined:
    Mar 6, 2019
    Messages:
    29
    Likes Received:
    15
    Trophy Points:
    3
    Occupation:
    Welder/Fitter
    Location:
    Hamburg, NY
    I thought the refractometer becomes inaccurate once there is alcohol present?

  11. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    It does, that’s why you use the correction factor.

  12. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,399
    Likes Received:
    6,638
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    There are equations you can use to correct it. This site has a calculator that employs one: You enter the original gravity and the refractometer reading, as well as your refractometer correction factor, and it converts the reading to SG, You're right that the actual reading is inaccurate but it can be corrected. The correction equations used here and in a past issue of Zymurgy are accurate on FG to the point where I can't tell the difference at 3 decimal points between my finishing hydrometer and my refractometer.

  13. 716Brewer

    716Brewer New Member

    Joined:
    Mar 6, 2019
    Messages:
    29
    Likes Received:
    15
    Trophy Points:
    3
    Occupation:
    Welder/Fitter
    Location:
    Hamburg, NY
    I gotcha now. I thought it was like a calibration to ensure overall accuracy. Thanks for the clarification.

    Mase likes this.
  14. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,743
    Likes Received:
    7,279
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    I realize this is an older post, but I just purchased my refractometer and had the same question. If I'm understanding the information presented on this site correctly, I shouldn't go off the SG scale.
    https://www.brewersfriend.com/2013/...rrectly-for-maximum-accuracy-in-home-brewing/
    Have you found out differently? A bit confused now.

  15. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,302
    Likes Received:
    1,423
    Trophy Points:
    113
    Location:
    Melbourne Australia
    Theory is that the SG scale should be ignored because brix is based on only sucrose in water. The mix of sugars we have in beer needs a slight conversion from brix to SG to account for that different sugar profile.

    I've no idea how much of a difference it makes in practice. I use the brew day feature here and that's got the brix to SG converter built in so I use that and don't even look at the SG scale. I imagine if I paid attention it might turn out to be the difference between how strong the light source is or not. And I suppose if you trust your manufacturer they may have that conversion built into their SG scale.

    Hawkbox and thunderwagn like this.
  16. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,399
    Likes Received:
    6,638
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    The calculator on this site will convert SG (read) to SG (Actual). It's the difference between measuring in inches or centimeters, you're measuring effectively the same thing just using a different ruler. Brix assumes all the difference in density of the solution is sucrose, SG doesn't care what's causing it, both work equally well. You will have to determine a wort correction factor by reading your hydrometer and your refractometer but it should be about 1.04. I use SG exclusively, not right or wrong. Brewers use degrees Plato, effectively the same as Brix.... Use what you're comfortable with, either scale works fine.

    Hawkbox and thunderwagn like this.
  17. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,743
    Likes Received:
    7,279
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    Thanks for the explanations. I should have read up a little bit before I jumped right in. I use different refractometers everyday for reading propylene glycol levels in heating and chilled/chiller systems and just assumed the reading was what it was. The difference in brix vs sg wasn't great, but it was a couple of points when converted. It did put my numbers right on track when I back tracked my sg reading to brix. However, I didn't even think to use my new hydrometer to compare. Again, I'm close enough and not real concerned. Just making sure from now on I'm on the 'right' track. At least now I feel like I have the knowledge to proceed on.

    Trialben likes this.
  18. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,302
    Likes Received:
    1,423
    Trophy Points:
    113
    Location:
    Melbourne Australia
    Ha, got the conversion factor pointing at the wrong thing. Thanks for the clarification.

  19. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,903
    Trophy Points:
    113
    My refractometer only has the SG scale (it was a gift from my daughter), I have just assumed the reading is the reading. I have found that my numbers typically line up to expectations (unless I eff something up like on my last brew). I love it because I can quickly check gravity all throughout brew day. Specifically, on my last brew I knew I had an issue when I checked the gravity of my first runnings (thank the sweet baby Jesus that I had DME on hand!)

    Trialben and thunderwagn like this.
  20. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,740
    Likes Received:
    2,975
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I use SG cause that is what I started with. It's close enough for the girls i go with.
