    Guys

    Prepping to build a mash tun.

    False bottom or perforated tube?

  2. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  3. MrBIP

    MrBIP Active Member

    Joined:
    Oct 4, 2012
    Messages:
    495
    Likes Received:
    29
    Trophy Points:
    28
    Location:
    Northern Michigan
    If you're building a cooler mash tun:
    The one I made this past fall it working great. 52 quart coleman extreme with slitted copper piping.
    Getting the copper super clean, removing all the burrs, after slitting it was a chore and finding washers that are not galvenized was challenging, but in the end this thing works great. (Of course, I have nothing to compare to).
    Similar to this concept: http://www.brewersfriend.com/2009/01/29 ... -manifold/

  4. The Brew Mentor

    The Brew Mentor Well-Known Member

    Joined:
    Aug 19, 2012
    Messages:
    961
    Likes Received:
    578
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Mentor, Ohio
    After building a couple and using others, I love what I have now.
    I started with an 48 qt. Ice Cube. You can find them for $30-$40. I got mine from Lowes a few years ago at the end of the season for $20.
    I picked up the cpvc parts while I was there. Off the top of my head I think you need..
    1- 1/2 x 10'
    5- 1/2 tee
    4- 1/2 elbows
    1- 1/2 male adapter
    1- 1/2 female adapter
    1- 1/2 ball valve
    1- female hose bib fitting

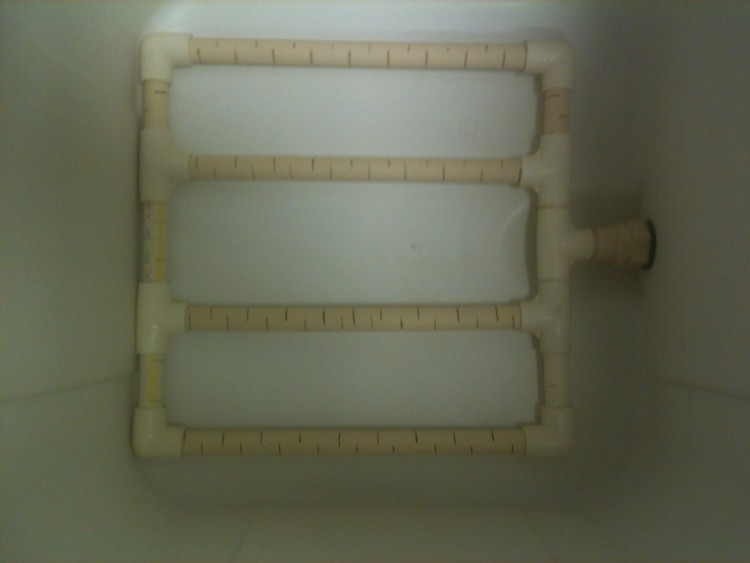

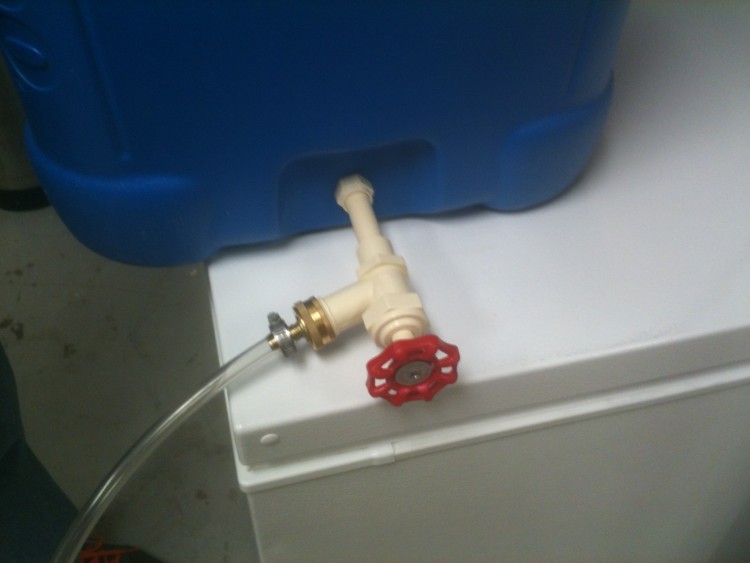

    I made a 4-pipe manifold to fit in the bottom and went through the wall with the 2 adapters. The valve controls the flow out of the tun. All the parts are only dry fit together so cleaning is a snap!

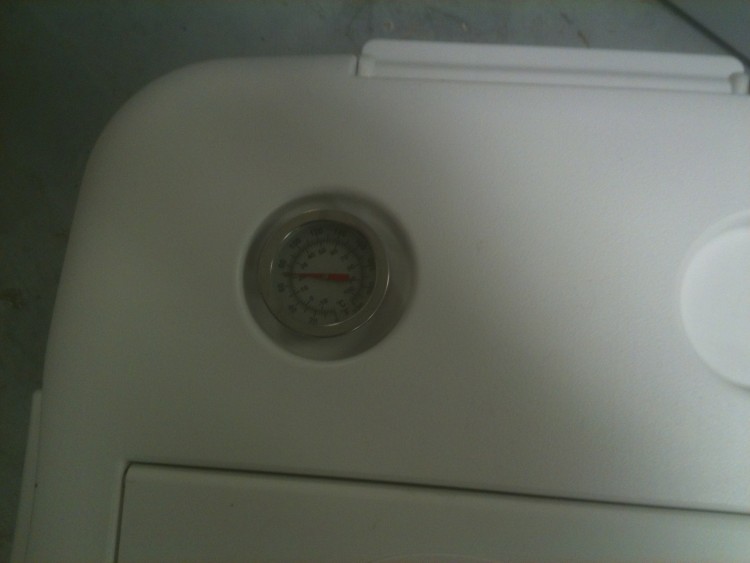

    I drilled a hole in the lid so I can put my thermometer in and I even developed a drilled hole system in the lid so I can fly sparge if I want to.
    It works great and I can get about 28# of grain in it for a pretty big 10 gal batch.
    The square design gives me a taller grain bed on smaller batches.
    Lots of pro's and no cons!
    Good luck.
    Brian

  5. Krimbos

    Krimbos Member

    Joined:
    Jan 29, 2013
    Messages:
    296
    Likes Received:
    2
    Trophy Points:
    18
    Brian

    Sounds cool Can you post pics?

  6. The Brew Mentor

    The Brew Mentor Well-Known Member

    Joined:
    Aug 19, 2012
    Messages:
    961
    Likes Received:
    578
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Mentor, Ohio
    I'll try, but the camera on my phone has a mind of its own! :x
    I'll try to get some pic's tomorrow when I get to the shop.

  7. chessking

    chessking New Member

    Joined:
    Jul 8, 2012
    Messages:
    255
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Aurora, Colorado
    Something to think about. If you plan to fly sparge, then you want something that will collect wort efficiently without channeling. A false bottom is best, second being a properly spaced manifold. If you plan to batch sparge, as I do, then it rely doesn't matter, as all wort will be drained. Some systems may drain faster or slower but the outcome is the same. I use a mesh screen from a water supply hose. cheap and easy. think about what you plan to use it for before committing to any expense.


    Attached Files:

  8. 7 Slot Brewing

    Joined:
    Jul 16, 2013
    Messages:
    147
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Syracuse, Utah
    I did the same as chessking in a 10gallon water cooler, except mine has just a straight piece of the mesh hose. By my testing with water, I end up leaving about 2 cups of liquid behind. I figure if I bend a copper pickup tube to lie flat I could reduce that dead space, but just have not gotten around to it.

    Chessking, and advantage to the loop as opposed to just a straight piece?

  9. chessking

    chessking New Member

    Joined:
    Jul 8, 2012
    Messages:
    255
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Aurora, Colorado
    Probably none. Just thought it would cover more area, and seemed like a good idea at the time. Certainly not crucial to the performance.

  10. MrBIP

    MrBIP Active Member

    Joined:
    Oct 4, 2012
    Messages:
    495
    Likes Received:
    29
    Trophy Points:
    28
    Location:
    Northern Michigan
  11. Krimbos

    Krimbos Member

    Joined:
    Jan 29, 2013
    Messages:
    296
    Likes Received:
    2
    Trophy Points:
    18
    Thanks boys

    I think I may start with the less expensive screen/ I can always upgrade to false bottom later

    SPent more time than necessary on this. Tried to build spigot piece by piece. Pain in butt.
    much easier :
    http://www.amazon.com/gp/product/B003H8 ... C6GAA8XY7Y

    Now I have to find a 10 gal cooler in the dead of the Chicago winter!

  12. MrBIP

    MrBIP Active Member

    Joined:
    Oct 4, 2012
    Messages:
    495
    Likes Received:
    29
    Trophy Points:
    28
    Location:
    Northern Michigan
    Ya, me too, but totally worth it.

  13. 7 Slot Brewing

    Joined:
    Jul 16, 2013
    Messages:
    147
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Syracuse, Utah
  14. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    good find, get all three

    Frequently Bought Together + +

    Price for all three: $79.05


    These items are shipped from and sold by different sellers. Show details
    Buy the selected items together
    This item: Igloo 10 Gallon Seat Top Beverage dispenser with spigot and Cup Dispenser $42.83
    Bazooka Screen For brew kettle or mash tun $11.22
    1/2" Weldless Bulkhead w/ Stainless Steel valve $25.00


    might need this for a cooler fit
    http://www.brewhardware.com/valves-69/136-vbx

    I have this one but don't use it for mashing any more, very big

    http://www.amazon.com/Igloo-Cube-Cooler ... ure+cooler

  15. 7 Slot Brewing

    Joined:
    Jul 16, 2013
    Messages:
    147
    Likes Received:
    0
    Trophy Points:
    16
    Location:
    Syracuse, Utah
    This is the model I used except green.... Doing know if it is more insulated or what.

    http://www.amazon.com/Igloo-4101-10gal- ... gloo+water

    I also got a thermometer with 6" probe, drilled a small hole about 8" from bottom, filled it with aquarium silicone and shoved the thermometer through. Much nicer than having to open it up to check temp :)

    Oh yeah if doing the mesh hose make sure your hose clamp is stainless also, I almost got the wrong kind.

  16. The Brew Mentor

    The Brew Mentor Well-Known Member

    Joined:
    Aug 19, 2012
    Messages:
    961
    Likes Received:
    578
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Mentor, Ohio

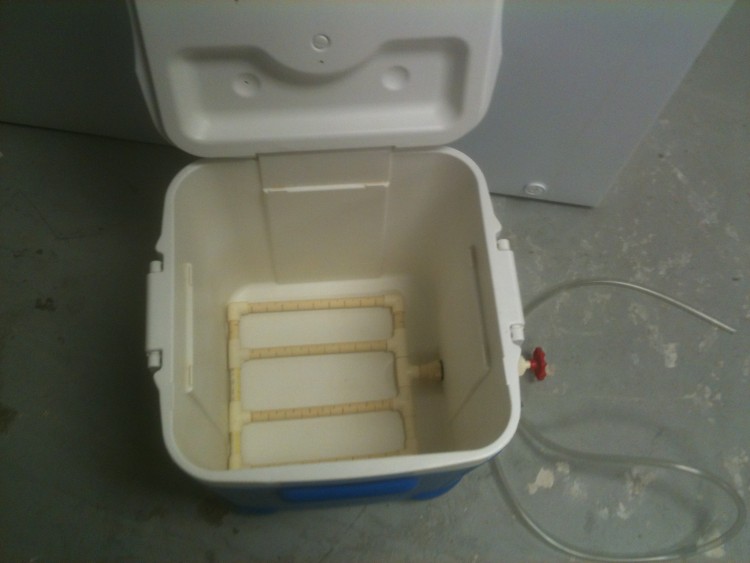

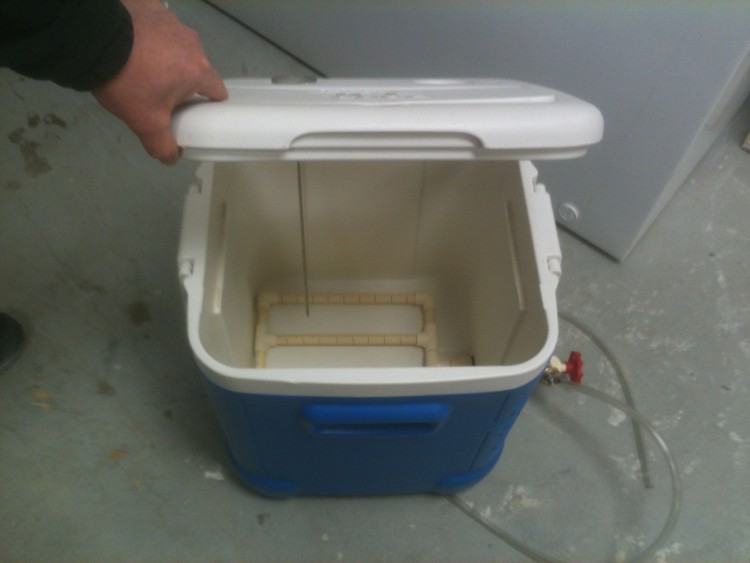

    Here are pics of my Mash Tun.
    This mash tun has served me well. It most recently helped me win a gold medal on an Oatmeal Stout in a big competition of 600. :mrgreen:
    Hope this helps.
    Brian


    Attached Files:

  17. Krimbos

    Krimbos Member

    Joined:
    Jan 29, 2013
    Messages:
    296
    Likes Received:
    2
    Trophy Points:
    18
    Great Thread

    It makes me laugh to think that everyone vicariously goes online and search for deals

    I definitely plan on some type thermometer. I was thinking a probe. Insulate wire with tubing (there are how-to threads out there) and stick probe into mash. Probe can also be used for cooling wort, fermenting etc. ANyone use one?

    http://www.amazon.com/dp/B0019R4HQQ/ref ... 5WMVABLB1V\

    (There are cheaper models)

    One more question - could you use a washing machine hose to create a super-bazooka tube (howitzer?)?

  18. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    those cheap ones like that work great until you get the probe too wet, then they stop reading correct, buy extra probes and don't get the joint where the metal stops wet at all

  19. Krimbos

    Krimbos Member

    Joined:
    Jan 29, 2013
    Messages:
    296
    Likes Received:
    2
    Trophy Points:
    18
    Here is nice work around

    http://www.homebrewtalk.com/f11/waterpr ... ist-59135/
