Mash tun bottom

Discussion in 'General Brewing Discussions' started by Jship, Jun 3, 2016.

  1. Jship

    Jship New Member

    Joined:
    May 30, 2016
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    0
    What do you guys prefer who use coolers for mashing stainless braid or copper, cpvc,pex bottom im going to make a mash lauter tun

  2. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,400
    Likes Received:
    6,643
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    I have a stainless steel false bottom that I'm not completely happy with - the holes let too much crushed grain through. (Sigh) Might have to scrap that idea (I can repurpose it in the kettle) and redesign the lauter system.

  3. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    some people put a screen over it I recommend this one,
    Corrosion-Resistant 304 Stainless Steel Woven Wire Cloth, 28 X 28 Mesh, .01" Wire Diameter, 24" X 24" Sheet
    I bought mine from http://www.mcmaster.com

  4. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

    Attached Files:

  5. artbreu

    artbreu Member

    Joined:
    May 17, 2016
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    6
    I first used the stainless braid and that worked pretty well for keeping the grain out but my belief is this design caused channeling and lower efficiency.

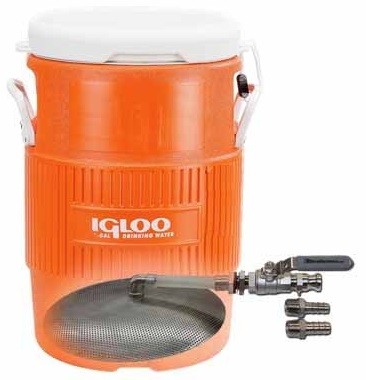

    I then went to the false bottom design exactly like Ozarks posted above and that will allow you to put a dip tube (just a little nipple really) down further into the shallow of the basin so you'll pick up wort more effectively and channeling will be a non factor assuming your mash is on a level surface.

    All that being said.. I moved away from using cooler-based mashes because the whole thing is made of LDPE plastic and i'm wary of using that in a hot water, continuous use environment. Understanding that people will swear up and down and fight over the safety of this, I'll just say do your research on that and see if you are OK with it. But just be aware of it.

    I have moved to a large volume aluminum pot with a spigot that I now mash in and I would never go back.

  6. sbaclimber

    sbaclimber Well-Known Member

    Joined:
    Jul 13, 2012
    Messages:
    872
    Likes Received:
    340
    Trophy Points:
    63
    Location:
    Germany
    I only have a 30l mash tun, but use a stainless braid, and have had no noticeable problems with channeling. I get 70-75% efficiency (brewhouse), so don't really have much concerns there either...

  7. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,400
    Likes Received:
    6,643
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    Looks like my setup.

  8. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    you can take some 3/8 silicone hose, slit it long ways and attach it around the edges, if that doesn't work take the screen, lay on top cut to fit the curve and its ridged enough to make a flat fold seam, then use the same hose to cap the edges and hold it in place

  9. tenorposaune

    tenorposaune New Member

    Joined:
    Mar 25, 2015
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    3
    I'm in the process of upgrading from a modified BIAB process to full AG, and I'm strongly considering just lining my (water cooler) mash tun with my nylon bag. As far as I understand, the filtering process is the same concept as BIAB, only I'm moving the wort around instead of the grain. Is there any reason this wouldn't work?

  10. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    it should be fine, many people do that

  11. Thurston Brewer

    Thurston Brewer Active Member

    Joined:
    Oct 3, 2016
    Messages:
    315
    Likes Received:
    137
    Trophy Points:
    43
    Location:
    Sunny So Cal
    I use a folding vegetable steamer wrapped in two layers of cheesecloth. Works great!

  12. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,442
    Likes Received:
    9,512
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Boys boys now I tell ya BIAB is the WAY to go. In Australia the fabrics called Swiss Voile. That is a polyester type fabric with holes so small when I wiz my grain into a powder even that gunks up against the fabric . yep last mash I lifted a grain bag quick and lost a liter over the edge of my kettle. Anyhow no floaties no vaughloff (spelling) you just dunk that sucker like a tea bag ha ha. Rig up a rope and pully system above your pot and when your done mashing,lift that suckker out over your pot to drain and sparge till your hearts content whilst in the meantime flame is struck and kettle is ramping to the boil. It is so simple. Clean up put grain bag in bucket grab edges and ease grain into bucked then rinse bag off and hang it on the clothes line. Mash efficiency in constant 90 step mash all good just raise the bag off bottom of kettle when flame is lit or coil is on and wait till temp is reached. Too easy:). Sorry got Carried away there:rolleyes:. Any questions on this style I got ya covered :cool:.

    jmcnamara likes this.
  13. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    You Aussies did get BIAB right for sure! I never would've spent all that money (or space) on a 3 vessel set up.

  14. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa
    I started out biab for the cost. And swore that I was going to be a 3 gallon batch brewer (ha!). $65 got me a 32 qt pot and burner , hobby lobby had Swiss voila for $3.25/yard and bobs your uncle. A guy in my town sold out all his homebrew gear, that's where I started kegging, bigger batch size, and scored a 56qt rectangular cooler with copper manifold. So I now mash in a bag in a cooler ,get great eff and kettle losses have been cut in half and feel it has improved my finished beer both in flavor and clarity (pretty sure flavor is more temp control from my glycol system) 15gallon SS kettle or keggle is next upgrade

  15. mingo jct

    mingo jct New Member

    Joined:
    Feb 11, 2015
    Messages:
    13
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Ohio
    Hey there: I agree BIAB is the best. I put a stainless steel veg. steamer in bottom of pot to prevent the bag from scorching. After mash
    I place bag of grain in another kettle with 2 gallons hot water to extract more. I like the pulley idea. Best wishes, Nick
