Making a Glycol Chiller with Ac unit

Discussion in 'General Brewing Discussions' started by BruGuRu, Feb 13, 2020.

  1. BruGuRu

    BruGuRu New Member

    Joined:
    Feb 13, 2020
    Messages:
    1
    Likes Received:
    2
    Trophy Points:
    3
    Gender:
    Male

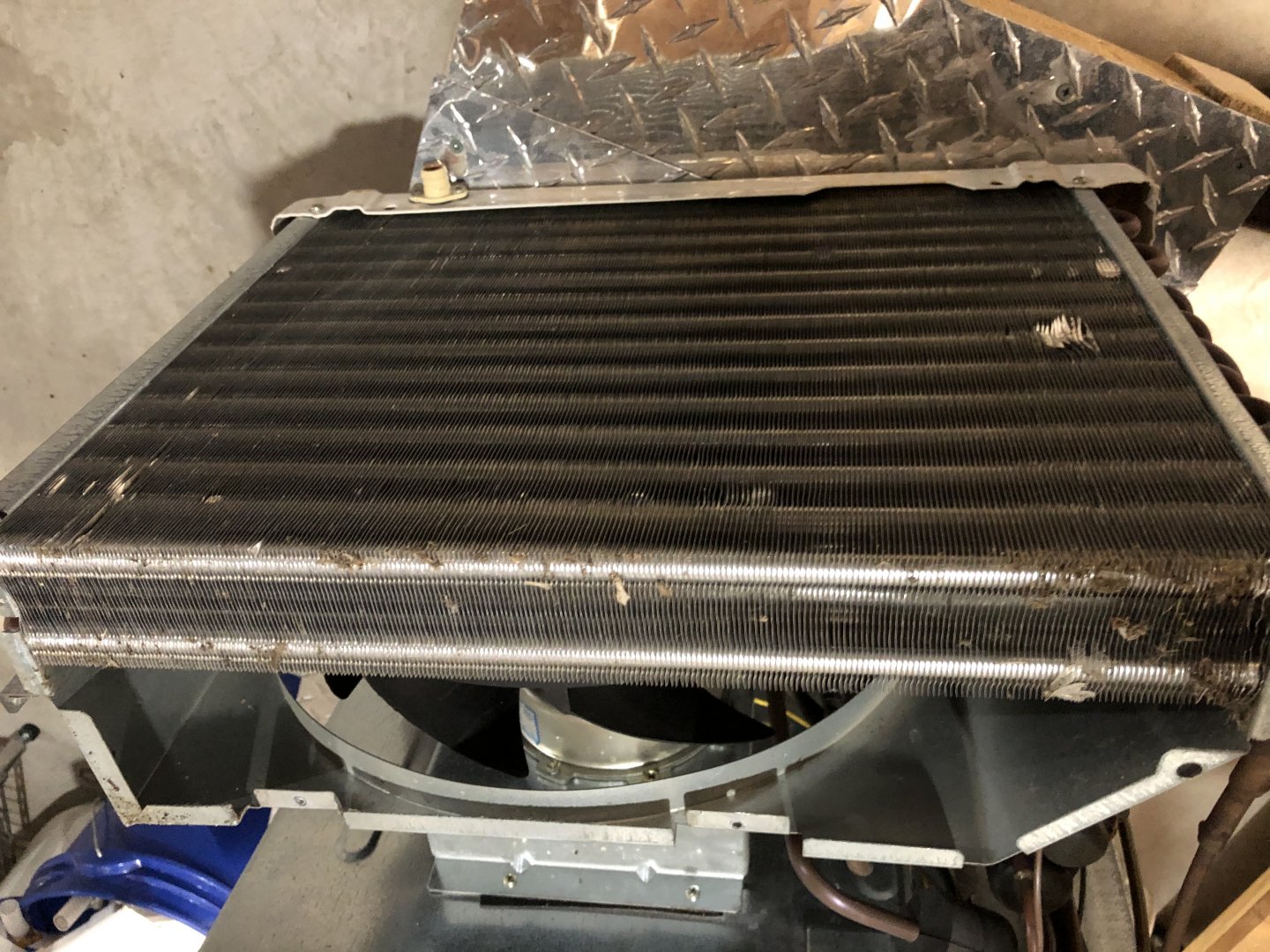

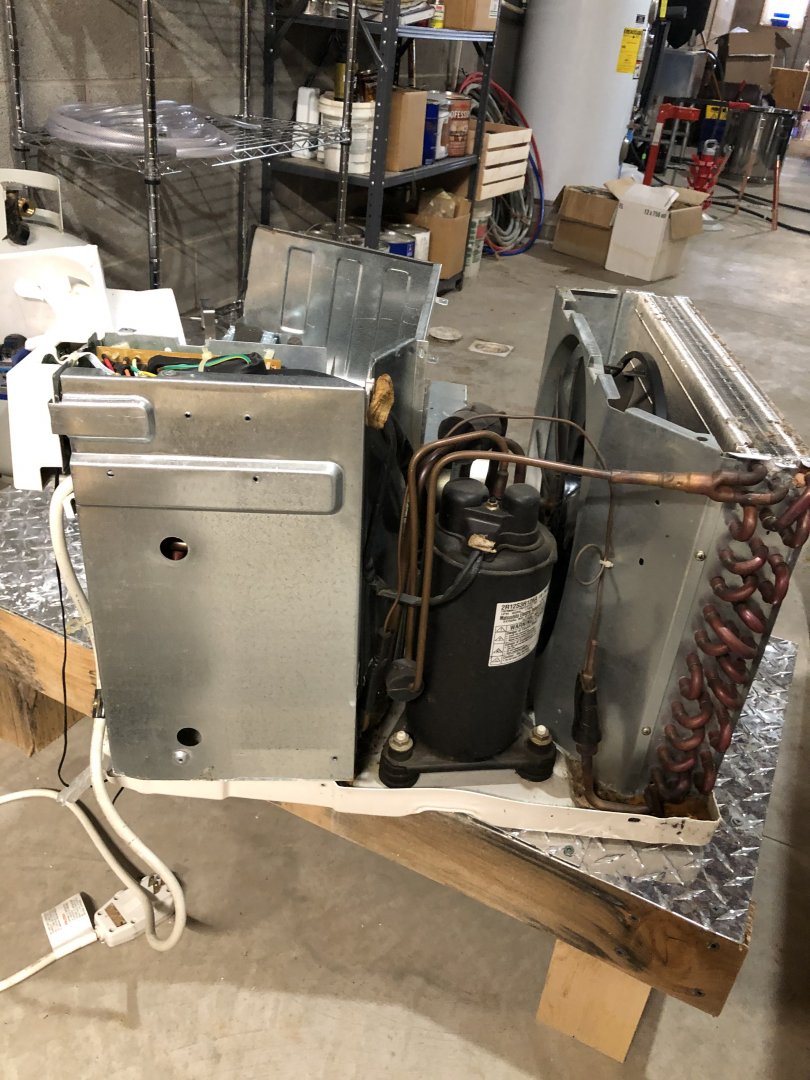

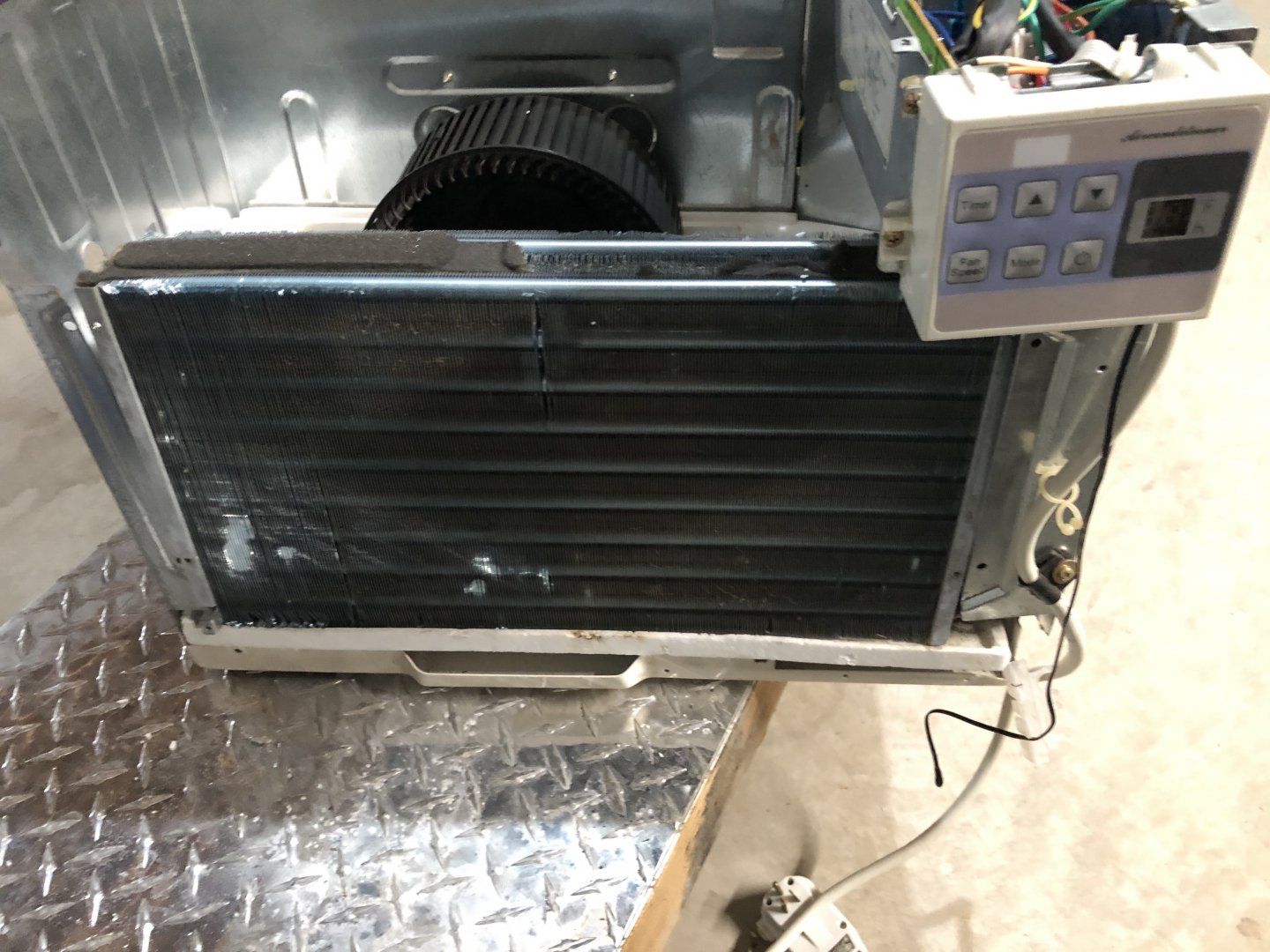

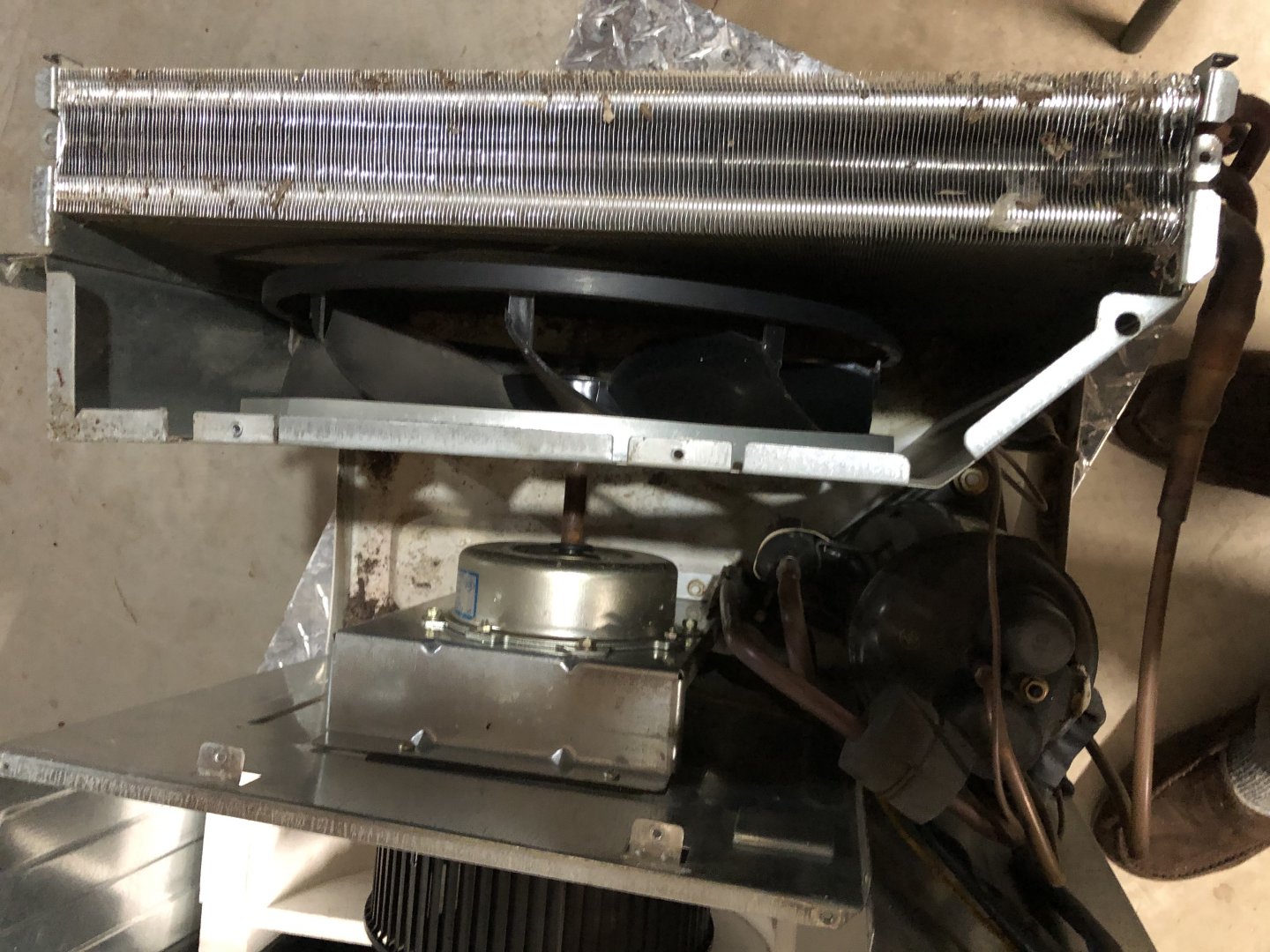

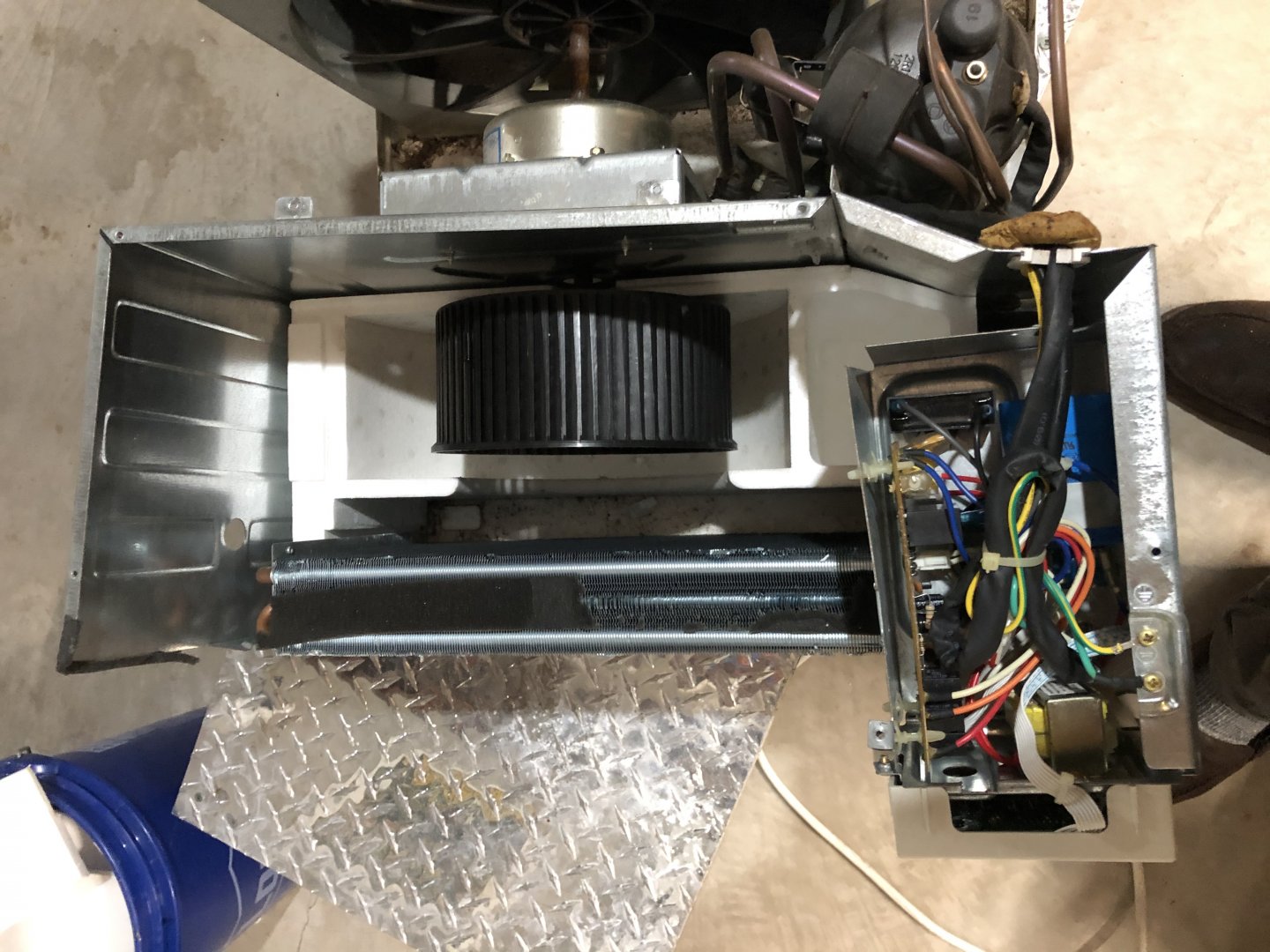

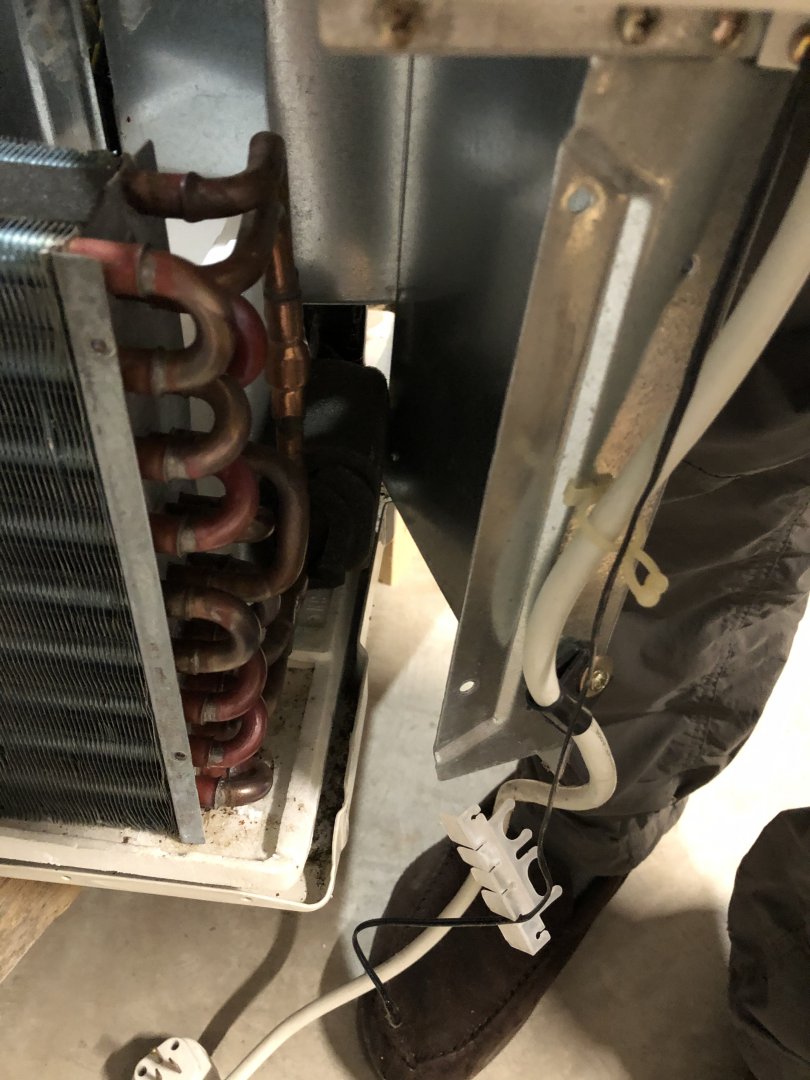

    Current situation. Have a window AC unit with digital thermostat. Lots of parts. How do go forward getting this thing to a cooler while keeping the digital thermostat?


    Attached Files:

    Hawkbox and Ozarks Mountain Brew like this.
  2. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,725
    Likes Received:
    2,965
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Do you want to submerge it at all? If not just pull the safety shutoff and you can do whatever you want. If you do, same thing but don't put the sparky bits in the liquid. I have a floor AC unit chopped up for this exact purpose.

    Steve SPF likes this.
  3. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,422
    Likes Received:
    9,480
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Very cool! I saw a fellow on YouTube mucking around with one of these turning it into a glycol chiller.

  4. 56 Firedome

    56 Firedome Active Member

    Joined:
    May 14, 2019
    Messages:
    153
    Likes Received:
    128
    Trophy Points:
    43
    Gender:
    Male
    Occupation:
    Retired
    From your question it seems that you don't have a lot of experience with Refrigeration. There are 2 main components you should become familiar with. The Condenser & the Eveporater. Both of these coils are pressurized with Freon in a sealed circuit. If you cut into the circuit, before the Evaporator coil but after the Expansion Valve, the Freon will be released.
    If you don't have welding equipment & knowledge & aren't able to recharge the circuit, it's probably not practical to use the AC unit directly to cool a Freon to Water (or Glycol) Heat Exchanger.
    That leaves submerging the Evaporator in a tank of water/glycol & circulating that to a immersion coil or counterflow heat exchanger in the Kettle. So, maybe the most practical approach is to use the Evaporator & Fan to cool an insulated box. Then use a 2nd coil circulating water/glycol & back to the immersion or counterflow heat exchanger.
    Air is a relatively inefficient Heat transfer medium but it is probably sufficient for this use. As this doesn't require cutting into the circuit, it seems the more practical solution.
    BTW, you didn't say how you were planning to use this project. You could be using it to cool the Wort to yeast pitching temp or you could be using it in a Fermentation Compartment. If a Conditioning Compartment, just build an insulated box big enough to hold the carboy & place the Evaporator in the bottom of the box. Use the fan to push the cooled air into the box & return that air to the Evaporator Fan with a bit of ductwork.
    Good luck. Seems like an interesting project.

  5. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,422
    Likes Received:
    9,480
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    This is the clip I saw on the U tube
