Large kettle BIAB

Discussion in 'General Brewing Discussions' started by jeffpn, Sep 10, 2017.

  1. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    I see a 16 gallon stainless pot for $90. It's got me thinking. Is it practical to do a 10 gallon batch via BIAB? Another idea I have is to do 2 separate mashes, and then combine them. I shoot for 6.5 gallons ending kettle to get 5 gallons kegged now. I probably could get away with 12.5 or 12 gallons ending kettle to get 10. Ideas? Of course then I'll need another fermenter for the 5 cf freezers I have. They each only hold one carboy.

  2. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    you can do a 10 gallon batch in that pot but not all recipes will work, I have done it in a 15g but it was to the top and always spilled wort somewhere usually 1060 and bellow you can, also you may lose efficiency at first until you get the hang of it

  3. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    Most of my beers are below 1060. I'm just working from the assumption that if I did two 6.5 gallon mashes, I could combine them in the 16 gallon pot and have 3 gallons of wiggle room.

  4. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    you can do a full water bib 12 gallon finished batch but the boil will be to the top and you'll have to watch it like a hawk for boil overs, I think 13 is going to be tight but you be the judge, the least amount of wort I start boiling with is 14.5 gallons to reach 12, I like to have an inch or so of air space in my kegs to start so I can bleed the air out otherwise it sprays beer everywhere, thats why I make 12 gallon batches

  5. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

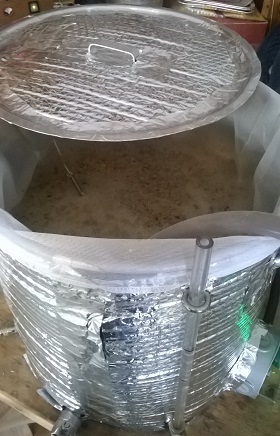

    was trying to find an old picture, this was my old rig many years ago and this was a 15 looks like 4" to spare in the mash but right to the top for the boil


  6. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    My hot break hits the top in my 11 gallon pot now. I start at 7.25 gallons. I suppose I'd need to double my 11 gallon pot size also, more or less.

  7. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    And just now I'm kegging. Didn't pay attention to my gas tube. I went above it. Luckily this keg has a pull ring on the cap.

  8. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  9. Mark D Pirate

    Mark D Pirate Well-Known Member

    Joined:
    Aug 21, 2016
    Messages:
    1,887
    Likes Received:
    1,280
    Trophy Points:
    113
    Occupation:
    Master carpenter , all round good guy
    Location:
    Radelaide SA , Australia
    16 gal for $90 ? I'm quoted $240 aud for a 19 us gal pot ...at least it comes with tri clad base and internal volume markings .

    This will form basis of a 2V herms system being my mash tun and kettle , still no chilling despite having a shiny SS immersion chiller on order already ....brew hardware is so expensive here but somehow some ingredients are much cheaper excepting hops

  10. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113

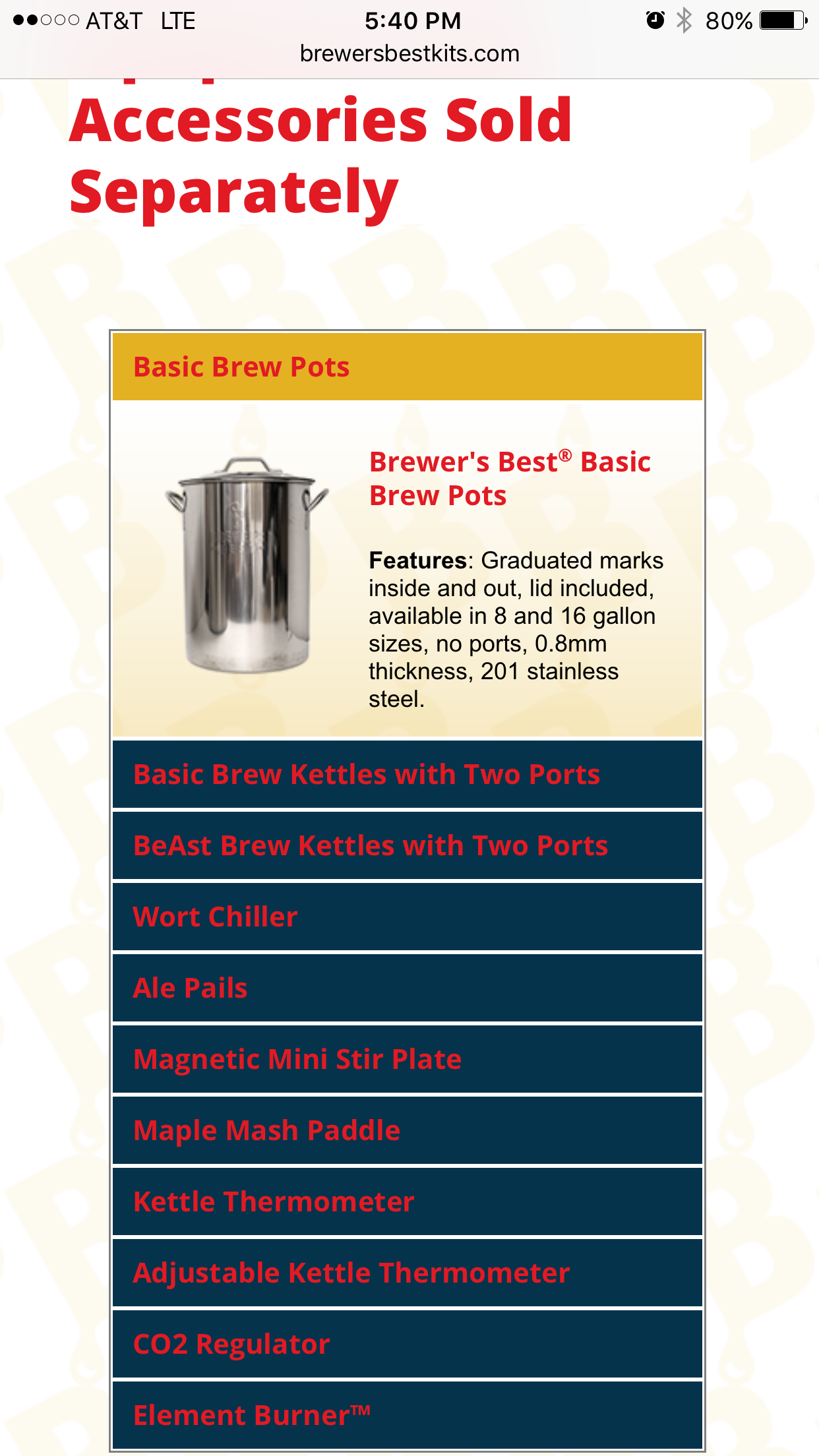

    $89 MSRP brewersbest.com


    Attached Files:

  11. Mark D Pirate

    Mark D Pirate Well-Known Member

    Joined:
    Aug 21, 2016
    Messages:
    1,887
    Likes Received:
    1,280
    Trophy Points:
    113
    Occupation:
    Master carpenter , all round good guy
    Location:
    Radelaide SA , Australia
    Ok now I see why its much cheaper , mine is 304 and 1.2 mm thick with 3 ports but trying to get 2 of them undrilled so I can have them welded exactly where I want them
