float switch in HLT

Discussion in 'General Brewing Discussions' started by TiltBlack, Jun 3, 2019.

  1. TiltBlack

    TiltBlack New Member

    Joined:
    Jan 13, 2019
    Messages:
    14
    Likes Received:
    8
    Trophy Points:
    3
    I am putting together an electric pot for my brewery. I would like my HLT to have a float switch to protect the element from burning up if the water gets too low, which happened on another pot of mine while sparging. I would appreciate it if anyone has any information on what kind to buy and any pros and cons on this.

  2. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

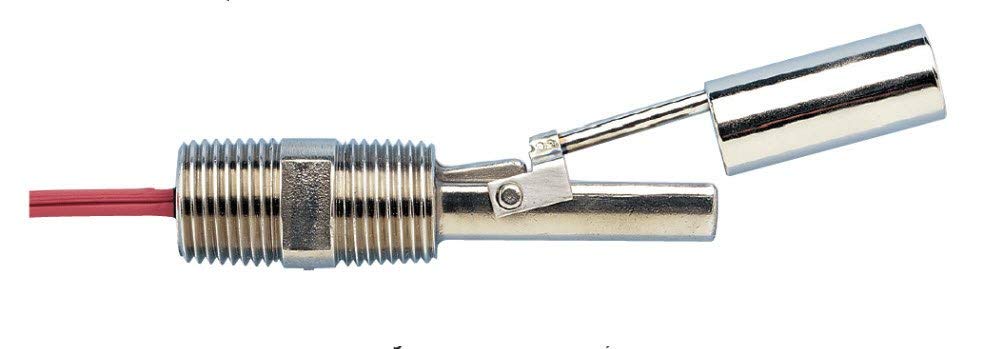

    I prefer this type myself, there are a few different types and the price range can change drastically based on the manufacturer, the china clones are very inexpensive 51POjcN-fFL._SL1000_.jpg

  3. TiltBlack

    TiltBlack New Member

    Joined:
    Jan 13, 2019
    Messages:
    14
    Likes Received:
    8
    Trophy Points:
    3
    thank you for the info, is that stainless steel, where would I look for getting one? It looks better then many I see on Amazon.

  4. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    it would take a while to find the right one, it needs to be heat rated and all stainless, I just showed that as a reference

  5. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  6. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  7. TiltBlack

    TiltBlack New Member

    Joined:
    Jan 13, 2019
    Messages:
    14
    Likes Received:
    8
    Trophy Points:
    3
    I was looking at one like that, only $12 not sure how good it would be. The design I think would fit in the pot which will have a 55000 element along with the herms coil and with the flow switch things are going to get tight in there. Another concern is it may be close to the heating element so it has to be hardy enough to not melt.

  8. TiltBlack

    TiltBlack New Member

    Joined:
    Jan 13, 2019
    Messages:
    14
    Likes Received:
    8
    Trophy Points:
    3
    I bought the DerBlue Auarium water level sensor for my HLT. it says it is good to 150 C which is 304 F . Not as strong as I thought it should be, but I will try it out when I get my pot ready. wish me luck
