Electric water heater

Discussion in 'General Brewing Discussions' started by Trialben, Jun 10, 2018.

  1. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,447
    Likes Received:
    9,519
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    #1 Trialben, Jun 10, 2018
    Last edited: Jun 10, 2018

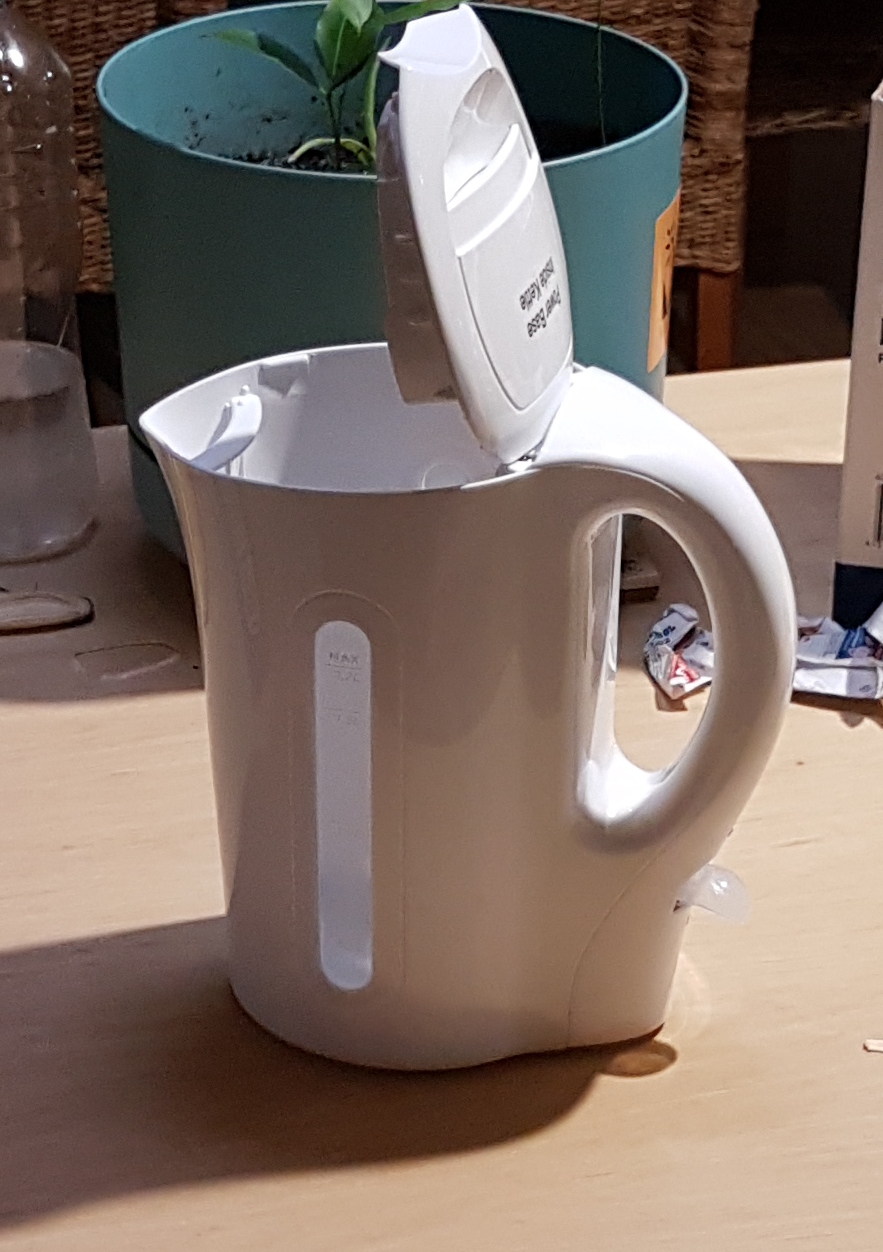

    Gunna convert one of my kegs into a hot water tank for sparging with using the cheap kettle pictured in photo down bottom!

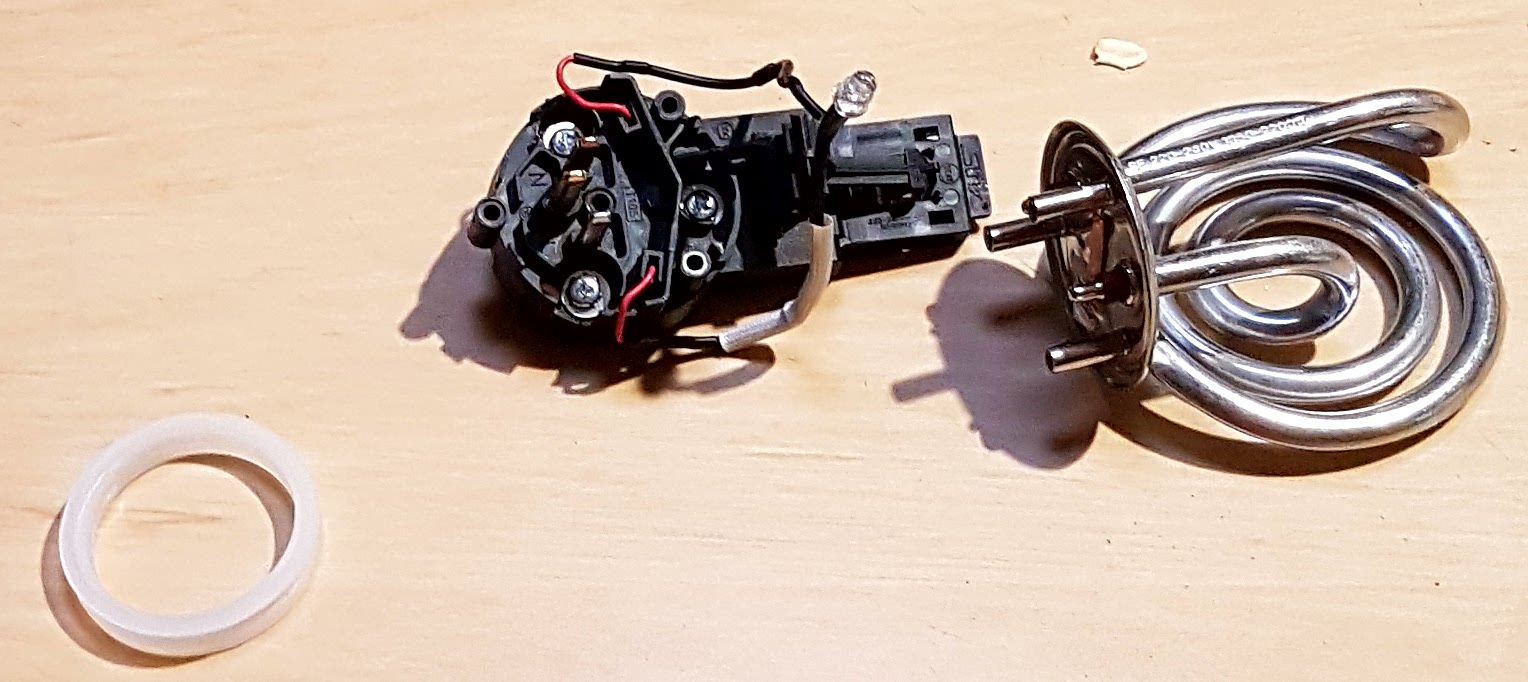

    The kettle is $9 all i want is tge element abd cord and rubber gasket. Pretty cheap for a 2400w element eh?

    My inspiration has come from "Gash Slug" hes got a how to video on youtube which i re visited recently to learn up on how to do it.


    Sort of a tester and if it works well ill upsize into my 50lt keg but use two coils run off two different circuits.

    Anyhow let me know what youse think. Cheerz :)

    Hawkbox likes this.
  2. philjohnwilliams

    philjohnwilliams Well-Known Member

    Joined:
    Aug 26, 2012
    Messages:
    324
    Likes Received:
    426
    Trophy Points:
    63
    Location:
    Verdun, quebec
    Electric kettles in North America are no more than 1800w iirc, but two adds up to 3600w which is still pretty good. I may have to to try this for myself.

  3. PutnamBrew

    PutnamBrew Member

    Joined:
    Apr 20, 2018
    Messages:
    29
    Likes Received:
    45
    Trophy Points:
    13
    Location:
    Putnam/Dayville, CT
    That's definitely interesting for sure. It would pull just under 20a for those in North America.

  4. BoomerBrian

    BoomerBrian Active Member

    Joined:
    Jun 27, 2016
    Messages:
    371
    Likes Received:
    216
    Trophy Points:
    43
    Gender:
    Male
    Occupation:
    Software Developer
    Location:
    Oklahoma
    I just used hot water tank heating element that I ordered from Amazon.

    Trialben likes this.
  5. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,447
    Likes Received:
    9,519
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Ive ordered the hole bore from ebay 38mm i measured on this gasket. Ill keep youse filled in on how it goes. Itll run on our 10amp 240v circuits here 2400watt. See how it goes heating up sparge water out in brewery and go from their.
    Im a dodgey bastard so be carful with electricity:)!

    APPARENTLY i havt checked it out for myself but there is the "Bucket if Death" were people are running two kettle elements in a plastic bucket for the kettle interesting haha.

  6. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,746
    Likes Received:
    2,981
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I want to build a heat stick to get my strike water heated in advance without drilling holes in the kettle but I'm not very good at it. It's more the plumbing aspect I'm confused by than the electrical. If I don't figure it out by fall I may just buy one.

  7. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  8. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,746
    Likes Received:
    2,981
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Yeah, but you know... cheap.

    Also, in Canada so I don't get killed on shipping/customs.

  9. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    by the time you source all the parts its not that much cheaper

  10. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
  11. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,746
    Likes Received:
    2,981
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    It's the Canada part that is the main issue.

  12. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    just google home made heat stick canada, I found a few

  13. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,746
    Likes Received:
    2,981
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    I've looked at a couple but had trouble finding the listed parts. It's not a high priority so I haven't worried about it, but if I get serious I'll have to put more effort in.

  14. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,447
    Likes Received:
    9,519
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Hey looking around at different Pids online to control boil mash ect ect and stumbled upon an all in one "Smart Pid" just broused the site and it looks as though this is what ill go for if going down the electric brew rig route. Anyone on here using something like this id live to hear your feed back check it out its pretty cool. Whatch the clip..
    http://smartpid.com/

  15. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri
    Trialben likes this.
  16. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,447
    Likes Received:
    9,519
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Looks the goods Ozarks and probably a bit cheaper too. 300 unit is similar to the smart paid where you can control multiple heating elements or pumps from one unit. I like the WIFI function on the smartpid too

  17. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    if you are looking for a cheap-ish route, build a controller based off a 10,000w SCR.
    It is what I did for my Still.

    I will probably sell it as soon as I get my Wort Hog controller, because it does the same thing, and will not need to controllers

  18. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,447
    Likes Received:
    9,519
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Update.

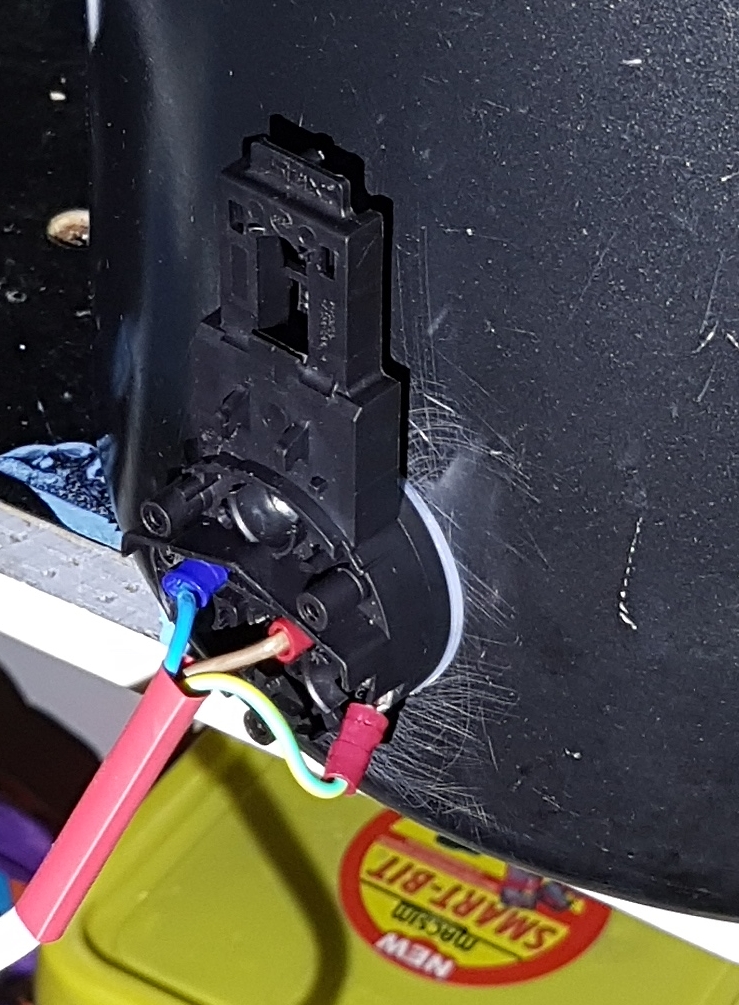

    38mm hole bore showed up from china today so go busy makin holes and testing if i ordered right size to make snug fit with silicon or ring Yep!

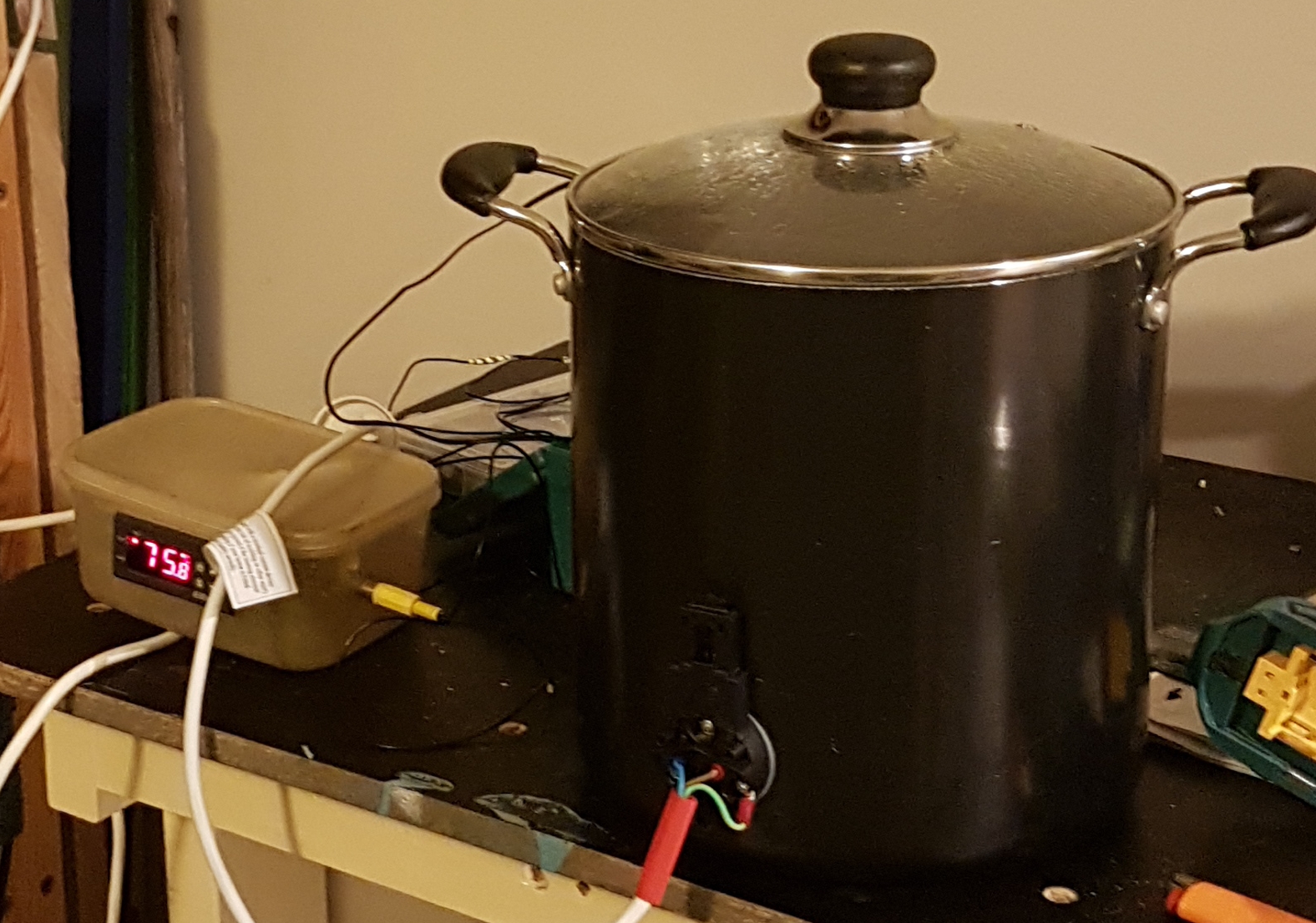

    I ended up just using current sparge pot for me sparge water heater more work cutting top off keg... i heated 5lt of water to mash out 75c in 7 minutes sweet!
    Well i havnt fried meself yet:p so all good.
    Now to incorporate this into me big pot.

    Electric is cheeper right? We pay 23c/KWH here in QLD-Aus so 2400W / hr = around 50c per hour if me maths is near correct ? so must be cheaper than gas which is $20/9kg refill which i get roughly 4 brews outta so $5 / brew day in gas= 25 hrs on electric/brewo_O so elec is deffinetly cheeper:confused:. anyhow im confused cheers:).

    Oh but if ive got two elementsthats roughly $1/hour right:D?

    Disclaimer I AM NOT A Qualified Electrician!

  19. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,746
    Likes Received:
    2,981
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Took you a few tries to get the drill started eh? ;)

  20. Blackmuse

    Blackmuse Well-Known Member

    Joined:
    Jul 8, 2012
    Messages:
    918
    Likes Received:
    933
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Electrician (Previously a 6th grade Teacher)
    Location:
    Maine
    Home Page:
    Do you have or can you make a shield to go over the electrical connection?
