Bottons on your Control Products TC-9102 stop working?

Discussion in 'General Brewing Discussions' started by Foster82, Nov 24, 2013.

  1. Foster82

    Foster82 New Member

    Joined:
    Jan 12, 2013
    Messages:
    208
    Likes Received:
    1
    Trophy Points:
    0

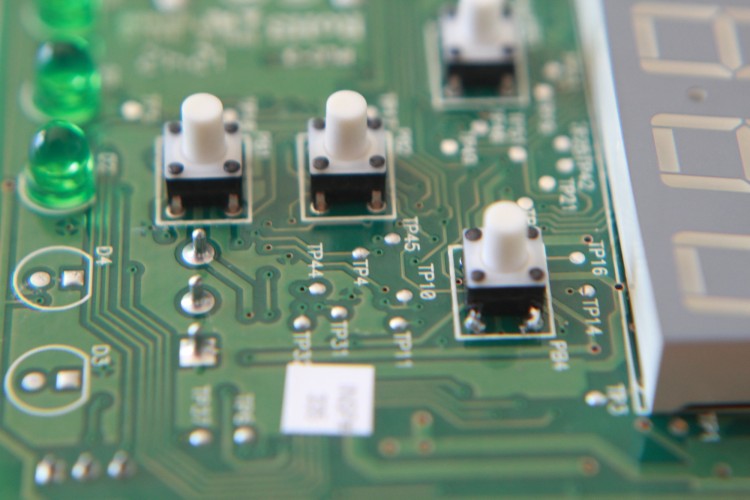

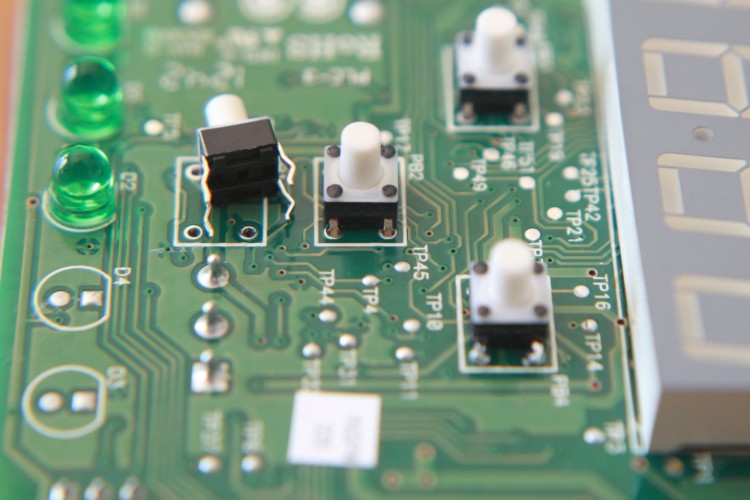

    So the enter button on my Control Products TC-9102 worked randomly at best since day one. Not a huge issue unless you need to change a setting. I had always figured that some moisture had damaged the button and it just needed to be cleaned. Well today I decided fix the thing instead of fighting it anymore. Upon investigation I discovered that 3 out of four buttons were not even soldered to the board. Once the buttons were soldered up everything works great. So bottom line, if the buttons on your TC-9102 are not working, don't toss it; a little solder may fix it right up. Additionally it looks like one button was soldered from the top, were is I soldered the remaining buttons from the bottom side to avoid melting the plastic on the buttons.


    Attached Files:
