Thanks for the additional info- I found it. There were a couple of things going on there. One, the recipe wasn't "linked" in the main page, so make sure you click "link" and 'update recipe' once you make the additions. That wasn't a big deal, because it made very little difference- but be sure to do it.
Secondly, when you added the acid you didn't click "mash only" and specify to add the acid to get the mash pH you wanted. It made just a bit of difference, not much, though:

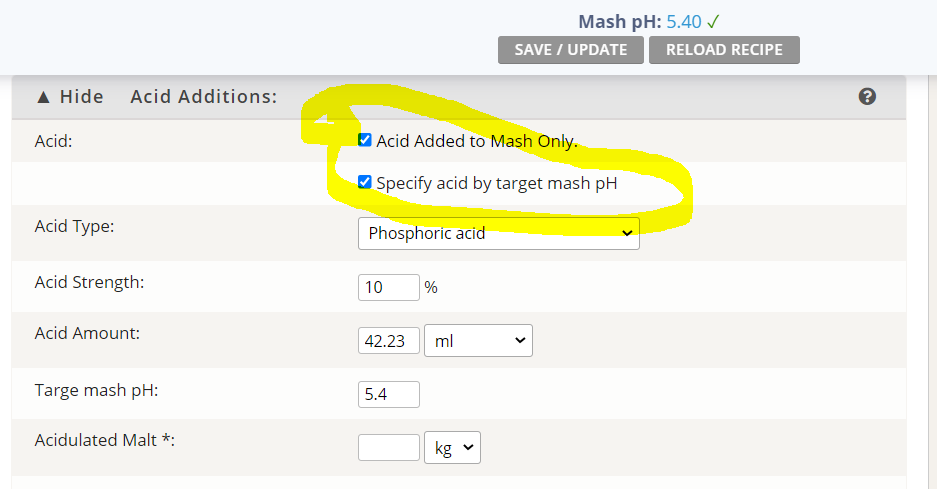

View attachment 16912
If you're using 10% acid, that's not an unusual amount for the amount of alkalinity you're targeting:

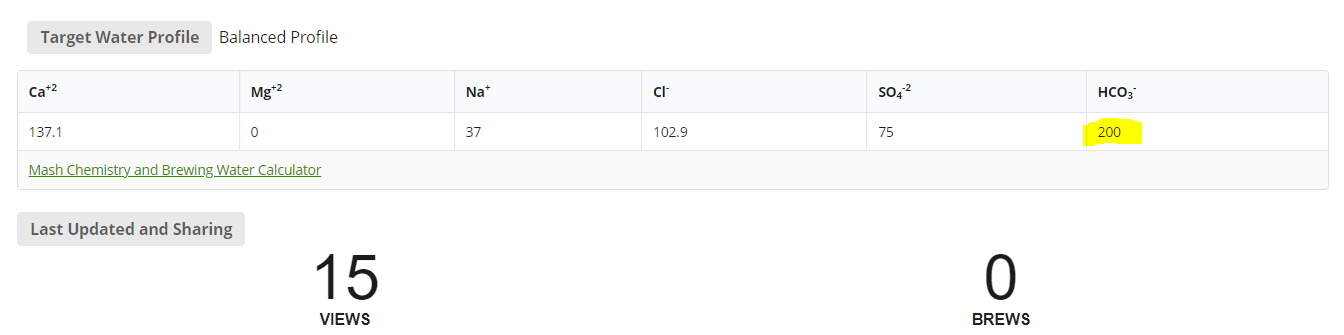

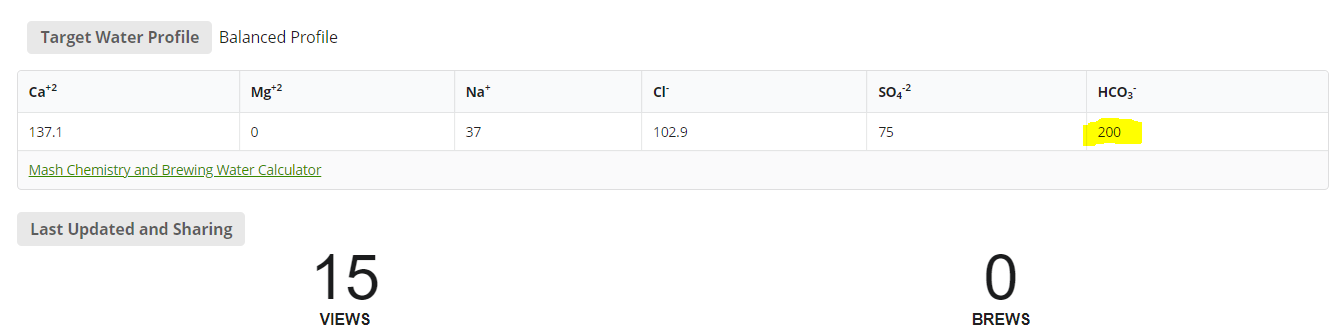

View attachment 16913
In order to counteract that boatload of alkalinity and yet get the mash pH to under 5.4, you'd have to add quite a lot of phosphoric acid.
That's the main part, as the other things are very minor and don't make that much of a difference. However with an alkalinity that is that high, you'd have to add the acid to get the mash pH down. When you have high alkalinity in the water, and a light colored grain bill, you need to add acid to neutralize that alkalinity.
