Wireless Hydrometer

Discussion in 'General Brewing Discussions' started by AGbrewer, Jun 14, 2020.

  1. AGbrewer

    AGbrewer Active Member

    Joined:
    Oct 19, 2018
    Messages:
    353
    Likes Received:
    233
    Trophy Points:
    43
    Anyone had experience with the TILT wireless hydrometers?

    Thinking about getting one, but wanted some feedback from folks before is dump $140 on one.

  2. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    614
    Likes Received:
    903
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    I’ve been using mine for about a year and a half. It works so well that I have quit taking manual readings.

  3. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,304
    Likes Received:
    1,424
    Trophy Points:
    113
    Location:
    Melbourne Australia
    I'm happy with mine.

    Couple of things you may already know..

    If you want to automatically send the data to a site like this one you'll need to repurpose some old hardware with bluetooth or buy something like a raspberry pi and use tilt pi (https://tilthydrometer.com/products/tilt-pi-raspberry-pi-disk-image-download) or make a tiltbridge (https://www.tiltbridge.com/).

    While it's really good at letting you know how fermentation is going, it can get a little confused if there's a huge krausen or dry hop. Some of the crud can get attached and knock the tilt off slightly. It's no big deal, just needs a hydrometer/refractometer reading at the end to confirm the FG.

    And if you are happy with a bit of DIY the iSpindel are the clunkier, much cheaper, simpler cousins (http://www.ispindel.de/). Been thinking about making some of these up for the long term aged beers.

  4. okoncentrerad

    okoncentrerad Active Member

    Joined:
    Nov 2, 2017
    Messages:
    310
    Likes Received:
    137
    Trophy Points:
    43
    Location:
    Vinnerstad
    I'm pretty happy with mine too. I use an old phone connected 24x7 to bridge the tilt data to the software. As mentioned it's not always giving 100% correct data, but usually good enough to know how the fermentation progress.

  5. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    614
    Likes Received:
    903
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    On some beers, there can be a period where the CO2 bubbles adhere to the Tilt and cause it to float higher, which shows the SG going up instead of down. This is short lived and usually happens in the early stages of fermentation. Other than that, it’s been pretty accurate.

  6. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    2,494
    Likes Received:
    1,584
    Trophy Points:
    113
    Gender:
    Female
    Occupation:
    Happily retired
    Location:
    Upper Michigan/Florida

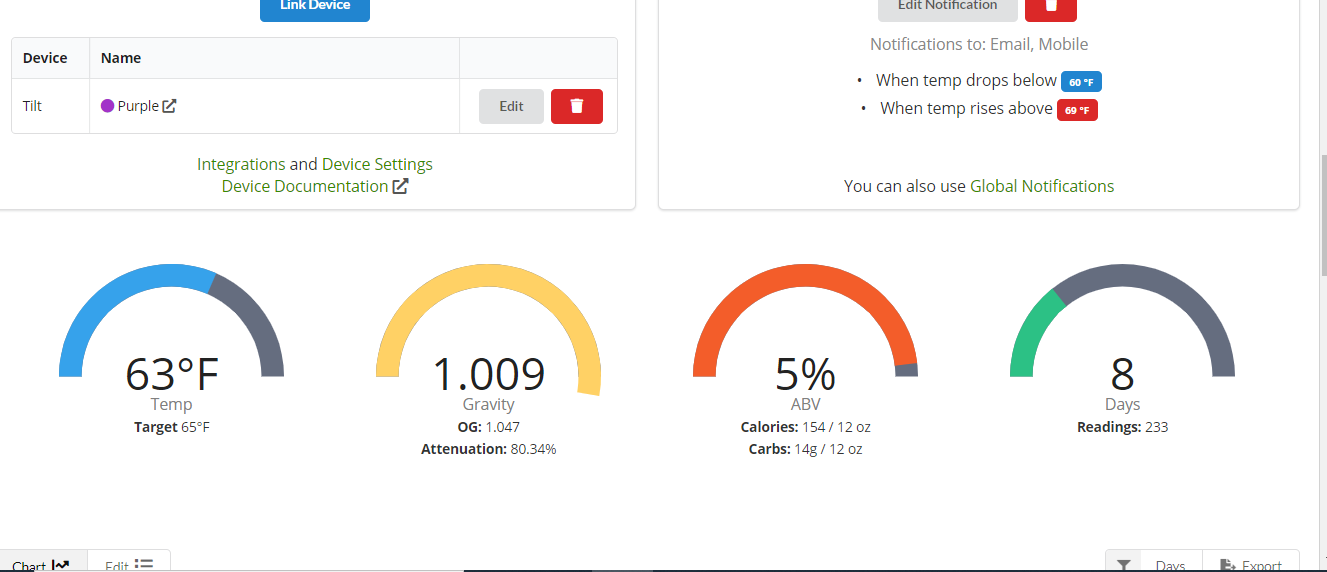

    I LOVE mine. I have it next to an old iPhone, and integrated with Brewer's Friend. I have a kolsch to keg (hopefully today), and here's the reading:

    I easily see the temperature, the gravity, the ABV, etc- and I've never even glanced at the fermenter (except to notice that it had plenty of headspace). If they were cheaper, I'd have several!

    Trialben likes this.
  7. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    Trialben and Yooper like this.
  8. Frankenbrewer

    Frankenbrewer Well-Known Member

    Joined:
    Jul 19, 2019
    Messages:
    460
    Likes Received:
    697
    Trophy Points:
    93
    Location:
    Connecticut
    I just order a tilt today. I guess I'll have to brew once it arrives:D

    Yooper likes this.
  9. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    2,494
    Likes Received:
    1,584
    Trophy Points:
    113
    Gender:
    Female
    Occupation:
    Happily retired
    Location:
    Upper Michigan/Florida
    We are definitely enablers. :D

  10. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,419
    Likes Received:
    6,673
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    The Tilt is a $150 investment I can't justify: My refractometer and spreadsheet work fine at the cost of a couple drops of wort every day or so. Not knocking those of you who use it, I just have other uses for the money (RO filter, maybe?).

    Vallka, Trialben and Hawkbox like this.
  11. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    614
    Likes Received:
    903
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    I have spent lots of my money on beer and brewing equipment. I have just wasted the rest.

    Craigerrr and Steve SPF like this.
  12. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,759
    Likes Received:
    2,990
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    They seem neat but I just don't care what my wort is doing day to day.

    Craigerrr, Vallka and Steve SPF like this.
  13. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    2,494
    Likes Received:
    1,584
    Trophy Points:
    113
    Gender:
    Female
    Occupation:
    Happily retired
    Location:
    Upper Michigan/Florida
    Yes, I thought the same thing but making certain lagers made me change my mind. I now know when I"m at 75% of the way to my projected attenuation and can do the diacetyl rest, all without risking any opening of the fermenter. I can ferment in corney kegs with no visual cues at all, and know if fermentation has begun (or ended).
    When I made a kolsch about 10 days ago, I saw on my desktop that the temperature had suddenly crept up to 68 degrees- and that was handy for sure.

  14. Frankenbrewer

    Frankenbrewer Well-Known Member

    Joined:
    Jul 19, 2019
    Messages:
    460
    Likes Received:
    697
    Trophy Points:
    93
    Location:
    Connecticut
    I think it will be great to not have to open the fermenter at the end to check for final gravity and waste ounces of brew in the hydrometer flask each time.

    ^Tony^ likes this.
  15. Chaos home brewing

    Chaos home brewing Active Member

    Joined:
    Dec 12, 2017
    Messages:
    87
    Likes Received:
    110
    Trophy Points:
    33
    Occupation:
    IT
    Location:
    Arizona
    I made three iSpindels and just love the results. With these you do not need a secondary device. It will send the data straight to brewersfriend (or a bunch of other places) when you configure it. The batteries don't last as long as the tilt but are rechargeable. So between brews I just place it on my phone charger for a day or so. I built the three for about $60. Having said all that I someday hope to have a tilt too.

    Trialben and Mark Farrall like this.
  16. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    I still may "need" to take a few tasting samples...you know...just to be sure the Tilt works properly. :p

    AHarper and Chaos home brewing like this.
  17. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    Can anyone tell me if I can use my every day iPhone to connect to the Tilt or does it have to be a designated device? I really don't need minute by minute updates but if I can go stand by the fermenter and connect once a day or every other day or so?

  18. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    It's a hobby for me too not a way to drink beer for cheap. Hobbies cost money. I spend disposable income on the equipment and doo dads. I think messing with all the gadgets and building all the equipment is part of what makes it fun!

  19. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    614
    Likes Received:
    903
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    It does not need to be a dedicated device if you just want to check the temperature and SG. I have a dedicated device (my wife's obsolete iPad), but that's mostly so I can track it and watch the curve. If I can see the curve it gives me a bit better idea of how the fermentation is going and whether it is ready for packaging.

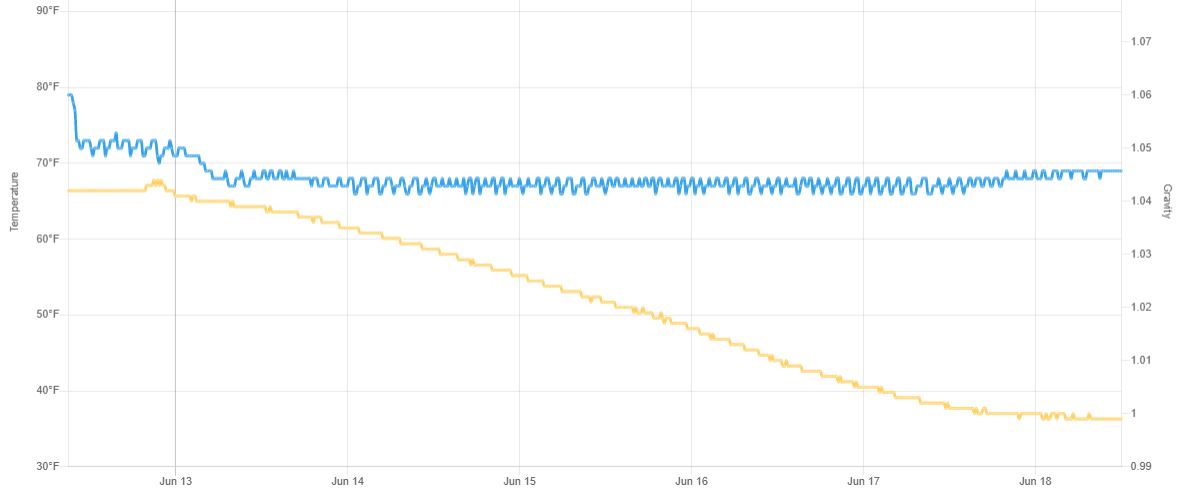

    I have a cider fermenting now. Looking at the graph below, I can see that the SG is starting to flatten out. I'll plan on packaging in the next 3-4 days. Graphing just provides a little better visual.


  20. ^Tony^

    ^Tony^ Active Member

    Joined:
    Jul 25, 2018
    Messages:
    220
    Likes Received:
    206
    Trophy Points:
    43
    Gender:
    Male
    Location:
    Western Canada
    I really like the graph. I especially like being able to see the flattening of the gravity curve.
