Tilt Updates

Discussion in 'Tilt and Other Electronic Hydrometer testing' started by avantassel, Oct 25, 2018.

  1. avantassel

    avantassel Moderator
    Staff Member

    Joined:
    Jan 5, 2018
    Messages:
    148
    Likes Received:
    90
    Trophy Points:
    28
    Gender:
    Male
    Occupation:
    Brewer and Software Engineer
    Location:
    Lafayette, CO
    Home Page:
    #1 avantassel, Oct 25, 2018
    Last edited: Oct 26, 2018
    We now have DIY support for both iSpindel
    and any custom app / device you want to use.
    ispindel-col1-320x.png ispindel-bw1-320x.png

    Integrations
    Cloud URL to copy and supported device info
    https://beta.brewersfriend.com/homebrew/profile/account

    Device Settings
    Active devices and device forward URLs
    https://beta.brewersfriend.com/homebrew/profile/devicesettings

    Screenshot 2018-10-25 13.16.02.png

    Brew Session Fermentation Tab
    For iSpindel and any custom apps you need to post to the cloud URL to see it available in the dropdown.

    iSpindel http://www.ispindel.de/

    Will also report battery %
    Screenshot 2018-10-25 14.51.23.png

    Screenshot 2018-10-25 13.15.05.png

    Custom Stream App
    Screenshot 2018-10-25 13.14.11.png

    For custom stream apps you will post JSON data to the stream cloud URL
    Code:
    {
     "name": "MyBrewApp",
     "temp": "",
     "temp_unit": "C", // C, F or K
     "gravity": "",
     "gravity_unit": "P", // G or P
     "ph": "",
     "comment": "",
     "beer": ""
    }

    We also added paging in edit readings.

    Screenshot 2018-10-25 13.40.57.png

    rolandblais likes this.
  2. KC

    KC Active Member

    Joined:
    Feb 25, 2015
    Messages:
    323
    Likes Received:
    179
    Trophy Points:
    43
    Location:
    NY Capital
    Working so far with the new changes. Only logging issue is on the tiltpi end where I set it to update at 10min but it still sent every 5.

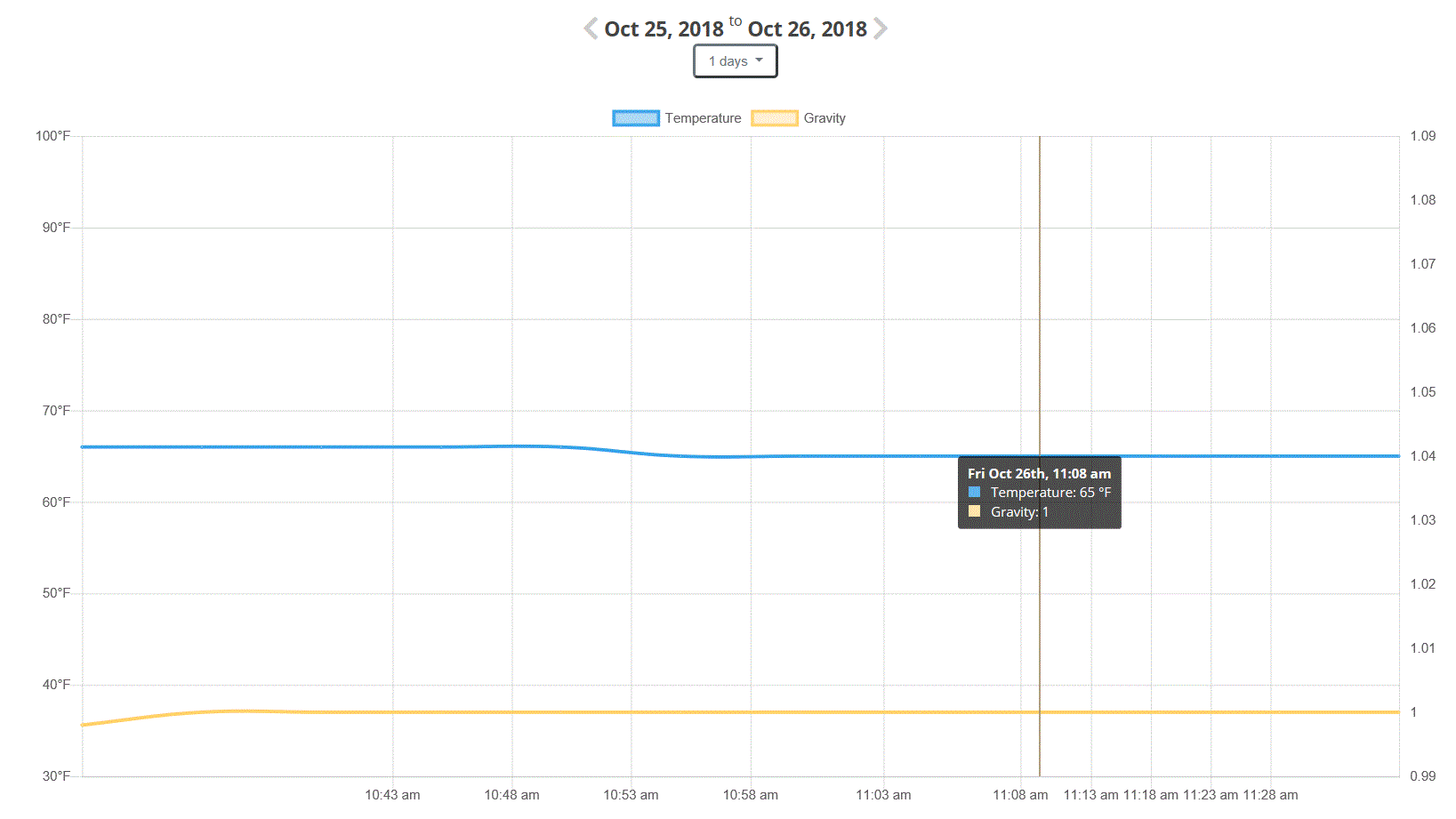

    Graph spacing is off. The X axis isn't linear, and time points on the axis don't line up with the overlay (on the 1 day view at least)


  3. avantassel

    avantassel Moderator
    Staff Member

    Joined:
    Jan 5, 2018
    Messages:
    148
    Likes Received:
    90
    Trophy Points:
    28
    Gender:
    Male
    Occupation:
    Brewer and Software Engineer
    Location:
    Lafayette, CO
    Home Page:
    Hi KC, thanks for testing. I'll look at the chart time. As for the changing the time increment on the TiltPi I found that you can go to the Cloud URL and hit return / enter to save.
