Thermowell adapter for Speidel fermenter

Discussion in 'General Brewing Discussions' started by BOB357, Jan 21, 2020.

  1. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,983
    Likes Received:
    7,291
    Trophy Points:
    113
    Location:
    Fallon, Nevada

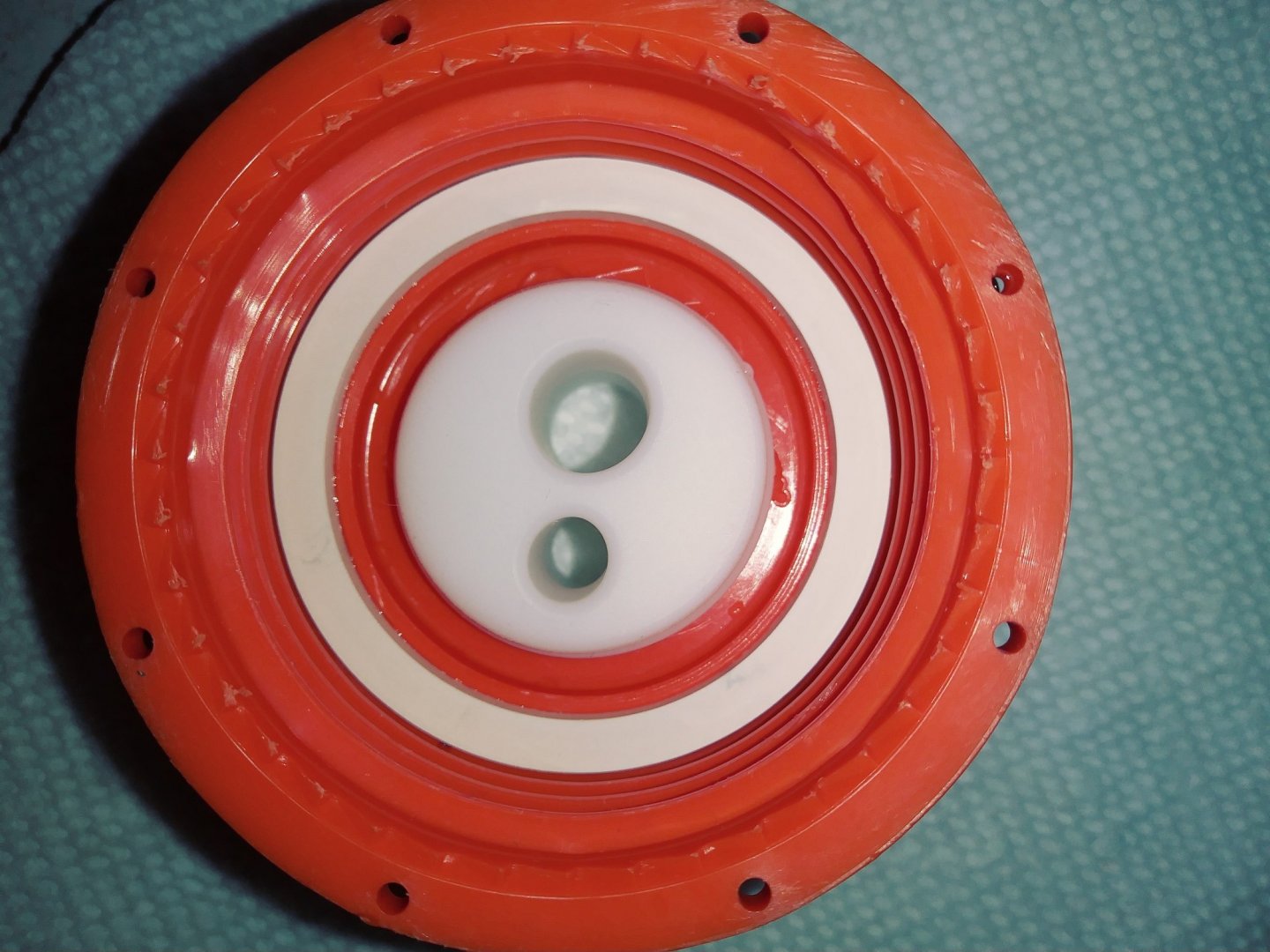

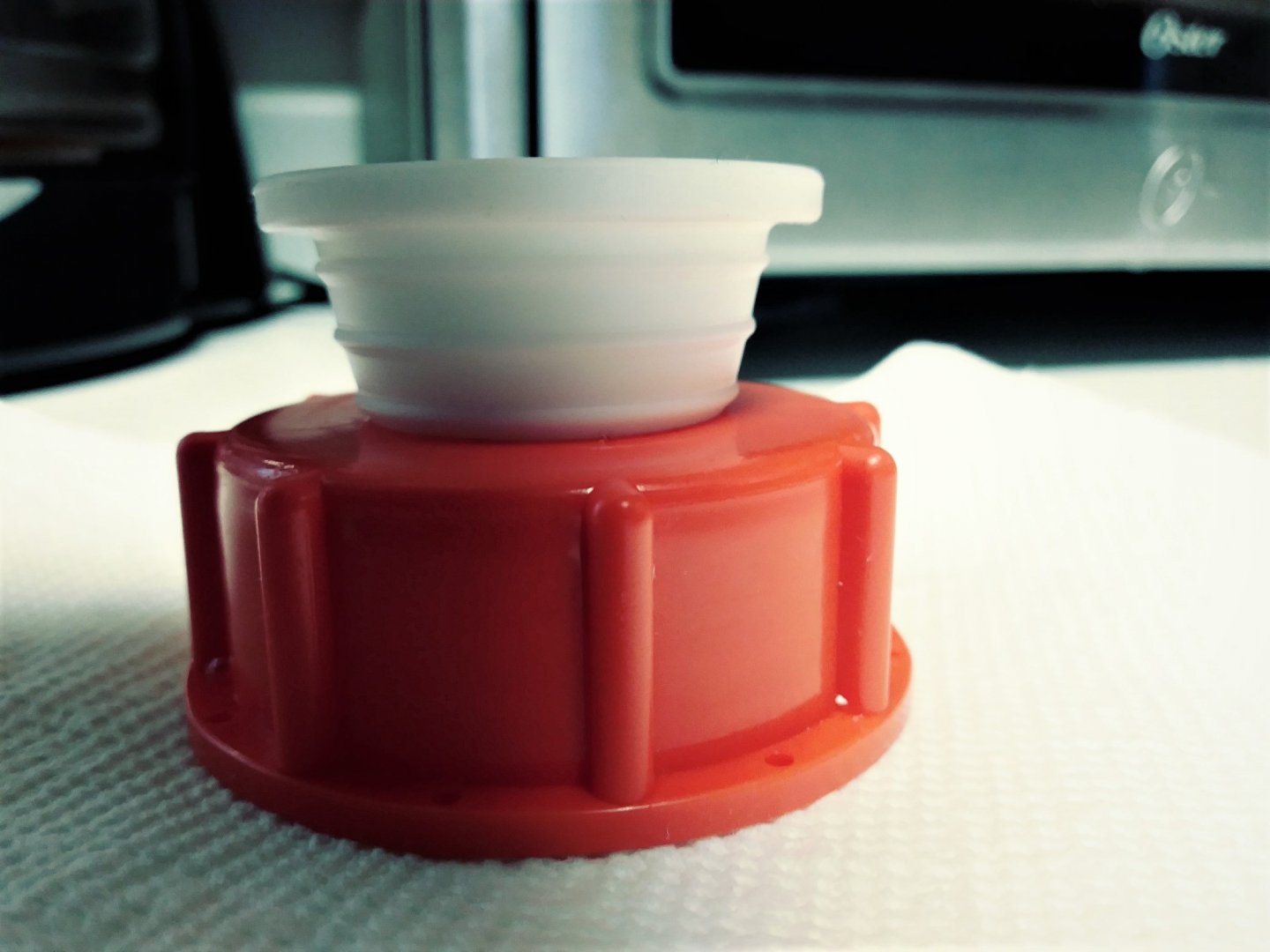

    After looking at the thermowell options for the Speidel 30L fermenter I couldn't see spending $30 to $40 on either of them. Bought a spare cap and a #6.5,two hole ribbed silicone stopper and made one up for $10 and about 15 minutes work. Needed to drill a hole between 1 1/16" and 1 1/4" in the cap. Didn't have a hole saw the right size, so used the 7/8" one that I have and then used a 1/2 round file to enlarge the hole to 1 1/16". Smoothed it out with emery and inserted the stopper. Will use one of the thermowells that I already have Both have #10 stoppers, which weren't a fit for the Speidel. Adapter1.jpg Adapter2.jpg

  2. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    Great work Bob!

    BOB357 likes this.
  3. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,900
    Trophy Points:
    113
    I like it!

    BOB357 likes this.
  4. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,436
    Likes Received:
    9,496
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    You little Beauty!

    BOB357 likes this.
  5. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,983
    Likes Received:
    7,291
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    I haven't applied for a patent yet, so you're welcome to use the design if you want :) The savings on each one will pay for a batch of a nice, hoppy IPA.

    Trialben, Megary and Mase like this.
  6. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,900
    Trophy Points:
    113
    So, do you then use a regular air lock in the second port in that bung?

  7. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,983
    Likes Received:
    7,291
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    Yup. Just a regular S type is my preference.

  8. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,900
    Trophy Points:
    113
    I have two silicone bungs, and two temp probes, and each Speidel came with a cap, so will be doing this mod, thanks Bob.

    BTW, the spigot that goes on the bittom port is reversible, I found when kegging last night that the trub was dangerously close to the spigot port. I flipped them over for the batch that went into them last night. I'm liking the gravity transfer to keg!

    Trialben and BOB357 like this.
  9. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,900
    Trophy Points:
    113
    I like the 3 piece air locks, they will let air in when cold crashing without sucking the sanitizer in. Have not had an oxidization problem for 1.5 years doing that.

    Trialben likes this.
  10. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,983
    Likes Received:
    7,291
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    I got the extra cap because I like being able to seal the fermenter up and shake to aerate, clean and sanitize without making a mess. Of course, with two caps, you can already do that : I watched several videos reviewing the Speidel before ordering it. One showed that you can either re index the spigot or reverse the core if your sediment level was too high. Nice feature.

    Trialben likes this.
  11. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,983
    Likes Received:
    7,291
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    I've actually had a 3 piece seal off while crashing and suck the sides of the Fermonster in. If you only fill either type to the line you won't get any suck back and the S type can't seal. We each use what works for us.

    Craigerrr likes this.
  12. Grey Ghost

    Grey Ghost New Member

    Joined:
    Aug 18, 2012
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    1
    I just use a bung with 2 holes that fits the hole in the lid. save the screw on cap for other uses.

  13. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,983
    Likes Received:
    7,291
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    Couldn't find a 2 hole stopper that was a fit for the Speidel. Everything I found was either a # 6.5-7 or a # 10 Where did you find such an animal?

  14. Grey Ghost

    Grey Ghost New Member

    Joined:
    Aug 18, 2012
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    1
    I don't think the bungs had any wholes in them. A piece of 1/4" SS tubing makes a good drill bit.

  15. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,302
    Likes Received:
    1,423
    Trophy Points:
    113
    Location:
    Melbourne Australia
    BOB357 likes this.
  16. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,900
    Trophy Points:
    113
    Ahhhhhh, great idea! Thanks!
    Might just look at adding a 1/4" hole to the speidel bung for the thermowell.
