Thermostat option?

Discussion in 'General Brewing Discussions' started by Foster82, Feb 7, 2013.

  1. Foster82

    Foster82 New Member

    Joined:
    Jan 12, 2013
    Messages:
    208
    Likes Received:
    1
    Trophy Points:
    0
  2. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,373
    Likes Received:
    6,604
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    You'd have to mount it inside whatever you're using to lower temperature because it doesn't have a probe. That's two holes or two cords running through the door.

  3. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    2,253
    Likes Received:
    2,451
    Trophy Points:
    113
    Location:
    Back in the mountains
    Ya you would have to mount it inside unit. Johnson controllers sold at hb online stores are very acurate and work very well. Yes twice the price but a one time thing. If that was mounted inside a frig would it hold up to humidity?

  4. Scrumpy

    Scrumpy New Member

    Joined:
    Dec 13, 2012
    Messages:
    49
    Likes Received:
    1
    Trophy Points:
    0
    I bought one of these last year to run my greenhouse exhaust fan. Solid product, but I agree with the last posters recommendation for a 'johnson control' box to run a ferm chamber.

  5. Foster82

    Foster82 New Member

    Joined:
    Jan 12, 2013
    Messages:
    208
    Likes Received:
    1
    Trophy Points:
    0
    Now that I think about it more the first one is not ideal. With that I am now looking at this one
    http://www.amazon.com/Control-Produ...ature-Controller/dp/B0057APR3I/ref=pd_cp_hi_0

    I am liking it because you would not have to open it up to switch between cooling and heating modes like the johnson control models. Additionally it would work great for my location in virgina were winter temps have been swinging from 80 to 20 in less than 24hrs. Hook up a heater and the cooling, a little programing and let it do its thing. Yes there is wiring involed but that does not bother me, heck I have everything here at the house already needed to wire it.

    Anyone using this model?

  6. LarryBrewer

    LarryBrewer Active Member

    Joined:
    Jun 27, 2012
    Messages:
    1,728
    Likes Received:
    9
    Trophy Points:
    38
    Location:
    Portland, Oregon
    I just bought and installed that model for my fermentation chamber. I use a light bulb inside a paint can as the heat source. It works awesome so far, we have a blog post planned for that.

    Wow, and it is on sale. I paid $59 for mine... go for it!

  7. chessking

    chessking New Member

    Joined:
    Jul 8, 2012
    Messages:
    255
    Likes Received:
    2
    Trophy Points:
    0
    Location:
    Aurora, Colorado
    If you don't mind some wiring, than this,

    http://www.ebay.com/itm/30-Off-110V...963?pt=LH_DefaultDomain_0&hash=item3cc6101acb

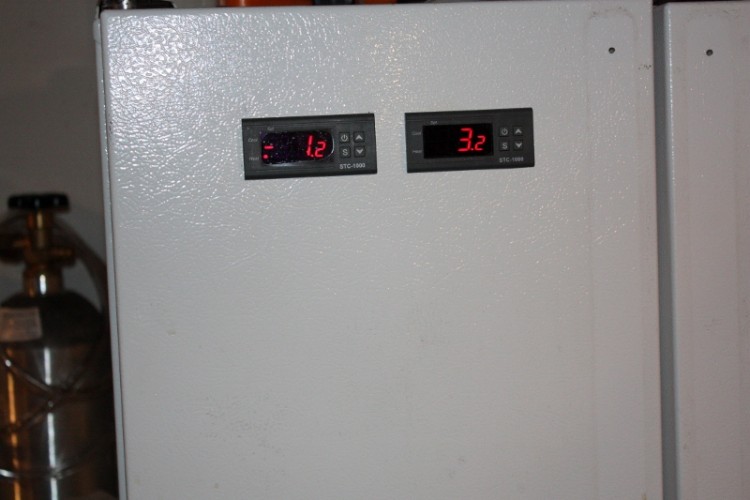

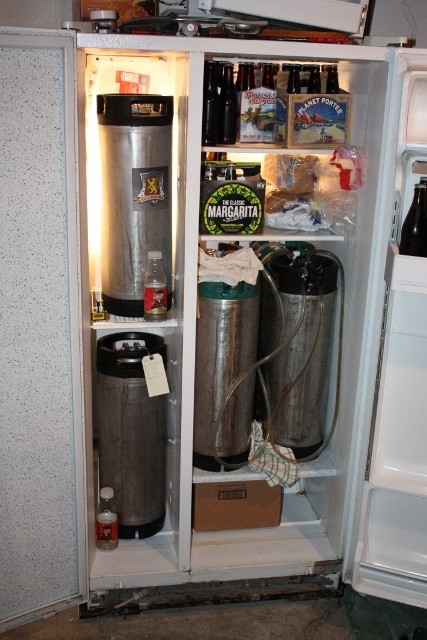

    is a great dual stage controller that can be surface mounted in a fridge, or whatever you choose to ferment in. I have one running my ferment chamber, and two more working the two sides of my kegerator.

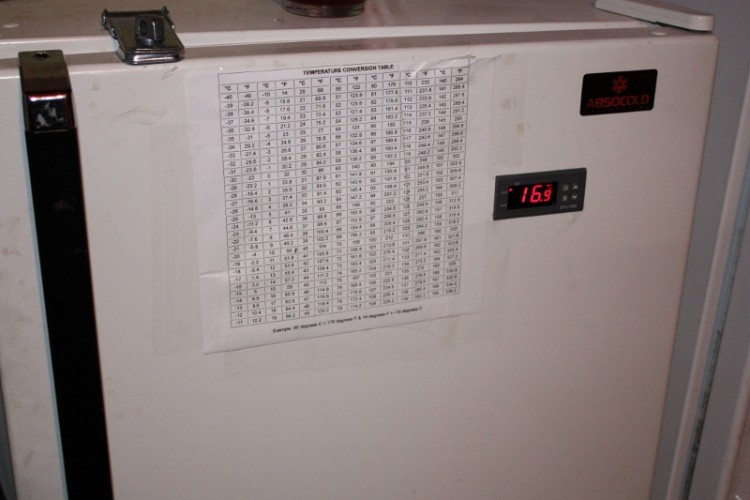

    Its designed for an aquarium, but works great with a cooling system. The temp reading is in centigrade only, but just get a chart and tape it to your chamber.



    You can set both cooling and heating temps, as well as a delay to prevent over working your compressor. you can also set a range that the temp should be within (for example .5 degrees either side of the target temp). It has a temp probe that can be taped to the side of a fermenter.

    If you buy it from ebay it will take about two weeks to ship from china.


    Attached Files:

  8. Foster82

    Foster82 New Member

    Joined:
    Jan 12, 2013
    Messages:
    208
    Likes Received:
    1
    Trophy Points:
    0
    First: Chessking, impressive setup!

    However I did opt to go with the Control Products model as it has a 30 amp rating, vs the STC-1000 which appears to only have a 10 amp rating. It has also been my experience that electronics made in china (at least those not made for large corporations), can be had for dirt cheap, but the quality control is severely lacking. I would not have peace of mind with the STC-1000 that it would not fail at much lower amps than it is rated for.
    Yes a small freeze normally pulls less than 2 amps, however let’s say the stars align, the compressor fails to start (made be cycled to quickly), then the overload protection fails to break the circuit, and suddenly the amps are rising as the compressor continues to try and start, and the thermostat is left there to handle load.

    Could it happen? Yes. Will it happen? Most likely not. I am sure that 99% of the STC-1000s will perform to standard, but it’s that 1% that I worry about.

    Also most homes have 15 amp breakers, which means the thermostat is the weak link and could fail before a breaker trips.

    Longer story short, the STC-1000 is a great find, but for peace of mind I opted for the Control Products model.
