Keggle Fermenter?

Discussion in 'General Brewing Discussions' started by Craigerrr, Jul 30, 2019.

  1. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,700
    Likes Received:
    6,899
    Trophy Points:
    113

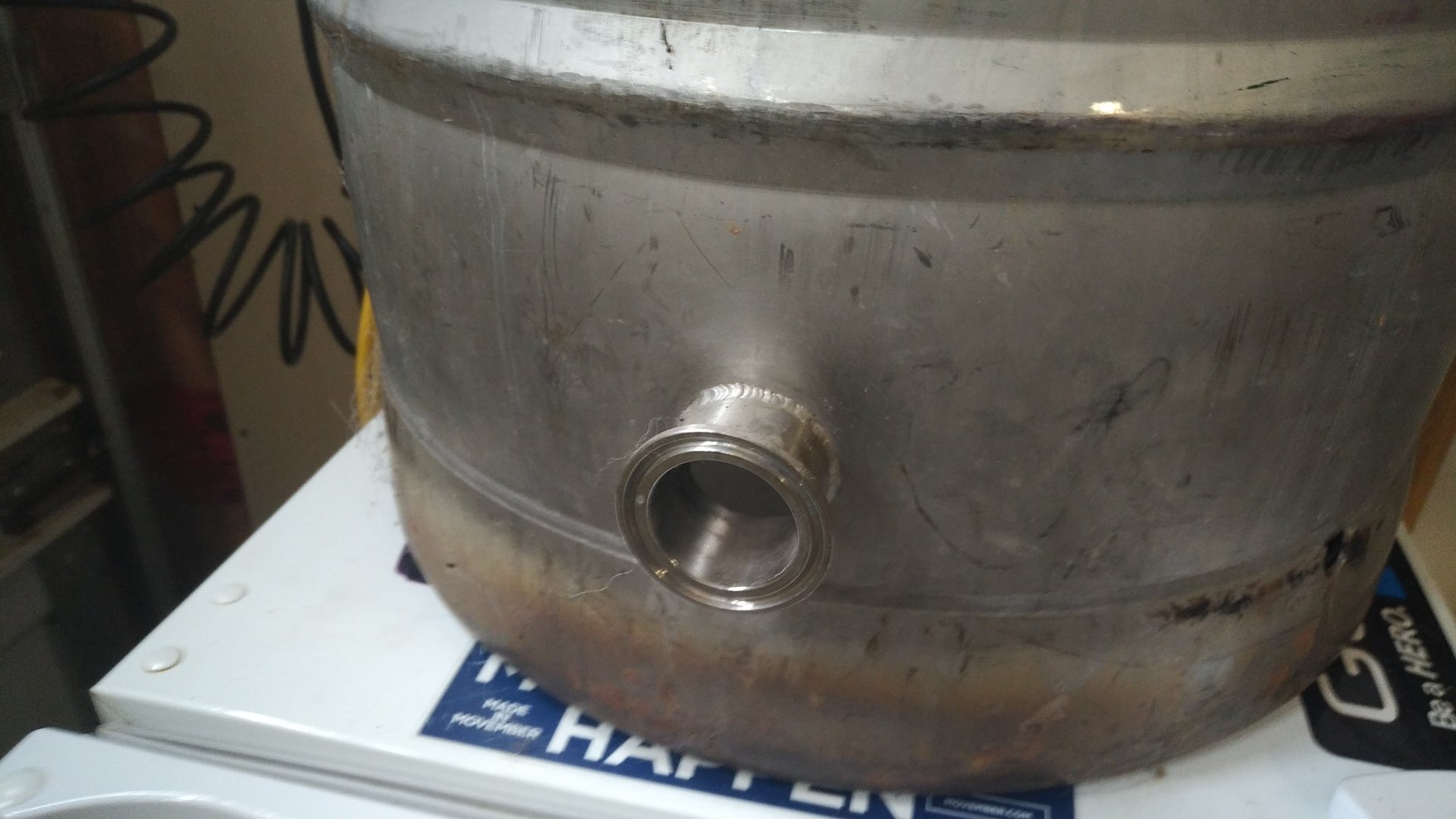

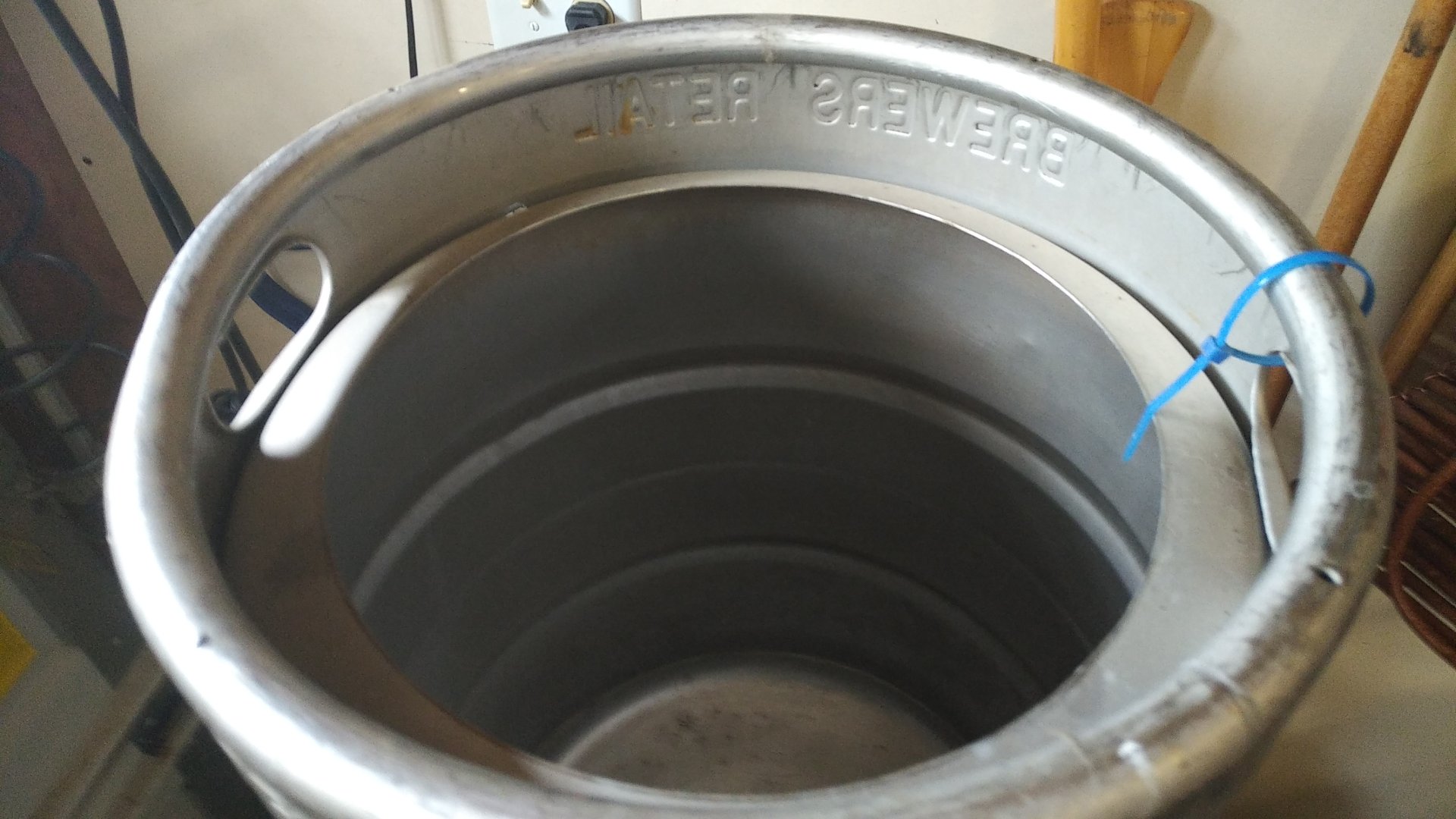

    Has anyone ever used, or seen a Keggle converted to use as a fermenter? The used 3V system I bought came with an extra Keggle. As I am brewing 10g batches, it would be nice to ferment it all together instead of in separate carboys... The top is cut out of it to 11-5/8" diameter, and it has one sanitary port towards the bottom. I could probably figure out some kind of lid that I could get to seal up fairly decently. Not sure if that port will be at a good height for racking or not. I could just put a plug on that port and make a new hole for one of those ports with the tube that you can turn as the level drops...

    BOB357 likes this.
  2. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,700
    Likes Received:
    6,899
    Trophy Points:
    113
  3. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,425
    Likes Received:
    9,482
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD

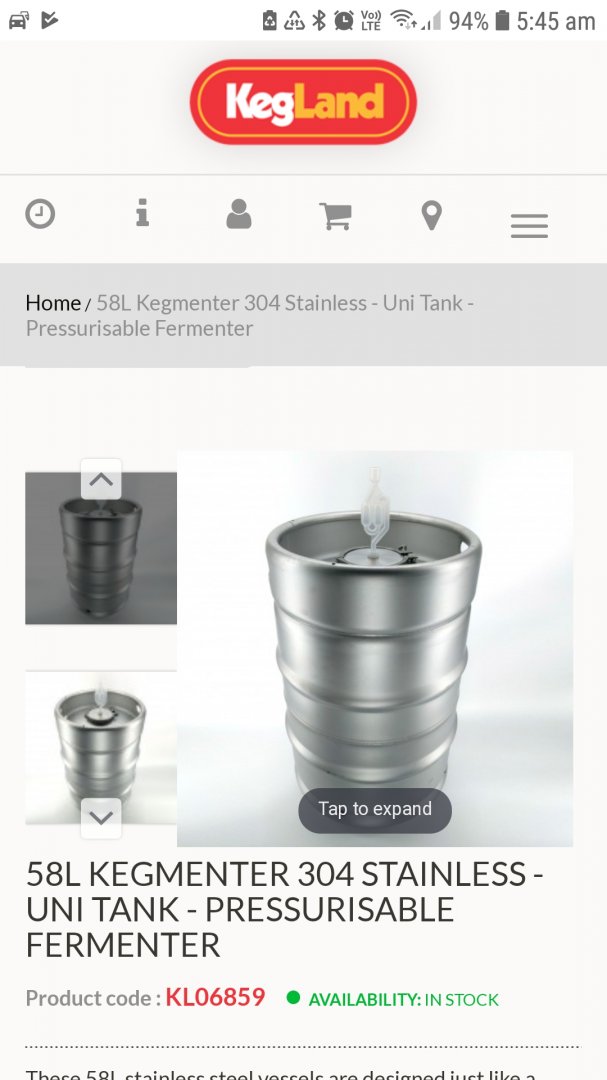

    Yep I've seen a hombrew use one without the top cut out he just put a large rubber bung in the 2 inch hole at top with airlock. Rack with cane once fermented. In Aus keg land do a kegmentor half size and full 50lt size they have 4 inch tri clover fittings at top so you can get your arm in to clean the keg.
    Screenshot_20190731-054544_Samsung Internet.jpg
    I know they do a preassure transfer lid attachment for them so you can ferment and transfer under preassure.
    I've looked into them but a tad out of my price range.

    Craigerrr likes this.
  4. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,728
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    No but I don't see any reason you couldn't. It's just a big brew bucket really.

    Craigerrr likes this.
  5. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,700
    Likes Received:
    6,899
    Trophy Points:
    113
    Just going to have to figure out some type of closure, cover for the top.

  6. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    2,253
    Likes Received:
    2,451
    Trophy Points:
    113
    Location:
    Back in the mountains
    I know you have a nice big boil kettle. Would it be easier to find a lid to seal it and use the keggle for boil kettle?

    Craigerrr likes this.
  7. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,700
    Likes Received:
    6,899
    Trophy Points:
    113
    Thanks for posting. The system I recently purchased came with 3 keggles like the one pictured above, and a fourth, more barrel shaped Keggle. I already had a 15g boil kettle which. I plan to use 2 of the keggles and my BK for the system, this is an extra Keggle.

  8. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    3,976
    Likes Received:
    7,270
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    The height of the port shouldn't be a problem. A dip tube would get you where you want to draw from. The top would be my concern. Might take some ingenuity. ,

    Head First likes this.
  9. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    830
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
    #9 HighVoltageMan!, Aug 2, 2019
    Last edited: Aug 2, 2019

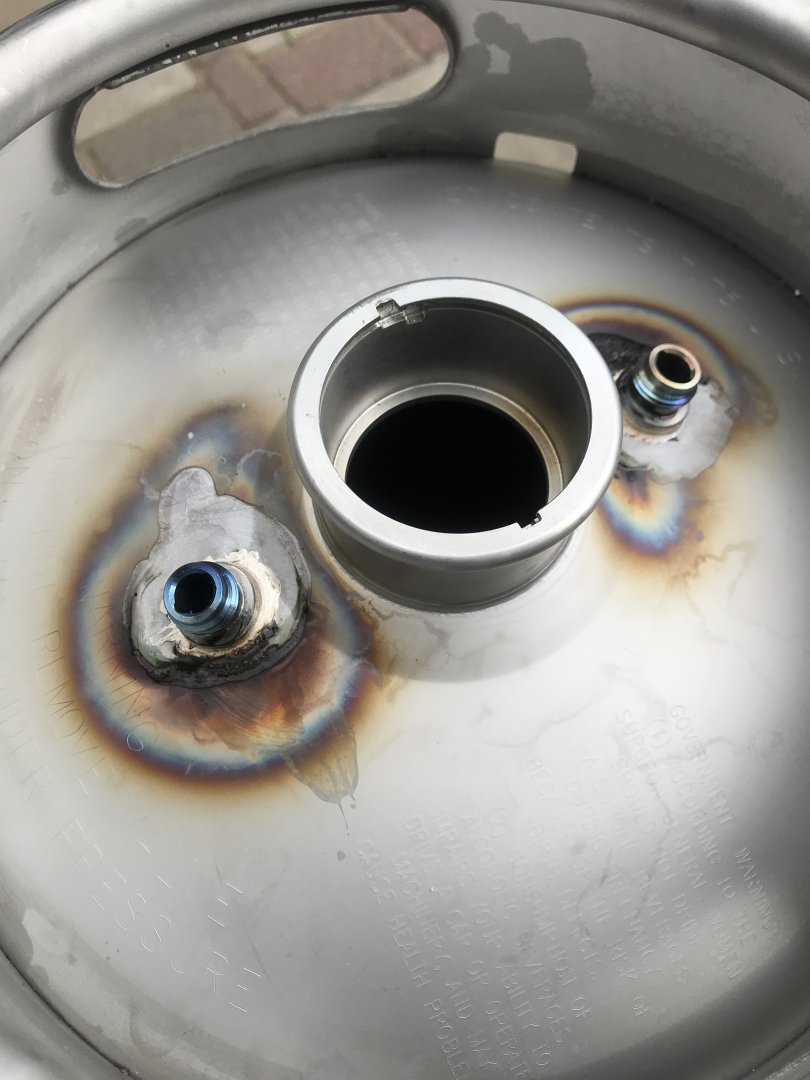

    I took a 7.75 gallon keg and modified it. It's a combo Corny/Sanke keg. I brazed the Corny post adapters on with Muggy Weld silver brazing rod. The spear was pull out and a 2" tri-clover cover was used to cover the top of the spear opening. I added a corny post adapter to the blank plug, it has a liqiud post and I used a "Top Draw" floating draw tube on the output. I ferment and condition in the same vessel.

    I used one port for liquid using the "Top Draw", one for off gassing co2 (through a corny connector) and one has a shortened liquid dip tube, I use that port to inject co2 into the lower half of the fermenter. It allows me to mix or scrub sulfur from the beer.

    The ball from the "Top Draw" fits into the spear opening and a standard 2" tri-clamp fits the opening. I don't use a standard tri-clamp seal because they are too thick, I use a silicon o-ring instead. The tri-clamp fits better with the o-ring.

    I have attached some photos. The floating pick up is here: https://www.williamsbrewing.com/Top-Draw-Beer-Pick-Up-Tube-P4643.aspx Post adapters are here: https://www.brewhardware.com/product_p/kegpostweld.htm Muggy Weld is here:https://www.muggyweld.com/product/ssf-6-silver-solder/

    There are so many advantages to using Sanke kegs, headspace, tall and skinny, closed transfers, it can be pressurized during cold crashing to prevent oxygen ingress, etc...


    Attached Files:

    thunderwagn, Trialben and Hawkbox like this.
  10. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,425
    Likes Received:
    9,482
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Very nice.
    I see Craig's opening is like 20cm across. Might be easier to just buy another 50lt keg and begin operation as above on it Craig. I'm spotting heaps of used 50lt kegs in Aus for 50$ if I had a welder I'd have a crack at something like this but would buy a 4inch tri clover for easier cleaning but then preassure rating would drop because of larger tri clover opening.
    Oh and there is clad wrap or as you guys call it cling wrap:rolleyes:.

  11. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,728
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Neat I should do that with the sanke I have sitting in the garage.

    HighVoltageMan! and Craigerrr like this.
  12. thunderwagn

    thunderwagn Well-Known Member

    Joined:
    Sep 5, 2015
    Messages:
    3,728
    Likes Received:
    7,243
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Loveland, CO
    HighVoltageMan! and Craigerrr like this.
  13. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,700
    Likes Received:
    6,899
    Trophy Points:
    113
    I have so much else to figure out, I think I will set this Keggle to the side and tackle it later.

    Trialben, thunderwagn and Head First like this.
  14. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    830
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
    Thanks! That Muggy Weld makes it easy.

    Trialben likes this.
  15. DanC

    DanC Active Member

    Joined:
    Feb 12, 2013
    Messages:
    146
    Likes Received:
    61
    Trophy Points:
    28
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Hemlock, Michigan

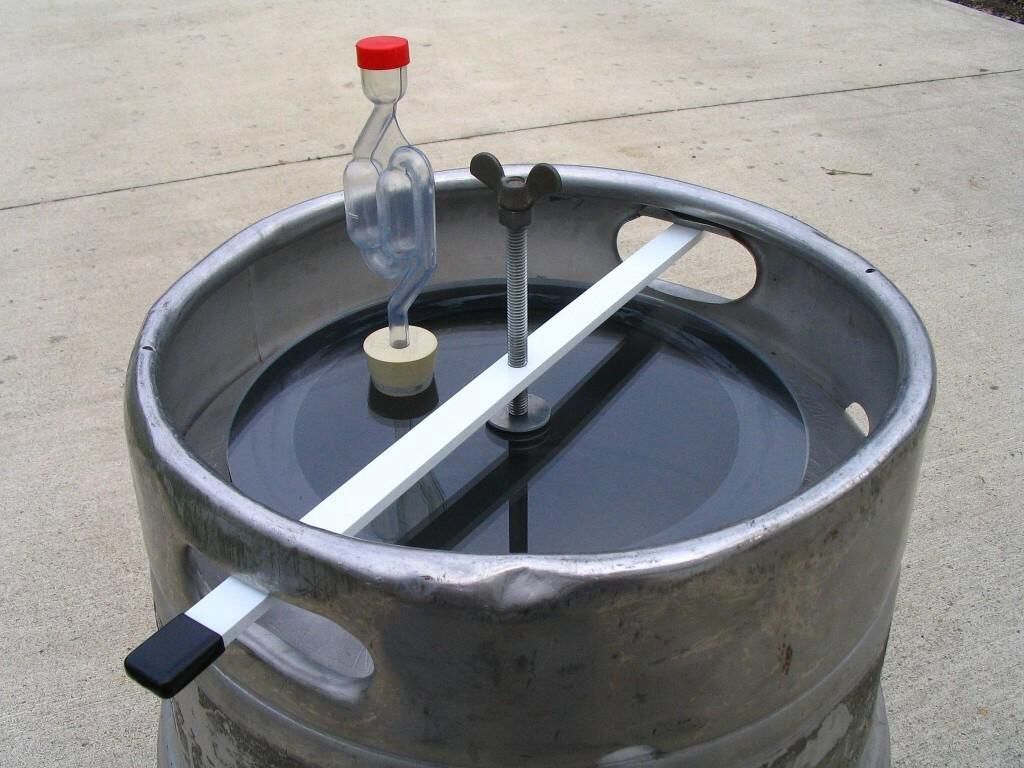

    I found this picture on Pinterest.
    Keggle Fermenter.jpg
