iSpindel Not Showing Correct Gravity

Discussion in 'Brew Sessions' started by danstill97, May 1, 2021.

  1. danstill97

    danstill97 New Member

    Joined:
    Jun 11, 2020
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Braintree, Essex
    Hi all, I've set up my iSpindel and linked to Brewer's Friend as per the documentation for the latest firmware.

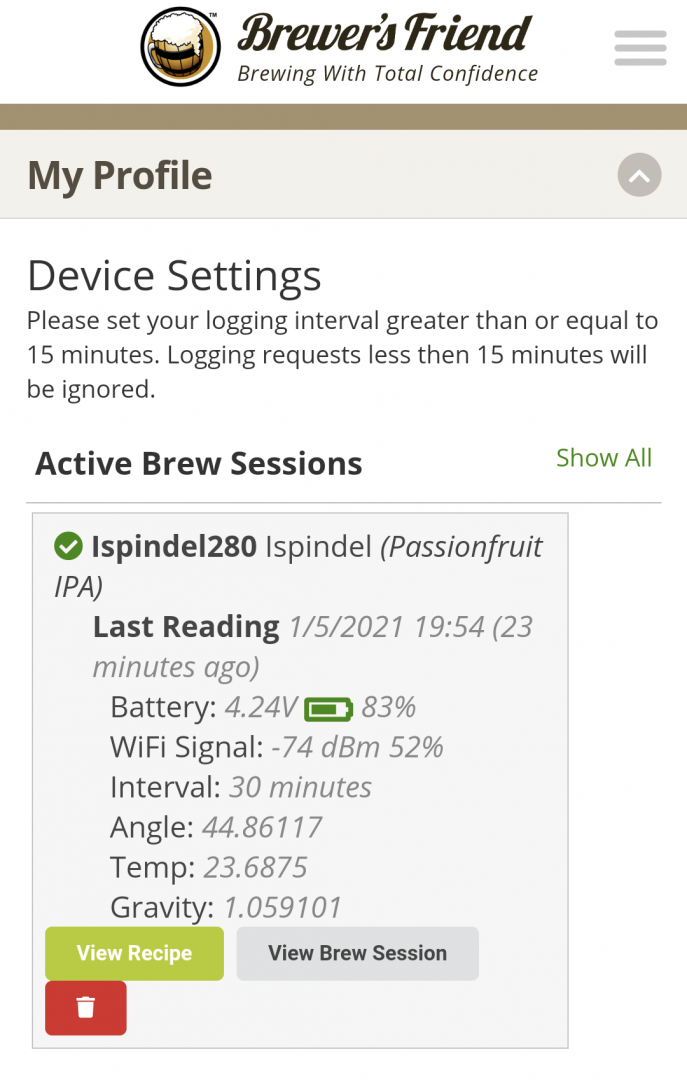

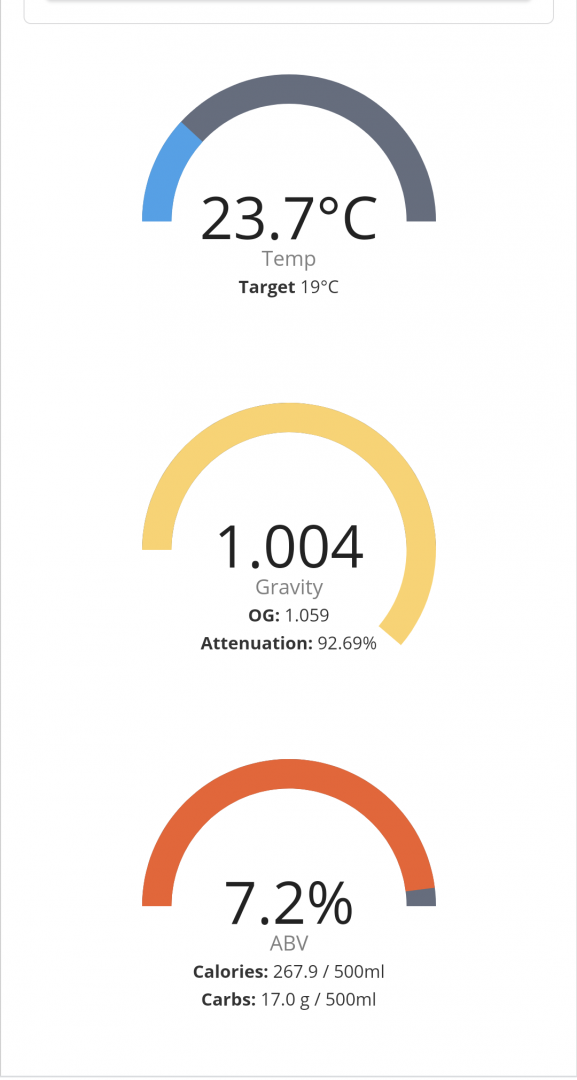

    Under the fermentation tab the gravity is (incorrectly) showing as 1.004, however I know the iSpindel is measuring the correct gravity as under the device settings it is showing 1.059. Can anyone assist so I can get the correct measurement to show on the fermentation graph.


    Attached Files:

  2. Pricelessbrewing

    Pricelessbrewing BF Software Manager
    Staff Member

    Joined:
    Jun 8, 2016
    Messages:
    1,408
    Likes Received:
    1,214
    Trophy Points:
    113
    Gender:
    Male
    iSpindel defaults to plato, so you should just need to update your iSpindel to use the SG cloud url.


  3. danstill97

    danstill97 New Member

    Joined:
    Jun 11, 2020
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Braintree, Essex

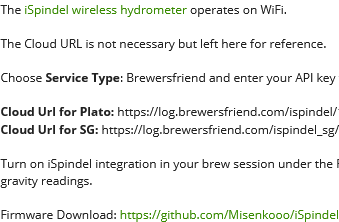

    Thanks for the reply! The new iSpindel firmware doesn't use the cloud URL anymore, so as far as I'm aware there's no way of changing to the SG format. It appears it's a problem at the fermentation graph side of things as the correct gravity is displayed under device settings


    Attached Files:

    Pricelessbrewing likes this.
  4. Pricelessbrewing

    Pricelessbrewing BF Software Manager
    Staff Member

    Joined:
    Jun 8, 2016
    Messages:
    1,408
    Likes Received:
    1,214
    Trophy Points:
    113
    Gender:
    Male
    Wow thanks, didn't realize that. I have the pcb and some of the parts for one, but haven't gotten around to building one to play with yet...

    I'm going to pass this along to the developer that's more familiar with the devices and integrations, hopefully we can make a quick sanity check on values to convert, or if it's always plato now then receive the value and convert to match the brew sessions gravity unit.

  5. danstill97

    danstill97 New Member

    Joined:
    Jun 11, 2020
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    3
    Location:
    Braintree, Essex
    Brilliant thank you very much! Hopefully it's a quick fix

  6. avantassel

    avantassel Active Member

    Joined:
    Jan 5, 2018
    Messages:
    159
    Likes Received:
    91
    Trophy Points:
    43
    Gender:
    Male
    Occupation:
    Brewer and Software Engineer
    Location:
    Lafayette, CO
    Home Page:

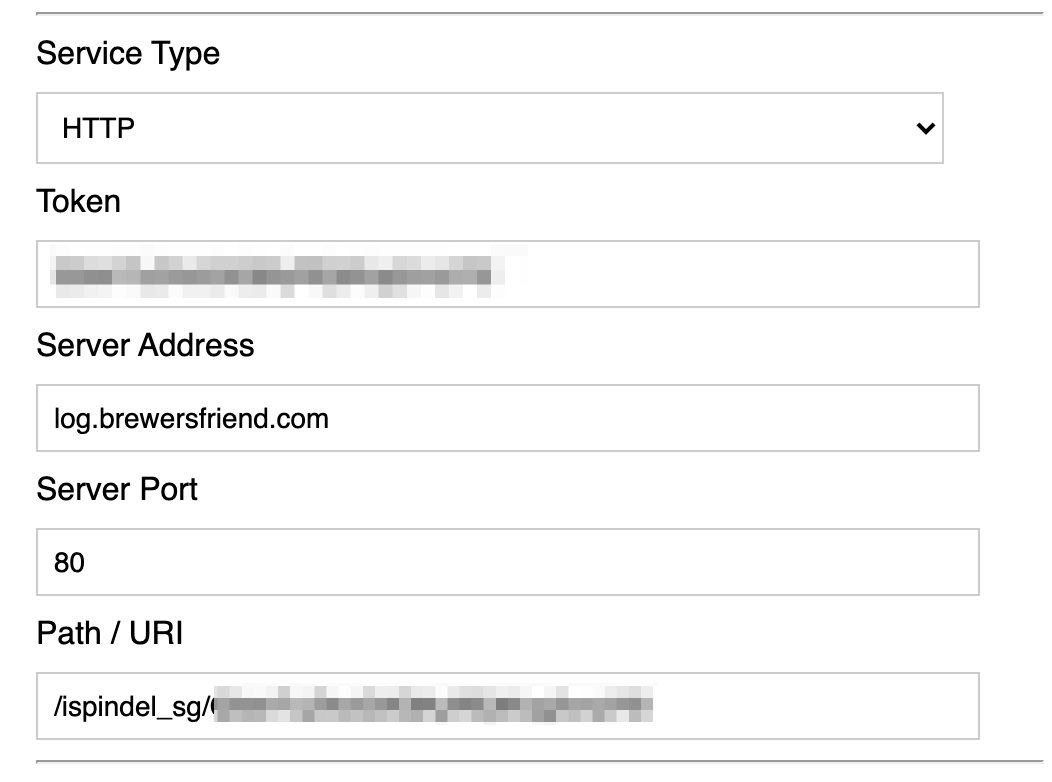

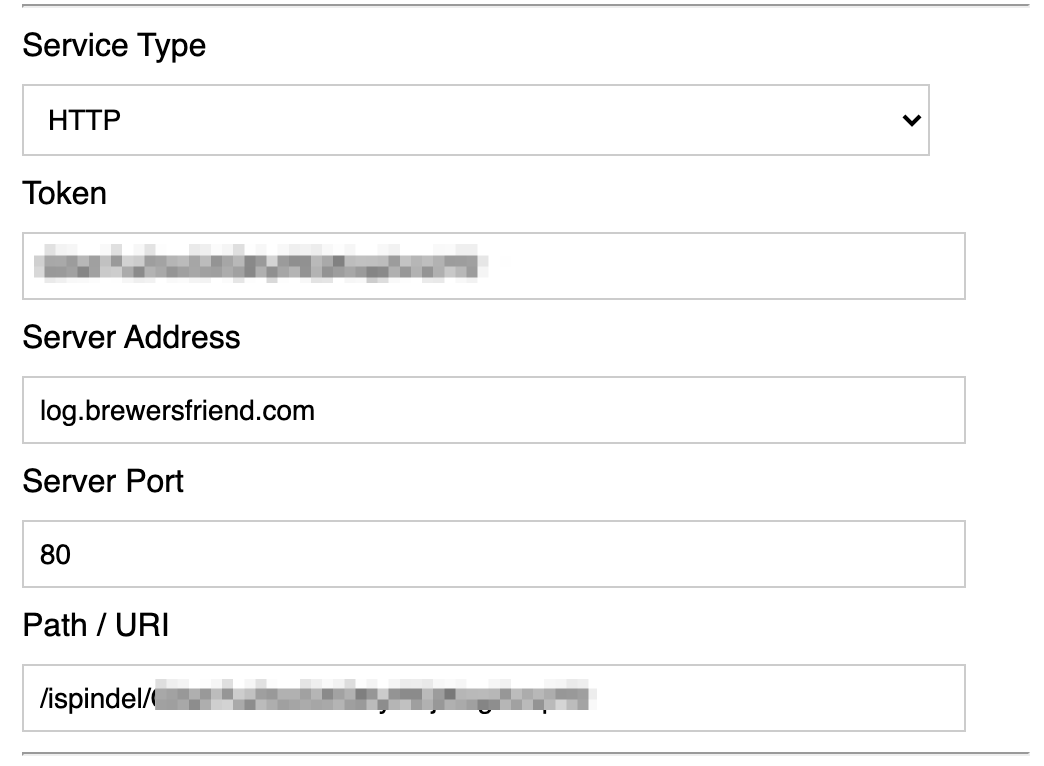

    Not sure what you mean by doesn't use cloud URL anymore, it's just split up into multiple fields, I would recommend just using the /ispindel/ plato endpoint and let the conversion to specific gravity happen in Brewer's Friend.
