Homemade Sparging Arm

Discussion in 'Brewing Photos & Videos' started by AHarper, Aug 19, 2018.

  1. AHarper

    AHarper Well-Known Member

    Joined:
    Mar 23, 2018
    Messages:
    400
    Likes Received:
    357
    Trophy Points:
    63
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sussex, UK
    #1 AHarper, Aug 19, 2018
    Last edited: Aug 19, 2018
    I had difficulty in sparging my first couple of brews using the "jug-at-a-time" method as it seemed to disturb the grain bed too much and, as a result, it was taking a long time for the wort to run clear. I had seen other brewers Youtube methods using copper or plastic plumbing pipework suitably drilled to produce a more even spread of sparge so I decided to have a go and make my own.

    Being on a budget I had also "manufactured" my own Mash tun using a 35lt Fermentation bucket so my sparge arm had to be capable of fitting the mash tun therefore was to be circular.

    The big problem is that copper pipe is hard enough to bend at t he best of times so there had to be a better way.
    A trip to the local B&Q store gave me the idea of using the "bendable" copper pipes that are used to connect to sing taps so I came up with the following design.

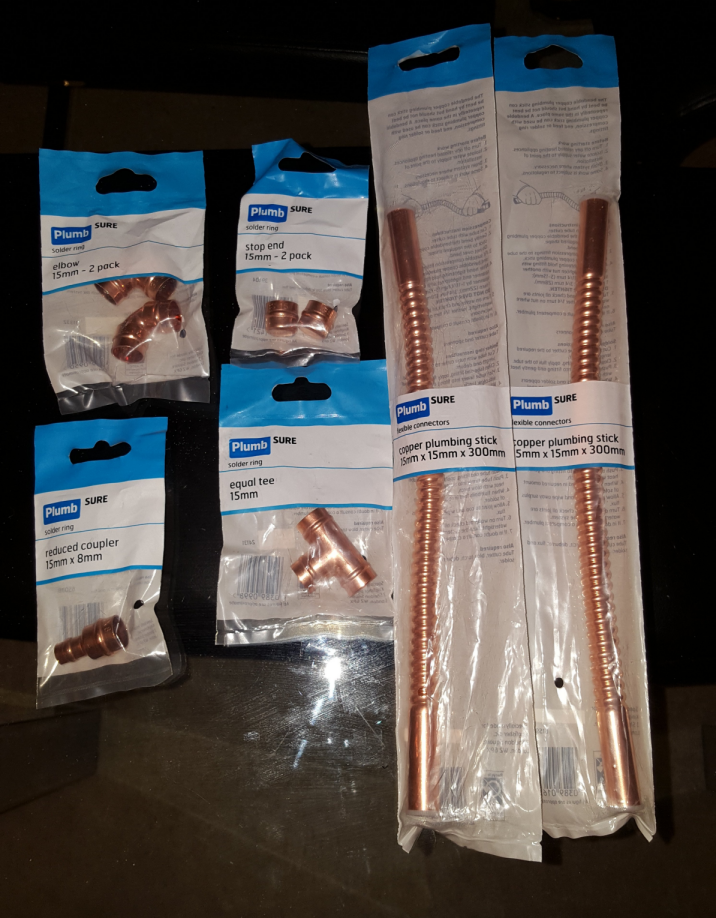

    Components:

    All the bits above and some 15mm pipe were fashioned into a T shape as the basic frame with the "bendable" sticks set at opposing 90 degree angles and then bent to fit the lowest diameter of the Mashtun bin.

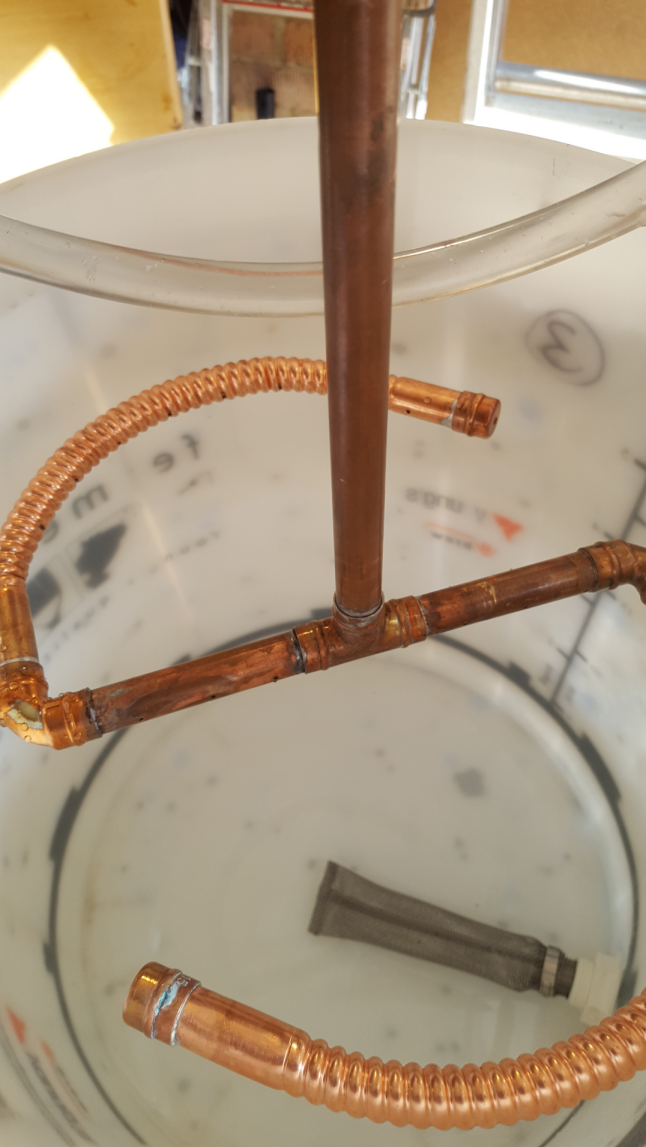

    The parts detailed in figure 1 were soldered together and manipulated to end up like this:

    All the lower arms, including the base of the T shape were drilled at 20mm intervals on the lower working side to produce a spread of spray across the grain bed over which the arm is suspended. I use a bespoke movable brewing frame that has 3 levels so I can gravity feed the wort and hot water at the different stages of mashing, boiling and draining into the FV after cooling the wort so I have drilled holes in the frame to hold another 25mm pipe with a T-End that supports the sparge arm in operation. The following videos show the arm in use in an early test. The hot water for the sparge is transferred into a PB that I use as the sparging source. The tap on the PB regulates the flow of water through the sparge arm. The whole unit is covered in a polystyrene shield to keep the heat in during use.

    I hope this will be of some help if you are thinking of constructing a similar rig for your own brewhouse.

    The Sparge arm in use: ,

    Mase, Trialben and Texas Ale Works like this.
  2. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,730
    Likes Received:
    2,967
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Cool. Nice work.

  3. Vallka

    Vallka Well-Known Member

    Joined:
    Jun 13, 2017
    Messages:
    662
    Likes Received:
    864
    Trophy Points:
    93
    Gender:
    Male
    Location:
    Squamish Canada
    That looks great

  4. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113
    Found this thread when doing a google seach for DIY spatge arm, giving it a bump so I can find it tomorrow. Going to use this for inspiration!

  5. SkaldBrewer

    SkaldBrewer New Member

    Joined:
    Oct 17, 2018
    Messages:
    11
    Likes Received:
    8
    Trophy Points:
    3
    Gender:
    Male
    Occupation:
    Fiber/Coax Lineman
    Location:
    Norwood, PA
    I love it dude! By chance are you good if I take this whole idea and make one for myself using your specs.

  6. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113
    Can't speak for AHarper, but I can't imagine he would mind a bit if you copied his setup, that is why we post our DIY's!

  7. FrostyBeach

    FrostyBeach Well-Known Member

    Joined:
    Nov 23, 2013
    Messages:
    159
    Likes Received:
    294
    Trophy Points:
    63
    Location:
    Duluth, MN
    I would like to understand why you need this?
    I fly sparge and just keep 2 to 3 cm of water on top of the grain.

  8. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113
    This is for fly sparging, and recirculating the mash.

  9. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113

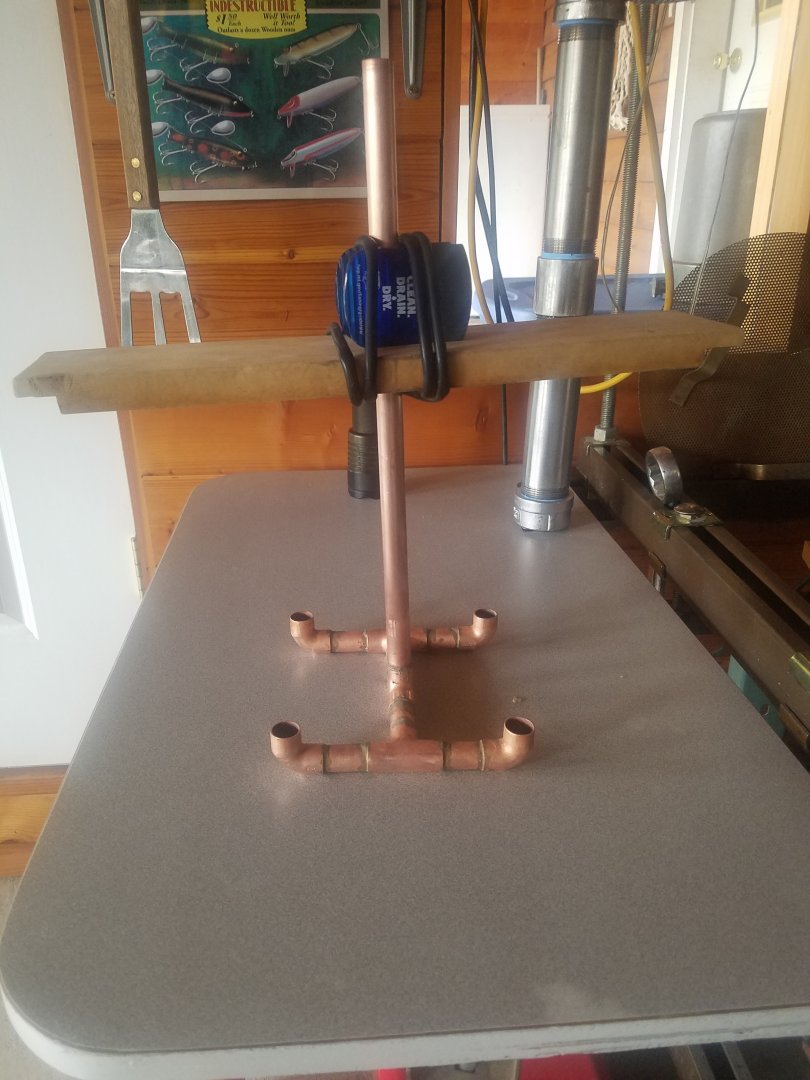

    Have mine mostly mocked up, ordered a few more parts from home depot

    Trialben likes this.
  10. FrostyBeach

    FrostyBeach Well-Known Member

    Joined:
    Nov 23, 2013
    Messages:
    159
    Likes Received:
    294
    Trophy Points:
    63
    Location:
    Duluth, MN
    I understand that Craigerrr. I recirculate mash and fly sparge by placing a 1/2" ID silicone hose on the MLT inlet and keep a constant 2 to 3 cm of sparge water on top of the mash while sparging (until the end when I'm out of sparge water). I'm interested to know why you need a way to distribute the water over the grain bed?

  11. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113
    If you don't diffuse the flow you could create a pathway through the grain bed. I have been running the wort/sparge water over the back of a spoon, but it is a pain in the hind quarters to get it set up, and to manage it.

  12. FrostyBeach

    FrostyBeach Well-Known Member

    Joined:
    Nov 23, 2013
    Messages:
    159
    Likes Received:
    294
    Trophy Points:
    63
    Location:
    Duluth, MN
    I don't do that an have over 95% mash efficiency. Maybe you have some other problem?

  13. FrostyBeach

    FrostyBeach Well-Known Member

    Joined:
    Nov 23, 2013
    Messages:
    159
    Likes Received:
    294
    Trophy Points:
    63
    Location:
    Duluth, MN
    perhaps a bad false bottom that causes channeling?

  14. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113
    I actually don't have any channeling issues, but my current set up sucks...
    Going to set up that contraption so it will hang just inside the TUN, and make it easy to connect the hose to.

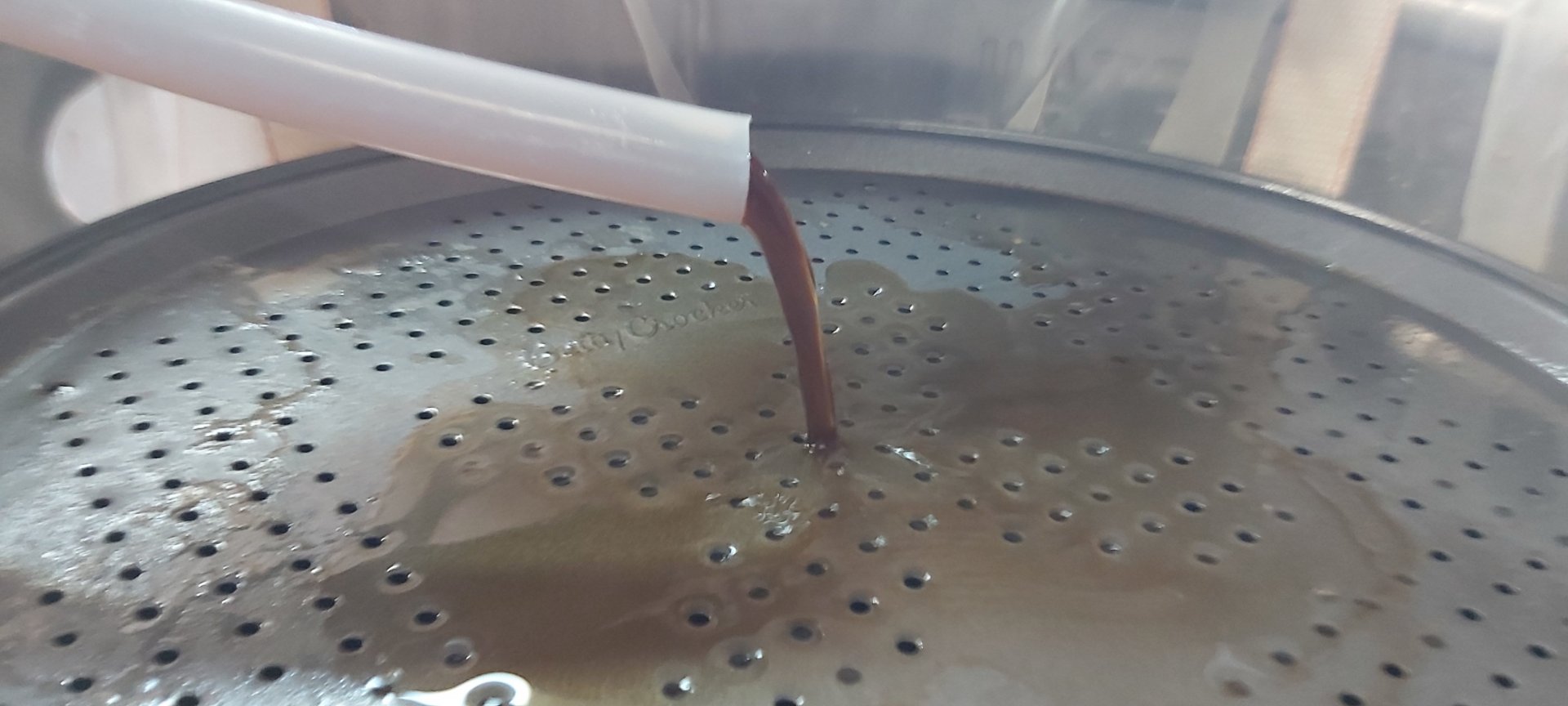

    I use to do the following with a betty crocker pizza pan, but I could not see the level of wort over the grain bed.

  15. Head First

    Head First Well-Known Member

    Joined:
    Dec 22, 2012
    Messages:
    2,253
    Likes Received:
    2,451
    Trophy Points:
    113
    Location:
    Back in the mountains

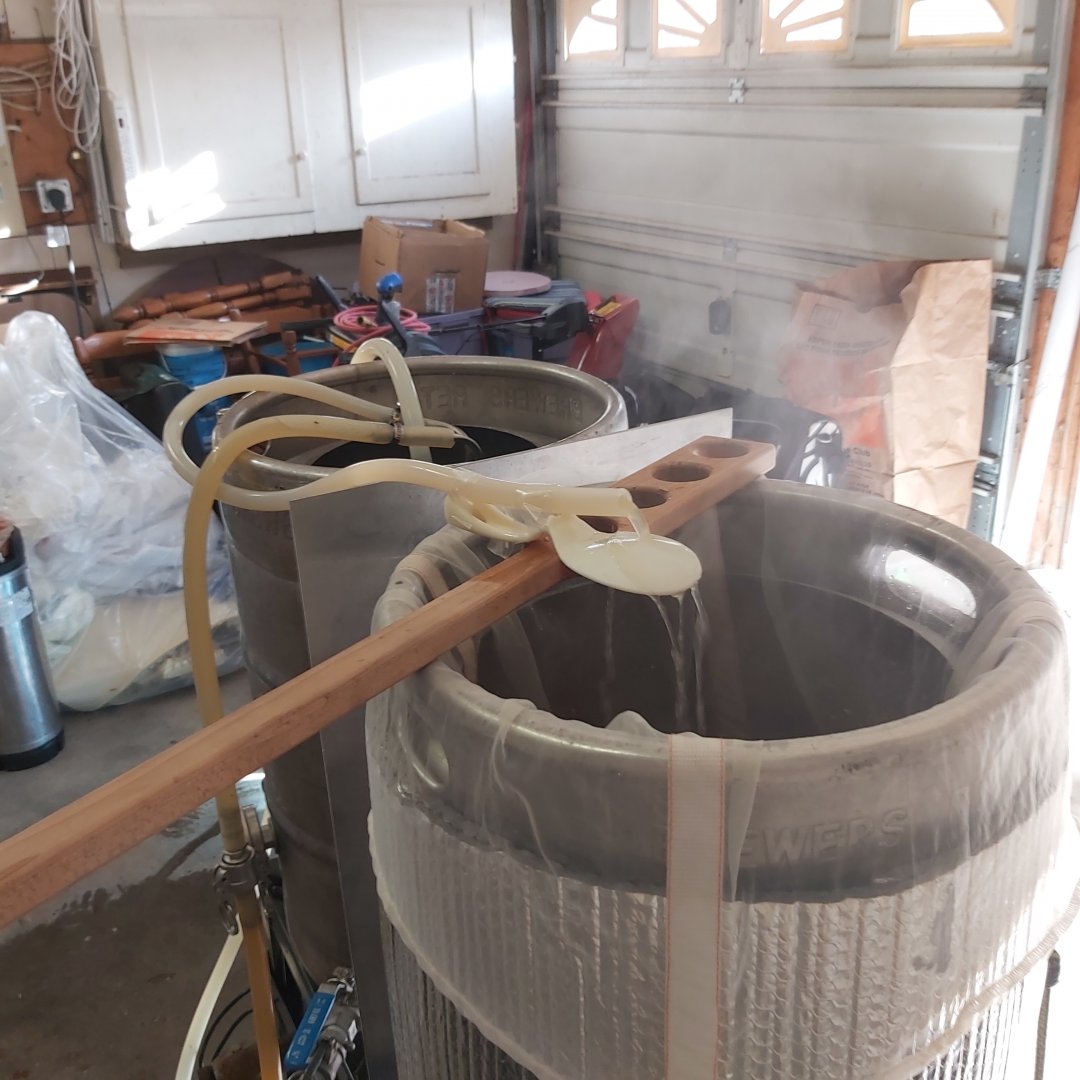

    This one is pretty simple. Just used a board and a clamp for hight adjustment till i tried it a few times. That was about 100 batches ago. Guess it works ok!

    Craigerrr and Trialben like this.
  16. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

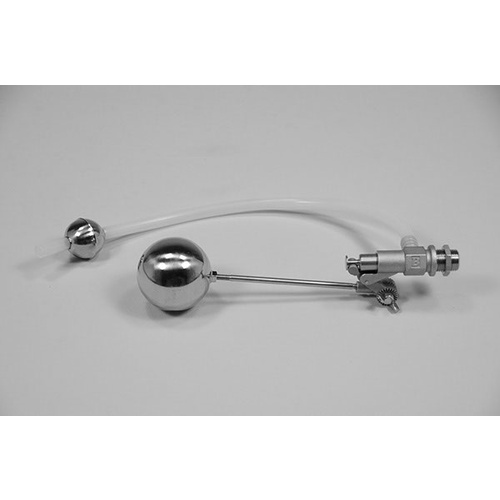

    I use the auto sparge , I have a quick connect set up at the top of my mash tun, it creates a whirlpool 11259.jpg

    Head First and Craigerrr like this.
  17. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113
    Oh. I like that too, no drilling...

  18. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    4,701
    Likes Received:
    6,899
    Trophy Points:
    113

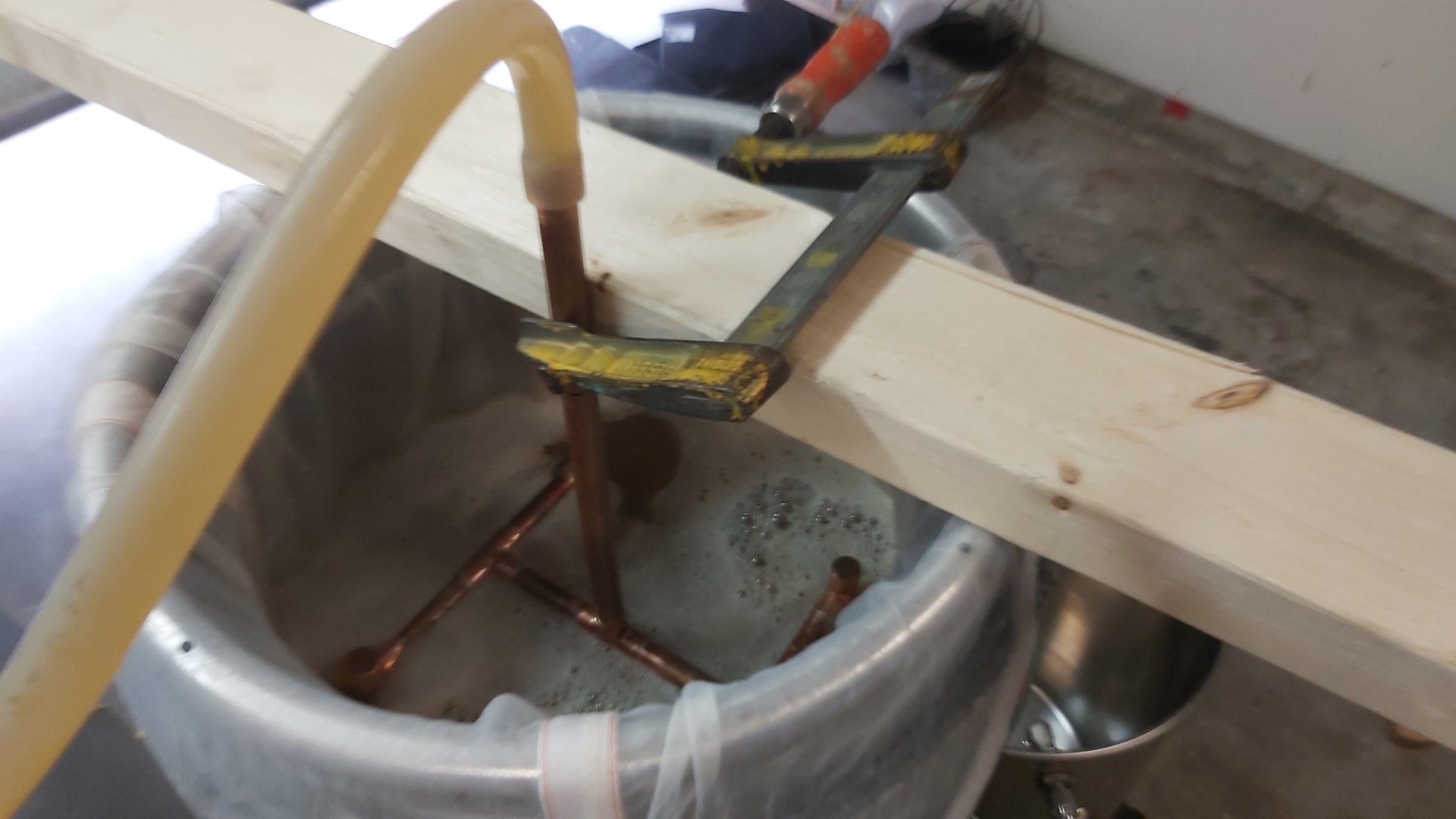

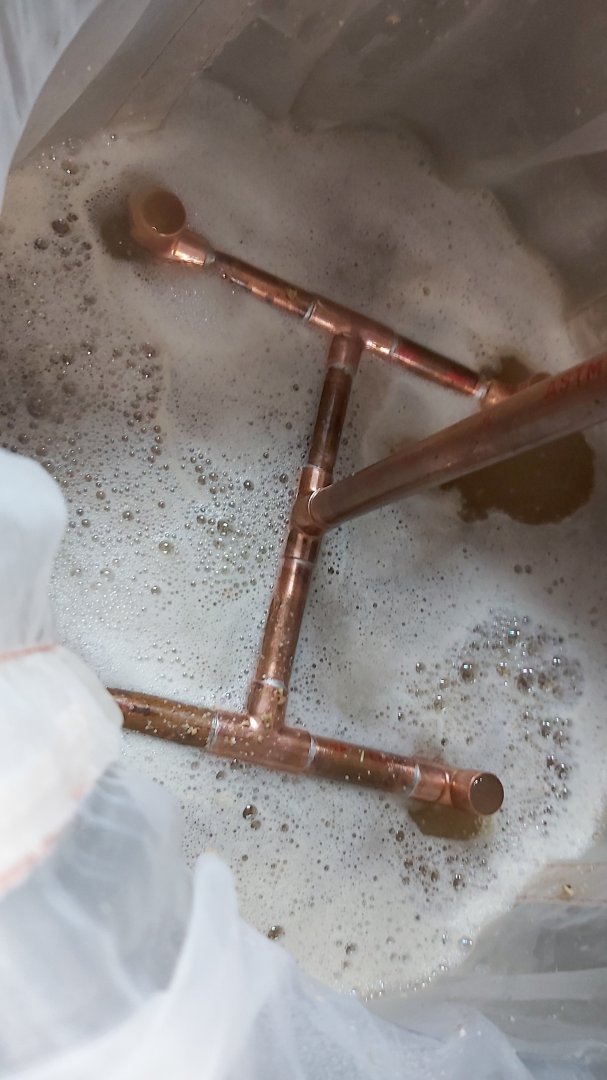

    Delayed the start of brew day to throw this together. Just need to come up with a clamping arrangement to make height adjustment quick and easy.

    Head First, Trialben and Megary like this.
