Home Made Plate Stirrer

Discussion in 'Brewing Photos & Videos' started by AHarper, Apr 28, 2019.

  1. AHarper

    AHarper Well-Known Member

    Joined:
    Mar 23, 2018
    Messages:
    729
    Likes Received:
    1,071
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Sussex, UK
    Lets see if I can post this...

    I decided to make a simple plate stirrer for doing yeast starters.
    I had a mains powered equipment fan - just lying around(?) - a switch, some powerful bar magnets and an empty plastic sweet box from our Christmas binge.

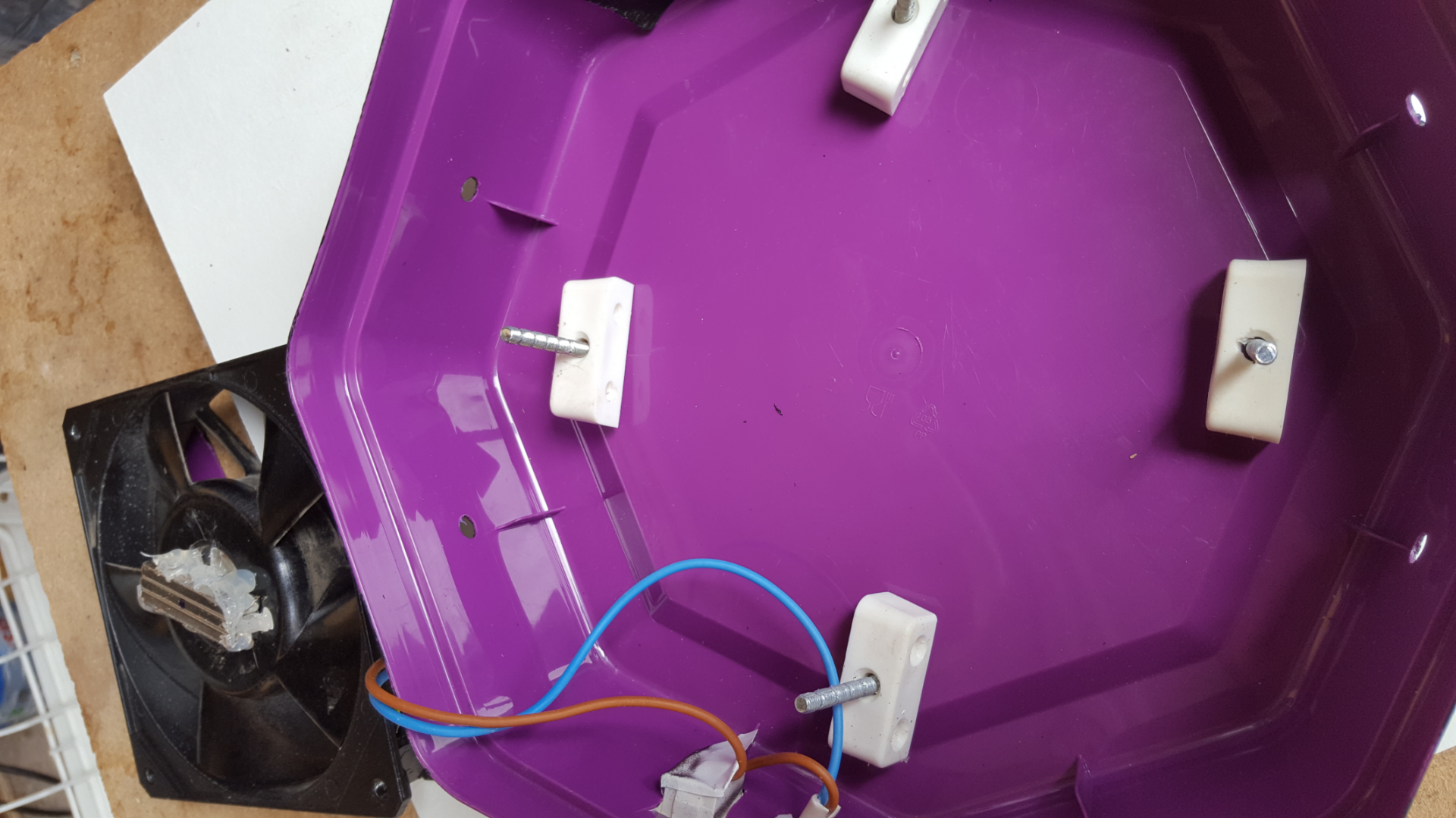

    I cut holes in the base of the box to match a small mains switch, the power cable entry and air holes so the fan did not get overloaded when in action.

    The spacers are there to allow for the fan to turn with the magnets as close as possible to the base (soon to be the top).

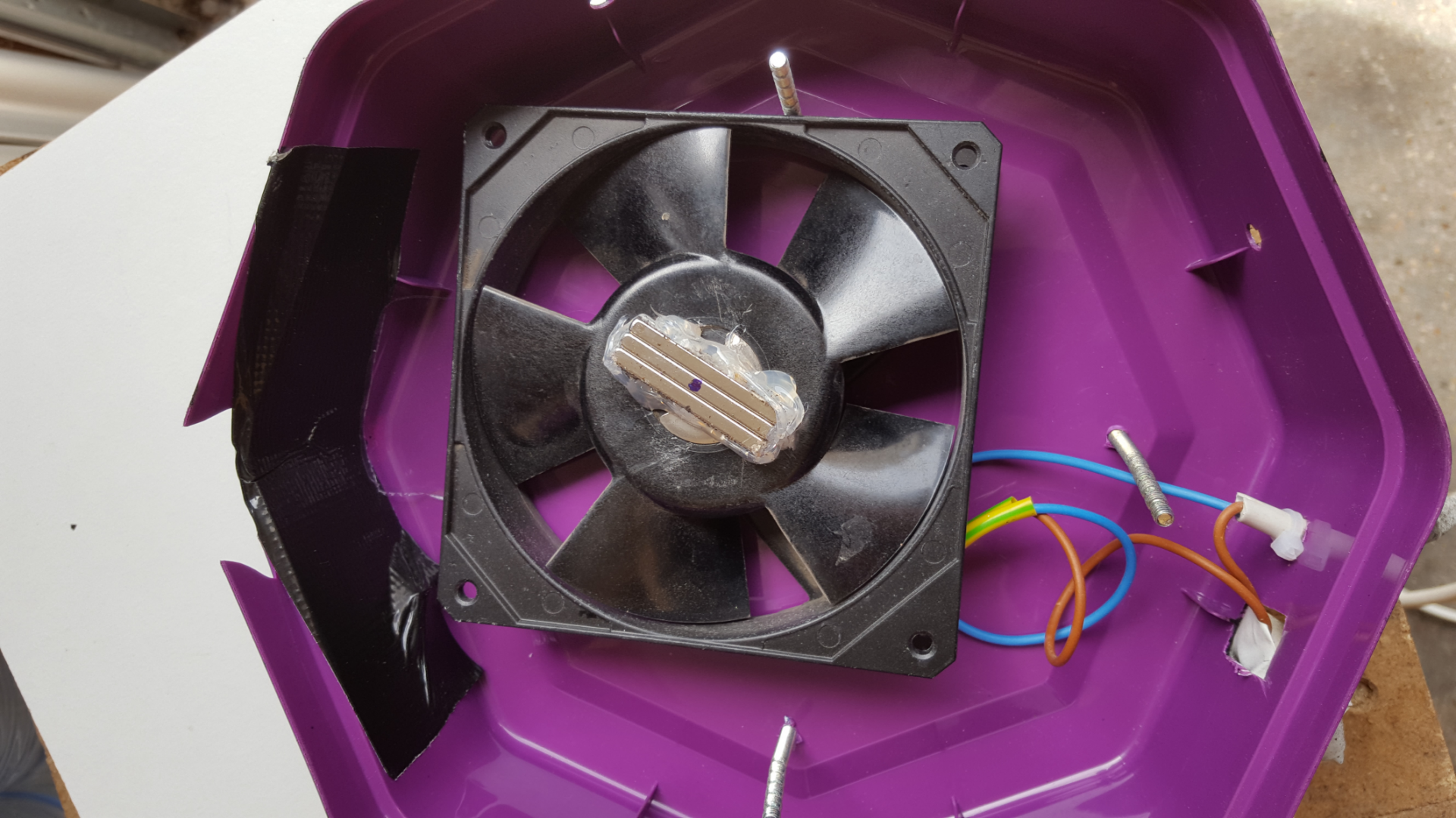

    The magnets are glued to the top of the fan and the power cable has been soldered to the switch and fan terminals. Yes I broke one of the corners of the box when the wind caught it while the paint was drying outside - Gaffa tape to the rescue.

    The end result (if this can be posted here?) is the whole thing in action.



    Total cost £6 - about $10.

    Yet to do a starter but next brew this week will give it a whirl.

    Trialben, thunderwagn, Mase and 5 others like this.
    -->
  2. ChicoBrewer

    ChicoBrewer Well-Known Member

    Joined:
    May 12, 2018
    Messages:
    814
    Likes Received:
    823
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Healthcare IT Manager
    Location:
    Chico, CA
    Nice. Iron Man stir plate. I like it

    -->
  3. sbaclimber

    sbaclimber Well-Known Member

    Joined:
    Jul 13, 2012
    Messages:
    939
    Likes Received:
    427
    Trophy Points:
    63
    Location:
    Germany
    I like the 6-sided shape instead of the normal boring old 4-sided (like mine) :)

  4. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,954
    Likes Received:
    10,981
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Powerfull!

    -->
