Corny Keg Lid Modifications

Discussion in 'Brewing Photos & Videos' started by DanC, Oct 21, 2013.

  1. DanC

    DanC Active Member

    Joined:
    Feb 12, 2013
    Messages:
    136
    Likes Received:
    37
    Trophy Points:
    28
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Hemlock, Michigan

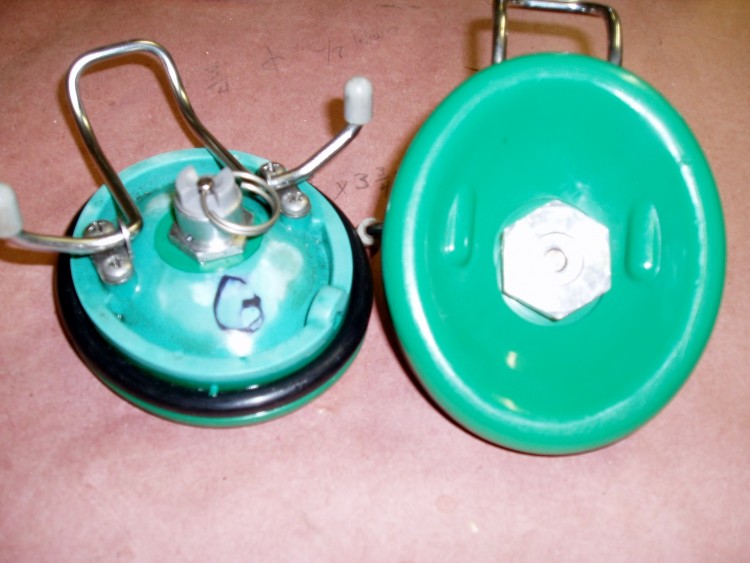

    I was given two Corny Kegs a friend had on a scrap pile. These kegs were complete with the exception of having no relief valve, only a rubber plug. The lids are the domed plastic. I searched the keg supply vendors for a valve replacement. What I found was supposed to be a direct replacement for this type lid, but only if one was installed originally. I called the supplier to get some technical assistance and he indicated I needed to drill a 3/4 inch hole in the lid. I drilled the holes and tried to install the valves. What the supplier did not tell be was I also needed to mill the curved top and underside of the lid flat so it will properly seal. This post is for information to those that may run across this problem in the future.


    Attached Files:

  2. LarryBrewer

    LarryBrewer Active Member

    Joined:
    Jun 27, 2012
    Messages:
    1,728
    Likes Received:
    9
    Trophy Points:
    38
    Location:
    Portland, Oregon
    Wow great job. I've never even seen that type of lid. Very prudent of you to install the pressure relief valves!

    Do you know the brand name of the keg?

  3. DanC

    DanC Active Member

    Joined:
    Feb 12, 2013
    Messages:
    136
    Likes Received:
    37
    Trophy Points:
    28
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Hemlock, Michigan
    The kegs are Cornelius and were made for the 7 up bottling in Flint, MI.
