Chill Haze

Discussion in 'General Brewing Discussions' started by Ward Chillington, Oct 10, 2020.

  1. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    961
    Likes Received:
    1,427
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    So I have been reading about how to clear chill haze and I was wondering what that collective wisdom is on these 2 areas; Protein Rests and a vigorous boil?

    Most of my pale brews that I have made since going to a larger kettle have exhibited a chill haze. It doesn't affect the flavor but I'd really like to help out my presentation. I do not want to fine with anything beyond the Irish Moss I use and I think I can work on my cold break cycle with a bigger IC coil but I am curious what you all think about changing my mashing method and if changing the boil method or time is effective.

    I have done step mashing with J A 's stout recipe with good success and I THINK I have done vigorous boils and extended boils of an hour and 15 or 30 but what really constitutes vigorous and long? Is my Turkey Fryer gas cooker enough to get me to "vigorous" given a 7-ish gallon starting volume? It bubbles and boils pretty well IMHO. Is "extended" anything beyond an hour or does it start at and hour and half??

    Trialben and J A like this.
  2. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,480
    Likes Received:
    2,699
    Trophy Points:
    113
    Location:
    Austin, Texas
    A decent gas burner should get you a vigorous boil in a 7 gallon pot. What's your boil off rate? I would count on around 6 quarts per hour gallons when i used a pot that size. When I used that size pot, my extended boil was a way to get more volume. I'd finish the sparge and boil for a half hour while the bag drained and add the last half gallon or so of "squeezin's" at the one hour mark and get to my numbers. I've always preferred a boil with a lot of movement - definitely a rolling boil.
    If you're doing a protein rest (some say it's not necessary with modern "over-modified" malts) and doing a vigorous boil, extending beyond and extra 15 minutes isn't going to make much difference. Even just a hour boil should get you where you need.
    If it's starch haze, you could try gelatin finings in the keg or secondary. If Irish moss isn't cutting it, try whirl-floc and see if it makes a difference. It's what I've always used and my beers are very clean and clear.

    Trialben likes this.
  3. Bubba Wade

    Bubba Wade Well-Known Member

    Joined:
    Sep 17, 2017
    Messages:
    616
    Likes Received:
    913
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Controls & Instrumentation Engineer
    Location:
    Monroe, Louisiana
    Home Page:
    I don't seem to have much of a problem with chill haze, even though my process is one that does nothing to avoid it. I do a single step infusion mash with a very fine grind, almost always with 10% wheat. I only run a 30 minute boil. I don't use Irish moss or any other clarified. I run a very quick cooling cycle after the boil.

    I do leave my batches in the primary a full two weeks. I naturally carbonate in a keg, combining this with a secondary fermentation of about four weeks. I chill the keg three days before tapping.

    Sometimes it does seem that avoiding chill haze is a matter of luck.

    One reason I think I may not get chill haze as much may have to do with hops. I primarily make Belgian styles and are not not dry hopped and generally lightly hopped. This may be a reason that I don't get chill haze very often.

    Zambezi Special and Trialben like this.
  4. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    845
    Likes Received:
    823
    Trophy Points:
    93
    Location:
    Big Lake MN
    Chill haze is a combination of proteins and polyphenols. They attach to each other when cold and separate when warmed. Clarifiers target either proteins or polyphenols. Gelatin and whirlfloc tablets target protein. PVPP targets polyphenols. Clear beer is a matter of choice. I like clear beer, so I clear beer in a number of ways. I always use a whirlfloc tablet in the boil. With lagers I use PVPP in the boil, 12 grams per 5 gallons. Gelatin will actually remove both, but it mostly proteins. You can clear it with gelatin after crashing, it work best to use post boil/fermentation clarifiers near freezing temperatures. PVPP can also be used in post fermentation, but I prefer to use it in the boil to avoid post fermentation oxygen ingress.

    Trialben likes this.
  5. BOB357

    BOB357 Well-Known Member

    Joined:
    Feb 3, 2018
    Messages:
    4,003
    Likes Received:
    7,332
    Trophy Points:
    113
    Location:
    Fallon, Nevada
    My beers haven't been more prone to chill haze since switching to the Digiboil, so I doubt a vigorous boil matters much at our level.

    Trialben likes this.
  6. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,469
    Likes Received:
    9,555
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    One thing I hear may help but dont and havnt tried it myself is instead of string the hot break material in scooping it out.

    I have issues with chill haze myself but eventually after a month my larger drop
    Clear. I try to crash my beer colder than my serving temperature that way hoping that haze formation is negated in the keezer which sits at 4c

    BOB357 and Megary like this.
  7. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    845
    Likes Received:
    823
    Trophy Points:
    93
    Location:
    Big Lake MN
    This is a paper I wrote up for my homebrew club a few years back. It needs some updating, mostly about PVPP. In the paper it shows how to get the PVPP in “aqueous suspension” with a stir plate for post fermentation use. PVPP can be added to boiling water prior to adding to the beer instead of the using a stir plate to get the same effect. The hot mixture can be added to the beer in the same manner as gelatin finings. I also don't mention using PVPP in the boil. PVPP can be added (12 grams per 5 gallons) the same time the whirlfloc is added. That's what I do now. I don't use PVPP unless I want the beer "polished", so I mainly use it on lagers.

    It could use some editing too, I'm not much of a writer.

    https://drive.google.com/file/d/0B-60w_IvRv3BRDdidmV5M0JhcDg/view?usp=sharing

    Trialben likes this.
  8. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,480
    Likes Received:
    2,699
    Trophy Points:
    113
    Location:
    Austin, Texas
    That's something I've always done from my very first batches as a matter of intuition. I figured that if I could get that foamy sludge out of the mix right away, I'd never have to worry about it in the beer. :) Also, I found that it helped prevent boil-overs, too. Less available for nucleation, I suppose.

    Trialben likes this.
  9. Mark Farrall

    Mark Farrall Well-Known Member

    Joined:
    Oct 19, 2017
    Messages:
    1,306
    Likes Received:
    1,428
    Trophy Points:
    113
    Location:
    Melbourne Australia
    #9 Mark Farrall, Oct 12, 2020
    Last edited: Oct 12, 2020
    Isn't is as much that it could hurt your head retention, rather than it's probably not needed becuase the protein is consumed during the malting? Not that I brew 100% barley beers that often, and the other grains I'm using would hide this problem if I did decide to do a protein rest.

    J A and Trialben like this.
  10. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    961
    Likes Received:
    1,427
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    #10 Ward Chillington, Oct 12, 2020
    Last edited: Oct 12, 2020
    Thanks J A...I'm using a 15 gallon pot and my boil off is between a gallon to a 1 1/4 gallon an hour given the relative humidity. WRT to the " modern "over-modified" malts) " , I got the haze with my last 2 smash batches using a simple 2 row pale malt. Maybe I should get the spec sheet on that to look into if that's part of the issue.

    Thanks for the link HVM....lemme take a read and get back to you!

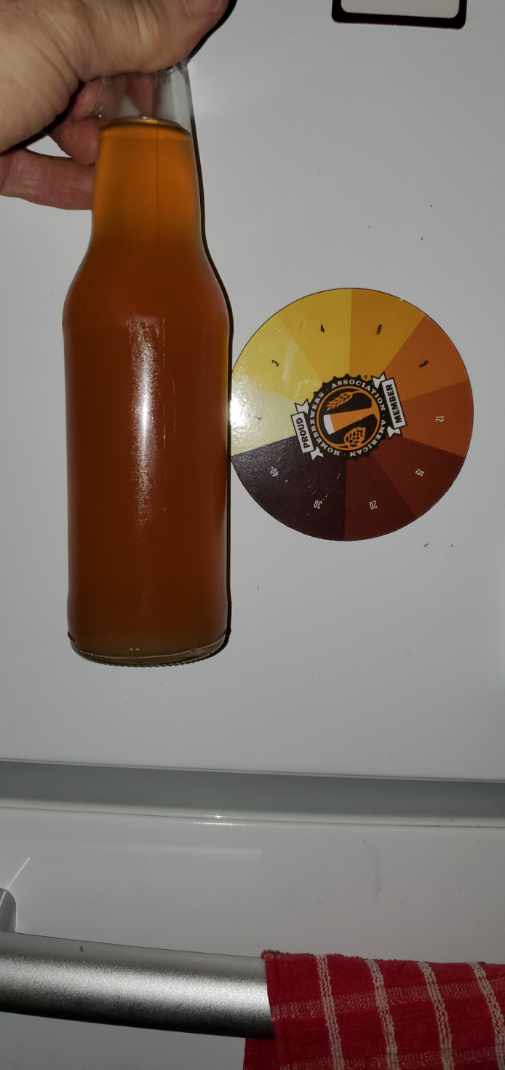

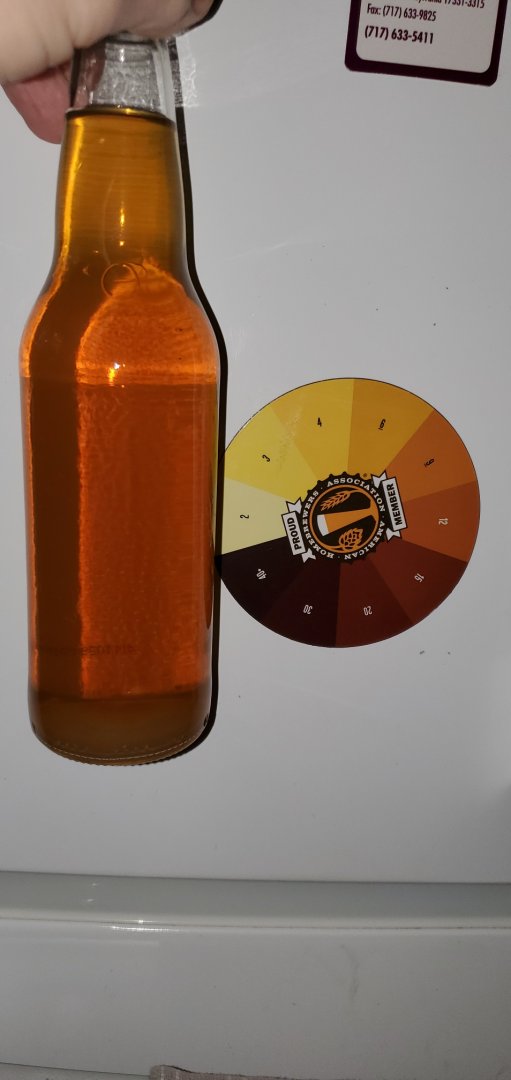

    And since a picture is worth a thousand words, here's two...before and after





  11. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,480
    Likes Received:
    2,699
    Trophy Points:
    113
    Location:
    Austin, Texas
    I'm not sure what problems might ensue when doing the "unnecessary" protein rest, but I do a 15 minute rest at 122 when I dough in with every batch I do. I've never been certain about how various malts are converted and kilned but the question goes back to that notion of homebrew not being "real beer" because the malts supplied for the homebrew market are pushed further in the process in order to make single infusion malting more efficient.
    I do all malt beers routinely and never add any Carapils or similar. I've never had a problem with head retention. I do add a small amount of wheat with some beers and it probably helps with head production and retention, but I still do the protein rest. When I do a lager with Pilsner and Vienna, the head is not heavy and pillow-y as it is when I do something with other malts but it's "to style".

  12. J A

    J A Well-Known Member

    Joined:
    Jan 19, 2016
    Messages:
    3,480
    Likes Received:
    2,699
    Trophy Points:
    113
    Location:
    Austin, Texas
    Interesting...condensation always makes it look worse but that seems to be textbook chill haze. How cold are you storing your beers? Would be interesting to see if it holds up better at 38 than it does at 33. Near freezing makes a lot of beers act up. I'm guessing you're not getting it that cold, though.
    Re: boil off...My 15 gallon pot boil off is set at 6 quarts per hour and that's typically on the low side. I set it on the low side so I'm not over-volume, under-gravity at the end of the boil. Judging from your boil off, I'd say you could go a little harder boil, but it depends a lot on kettle geometry and conditions. Still not certain that that would cure any chill haze problem.
    Try Whirl Floc instead of Irish moss for a few batches and see if it makes a difference.

    Ward Chillington and Trialben like this.
  13. Yooper

    Yooper Administrator
    Staff Member

    Joined:
    Nov 16, 2013
    Messages:
    2,494
    Likes Received:
    1,584
    Trophy Points:
    113
    Gender:
    Female
    Occupation:
    Happily retired
    Location:
    Upper Michigan/Florida
  14. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    845
    Likes Received:
    823
    Trophy Points:
    93
    Location:
    Big Lake MN
    That's classic chill haze, which is easily fixed. Most times gelatin is the easiest and works well. The beer in my profile picture is an American Lager. The beer is near freezing temperature in the photo. I cleared that beer by using gelatin first and a day later I used PVPP, both after crashing the beer to near freezing temperatures. It takes roughly 7-14 days of lagering to achieve that amount of clarity.

    Ward Chillington likes this.
  15. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,469
    Likes Received:
    9,555
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Yeah that's what i think is tricky about bottling your storing at room or cellar temp then you go and wack it in a nice cold fridge mine used to haze right up.

    Kegging and storing in a keezer helps manage this chill haze as high voltage man stated above. But I rekon it dont mean diddly squat if it's being stored warm then there is no haze for the geletin ect to work on...

    Ward Chillington likes this.
  16. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,438
    Likes Received:
    6,695
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    It doesn't matter as long as it doesn't bother you (and you're not entering it into a competition). Chill haze is strictly aesthetic, that said, I don't want it in my Pilsner. Chill to near-freezing to get a good haze going, then dose with gelatin. Your beer will look filtered. If it's not chill haze, for example if you have a starch haze, gelatin will not help. You'll need PVPP or silica gel for that one.

    The other cure is time. My beers tend to be stored for a long time cold. They clear over time if I don't bother to fine them.

  17. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    961
    Likes Received:
    1,427
    Trophy Points:
    93
    Location:
    South Central Pennsylvania
    It was very humid the other day so yeah..it didn't help but the before pix speaks volumes. That was after about 4 hours in the fridge which is about 45°F but I get the same results after a week in there.

    HVM...good article...Lotta good science learned there...Yooper, Thanks also..lemme take a read. And Nosey...yes, this is purely aesthetic..
