Cheap DIY fermentation chamber

Discussion in 'Brewing Photos & Videos' started by sbaclimber, Apr 2, 2014.

  1. sbaclimber

    sbaclimber Well-Known Member

    Joined:
    Jul 13, 2012
    Messages:
    947
    Likes Received:
    448
    Trophy Points:
    63
    Location:
    Germany
    I finally got the heating pad wired up and thought I would share...
    20€ for a used fridge
    17€ analog heating / cooling thermostat with probe
    11€ foil heater (~40-50°C)
    1€ double pole switch
    Ugly, but cheap. :D

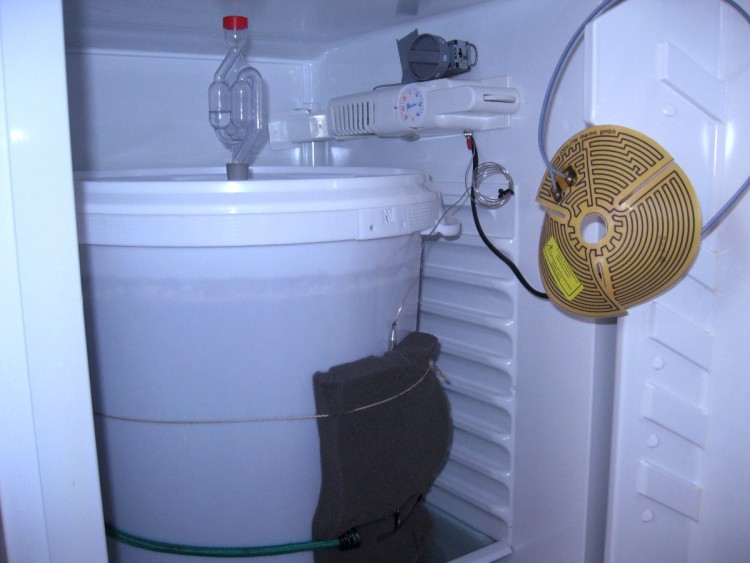

    (as you can see, I left the original thermostat attached to its probe and just taped it to the side of the fridge, should I ever want to "rebuild" the fridge)
    Normally the foil heater just lies in the bottom of the chamber, I only raised it to fit in the photo.
    The little red lever is the heating/cooling switch.


    Attached Files:

  2. Bassriverbrewer

    Bassriverbrewer New Member

    Joined:
    Mar 15, 2014
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Amherst, Nova Scotia
    A thing of beauty !!! good luck

  3. sbaclimber

    sbaclimber Well-Known Member

    Joined:
    Jul 13, 2012
    Messages:
    947
    Likes Received:
    448
    Trophy Points:
    63
    Location:
    Germany
    Thanks. :)
    I suppose a light bulb in a can would have been cheaper, but the foil heater was just so easy and saves space.
    Only drawback is, at 40-50°C it takes ~2 days for it to warm 25l. from 17° up to 23°...
