Boil Gravity Showing Much Lower than OG

Discussion in 'Recipe Editor' started by Brewer #103854, Dec 29, 2017.

  1. DevinJ

    DevinJ New Member

    Joined:
    Aug 8, 2017
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    Hi all,

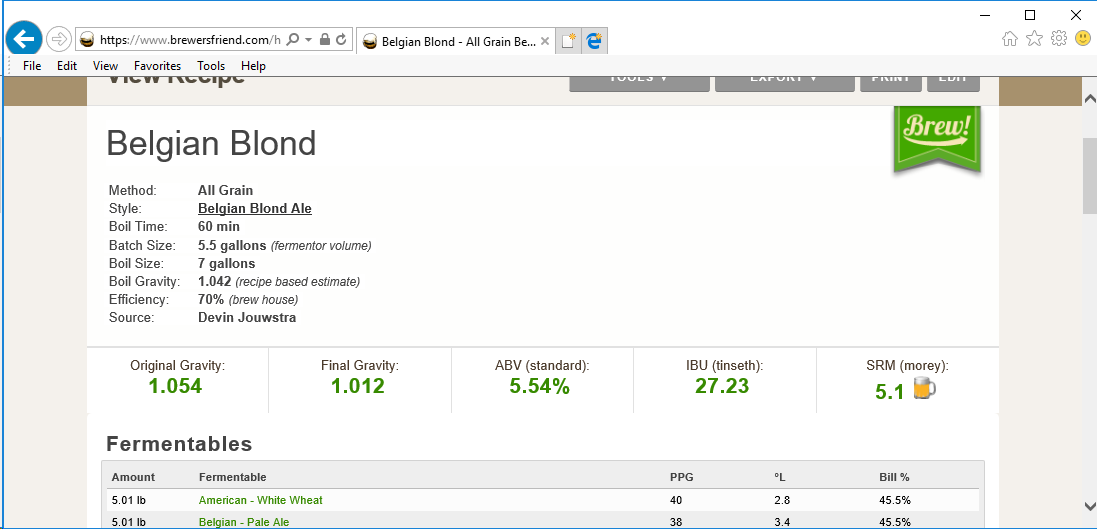

    First time posting, and just had a question regarding the recipe builder. In the recipe builder, it shows my "boil gravity" is estimated at 1.042, but my OG is estimated to be at 1.054. I've tried adjusting my equipment to see if that changes, but it hasn't. Shouldn't these two numbers be matching, or at least close to matching? I was under the impression that if anything the boil gravity would be higher than the OG from boiloff.





    Attached Files:

  2. jeffpn

    jeffpn Well-Known Member

    Joined:
    Apr 28, 2015
    Messages:
    3,240
    Likes Received:
    1,557
    Trophy Points:
    113
    Boil off is the reason boil gravity is lower than OG. the amount of sugar in the wort is constant. Before the boil, you have more water, so a thinner wort and a lower gravity. After the boil, it’s a thicker solution, so a higher gravity.

    Mase likes this.
  3. Hoppy Ending

    Hoppy Ending New Member

    Joined:
    Dec 4, 2016
    Messages:
    9
    Likes Received:
    1
    Trophy Points:
    3
    I've reported an issue in another thread. There's an open bug where the dead kettle space is treated as boil-off. This throws off the gravity calculation. Very misleading.

    I have change my recipes to a target type of "kettle" instead of "fermenter". Then just add the amount of wort left in the kettle to the batch size. You'll see your OG number change when it should actually stay the same.

    The numbers work out after this change. You can test out the OG/SG/FG numbers by using the following calculator:

    https://www.brewersfriend.com/allgrain-ogfg/

    My suggestion to BF would be to disable the "fermenter" target type until this issue is resolved.

  4. Hawkbox

    Hawkbox Well-Known Member

    Joined:
    Jul 27, 2017
    Messages:
    3,746
    Likes Received:
    2,977
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Manager
    Location:
    Edmonton
    Based on my poking around at my one recipe and showing the numbers not changing between fermentor and kettle I'd hazard a guess that Boil Gravity is actually Pre-Boil Gravity and OG is Post-Boil Gravity.
