Boil Coil and fittings

Discussion in 'General Brewing Discussions' started by Texas Ale Works, May 10, 2019.

  1. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    Anyone know if it is ok if a SS 90, being used as a dip tube, can touch the boil coil element?

  2. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    830
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
    If the heating element is immersed in the wort, the element is being cooled and the outside of the element should not become so hot as to harm any components. If, on the other hand, there is no wort to cool the element, the element will approach 800-1000F or more. Now you have problems. It would be better to avoid touching the two, but if it does, I doubt it will hurt anything.

    I doubt the heating element in wort exceeds 250F, is more likely closer to 220F.

  3. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    it was more from an electrical standpoint

  4. Hogarthe

    Hogarthe Well-Known Member

    Joined:
    Jan 9, 2014
    Messages:
    528
    Likes Received:
    264
    Trophy Points:
    63
    I don't know but to be safe I'd try to avoid touching the heating element.

  5. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    I talked to Dave at High Gravity Brewing, where I bought my set up, and he said it was not an issue, also sent an email the Blichman guys as well, still waiting for a reply from them

  6. ChicoBrewer

    ChicoBrewer Well-Known Member

    Joined:
    May 12, 2018
    Messages:
    908
    Likes Received:
    912
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Healthcare IT Manager
    Location:
    Chico, CA
    We used to boil water in paper cups when I was in boy scouts LOL. Of course the cup burns down to the water line . . .

    Trialben and thunderwagn like this.
  7. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    830
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
    There is no issue from an electrical standpoint as long as everything is grounded properly. If fit's not grounded properly, your least worry is if it's touching your dip tube. The outside of the heating element is electrically isolated from the voltage/current input, if the element fails and the AC voltage comes in contact with the outside of the element, the ground connection protects the user from electrical shock. Should the element fail like this, it's not uncommon to see a hole in the element. These types of failures aren't very common, but I have seen them. If everything is in working order, your fine.

  8. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    yes, the electric is rock solid....i figured i was worried about nothing, but worth an ask

  9. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    Go for it!

    I wouldn’t.

    Hawkbox and ChicoBrewer like this.
  10. ChicoBrewer

    ChicoBrewer Well-Known Member

    Joined:
    May 12, 2018
    Messages:
    908
    Likes Received:
    912
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    Healthcare IT Manager
    Location:
    Chico, CA
    Now that's funny LOL!!!

  11. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    So then this is a bad idea too?

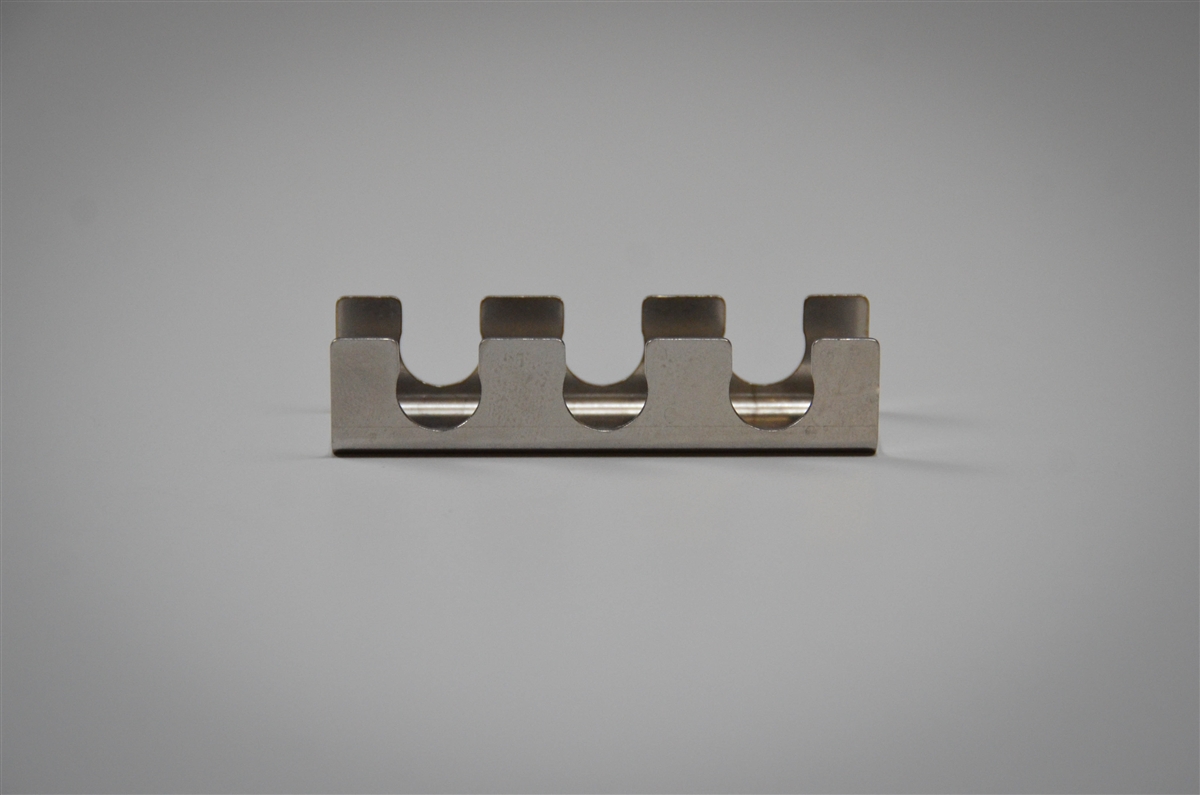

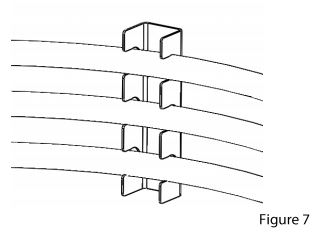

    BE-000355-03-2.jpg Boil_Coil_Spacer.jpeg

  12. Mase

    Mase Well-Known Member

    Joined:
    Mar 16, 2017
    Messages:
    1,772
    Likes Received:
    2,116
    Trophy Points:
    113
    Gender:
    Male
    I dunno, like I said... Go for it!

  13. uk_brewer

    uk_brewer Well-Known Member

    Joined:
    Nov 24, 2013
    Messages:
    215
    Likes Received:
    396
    Trophy Points:
    63
    Location:
    West Dundee, IL
    You need those spacers in the larger boil coils, install if they came with yours.

  14. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    830
    Likes Received:
    806
    Trophy Points:
    93
    Location:
    Big Lake MN
  15. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    9,425
    Likes Received:
    9,482
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Like High Voltage Man Said as long as there is a good earth on the element and kettle you'll be find. It's when electricity tries to find an earth through YOU that you get a jolt!

    I admit I was a bit cautious about scraping the element in my kettle with my metal mash spoon but yeah no dramas.

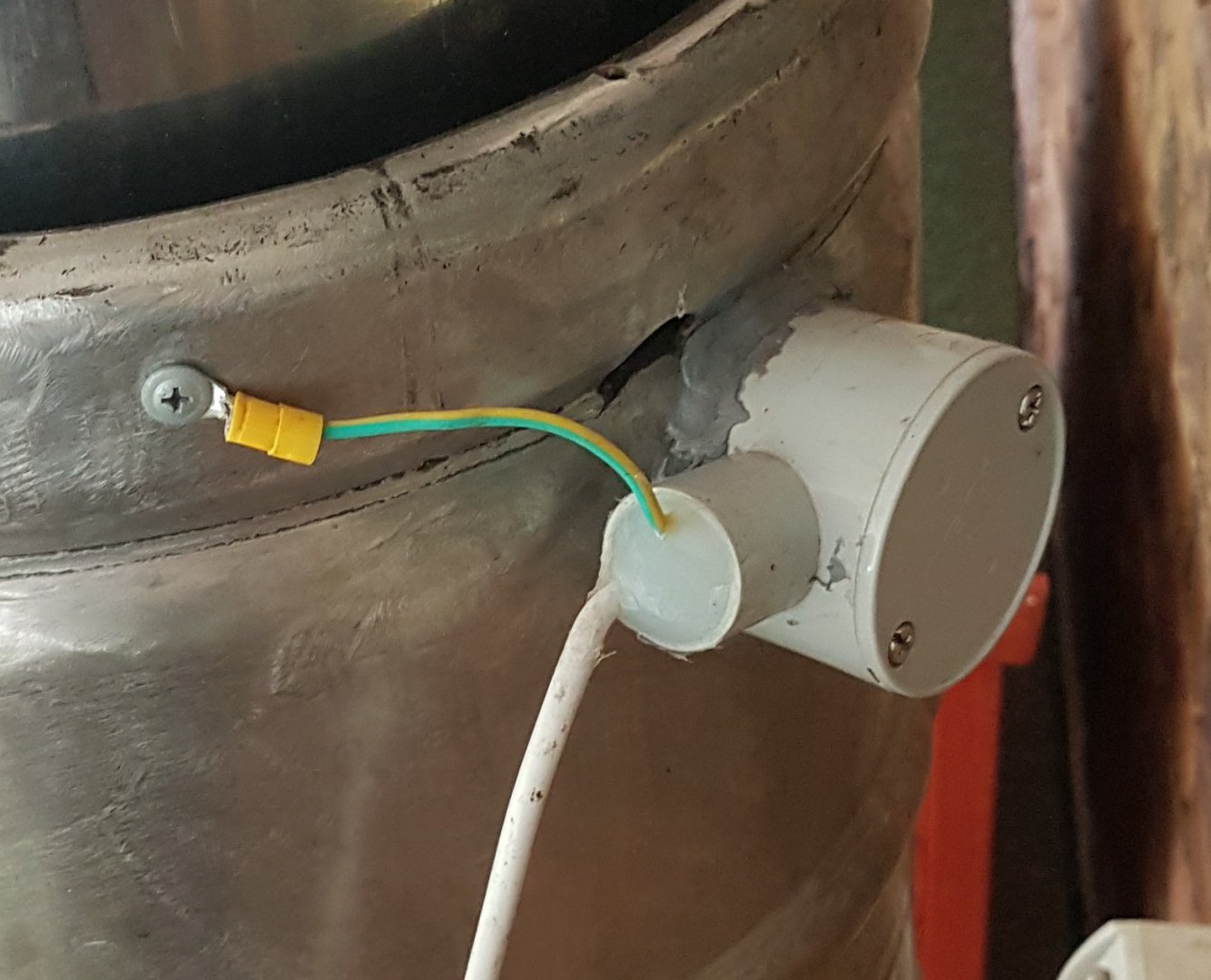

    I've physically made sure my kettle is earthed/ Grounded by attaching the ground to my kettle. 20190512_105024.jpg

    HighVoltageMan! and Mase like this.
  16. Texas Ale Works

    Texas Ale Works Active Member

    Joined:
    Aug 8, 2014
    Messages:
    355
    Likes Received:
    239
    Trophy Points:
    43
    I am confident in the way the boil coil is wired.

    I was just confirming I was okay

    Trialben likes this.
