Bent Nail 2.0

Discussion in 'General Brewing Discussions' started by Minbari, Jan 28, 2022.

  1. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL
    Gonna redo the brewery. No more wood cart with tippy wheels. Will reuse alot of the current gear. Boil pot, HERMs pot, pump etc. Gonna replace the current controller with a win10 box running a custom labview program.

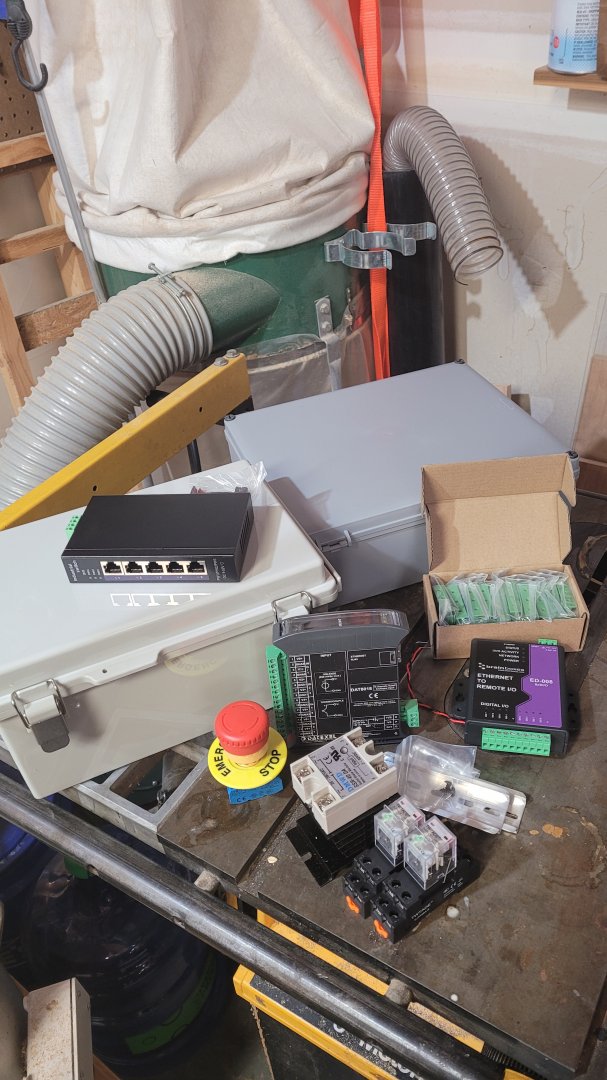

    Here is the start.


  2. Donoroto

    Donoroto Well-Known Member

    Joined:
    Jun 21, 2020
    Messages:
    2,543
    Likes Received:
    4,207
    Trophy Points:
    113
    Occupation:
    Retired Engineer
    Location:
    Atlanta
    Ah, a man after my own heart. Nice.

  3. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL
    gonna get a 10" touch screen to mount into one of those boxes. 2 of those devices in the picture are an 8ch thermocouple and an 8ch DIO. both speak modbus via ethernet.

    technically I could mount the win10 box and the screen in a portable battery powered box and monitor/control the mash/brew from anywhere in the house. gonna be cool! :cool:

    Donoroto and Trialben like this.
  4. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    12,089
    Likes Received:
    15,623
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Mate that's more tech than I know about sooo looking forward to your build progress.
    Very cool:cool:

  5. Ward Chillington

    Ward Chillington Well-Known Member

    Joined:
    Mar 24, 2018
    Messages:
    1,684
    Likes Received:
    2,823
    Trophy Points:
    113
    Occupation:
    Chief Brewer and Bottle Washer
    Location:
    South Central Pennsylvania
    What's the hub for?

  6. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL
    Will connect the pc to the DIO and the thermocouple modules.

    (I don't have the pc yet)

  7. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL
    few more parts came in.

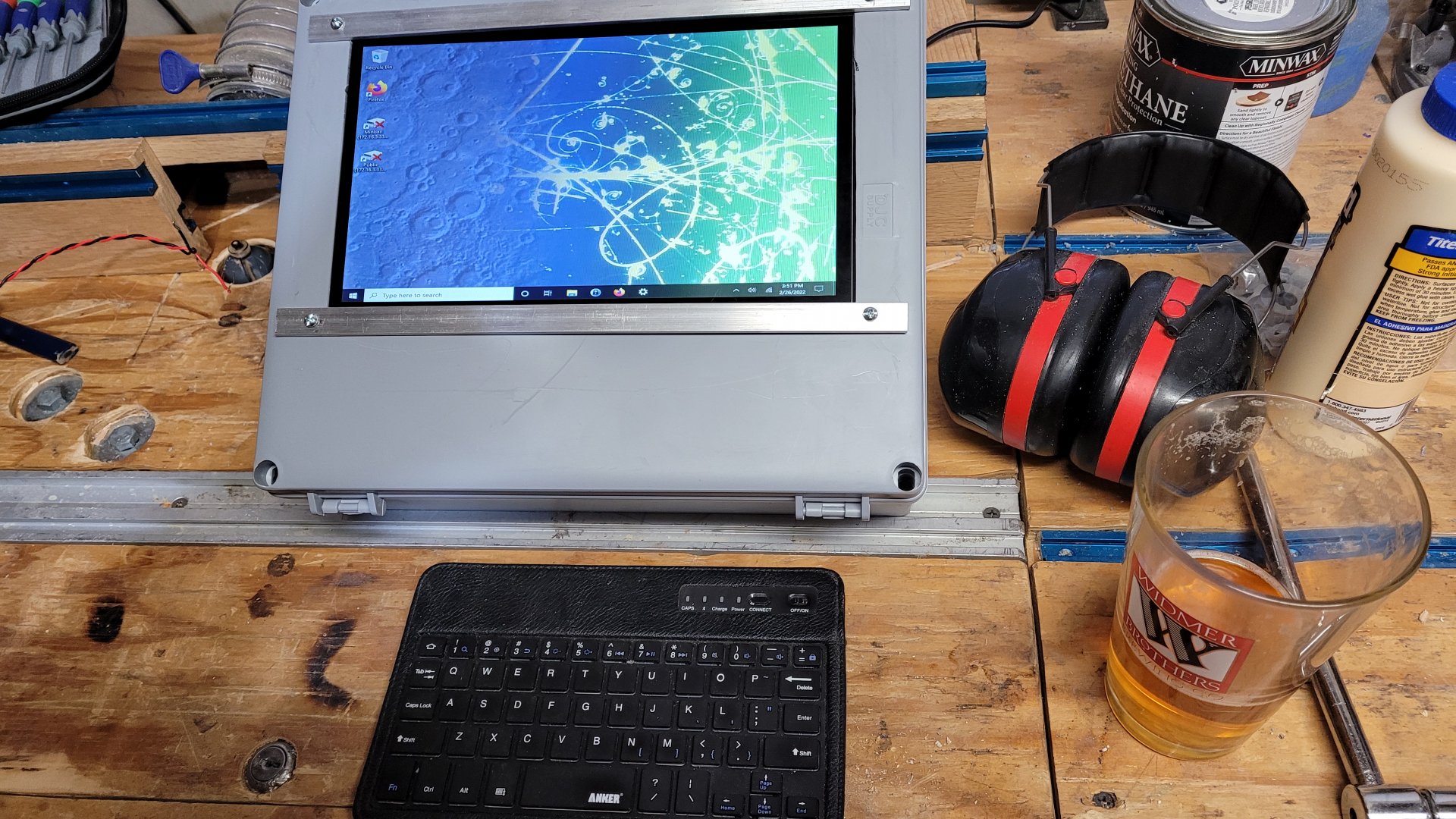

    10" touch screen

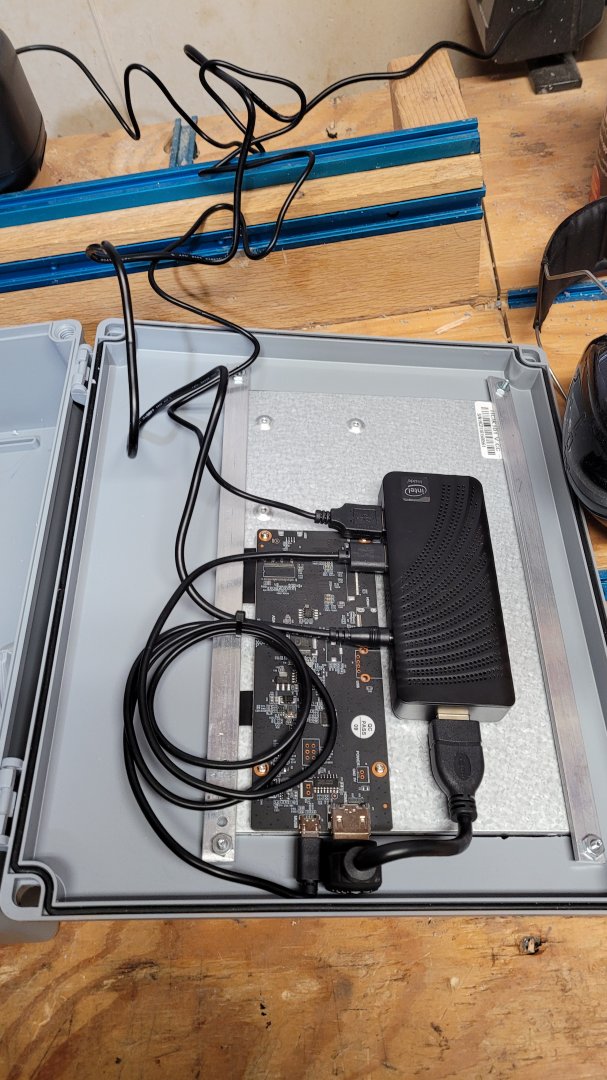

    the little black box is the Win10 server!
    quad celeron 2ghz
    4gig mem
    64gig storage
    dual band wifi
    bluetooth
    10/100/1000 ethernet port
    mini-HDMI port.
    (2) USB 3.0 ports.

    I love technology.


  8. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL

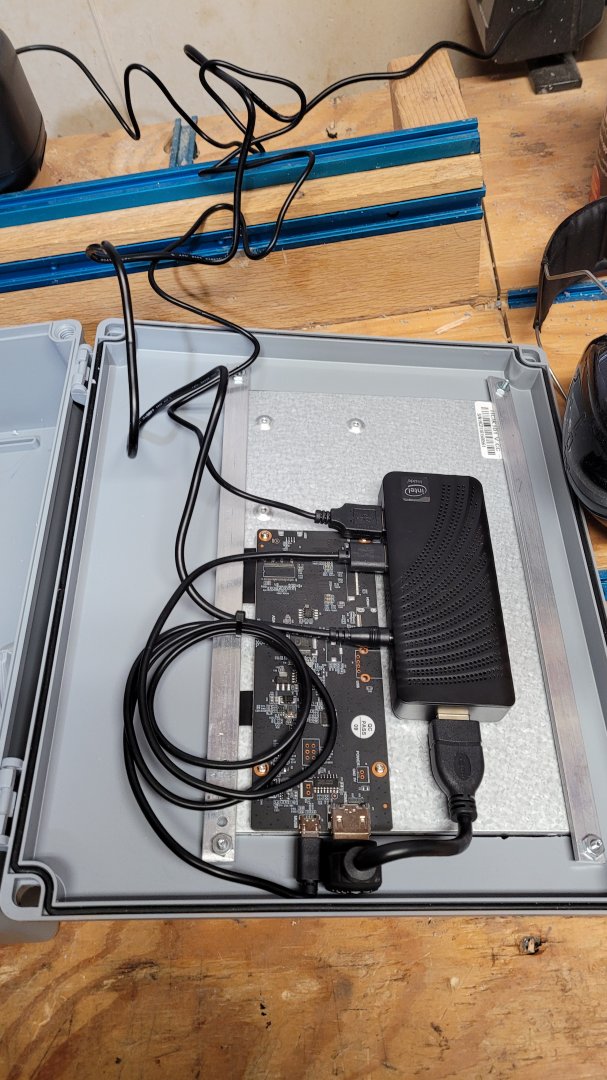

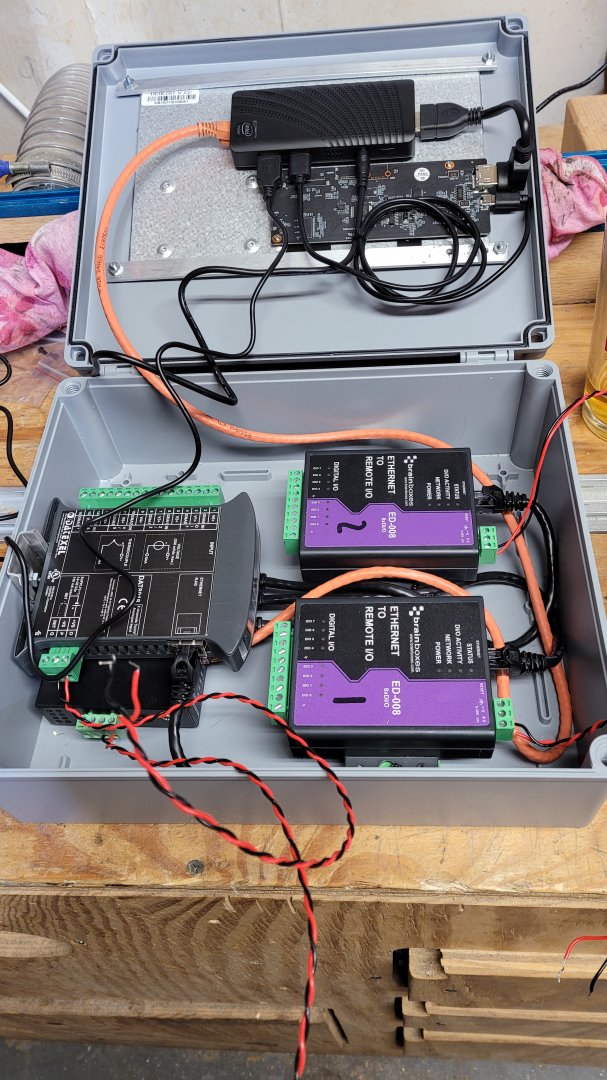

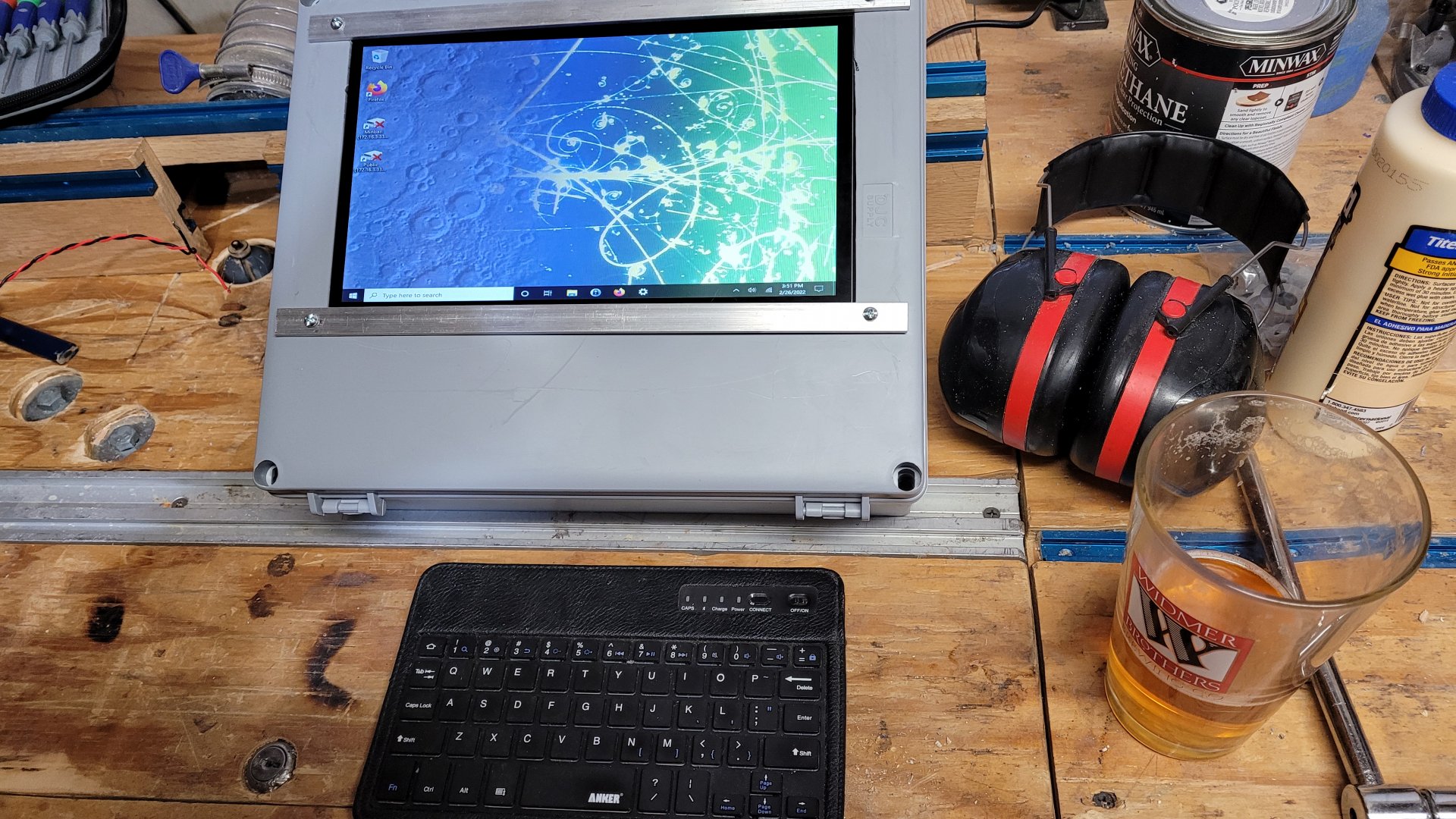

    got a little more done on the control/server box. All the control logic will be done from this box, I will have another box with all the relays in it.



  9. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    12,089
    Likes Received:
    15,623
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Minbari likes this.
  10. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL

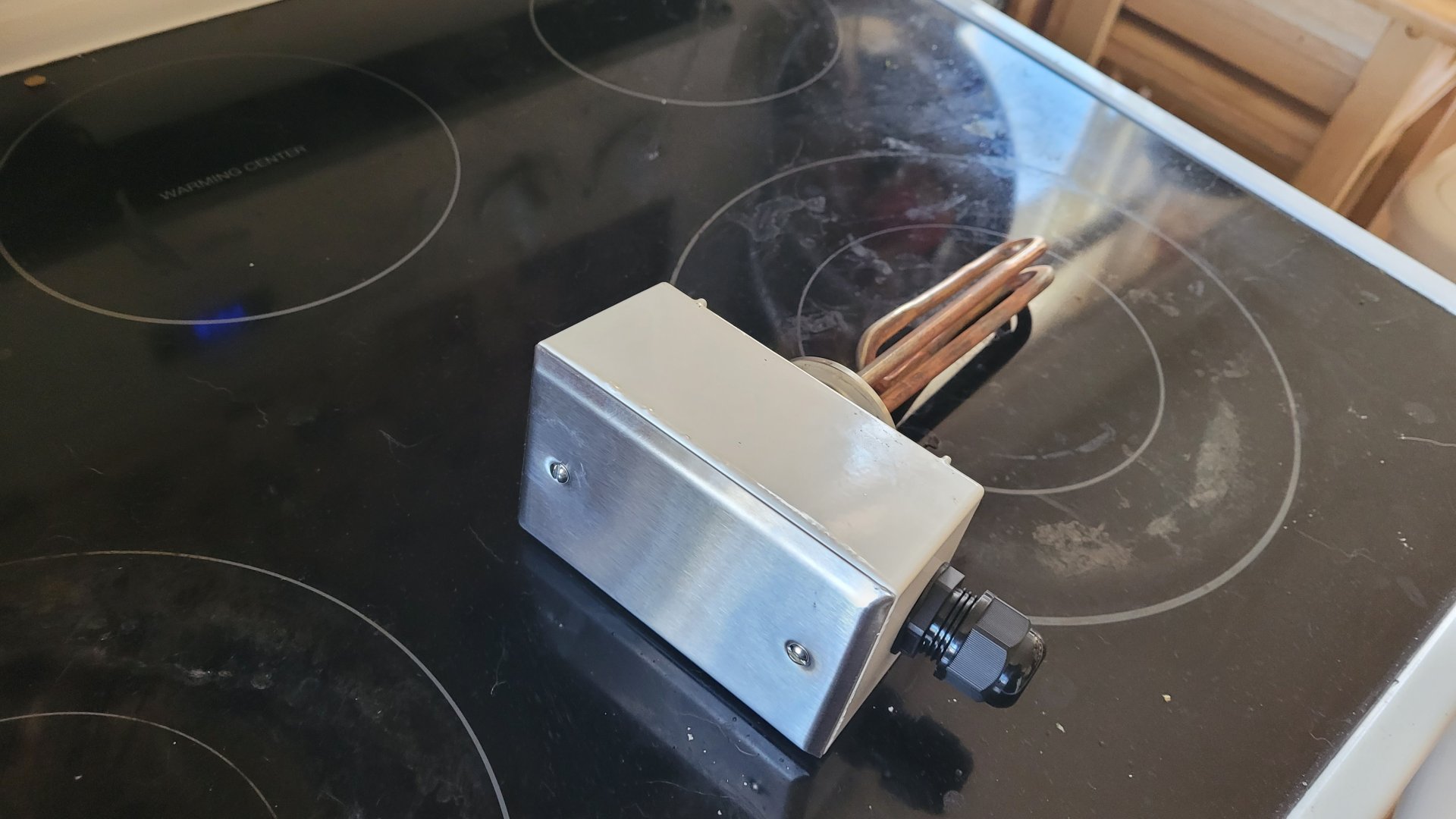

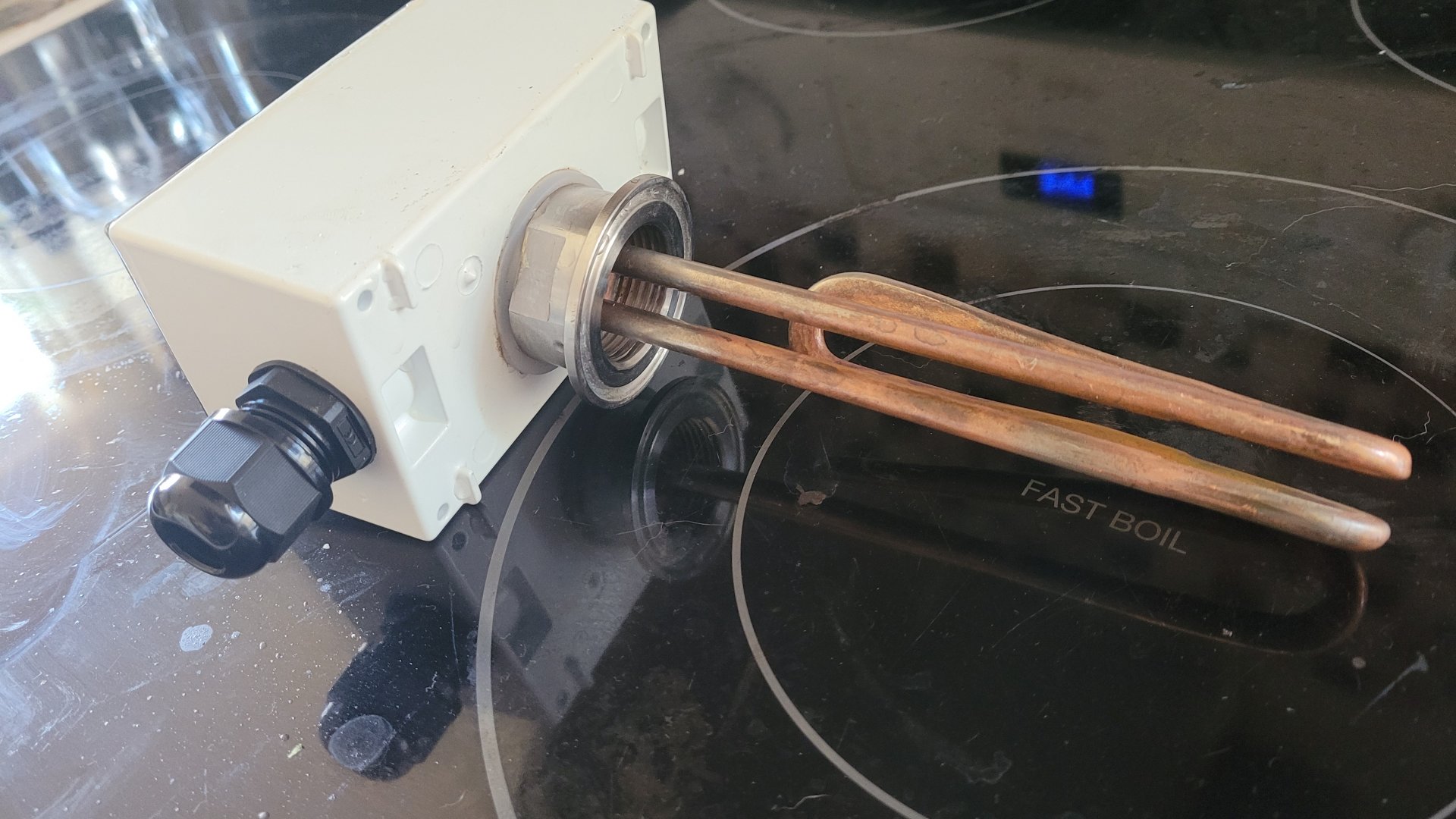

    Gonna connect my heating elements for the herms, rims and boil kettle like this. Reasonably water tight and protects the wires from fingers (or dog noses).
    Uses a 1.5" triclamp.

    20220302_154500.jpg 20220302_154504.jpg

    Donoroto and Trialben like this.
  11. Donoroto

    Donoroto Well-Known Member

    Joined:
    Jun 21, 2020
    Messages:
    2,543
    Likes Received:
    4,207
    Trophy Points:
    113
    Occupation:
    Retired Engineer
    Location:
    Atlanta
    Dog nose protection is a thing!

  12. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL

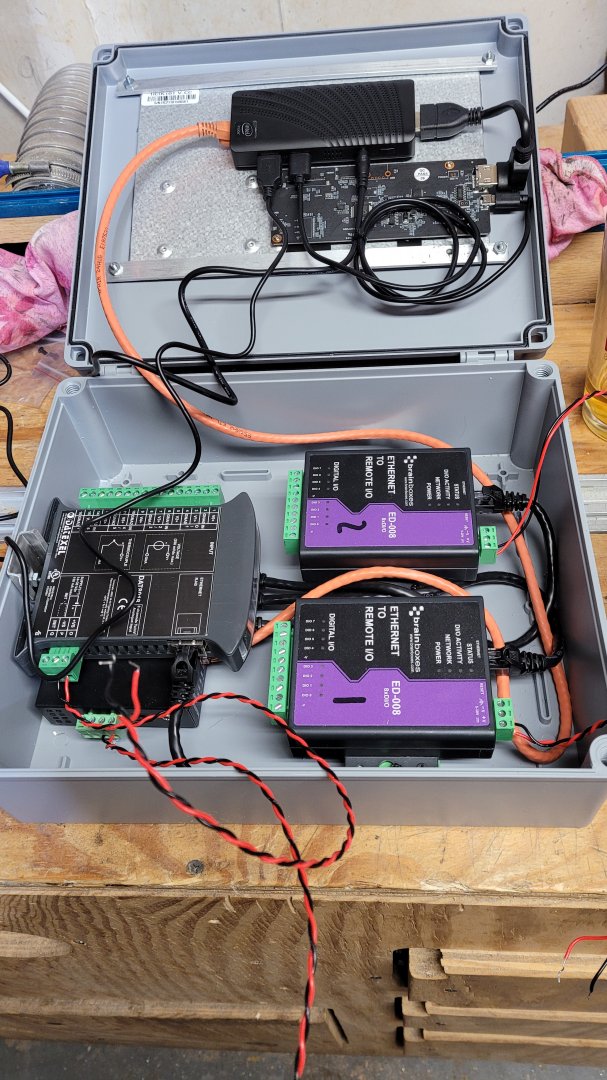

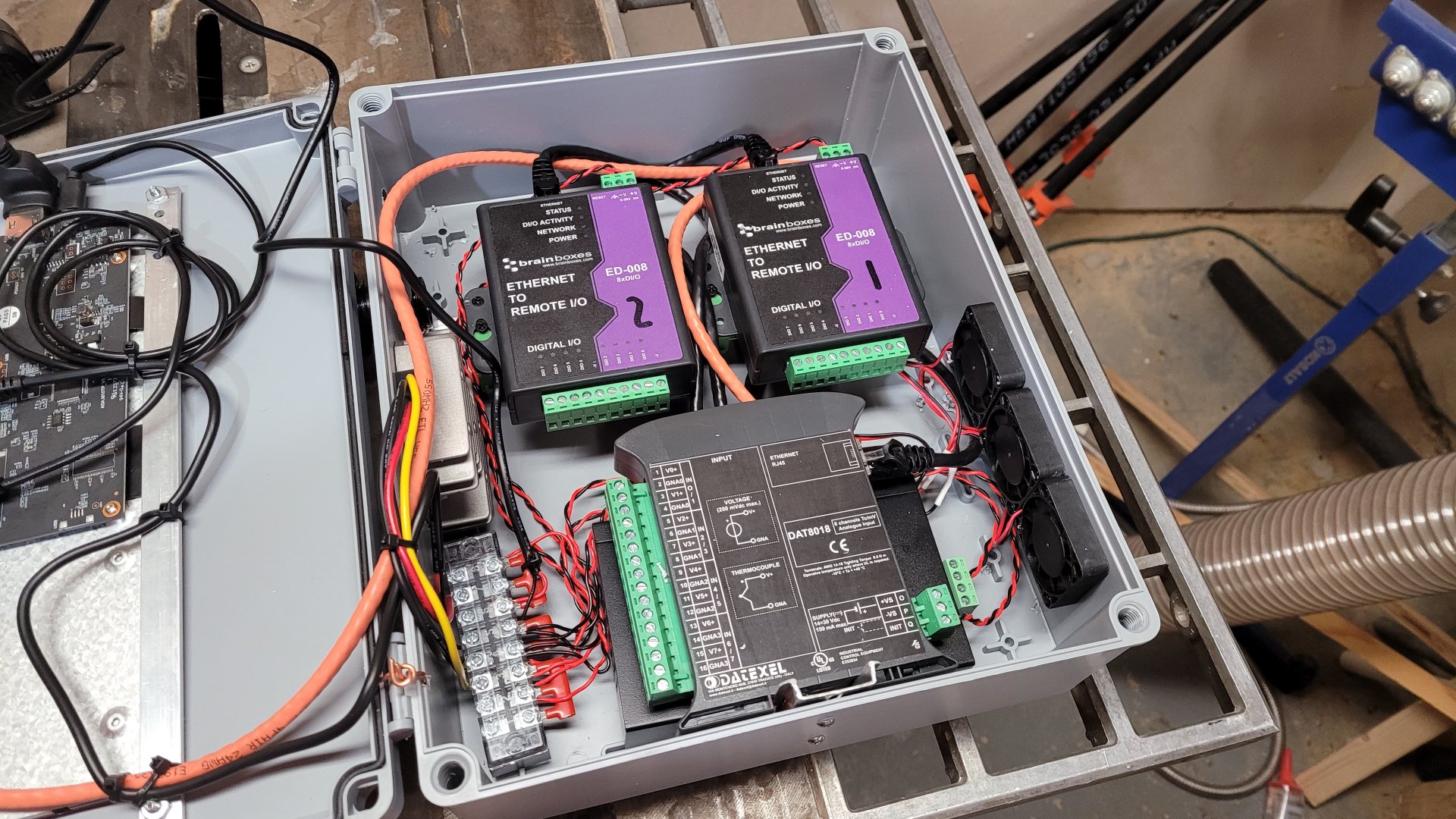

    Got some more wiring done on the control box. Haven't connected it to the relay box yet (mostly cause it isn't made yet. :p)

    Added a 24vdc dc-dc converter for the I/O modules.

    Added some fans to keep the pc cool. 20220305_155905.jpg

  13. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL
    Little more work done.

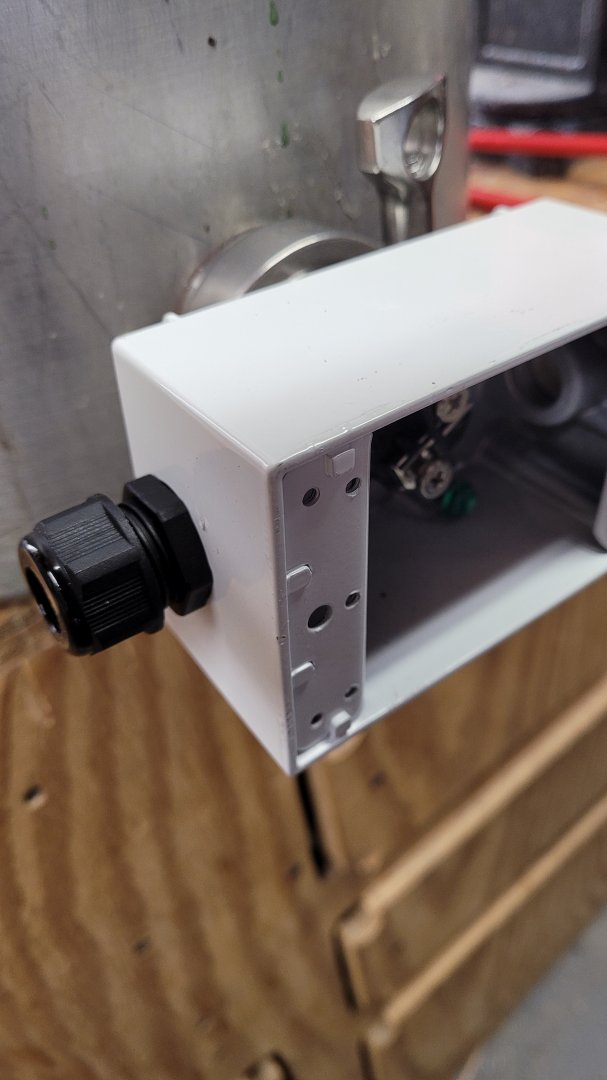

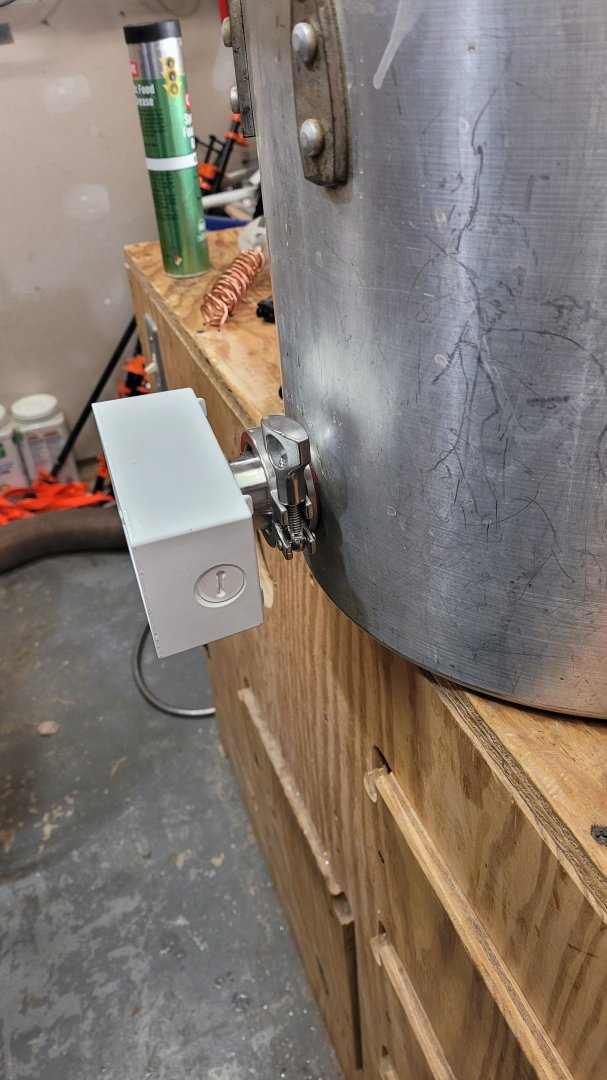

    Heating element mounted to the tri-clamp and the tri- clamp bulkhead mounted to the HLT tank

    Leaking testing as we speak

    20220325_164917.jpg 20220325_164929.jpg

  14. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL

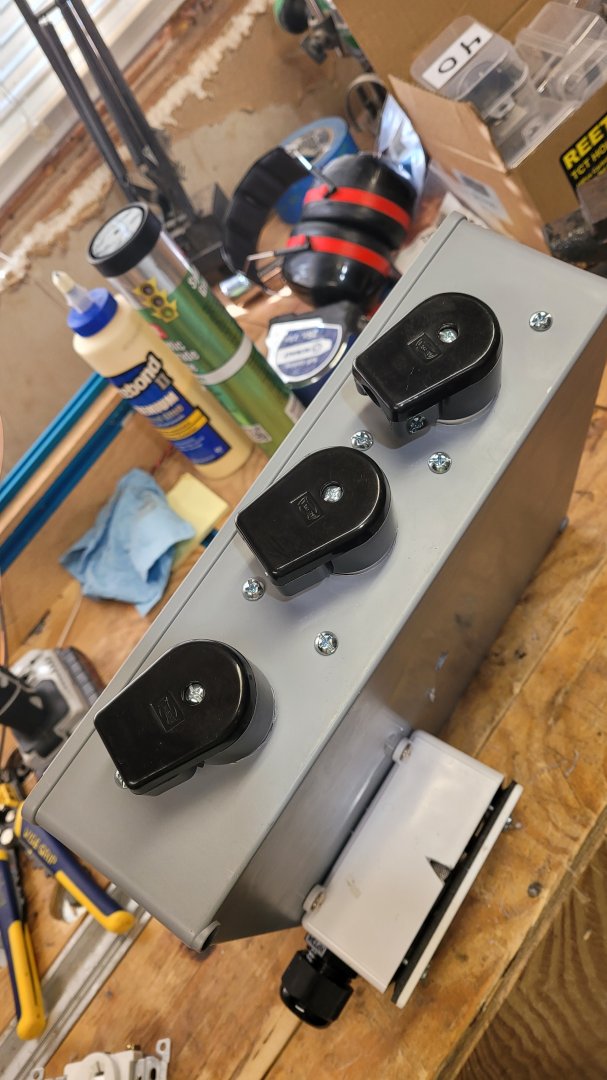

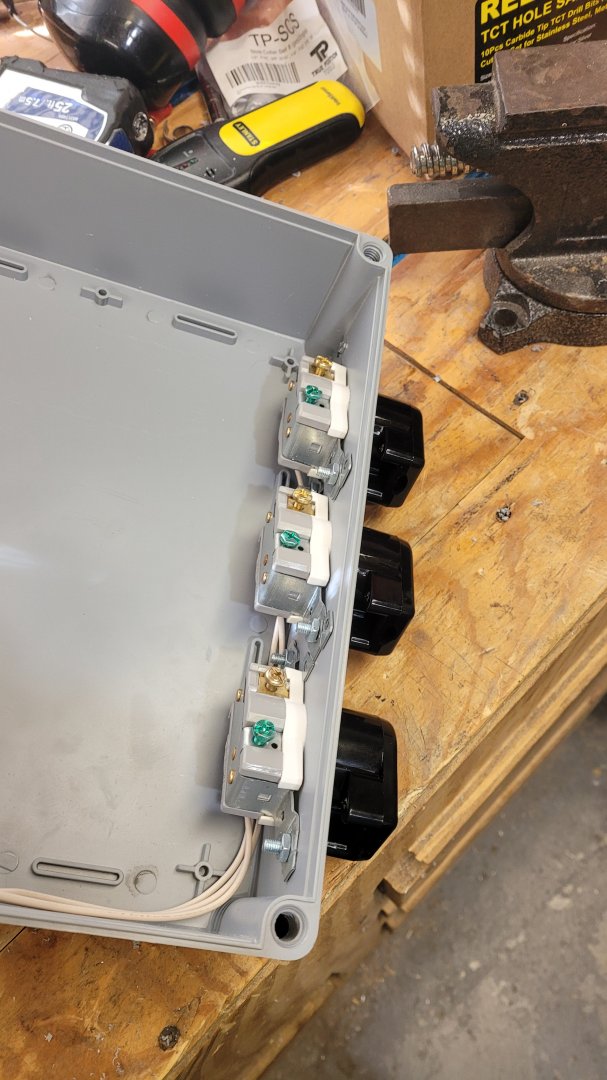

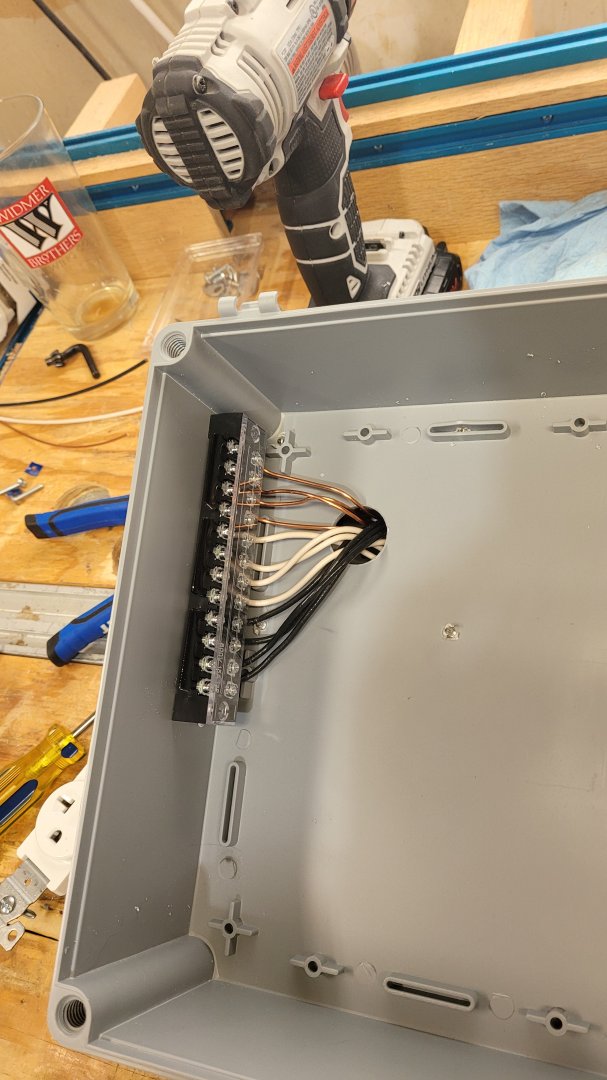

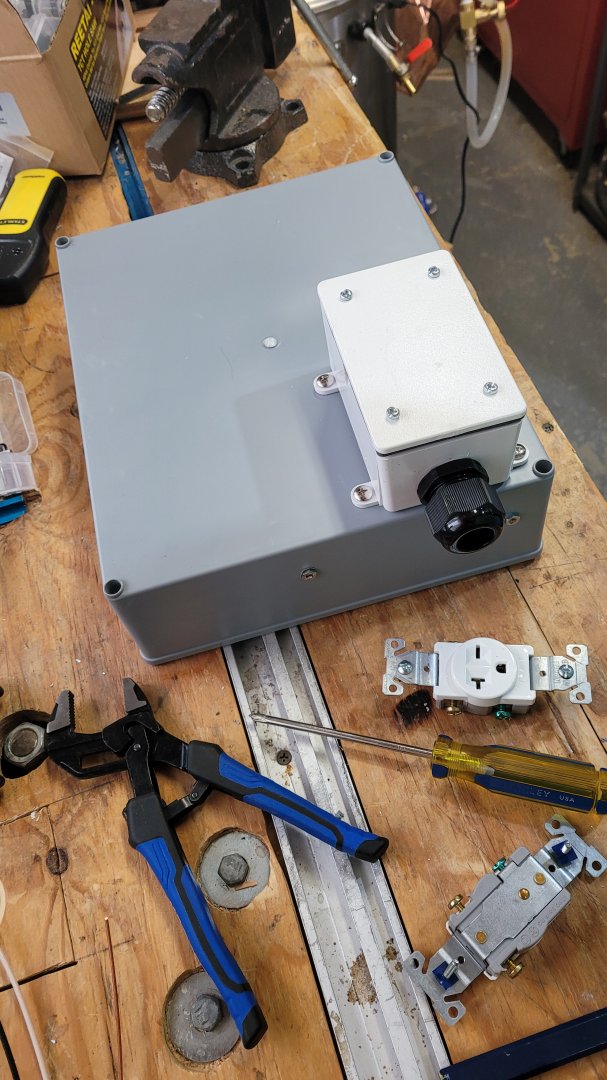

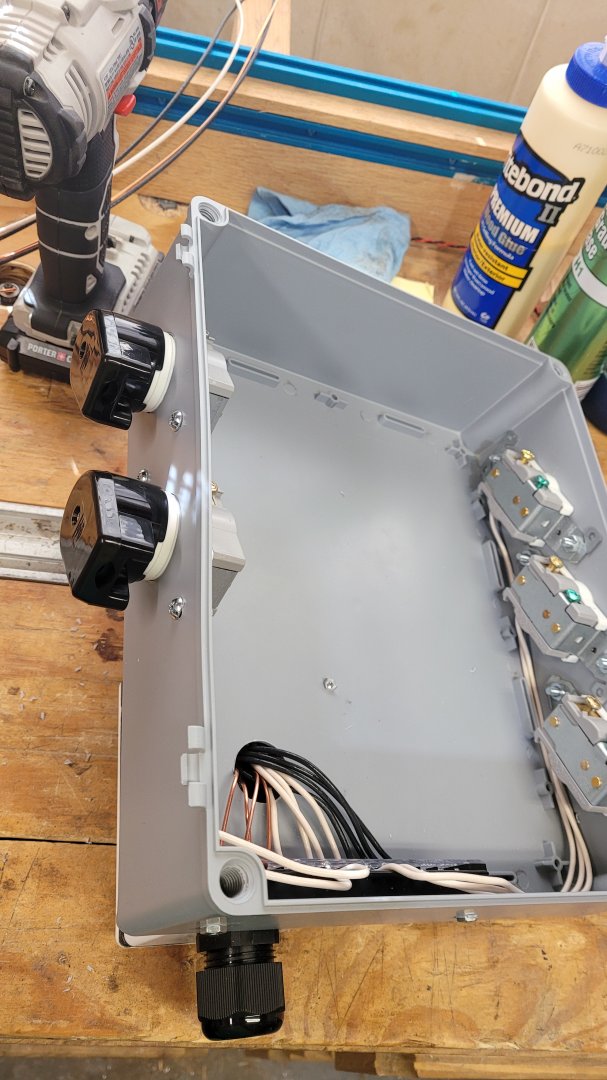

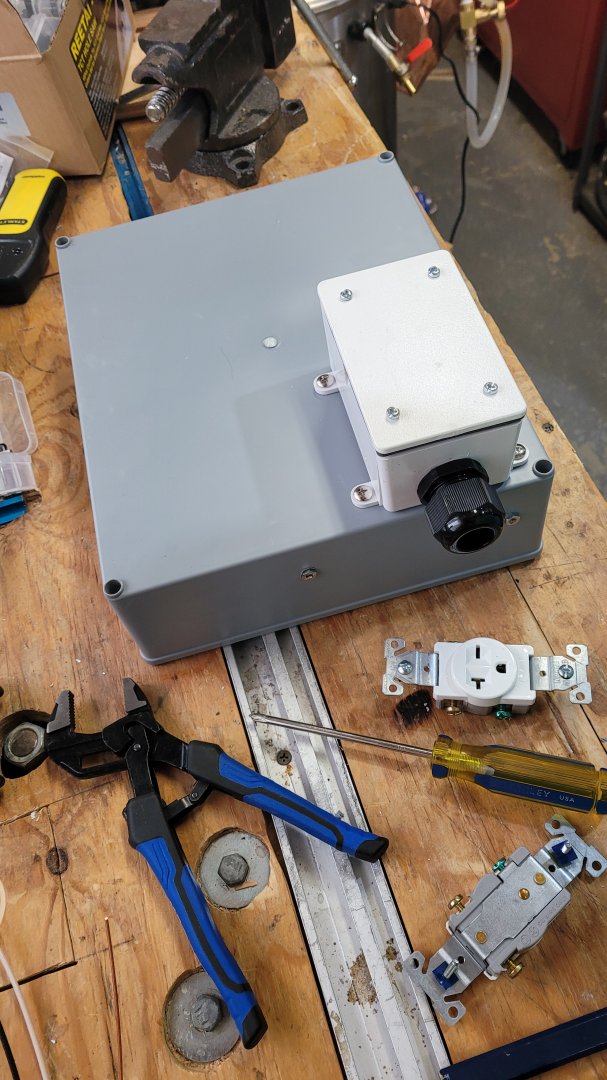

    Got the power sockets installed in the relay box.
    20220326_145126.jpg 20220326_145205.jpg 20220326_154137.jpg 20220326_154149.jpg 20220326_161359.jpg

  15. Craigerrr

    Craigerrr Well-Known Member

    Joined:
    Mar 14, 2018
    Messages:
    6,955
    Likes Received:
    11,448
    Trophy Points:
    113
    Minbari likes this.
  16. Trialben

    Trialben Well-Known Member

    Joined:
    Mar 30, 2016
    Messages:
    12,089
    Likes Received:
    15,623
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    Pest control tech
    Location:
    Palmwoods QLD
    Very pro man love your work!

    Minbari likes this.
  17. Minbari

    Minbari Well-Known Member

    Joined:
    Mar 31, 2021
    Messages:
    973
    Likes Received:
    1,444
    Trophy Points:
    93
    Gender:
    Male
    Occupation:
    fuel hauler
    Location:
    STL
    I just hope it all fits. Lol. Gonna be tight

    HighVoltageMan! and Trialben like this.
  18. Donoroto

    Donoroto Well-Known Member

    Joined:
    Jun 21, 2020
    Messages:
    2,543
    Likes Received:
    4,207
    Trophy Points:
    113
    Occupation:
    Retired Engineer
    Location:
    Atlanta
    Beautiful work!

  19. RoadRoach

    RoadRoach Well-Known Member

    Joined:
    Apr 26, 2021
    Messages:
    413
    Likes Received:
    680
    Trophy Points:
    93
    Location:
    Central Alabama
    Must be some electrical engineer in his blood. Pretty neat wiring work, and stuffing everything possible into each box. Well done, indeed. Neat is a good thing, and sure helps down the road for troubleshooting. Did you (are you) making any drawings for that as you build it? I'd bet there's more than one brewer out there that would pay pretty good money for one like it.

    I love fabricating things as well, but just don't have the time yet. Still catching up on all the honey-dos that piled up in a 40 year career of engineering, fabricating, installing, and inspecting things for someone else. Never had time for my own projects. Now I do, except for the little problem of all the other higher priority projects it takes to modernize a 50 year old house and clear up a couple acres that have been feral for 50 years. You know, that business before pleasure thing.

    But I get some pretty darn good ideas in this forum, that's for sure.

    This thing will definitely give a lot more control over temperature since it's analog and not waiting for a min/max temp to occur and close a contact. Anything that uses binary inputs for control will naturally oscillate. Can't stop it. A good PID loop with a little bit of integral gain will/should control the temperature within a degree or two of setpoint quite easily, possibly closer depending on the resolution and full scale of the inputs. Now ya gotta do the graphics showing the volumes, piping, pump status, heater/chiller status, etc. etc. etc. One word. Wonderware. One of the best HMI packages I've ever seen. Might be a little pricy, though. Haven't looked at it lately, but put a lot of HMI systems in with it through my career. I'm watching this now.

  20. HighVoltageMan!

    HighVoltageMan! Well-Known Member

    Joined:
    Feb 2, 2015
    Messages:
    1,309
    Likes Received:
    1,749
    Trophy Points:
    113
    Location:
    Big Lake MN
    Just force the cover down, never mind the bulge!

    Josh Hughes, Craigerrr and Minbari like this.
