8 inches =5 gallons in my brew pot

Discussion in 'General Brewing Discussions' started by Russ, Oct 30, 2015.

  1. Arbe0

    Arbe0 Member

    Joined:
    Sep 9, 2012
    Messages:
    100
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Aurora , Co
    Hay guys I just figured this out (all the smart guys already know this)
    My brew pot is 13.5 inches round inside dimensions and 17.5 inches tall inside dimensions.
    the radius of my pot is 13.5 / .5 = 6.75 inches
    I want to know how many inches it takes to get 5 gallons in my pot
    the formula is.....Pie x radius x radius ...(3.14 x 6.75 x 6.75 = 143.06625... or just 143 for my pot)
    to find the gallons the formula is..... inches x 143 Divide by 231 = gallons
    sooo 8 inches tall x 143 Divided by 231 is 4.95 gallons or close enough to 5 gallons in my pot
    9.75 inches tall x 143 Divided by 231 is 6 gallons of water.
    etc.
    now I can use my measuring stick to figure out how many gallons of water are in my boil pot.
    or just use the long plastic spoon I normally use for mashing with markings on it.

  2. coolitfast

    coolitfast New Member

    Joined:
    Feb 26, 2015
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    1
    Take a piece of lead free 1/8 solder about 20 inches long. Fold in half a bend a hook at the fold to hang on the inside your pot. Cut the two ends in the pot at what ever pre boil and post boil levels you need. It will become part of your kettle.

  3. Nosybear

    Nosybear Well-Known Member

    Joined:
    Jul 16, 2012
    Messages:
    9,378
    Likes Received:
    6,608
    Trophy Points:
    113
    Location:
    Aurora, CO, USA
    You aren't accounting for "rounds" at the bottom of your pot or for any valves, false bottoms, screens or so but your math is sound and should provide you a close enough approximation. The formula for volume of a cylinder, the approximation of a brew pot, is pi*radius squared*height. 231 square inches is a gallon. There's another method: Pour a gallon of water into your pot, etch a line at the waterline. Repeat. That would account for any loss of volume to rounds, etc.

  4. jmcnamara

    jmcnamara Well-Known Member

    Joined:
    Aug 29, 2012
    Messages:
    2,457
    Likes Received:
    1,947
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Rosedale, MD
    This is what i do whenever i get a carboy

  5. LlewellynBrewHaus

    LlewellynBrewHaus Active Member

    Joined:
    Oct 1, 2015
    Messages:
    262
    Likes Received:
    143
    Trophy Points:
    43
    Gender:
    Male
    Location:
    central Iowa

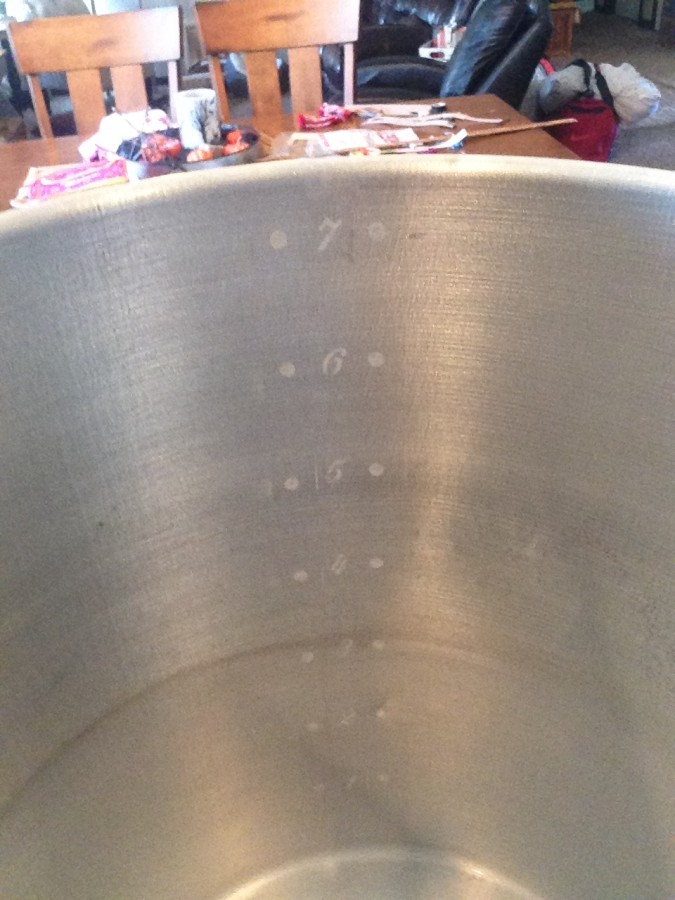

    Jmac the math method is nice...but if ya got time and like DIY i would recommend doing a home electro-etch on the inside. doesnt take but a couple hours and is permanent- looks "pro" too :D


    Attached Files:

  6. jmcnamara

    jmcnamara Well-Known Member

    Joined:
    Aug 29, 2012
    Messages:
    2,457
    Likes Received:
    1,947
    Trophy Points:
    113
    Gender:
    Male
    Location:
    Rosedale, MD
    that does look pretty good. seems to be a bit more legible than the markings on my kettle (they're more readable from the outside)

  7. GernBlanston

    GernBlanston New Member

    Joined:
    Mar 22, 2014
    Messages:
    317
    Likes Received:
    2
    Trophy Points:
    0
    I have a stainless kettle spoon and have engraved the lines and numbers on it. Why have a separate dipstick? This is already in the kettle. Of course it only is accurate for that size kettle, but, you know. Anyway, here is a shortcut:

    http://kotmf.com/tools/dipstick.php

    Nosybear does math for fun, but this calculator saves us "Non Engineer" types from the drudgery.

    I do like the electro-etch design though.

  8. Ozarks Mountain Brew

    Staff Member

    Joined:
    Nov 20, 2012
    Messages:
    7,767
    Likes Received:
    3,976
    Trophy Points:
    113
    Gender:
    Male
    Occupation:
    IT Managment
    Location:
    The Ozark Mountains of Missouri

    Attached Files:

  9. Arbe0

    Arbe0 Member

    Joined:
    Sep 9, 2012
    Messages:
    100
    Likes Received:
    8
    Trophy Points:
    18
    Location:
    Aurora , Co
    Thanks everyone for the response. You have given me some nice ideas.

  10. oliver

    oliver Well-Known Member

    Joined:
    Sep 21, 2015
    Messages:
    959
    Likes Received:
    371
    Trophy Points:
    63
    Occupation:
    LHBS owner
    Location:
    NOLA
    cheapest option, go to the hardware store and buy a metal ruler with no cork backing or anything on it. Something long enough to measure the whole pot too. Then i pour in 2 quarts at a time, measure the millimeters of water in it, and continue to record measurements 2 quarts at a time. There's a "chart" hanging on my fridge. I sanitize my ruler with everything else on brew day to get quick wort measurements.
